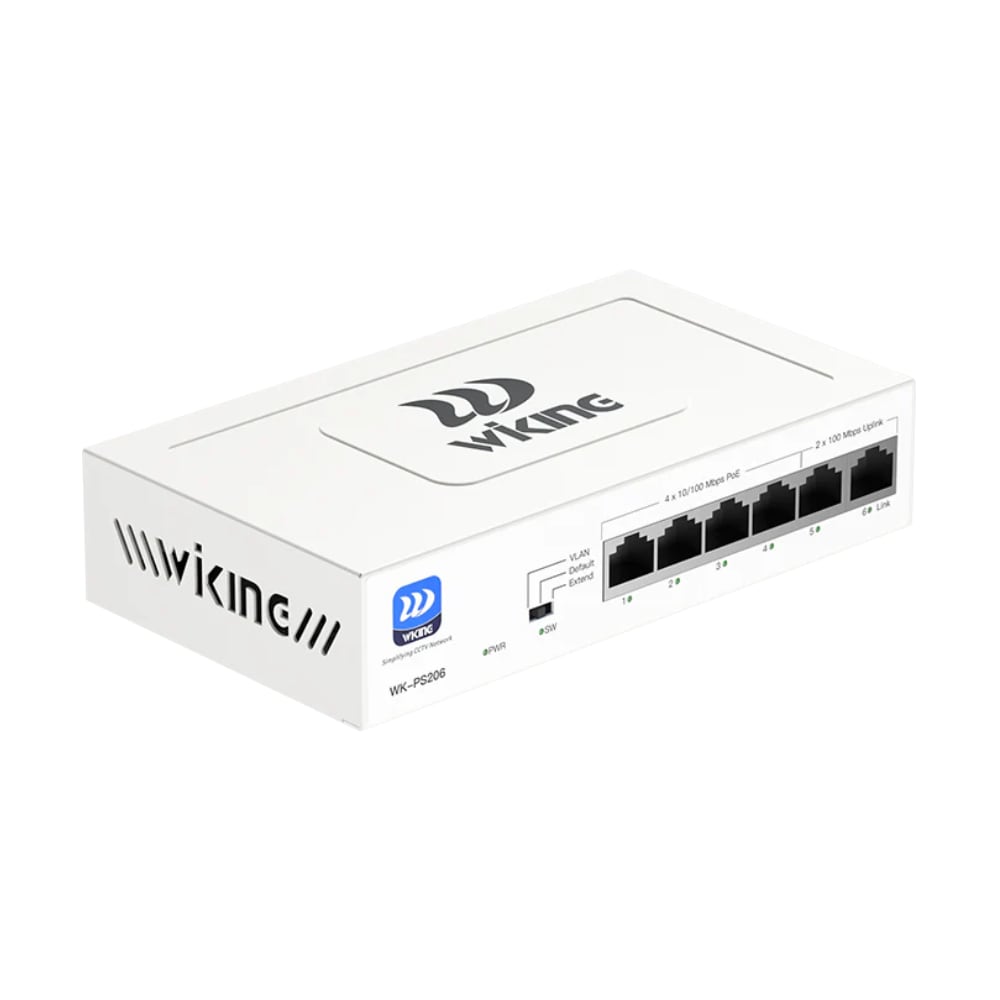

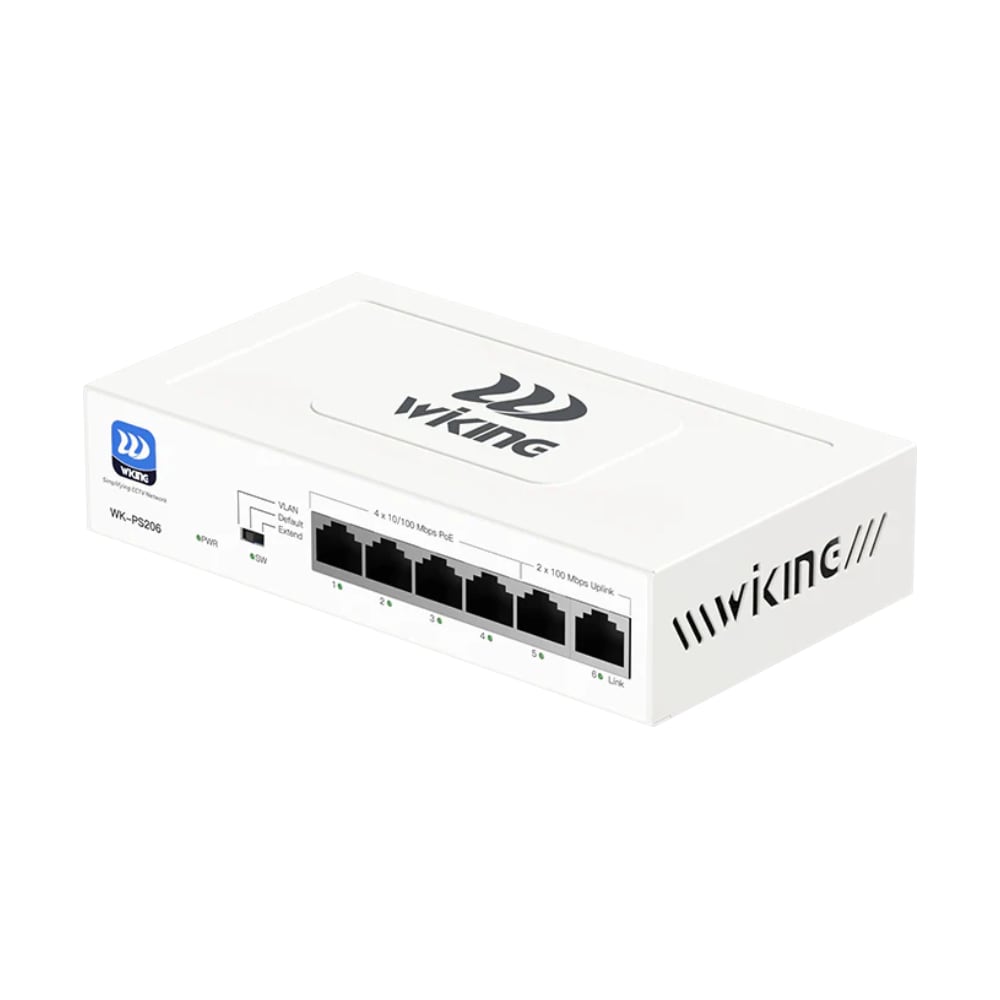

Wi-Tek Wiking WK-PS206 4-Port PoE Switch (2 Uplinks, 45W PoE)

Description

The Wi-Tek Wiking WK-PS206 is a compact 4-port 100Mbps PoE switch with 2 uplink ports, designed for cost-effective and reliable CCTV and IP device networking. Supporting a 45W PoE budget, it powers up to 4 PoE-enabled devices with IEEE 802.3af/at compliance.

Equipped with smart DIP switch modes, the WK-PS206 allows 250m long-distance PoE transmission, VLAN port isolation for security, and PD Alive watchdog to automatically reboot unresponsive devices.

Its fanless metal housing provides silent and durable operation, making it perfect for surveillance systems, small business networks, and hospitality environments where quiet reliability is essential.

Key Features

  • 4 × 10/100Mbps PoE Ports + 2 Uplink Ports for flexible connectivity
  • IEEE 802.3af/at Compliant (up to 30W per port)
  • 45W Total PoE Budget for powering multiple IP devices
  • 250m Extend Mode for long-distance PoE transmission
  • VLAN Mode isolates downlink ports to improve network security
  • PD Alive Watchdog auto-reboots offline PoE devices
  • Fanless Metal Housing ensures quiet, reliable performance
  • Plug-and-Play Installation — no configuration required
  • Compact Desktop/Wall-Mount Design for flexible deployment
  • Certified Safe: CE, FCC, RoHS, UKCA, RCM

Technical Specifications

Brand / Model Wi-Tek Wiking WK-PS206
SKU WK-PS206
Downlink Ports 4 × 10/100 Mbps RJ45 PoE (IEEE 802.3af/at, up to 30 W per port) [oai_citation:0‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
Uplink Ports 2 × 10/100 Mbps RJ45 [oai_citation:1‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
Total PoE Budget 45 W (pins 1/2 +, 3/6 –) [oai_citation:2‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
Switching Capacity 1.2 Gbps [oai_citation:3‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
Forwarding Rate 0.89 Mpps [oai_citation:4‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
MAC Address Table 2K [oai_citation:5‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
Buffer / Jumbo Frame 768 Kbit buffer; 15 KB jumbo frame [oai_citation:6‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
Forwarding Mode Store-and-Forward [oai_citation:7‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
DIP Switch Modes
Default: 100 m PoE @ 100 Mbps (VLAN & PD-Alive off).
VLAN: Downlink port isolation to uplinks; PD-Alive enabled.
Extend: Up to 250 m @ 10 Mbps; PD-Alive enabled.
PD-Alive: Auto-reboots unresponsive PoE devices.

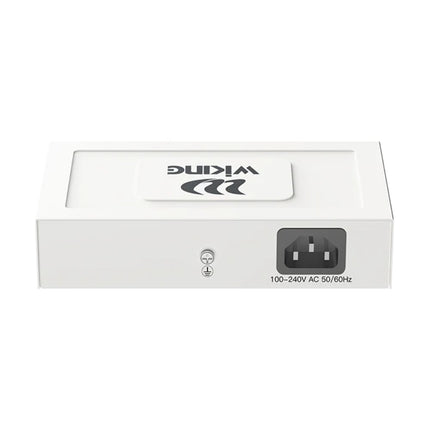

Power Input 100–240 V AC, 50/60 Hz [oai_citation:8‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
Power Consumption Idle: 10 W; Full load (PoE + traffic): 55 W [oai_citation:9‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
Housing / Cooling Metal (iron), fanless [oai_citation:10‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
Installation Desktop / Wall-mount [oai_citation:11‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
Dimensions 160 × 90 × 35 mm (switch); 245 × 190 × 60 mm (package) [oai_citation:12‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
Weight 0.37 kg (net); 0.64 kg (package) [oai_citation:13‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
LED Indicators
PWR: On = power OK
Link: On = link; Blinking = activity
SW: On = VLAN; Blinking = Extend; Off = Default [oai_citation:14‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
Standards IEEE 802.3, 802.3u, 802.3x; compatible with 802.3af/at [oai_citation:15‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
Operating / Storage 0–40 °C, 10–90% RH; storage –40–70 °C, 5–90% RH [oai_citation:16‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
Surge / ESD IEC 61000-4-5: CM ±4 kV, DM ±2 kV; IEC 61000-4-2: Contact ±6 kV, Air ±8 kV [oai_citation:17‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
Certifications CE, FCC, RoHS, UKCA, RCM [oai_citation:18‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
Package Contents Switch, AC power cord, Quick Installation Guide [oai_citation:19‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)

The WK-PS206 PoE Switch is ideal for:

  • Small CCTV Networks – power and connect up to 4 IP cameras.
  • Retail & Office Environments – VLAN mode enhances network security.
  • Hospitality & Hotels – silent fanless design ensures noise-free operation.
  • Entry-Level PoE Deployments – cost-effective power for APs, IP phones, and cameras.

Its compact form factor, plug-and-play setup, and PD Alive watchdog make it a reliable choice for small-scale PoE applications.

Wi-Tek Wiking WK-PS206 4-Port PoE Switch (2 Uplinks, 45W PoE)

Product form

SKU: WK-PS206

The Wi-Tek Wiking WK-PS206 is a compact 4-port 100Mbps PoE switch with 2 uplink ports, designed for cost-effective and reliable... Read more

$46.00 Incl. GST

    • Dispatch today? Order within: Apr 01, 2026 14:00:00 +1100
    • Warranty: 36 months
    • 30 day money back guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support

      Description

      The Wi-Tek Wiking WK-PS206 is a compact 4-port 100Mbps PoE switch with 2 uplink ports, designed for cost-effective and reliable CCTV and IP device networking. Supporting a 45W PoE budget, it powers up to 4 PoE-enabled devices with IEEE 802.3af/at compliance.

      Equipped with smart DIP switch modes, the WK-PS206 allows 250m long-distance PoE transmission, VLAN port isolation for security, and PD Alive watchdog to automatically reboot unresponsive devices.

      Its fanless metal housing provides silent and durable operation, making it perfect for surveillance systems, small business networks, and hospitality environments where quiet reliability is essential.

      Key Features

      • 4 × 10/100Mbps PoE Ports + 2 Uplink Ports for flexible connectivity
      • IEEE 802.3af/at Compliant (up to 30W per port)
      • 45W Total PoE Budget for powering multiple IP devices
      • 250m Extend Mode for long-distance PoE transmission
      • VLAN Mode isolates downlink ports to improve network security
      • PD Alive Watchdog auto-reboots offline PoE devices
      • Fanless Metal Housing ensures quiet, reliable performance
      • Plug-and-Play Installation — no configuration required
      • Compact Desktop/Wall-Mount Design for flexible deployment
      • Certified Safe: CE, FCC, RoHS, UKCA, RCM

      Technical Specifications

      Brand / Model Wi-Tek Wiking WK-PS206
      SKU WK-PS206
      Downlink Ports 4 × 10/100 Mbps RJ45 PoE (IEEE 802.3af/at, up to 30 W per port) [oai_citation:0‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
      Uplink Ports 2 × 10/100 Mbps RJ45 [oai_citation:1‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
      Total PoE Budget 45 W (pins 1/2 +, 3/6 –) [oai_citation:2‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
      Switching Capacity 1.2 Gbps [oai_citation:3‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
      Forwarding Rate 0.89 Mpps [oai_citation:4‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
      MAC Address Table 2K [oai_citation:5‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
      Buffer / Jumbo Frame 768 Kbit buffer; 15 KB jumbo frame [oai_citation:6‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
      Forwarding Mode Store-and-Forward [oai_citation:7‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
      DIP Switch Modes
      Default: 100 m PoE @ 100 Mbps (VLAN & PD-Alive off).
      VLAN: Downlink port isolation to uplinks; PD-Alive enabled.
      Extend: Up to 250 m @ 10 Mbps; PD-Alive enabled.
      PD-Alive: Auto-reboots unresponsive PoE devices.
      Power Input 100–240 V AC, 50/60 Hz [oai_citation:8‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
      Power Consumption Idle: 10 W; Full load (PoE + traffic): 55 W [oai_citation:9‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
      Housing / Cooling Metal (iron), fanless [oai_citation:10‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
      Installation Desktop / Wall-mount [oai_citation:11‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
      Dimensions 160 × 90 × 35 mm (switch); 245 × 190 × 60 mm (package) [oai_citation:12‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
      Weight 0.37 kg (net); 0.64 kg (package) [oai_citation:13‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
      LED Indicators
      PWR: On = power OK
      Link: On = link; Blinking = activity
      SW: On = VLAN; Blinking = Extend; Off = Default [oai_citation:14‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
      Standards IEEE 802.3, 802.3u, 802.3x; compatible with 802.3af/at [oai_citation:15‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
      Operating / Storage 0–40 °C, 10–90% RH; storage –40–70 °C, 5–90% RH [oai_citation:16‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
      Surge / ESD IEC 61000-4-5: CM ±4 kV, DM ±2 kV; IEC 61000-4-2: Contact ±6 kV, Air ±8 kV [oai_citation:17‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
      Certifications CE, FCC, RoHS, UKCA, RCM [oai_citation:18‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)
      Package Contents Switch, AC power cord, Quick Installation Guide [oai_citation:19‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS)

      The WK-PS206 PoE Switch is ideal for:

      • Small CCTV Networks – power and connect up to 4 IP cameras.
      • Retail & Office Environments – VLAN mode enhances network security.
      • Hospitality & Hotels – silent fanless design ensures noise-free operation.
      • Entry-Level PoE Deployments – cost-effective power for APs, IP phones, and cameras.

      Its compact form factor, plug-and-play setup, and PD Alive watchdog make it a reliable choice for small-scale PoE applications.
