Description
The Wi-Tek Wiking WK-PS219GF is a robust 16-port 100Mbps PoE switch designed for professional CCTV and IP deployments. With 2 gigabit RJ45 uplinks and 1 SFP slot, it provides flexible network expansion. Delivering a 180W PoE budget, it powers multiple cameras, access points, and IP devices with stability and efficiency.
Port 1 supports Hi-PoE 60W for high-demand devices like PTZ cameras, while Ports 2–16 comply with IEEE 802.3af/at standards. A smart DIP switch enables 250m Extend mode, VLAN isolation, and PD Alive watchdog to auto-reboot unresponsive devices.
The fanless metal housing ensures silent operation, while desktop or rack-mount options make it versatile for businesses, hotels, and surveillance networks.
Key Features
-

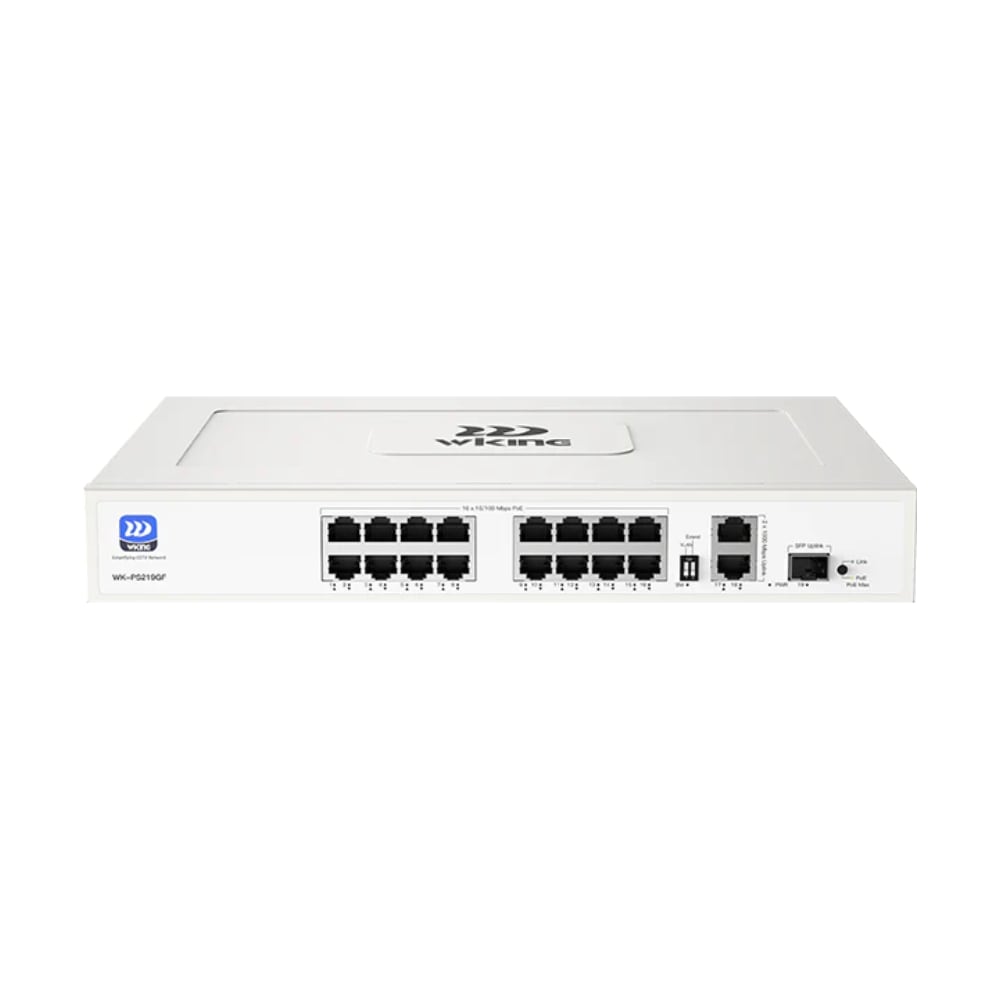

16 × 10/100Mbps PoE Ports for IP cameras and devices
-
Port 1 Hi-PoE 60W, Ports 2–16 support IEEE 802.3af/at (30W each)
-
180W Total PoE Power Budget
-
2 × Gigabit RJ45 Uplinks + 1 × Gigabit SFP for flexible expansion
-
250m Extend Mode for long-distance PoE transmission
-
VLAN Isolation Mode prevents broadcast storms
-
PD Alive Watchdog auto-reboots offline devices
-
Fanless Metal Housing for quiet and reliable operation
-
Plug-and-Play Setup, no configuration required
-
Desktop or Rack-Mount Installation
-
Certified: CE, FCC, RoHS, UKCA, RCM
Technical Specifications
| Technical Specifications — Wi-Tek Wiking WK-PS219GF |
| Brand / Model |
Wi-Tek Wiking WK-PS219GF |
| SKU |
WK-PS219GF |
| Downlink Ports |
16 × 10/100 Mbps RJ45 PoE |
| Uplink Ports |
2 × 10/100/1000 Mbps RJ45, 1 × 1000 Mbps SFP |
| PoE Standards |
Port 1: Hi-PoE up to 60 W; Ports 2–16: IEEE 802.3af/at (30 W each) |
| Total PoE Budget |
180 W |
| Switching Capacity |
9.2 Gbps |
| Forwarding Rate |
6.84 Mpps |
| MAC Address Table |
2K |
| Buffer / Jumbo Frame |
768 Kbit buffer; 2 KB jumbo frame |
| Forwarding Mode |
Store-and-Forward |
| DIP Switch Modes |
Default: 100 m standard mode.
VLAN: Downlink port isolation; PD Alive watchdog enabled.
Extend: Up to 250 m @ 10 Mbps; PD Alive watchdog enabled.
|

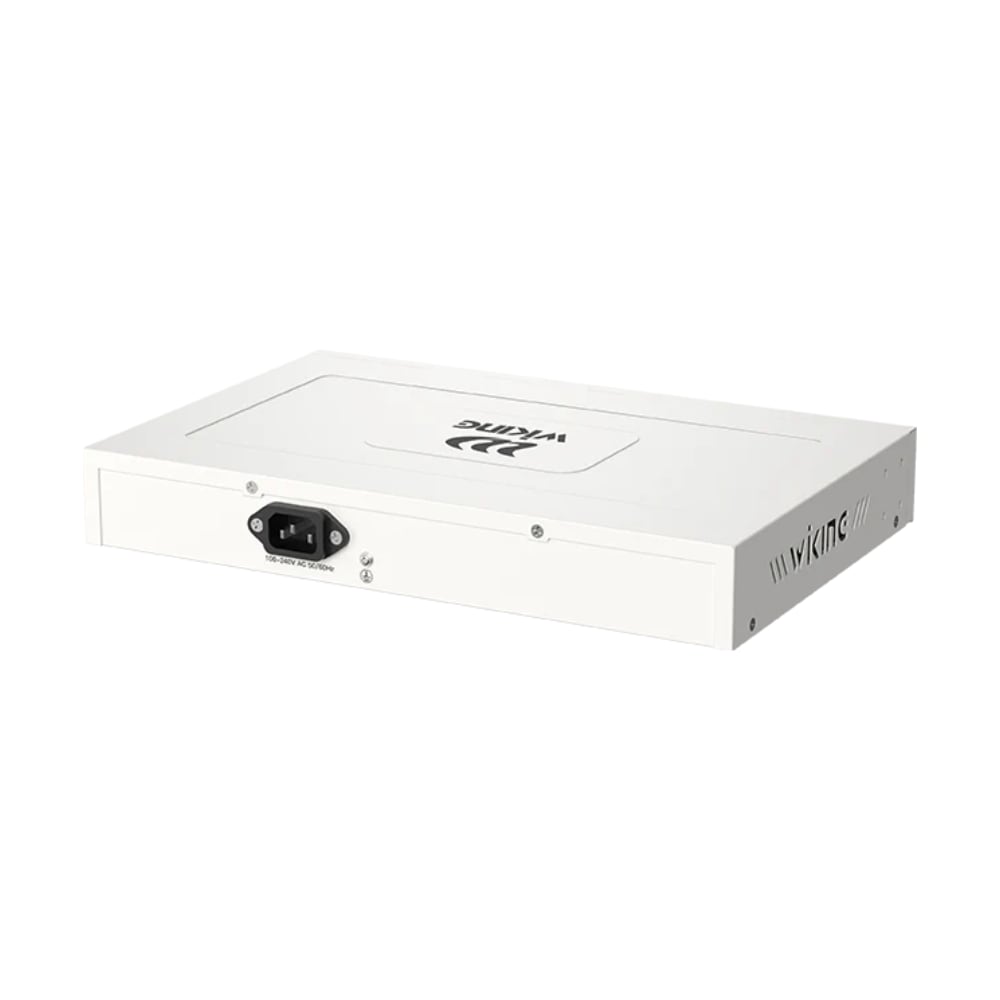

| Power Input |
100–240 V AC, 50/60 Hz |
| Power Consumption |
Idle: 10 W; Full load: 190 W |
| Housing / Cooling |
Metal (iron), fanless |
| Installation |
Desktop / Rack-mount |

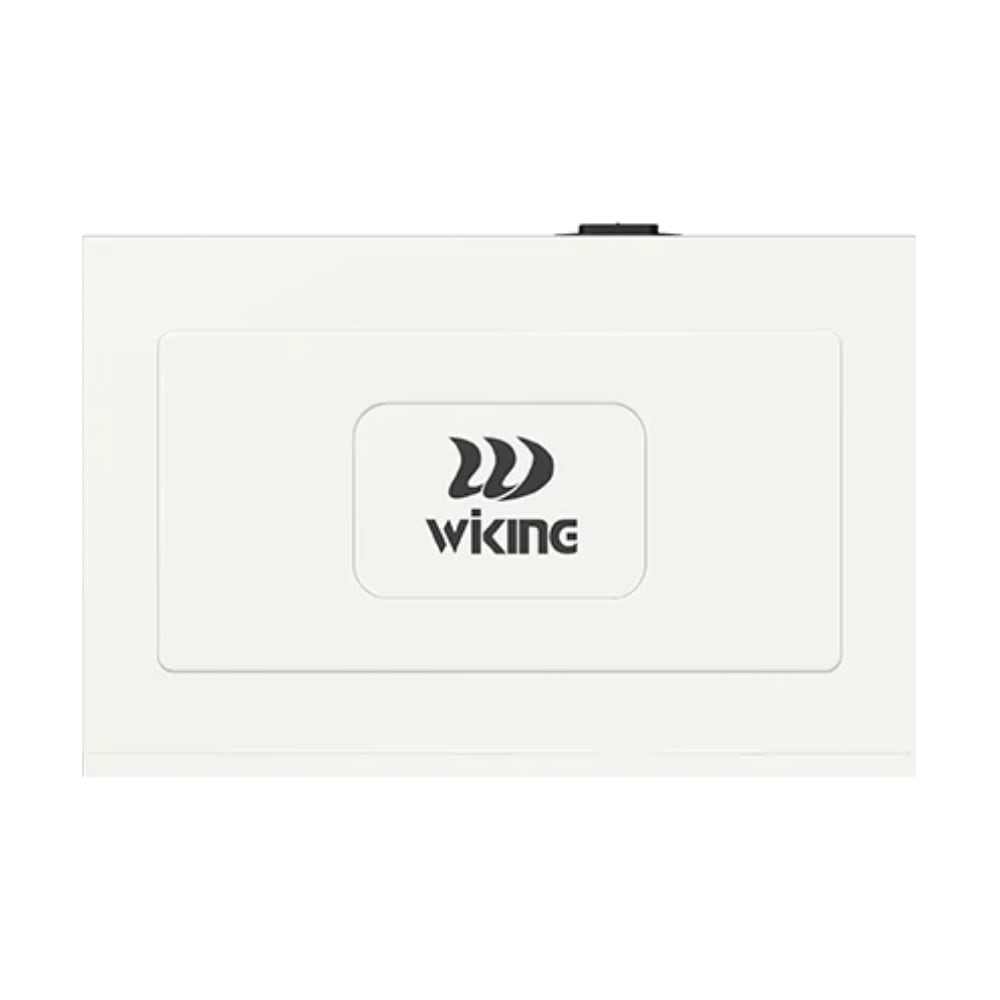

| Dimensions |
320 × 207 × 45 mm |
| Weight |
1.61 kg (net); 2.14 kg (package) |
| LED Indicators |
PWR: System power status
PoE: PoE enabled/disabled
Link: On = link; Blinking = activity
SW: VLAN/Extend/PD Alive mode status
PoE Max: On ≥95% usage; Blinking 90–95%; Off <90%
|
| Operating / Storage |
–10 °C to 50 °C, 10–90% RH; Storage –40 °C to 70 °C, 5–95% RH |
| Surge / ESD Protection |
±4 kV CM, ±2 kV DM; ±6 kV contact, ±8 kV air |
| Certifications |
CE, FCC, RoHS, UKCA, RCM |
| Package Contents |
Switch, AC power cord, Quick Installation Guide, Mounting accessories (hooks ×2, screws ×8) |
