Wi-Tek CCTV PoE Infrastructure
24-Port PoE Power for Professional CCTV Networks

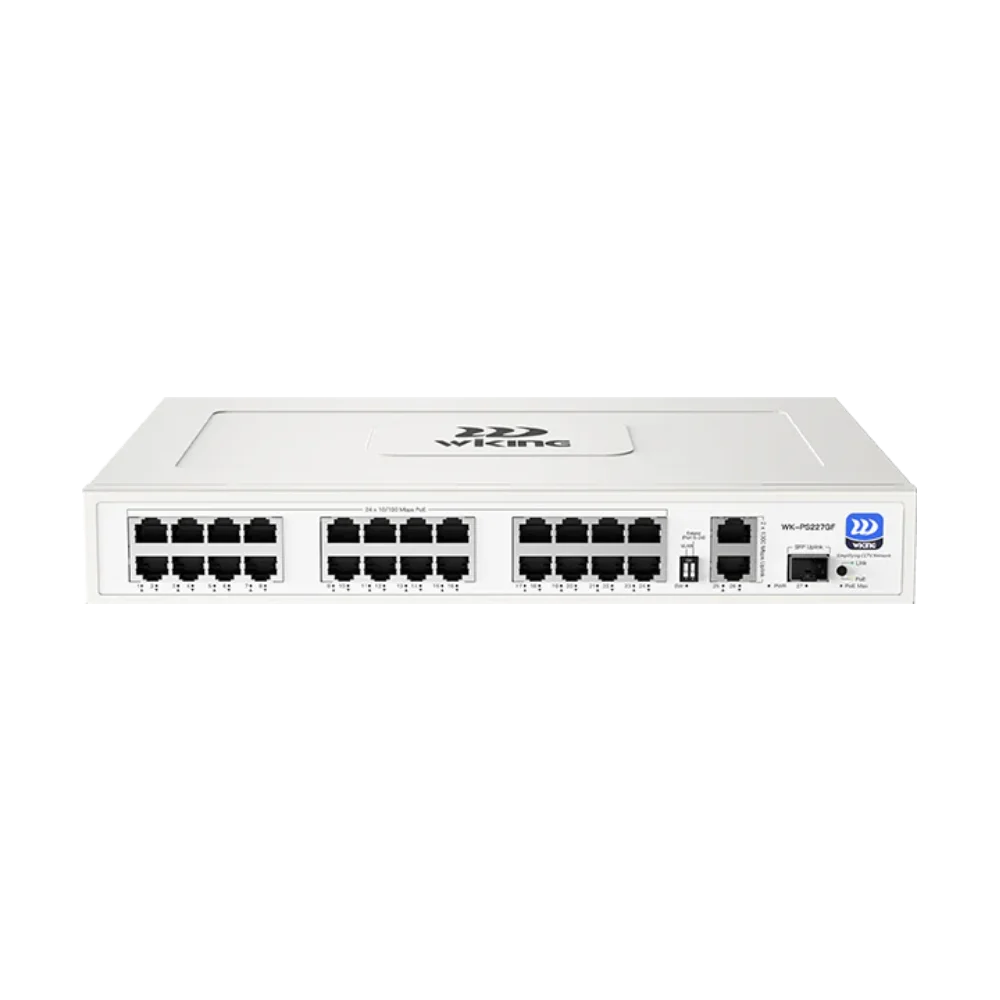

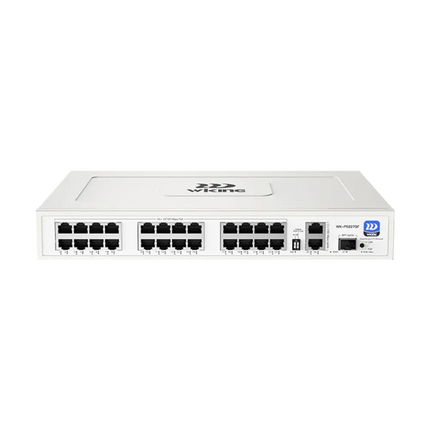

The Wi-Tek WK-PS227GF is a practical 24-port PoE switch built for surveillance, business networking and installer-led CCTV projects.
With 24 PoE ports, Gigabit uplinks, an SFP slot and a total PoE budget of up to 280W, it gives installers a clean way to power
multiple IP cameras while keeping the network simple, tidy and reliable.
Built for CCTV Installers, Businesses and Growing Sites
A good CCTV system depends on more than cameras and an NVR. The switch behind the system needs enough ports, enough PoE budget
and stable uplink options to support the cameras on site. The WK-PS227GF is designed for security camera installations where
multiple PoE devices need to be powered from one central network point.
It is well suited to retail stores, warehouses, offices, car parks, access control points and commercial CCTV upgrades where
a simple plug-and-play PoE switch is preferred over complex network configuration.
Why Choose the Wi-Tek WK-PS227GF?
280W PoE Budget
Supports a total PoE power budget of up to 280W, giving CCTV installers practical headroom for multi-camera IP surveillance systems.
24 PoE Camera Ports
Includes 24 x 10/100Mbps PoE ports for powering IP cameras, access control devices and other PoE-powered network equipment.
Gigabit Uplinks + SFP
Includes 2 x 10/100/1000Mbps RJ45 uplink ports and 1 x 1000Mbps SFP slot for connection back to an NVR, router or upstream network.
250m Extend Mode
Supports 250m Extend mode on the DIP switch, useful for long cable runs where standard Ethernet distance may not be enough.
Port Isolation
DIP switch port isolation support helps separate connected devices, making it useful for security-focused CCTV network layouts.
PD Alive Function
PD Alive mode can detect and automatically reboot unresponsive PoE-powered devices, helping reduce manual site visits.
Fanless Metal Housing
The metal housing and fanless design help create a quiet installation environment for offices, small businesses and comms areas.
✅
Plug and Play
No configuration is required for standard operation, making it easier for installers and businesses to deploy quickly.
Common Applications
🏬
Retail and Offices
Power multiple indoor and outdoor CCTV cameras from one switch for shops, offices, showrooms and small commercial sites.
🏭
Warehouses and Car Parks
Suitable for surveillance layouts that need many camera points across larger areas, loading zones and parking entries.
🚪
Access Control and Network Expansion
Can support PoE-powered devices where CCTV, access control and network expansion need to share a clean infrastructure path.
Practical note: always check the total PoE wattage required by your cameras and PoE devices before choosing a switch.
Allow extra headroom for infrared, active deterrence, PTZ movement or future camera expansion.
Official Specifications
| Model |
WK-PS227GF |
| PoE Ports |
24 x 10/100Mbps PoE ports |
| RJ45 Uplink Ports |
2 x 10/100/1000Mbps RJ45 uplink ports |
| SFP Slot |
1 x 1000Mbps SFP slot |
| Total PoE Budget |
Up to 280W |
| Extend Mode |
Supports 250m Extend function on DIP switch |
| Port Isolation |
Supported on DIP switch |
| PD Alive |
Detects and reboots unresponsive PoE-powered devices automatically |
| Housing |
Metal housing |
| Cooling Design |
Fanless design |
| Configuration |
Plug and play, no configuration required |
Frequently Asked Questions
| Is the Wi-Tek WK-PS227GF suitable for CCTV cameras? |
Yes. It has 24 PoE ports and is suitable for powering multiple IP CCTV cameras in business, commercial and surveillance installations. |
| How much PoE power does it provide? |
The official Wi-Tek specification lists a total PoE power budget of up to 280W. |
| Does it have Gigabit uplink ports? |
Yes. It includes 2 x 10/100/1000Mbps RJ45 uplink ports plus 1 x 1000Mbps SFP slot. |
| Does it support long cable runs? |
Yes. The switch supports 250m Extend mode on the DIP switch. This can be useful for longer CCTV cable runs where supported by the installation design. |
| What is PD Alive? |
PD Alive mode detects unresponsive PoE-powered devices and can reboot them automatically, helping reduce manual troubleshooting on site. |
| Is configuration required? |
No. The WK-PS227GF is plug and play for standard operation, with no configuration required. |
| How do I choose the right PoE switch? |
Check the number of cameras, the wattage required by each device and the total PoE budget. It is best to leave extra capacity for night vision, active deterrence cameras or future expansion. |
Build a Cleaner CCTV Network Backbone
The Wi-Tek WK-PS227GF gives installers and businesses a simple way to power up to 24 PoE devices with Gigabit uplinks,
SFP flexibility and CCTV-friendly DIP switch functions.
