Description
The WiTek WIKING WK-PS210 is a high-performance 8-port PoE switch with 2 uplinks, engineered for CCTV and IP networking. Delivering fast 100Mbps data, a 76W PoE power budget, and intelligent DIP switch controls, it ensures stability and efficiency for surveillance and business networks.
With 250m Extend Mode, VLAN port isolation, and PD Alive auto-reboot, the WK-PS210 keeps your PoE devices online without interruption. Its fanless metal housing guarantees silent operation, while the plug-and-play setup makes installation simple for both professionals and end users.
Designed for IP cameras, VoIP phones, access points, and security systems, this switch combines reliability, safety, and smart management for any PoE deployment.
Key Features
-

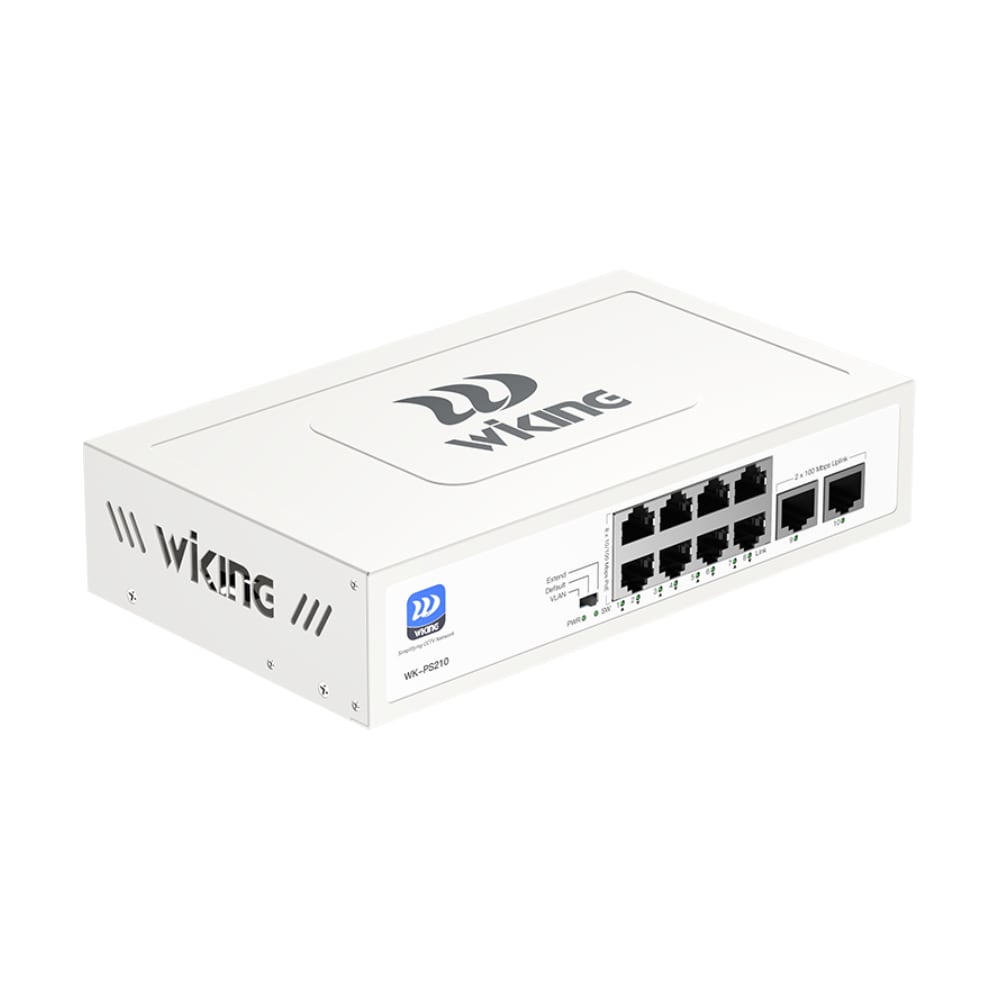

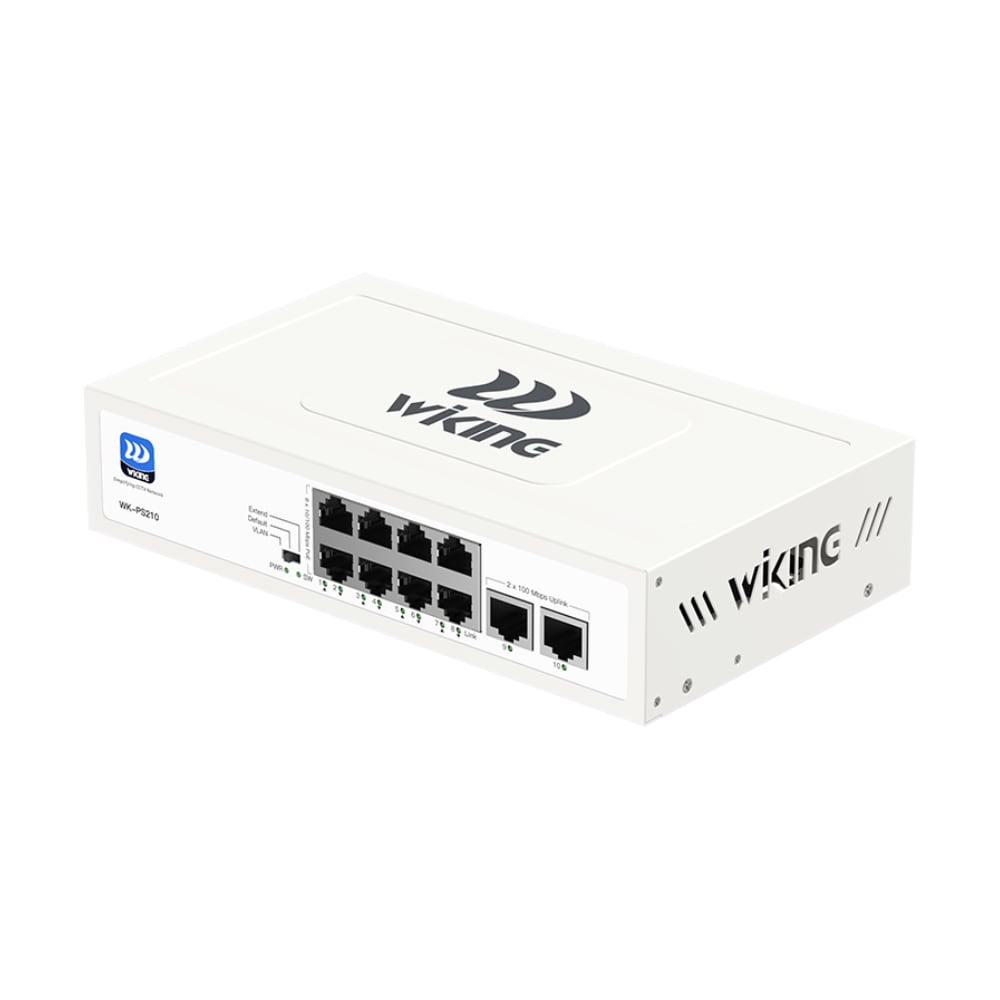

8 × 10/100Mbps PoE Ports + 2 Uplinks for powering IP cameras and devices
-
76W Total PoE Budget (IEEE 802.3af/at, up to 30W per port)
-
250m Extend Mode for long-distance PoE transmission
-
VLAN Isolation Mode to reduce broadcast storms and improve security
-
PD Alive Function auto-detects and reboots unresponsive PoE devices
-
Quiet Fanless Metal Housing for reliable, noise-free operation
-
Plug-and-Play design, no configuration required
-

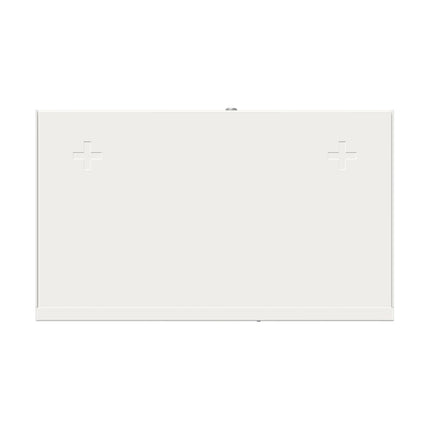

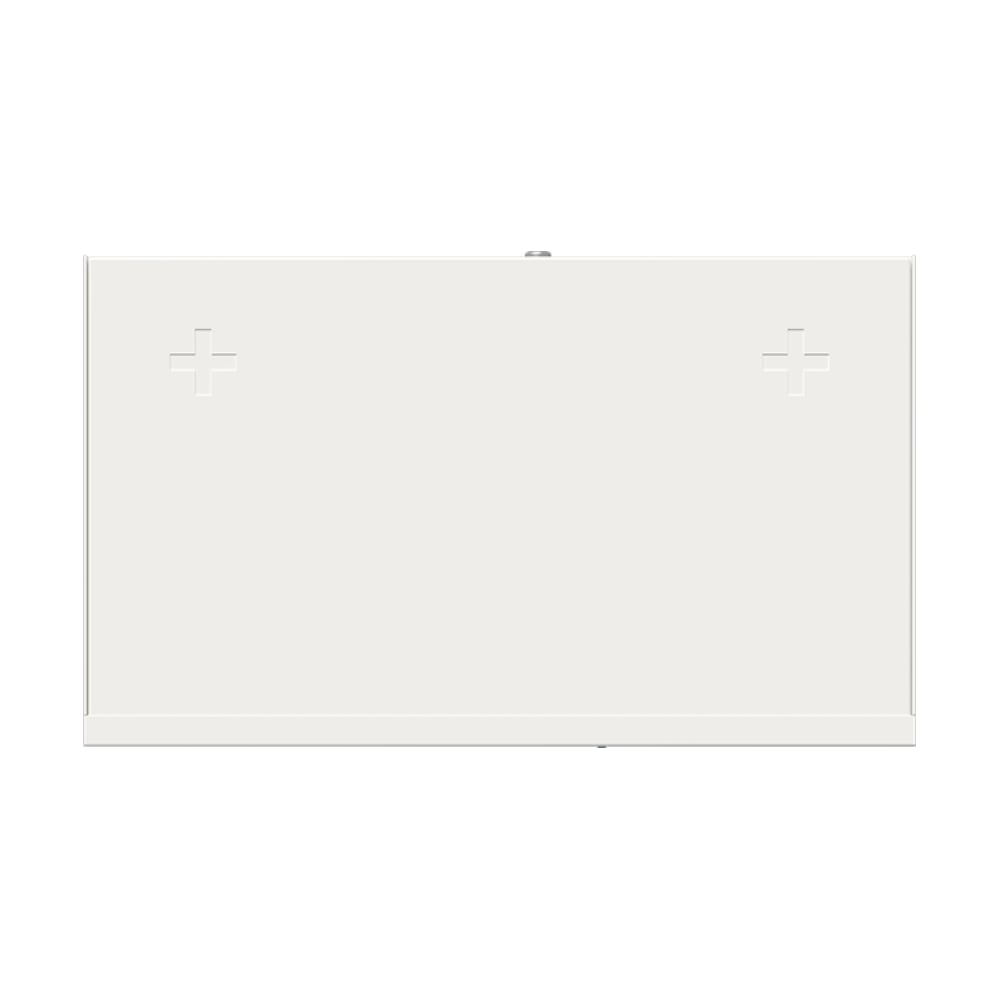

Desktop or Wall-Mount Installation for flexible deployment
-
Certified Safe with CE, FCC, RoHS, UKCA, RCM compliance
Usage
The WK-PS210 PoE Switch is designed for:
-
CCTV & IP Surveillance – power and connect multiple cameras with extended reach.
-
Small to Medium Business Networks – offices, hotels, and retail environments.
-
VoIP Phones & Access Points – stable power and data for PoE-enabled devices.
-
Remote Installations – PD Alive ensures cameras and devices stay online.
Its smart watchdog technology and long-distance PoE capability make it an excellent choice for any professional security or networking project.
| Technical Specifications — WiTek WIKING WK-PS210 |
| Brand / Model |
WiTek WIKING WK-PS210 |
| SKU |
WK-PS210 |
| Downlink Ports |
8 × 10/100 Mbps RJ45 PoE (IEEE 802.3af/at, up to 30 W per port) |
| Uplink Ports |
2 × 10/100 Mbps RJ45 |
| Total PoE Budget |
76 W (pins 1/2 +, 3/6 –) |
| Switching Capacity |
2 Gbps |
| Forwarding Rate |
1.49 Mpps |
| MAC Address Table |
2K |
| Buffer / Jumbo Frame |
768 Kbit buffer; 15 KB jumbo frame |
| Forwarding Mode |
Store-and-Forward |
| DIP Switch Modes |
Default: Standard operation, up to 100 m @ 100 Mbps.
VLAN: Downlink port isolation (to uplinks only) + PD Alive enabled.
Extend: Up to 250 m reach @ 10 Mbps + PD Alive enabled.
PD Alive: Auto-reboots unresponsive PoE devices.
|

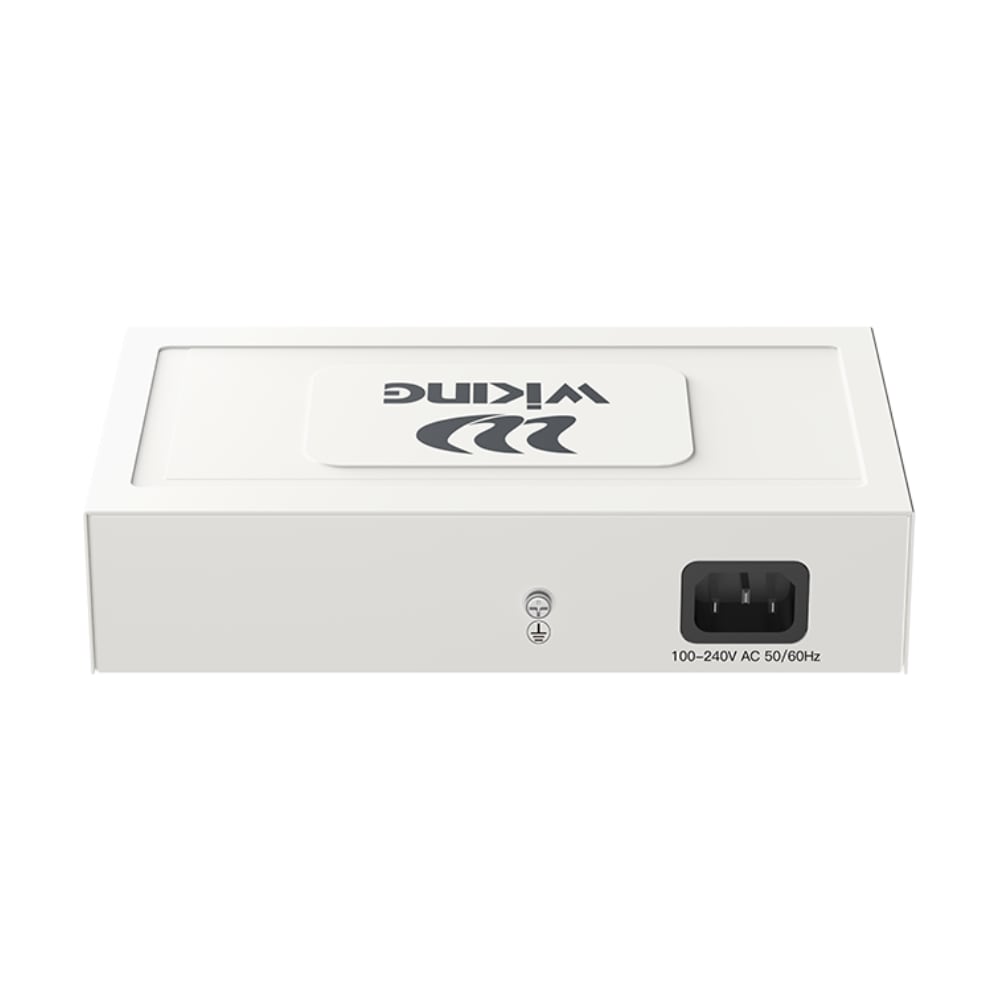

| Power Input |
100–240 V AC, 50/60 Hz |
| Power Consumption |
Idle: 14 W; Full load (PoE + traffic): 90 W |
| Housing / Cooling |
Metal (iron), fanless |
| Installation |
Desktop / Wall-mount |
| Dimensions |
200 × 118 × 44 mm (switch); 245 × 190 × 60 mm (package) |
| Weight |
0.61 kg (net); 0.92 kg (package) |

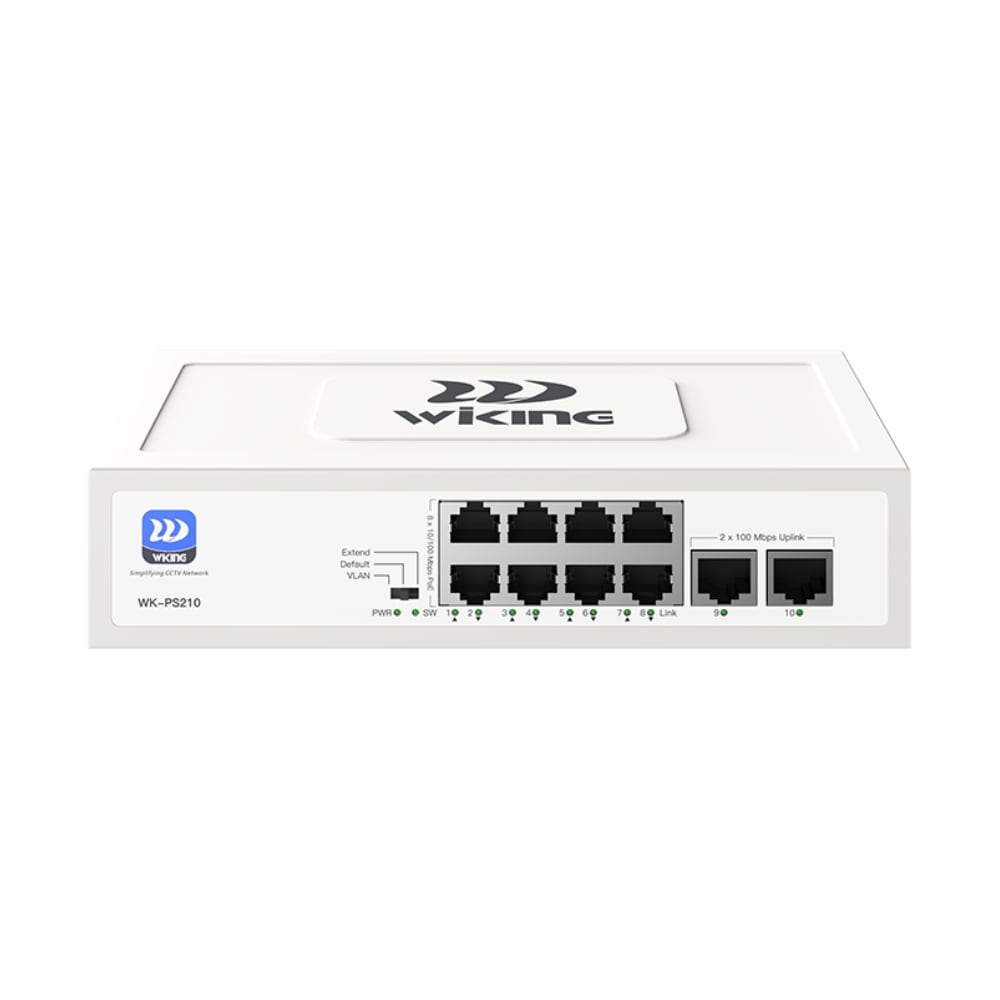

| LED Indicators |
PWR: On = power OK
Link: On = link; Blinking = activity
SW: On = VLAN; Blinking = Extend; Off = Default
|
| Standards |
IEEE 802.3, 802.3u, 802.3x; 802.3af/at compatible |
| Operating Temp / RH |
0 °C to 40 °C; 10–90% RH (non-condensing) |
| Storage Temp / RH |
–40 °C to 70 °C; 5–90% RH (non-condensing) |
| Surge / ESD |
IEC 61000-4-5: CM ±4 kV, DM ±2 kV; IEC 61000-4-2: Contact ±6 kV, Air ±8 kV |
| Certifications |
CE, FCC, RoHS, UKCA, RCM |
| Package Contents |
Switch, AC power cord, Quick Installation Guide |
