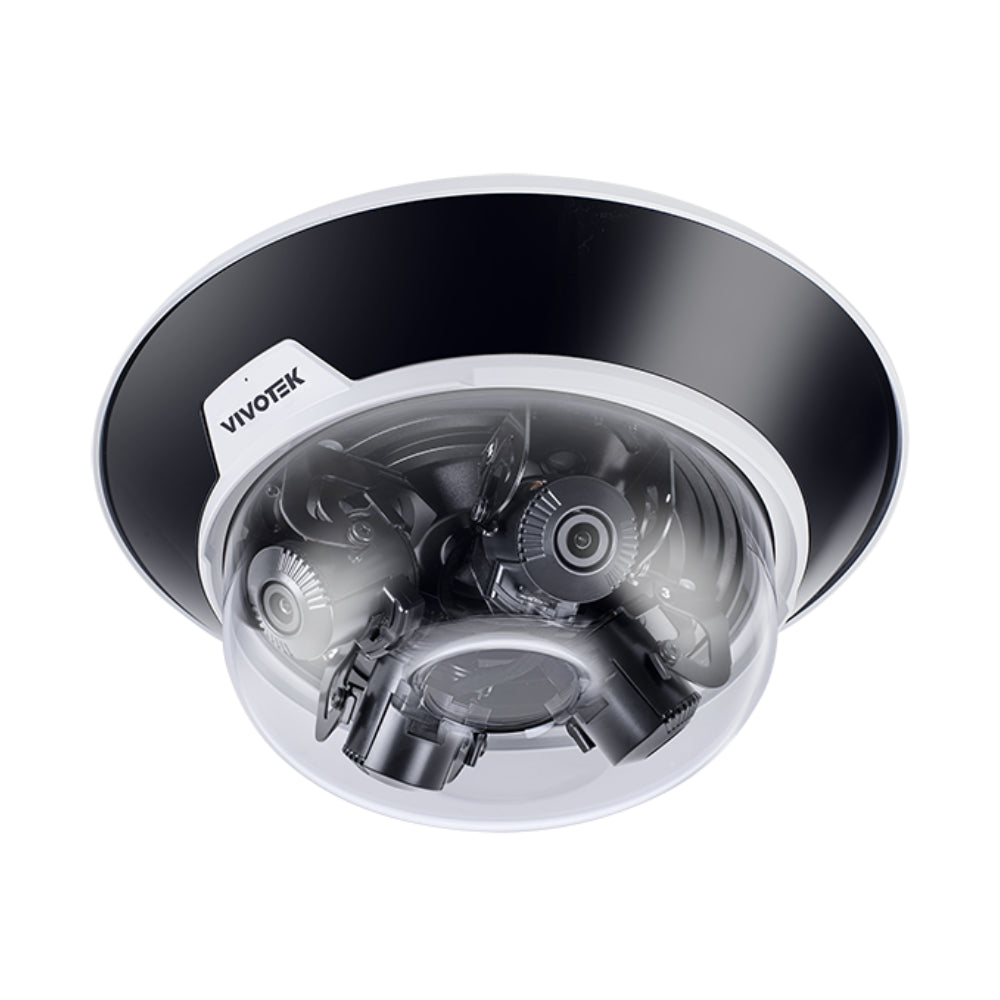

VIVOTEKVIVOTEK MA9322-EHTV-V2 20MP (4 × 5MP) Multi-lens Camera
The MA9322-EHTV-V2 is a 20MP combined (4 × 5MP) multi-lens network camera for compatible IP surveillance systems. The combined resolution comes from separate adjustable image channels; it is not one sensor of that resolution.
Technical specifications
| Resolution |
20MP combined (4 × 5MP) |
| Design |
Multi-lens |
| Lens |
3.2–7.7mm motorised varifocal per sensor |
| Night illumination |
30m |
| Environment |
IP66 / IK10 / NEMA 4X |
| Storage |
microSD card slot; card not specified |
| Power |
PoE; check model-specific power requirements |
Questions & answers
What resolution does MA9322-EHTV-V2 provide?
20MP combined (4 × 5MP). The combined figure covers separate sensor channels.
Which lens is fitted?
3.2–7.7mm motorised varifocal per sensor.
What night illumination is provided?
30m.
