Description

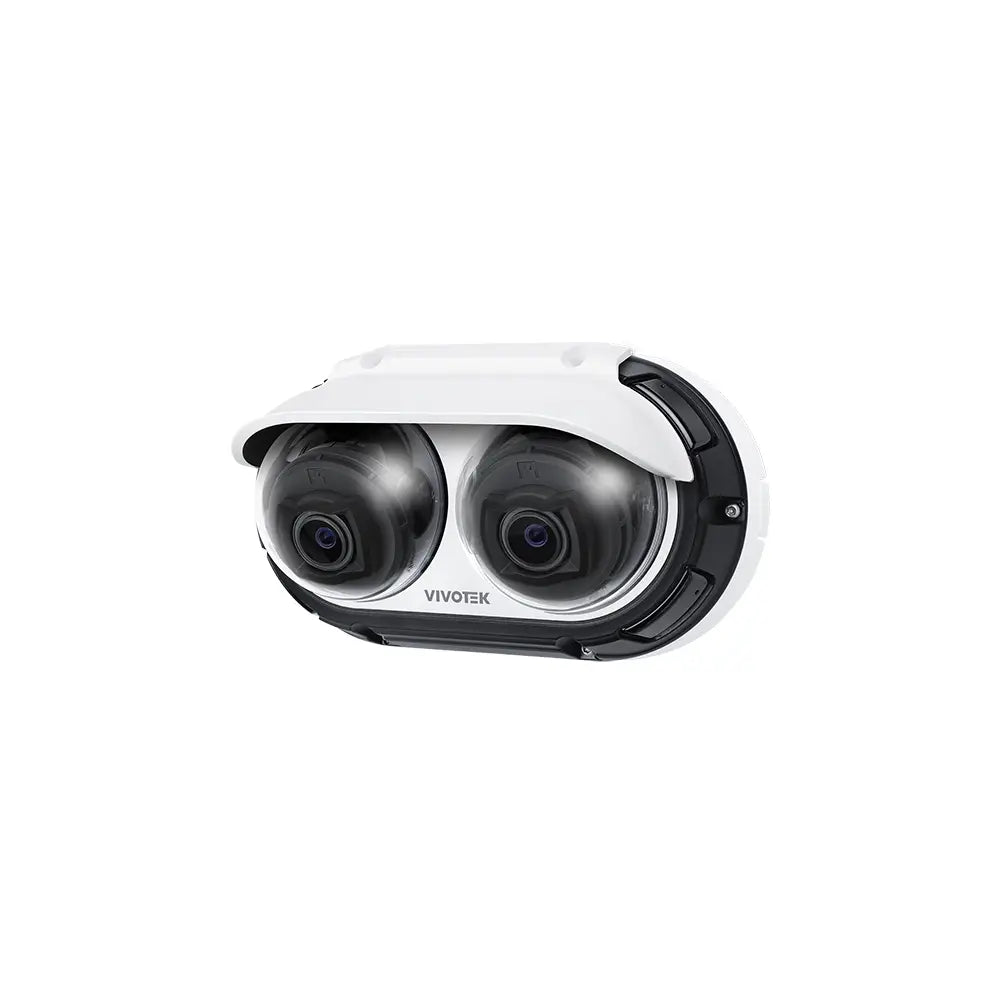

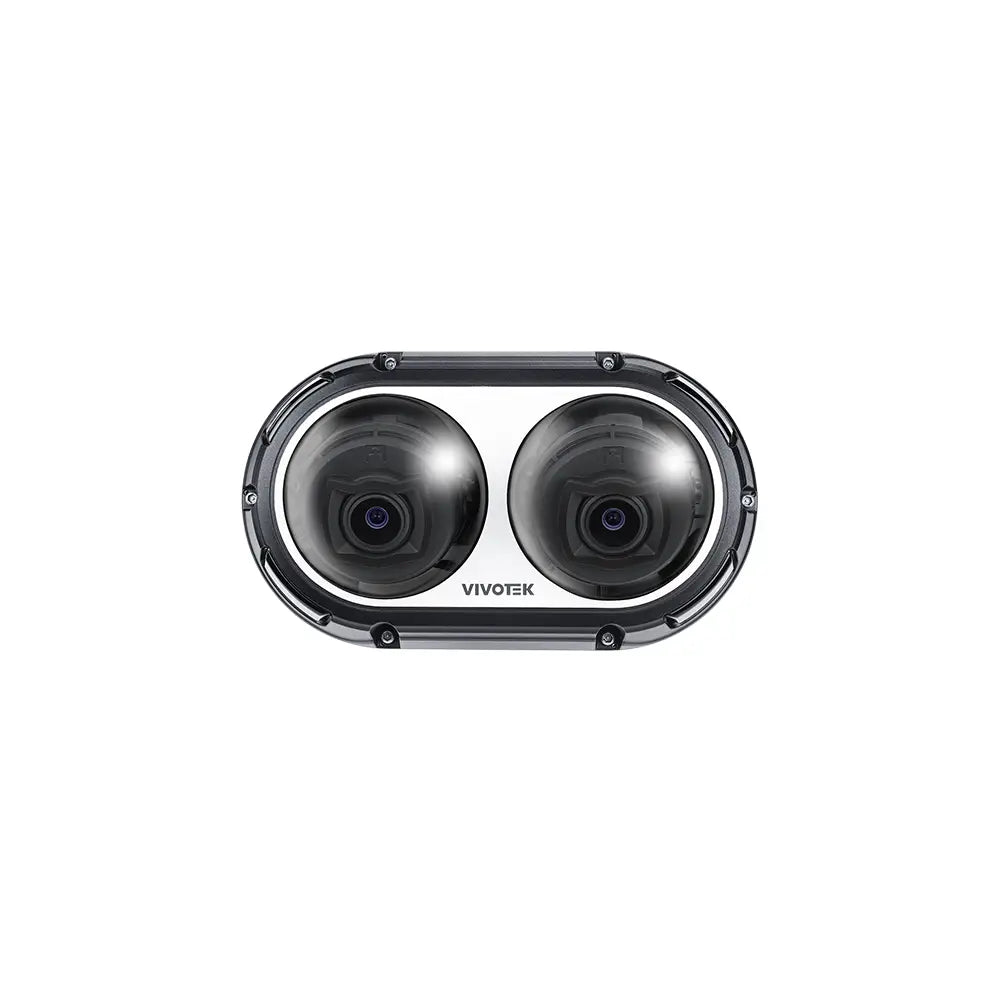

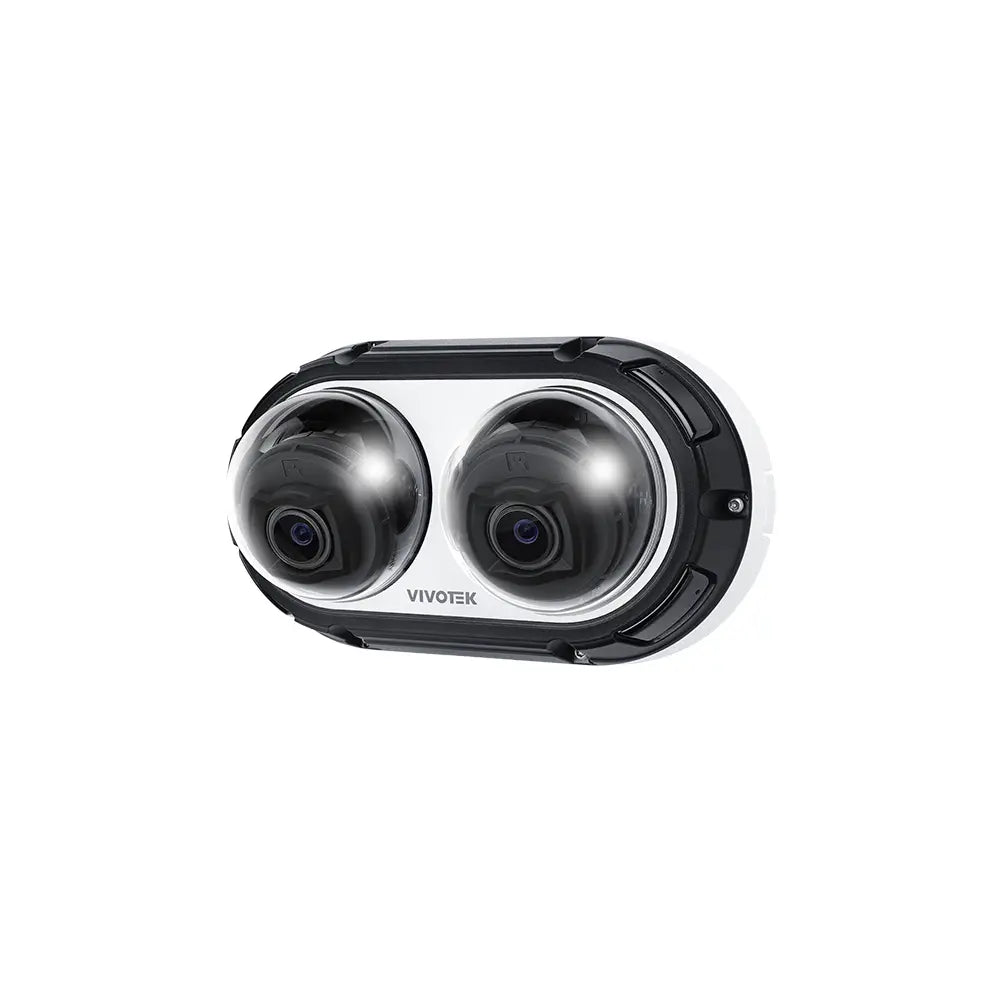

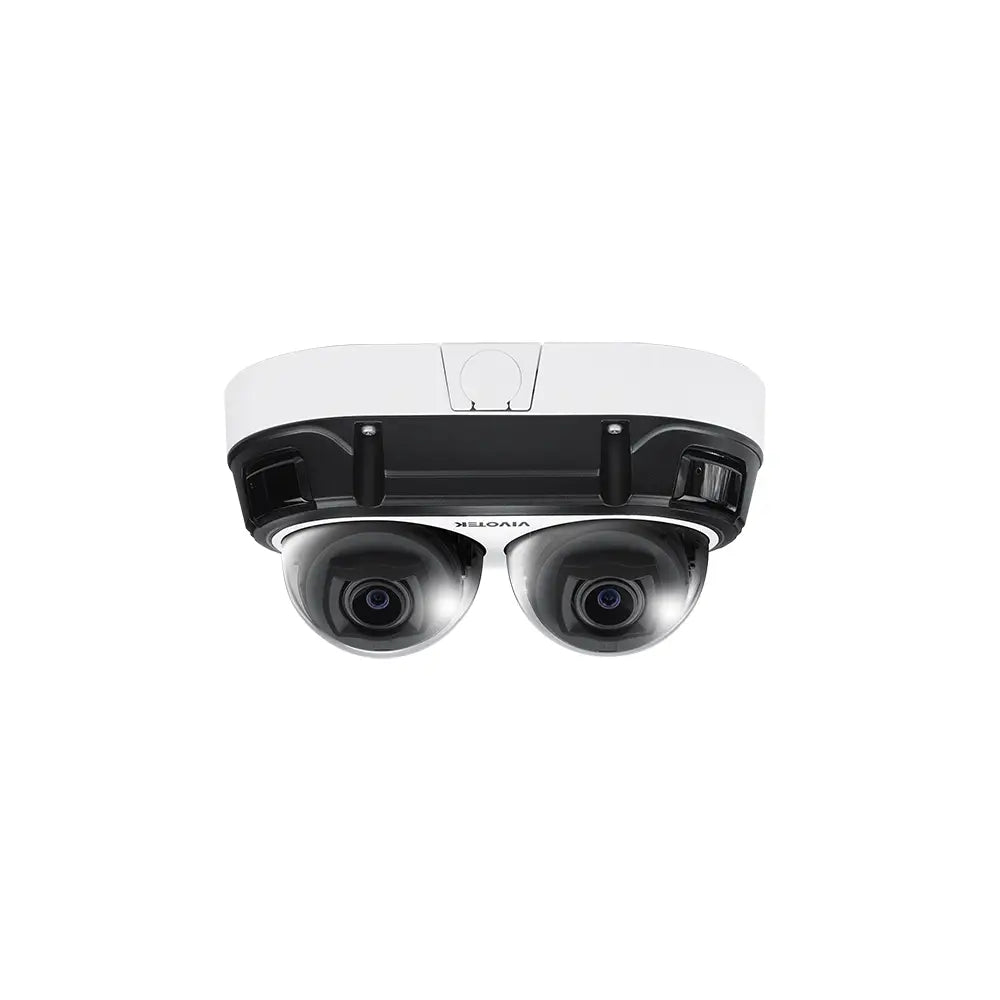

Maximize Coverage with the VIVOTEK MA9311-EHTV Dual-Directional AI Camera
The VIVOTEK MA9311-EHTV is an enterprise-grade surveillance solution designed to do the work of two cameras. Featuring dual 5MP sensors, this multi-directional camera provides two independent views from a single installation point. Whether you are monitoring L-shaped corridors, building corners, or expansive parking lots, the MA9311-EHTV delivers seamless coverage while reducing licensing and installation costs.
Key Features & Performance
-
Dual 5MP High-Resolution: Delivers two independent 2560x1920 streams at 30 fps for crystal-clear forensic detail.
-
AI-Powered Analytics: Built-in Smart VCA and Vision Object Analytics for precise detection of people and vehicles, reducing false alarms.
-
Motorized Vari-focal Lenses: Remote focus and zoom (2.8~12mm) allow for easy adjustments after installation.
-
Extreme Weather Durability: Rated IP66/IP67, IK10, and NEMA 4X to withstand vandalism and harsh environments (-40°C to 55°C).
-
Advanced Night Vision: 20-meter (66ft) Smart IR III technology prevents overexposure and ensures clarity in total darkness.
-
Cybersecurity Excellence: Equipped with TPM 2.0, Signed Firmware, and Trend Micro IoT Security for end-to-end data protection.
Efficient "One Camera" Deployment
Why pay for multiple licenses? The MA9311-EHTV operates using one IP address and one VMS license, making it the most cost-effective way to achieve panoramic 180-degree or dual-directional monitoring. It is fully NDAA compliant, making it suitable for government and high-security projects.
| Specification |
Details |
| Resolution |
5MP x 2-Channel (Dual Sensor) |
| Lens Type |
Motorized Vari-focal 2.8~12mm |
| WDR Technology |
WDR Pro (120dB) |
| Power Input |
PoE+ (IEEE 802.3at Class 4) |
| Storage |
MicroSD/SDHC/SDXC (Up to 1TB), NAS |
What's in the Box?
- VIVOTEK MA9311-EHTV Camera
- Quick Installation Guide
- Alignment Sticker / Screw Pack
- Sunshield (Pre-installed)
More Information
Manual_MA9311-EHTV_MA9312-EHTV_MA9322-EHTV-V2_EN
