Description
Advanced 5MP Outdoor Surveillance with AI-Powered Analytics

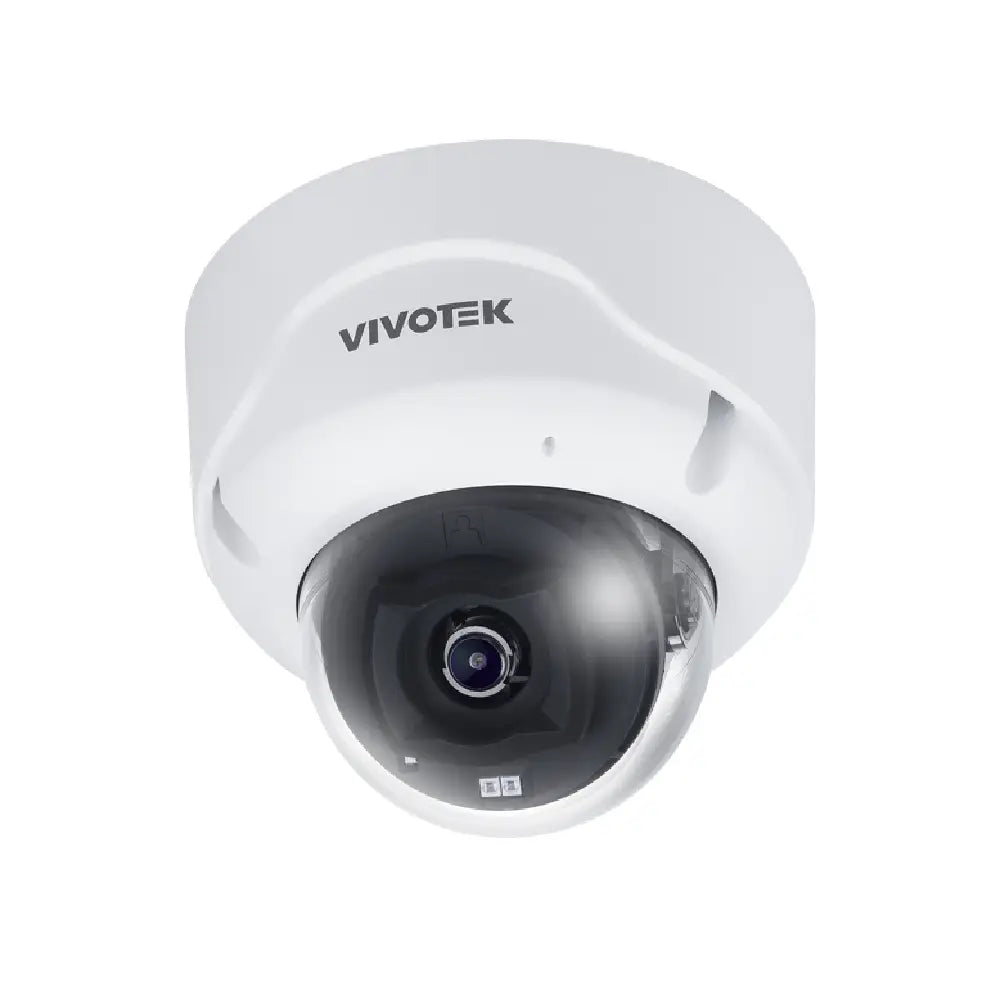

The VIVOTEK FD9389-EHV-v3 is a professional-grade outdoor fixed dome network camera delivering high-resolution 5MP imagery at 30 frames per second. Equipped with H.265 compression technology and VIVOTEK’s Smart Stream III, it significantly reduces bandwidth and storage consumption without sacrificing image quality.
Superior Night Vision & Durability
Designed for demanding outdoor environments, the FD9389-EHV-v3 features IP66-rated weather protection and IK10-rated vandal resistance. With built-in IR illuminators effective up to 30 meters, this camera provides crystal-clear video even in total darkness.
Key Features:
-
5-Megapixel Resolution: High-definition 2560x1920 imaging for critical detail.
-
Smart VCA: AI-powered deep learning video analytics for intrusion detection and loitering.
-
WDR Pro: Provides unmatched visibility in high-contrast or backlit environments.
-
SNV (Supreme Night Visibility): Enhanced low-light performance for color video in dark conditions.
-
NDAA Compliant: Suitable for government and high-security installations.
Technical Specifications:
| Sensor Resolution |
2560x1920 (5MP) |
| Lens Type |
Fixed-focal (2.8mm / 3.6mm options) |
| Max Frame Rate |
30 fps @ 2560x1920 |
| Compression |
H.265, H.264, MJPEG |
| Ratings |
IP66 (Weather), IK10 (Vandal) |
| Power Input |
IEEE 802.3af PoE Class 0 |
Compatible Mounting Accessories:
-
Mounting Adapter: AM-528
-
Wall Mount: AM-21A
-
Pendant Pipe: AM-116 / AM-117
More Information
Datasheet_V-series_AI_Camera_EN
