Description

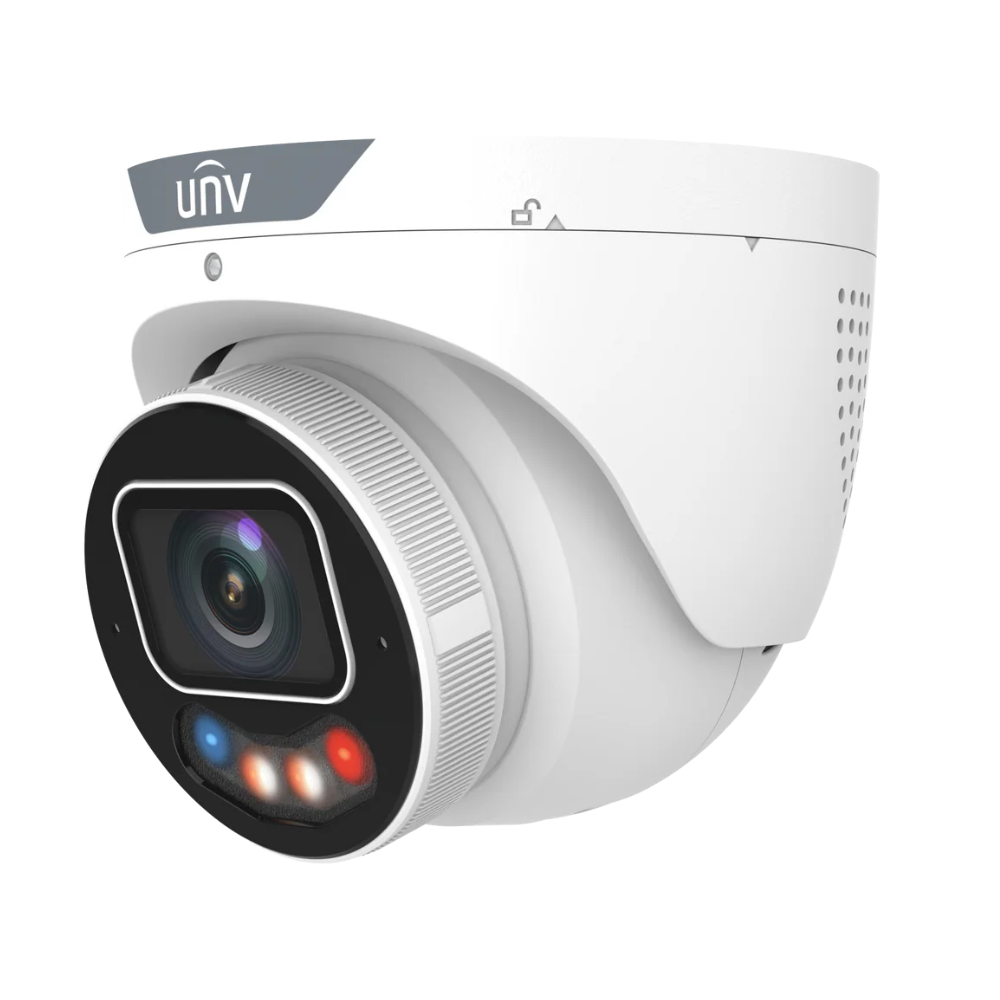

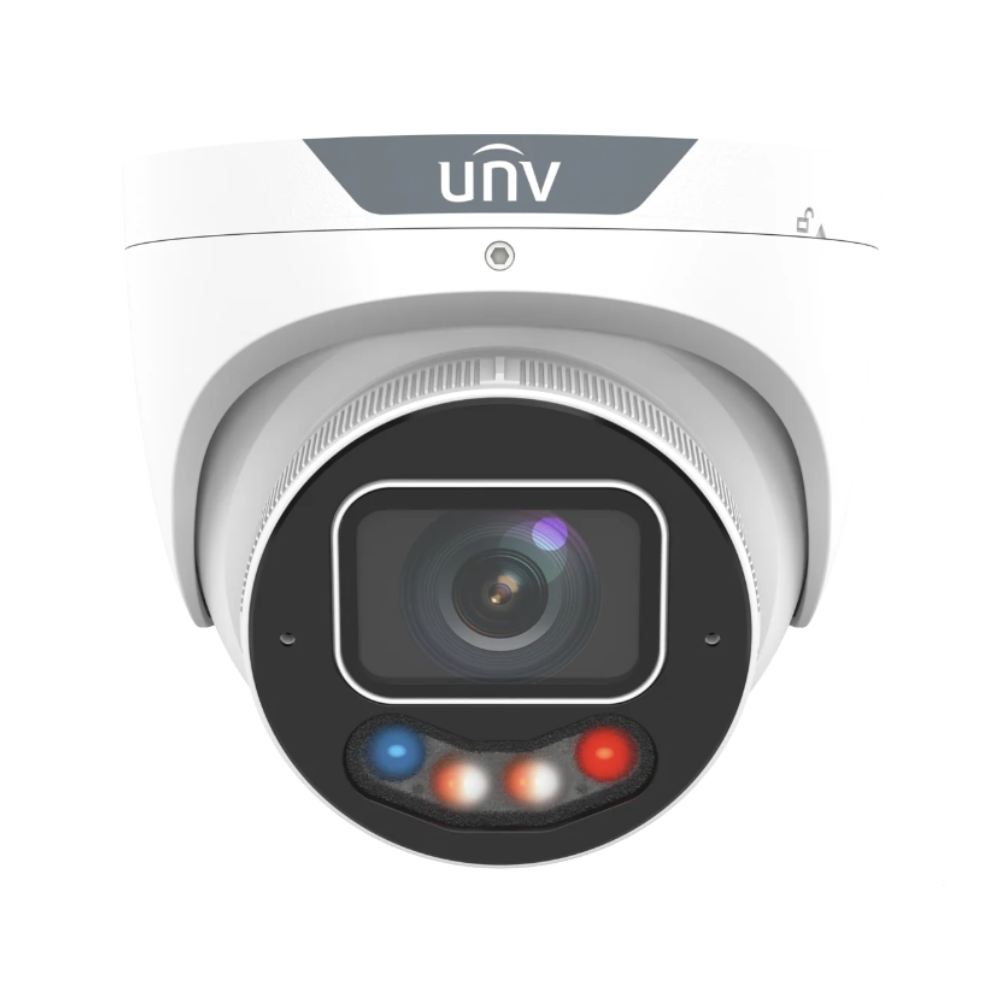

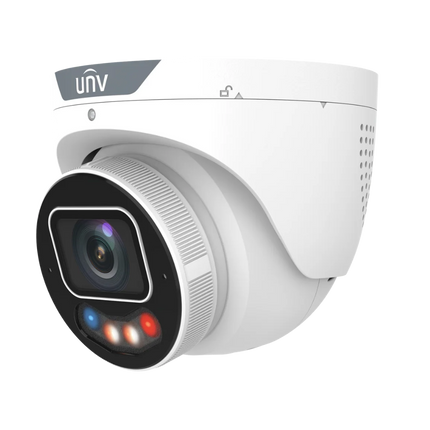

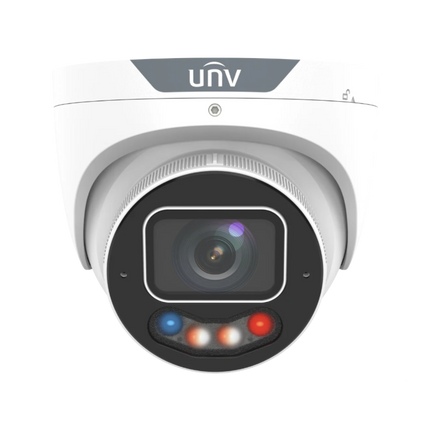

The Uniview UNV IPC3638SE-ADF28KMC-WP-I1 is a premium 8MP OwlView Plus Tri-Guard fixed turret IP camera designed for 24/7 full-colour surveillance with advanced AI analytics.
Powered by a 1/1.8″ CMOS sensor, F1.0 large-aperture 2.8 mm lens, and ColorHunter with Wise-ISP technology, this camera delivers bright, detailed images even in extremely low-light environments.
Its dual-light system (IR + warm white light) automatically adapts to scene conditions, while intelligent intrusion prevention, people flow counting, and crowd density monitoring provide accurate analytics with minimal false alarms. Built with IK10 vandal resistance, IP67 weatherproofing, and NEMA 4X protection, it is ideal for demanding commercial and outdoor installations.
Key Features & Highlights
-
8MP Ultra-HD Resolution – Up to 3840 × 2160 @ 30 fps
-
2.8 mm Fixed Wide-Angle Lens – 108.1° horizontal field of view
-
F1.0 Large Aperture – Exceptional low-light performance
-
ColorHunter + Wise-ISP – True 24/7 full-colour imaging
-
Tri-Guard Dual-Light – Smart IR + warm light up to 30 m
-
130 dB True WDR – Clear images in strong backlight scenes
-
AI Smart Intrusion Prevention – Human / vehicle / non-motor classification
-
People Flow Counting & Crowd Density Monitoring
-
Built-in Dual Microphone & Speaker – Two-way audio supported
-
Audio I/O 1/1, Alarm I/O 1/1
-
MicroSD Storage up to 512 GB + ANR / NAS
-
IK10, IP67 & NEMA 4X – Vandal-resistant and outdoor-ready
- PoE (IEEE 802.3af) or 12 V DC Power
Technical Specifications
| Brand |
Uniview UNV |
| Model / SKU |
IPC3638SE-ADF28KMC-WP-I1 |
| Camera Type |
8MP OwlView Plus Tri-Guard Fixed Turret IP Camera |
| Image Sensor |
1/1.8" Progressive CMOS |
| Maximum Resolution |
8MP (3840 × 2160) @ 30 fps |
| Lens |
2.8 mm Fixed Lens, F1.0 |
| Field of View |
H: 108.1° / V: 59.5° / D: 130.2° |
| Minimum Illumination |
0.0005 Lux (Colour, F1.0, AGC ON) |
| Illumination |
Dual-light: IR + Warm Light, up to 30 m |
| WDR |
130 dB True WDR |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| AI Analytics |
Line crossing, intrusion, enter/leave area, people counting, crowd density |
| Audio |
Built-in dual-mic & speaker, Audio I/O 1/1 |
| Alarm I/O |
1 / 1 |
| Edge Storage |
MicroSD up to 512 GB |
| Network Interface |
1 × RJ45 10/100 Mbps Ethernet |
| Power |
PoE (IEEE 802.3af) / DC 12 V |
| Protection Rating |
IP67, IK10, NEMA 4X |
| Operating Temperature |
-40 °C to 60 °C |
| Housing |
Metal |
Recommended Applications
- Retail stores & shopping centres
- Commercial buildings & offices
- Warehouses & logistics facilities
- Schools & campuses
- Car parks & perimeters
- High-risk vandal-prone locations
