Uniview UNV NVR804-64-IX-G 64 Channel 4K SeekFree AI NVR — 4-Bay, Non-PoE, NDAA

Description

Uniview UNV · Network Video Recorder

Uniview UNV NVR804-64-IX-G 64 Channel 4K SeekFree AI NVR — 4-Bay, Non-PoE, NDAA

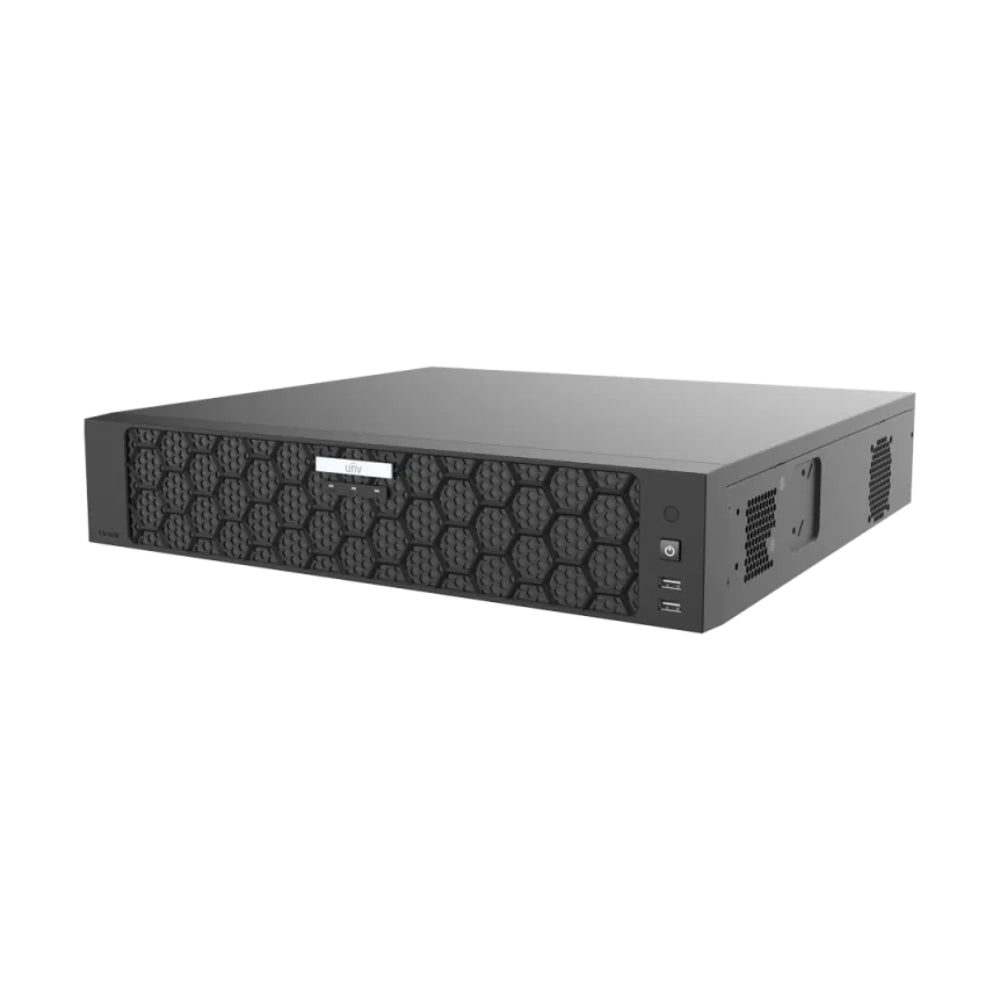

The Uniview NVR804-64-IX-G is a 64-channel network video recorder with 4 SATA drive bays and recording support up to 8MP / 4K. It connects to cameras over the network and requires an external PoE switch for PoE cameras. Incoming bandwidth is 384 Mbps; storage and analytics should be sized for the intended camera configuration.

Specifications
Model NVR804-64-IX-G
IP Camera Inputs 64 channels
Maximum Recording Resolution 8MP / 4K
Compression Ultra 265, H.265, H.264
Incoming Bandwidth 384 Mbps
Outgoing Bandwidth 384 Mbps
Built-in PoE None; use an external PoE switch or separately powered cameras
Network 2 × RJ45 10/100/1000 Mbps
SATA Bays 4
HDD Capacity Up to 24 TB per drive; 96 TB raw total. Maximum capacity requires ambient temperature no higher than 40°C; supported HDD size and usable capacity depend on configuration.
RAID Not supported on the 64-channel model
Power AC 100–240 V
Power Consumption ≤ 50 W without HDDs
Reliability ANR (automatic network replenishment); disk group and redundant storage
Video Outputs 3 × HDMI + 1 × VGA; HDMI1/VGA simultaneous; HDMI1/VGA, HDMI2 and HDMI3 independent. HDMI up to 4K/60 Hz
Smart Search SeekFree (English), AcuSearch and AcuTrack: all channels with UNV SIP/UMD cameras; normal cameras up to 16 × 2MP, 8 × 4MP or 4 × 4K
Alarm I/O 16 inputs / 10 outputs
USB 2 × USB 2.0 front; 2 × USB 3.0 rear
eSATA 1
Warranty (Australia) 3 years · CCTV Guru Australia

Downloads

Manufacturer specifications Datasheet User Manual User Manual Quick Guide

Frequently Asked Questions

How many cameras and what resolution are supported?

Up to 64 IP cameras, recording at up to 8MP / 4K. Total incoming bitrate must stay within 384 Mbps.

Does it power cameras directly?

No. This model has no built-in PoE ports. Use an external PoE switch or a suitable separate camera power supply.

How much storage can it support?

Up to 24 TB per drive; 96 TB raw total. Maximum capacity requires ambient temperature no higher than 40°C; supported HDD size and usable capacity depend on configuration.

Does it support RAID?

Not supported on the 64-channel model. Disk group and redundant storage are supported.

What video outputs does it have?

3 × HDMI + 1 × VGA; HDMI1/VGA simultaneous; HDMI1/VGA, HDMI2 and HDMI3 independent. HDMI up to 4K/60 Hz.

What does ANR do?

With compatible cameras and configured camera-side storage, ANR can replenish recorder footage after a network interruption.

What power supply does it require?

AC 100–240 V. Consumption is ≤ 50 W without HDDs.

What are the smart-search limits?

SeekFree (English), AcuSearch and AcuTrack: all channels with UNV SIP/UMD cameras; normal cameras up to 16 × 2MP, 8 × 4MP or 4 × 4K. Available features depend on firmware and camera compatibility.

3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
