Uniview UNV NVR804-16-IX-G 16 Channel 4K SeekFree AI NVR — 4-Bay RAID, Non-PoE, NDAA

Description

Uniview UNV · Network Video Recorder

Uniview UNV NVR804-16-IX-G 16 Channel 4K SeekFree AI NVR — 4-Bay RAID, Non-PoE, NDAA

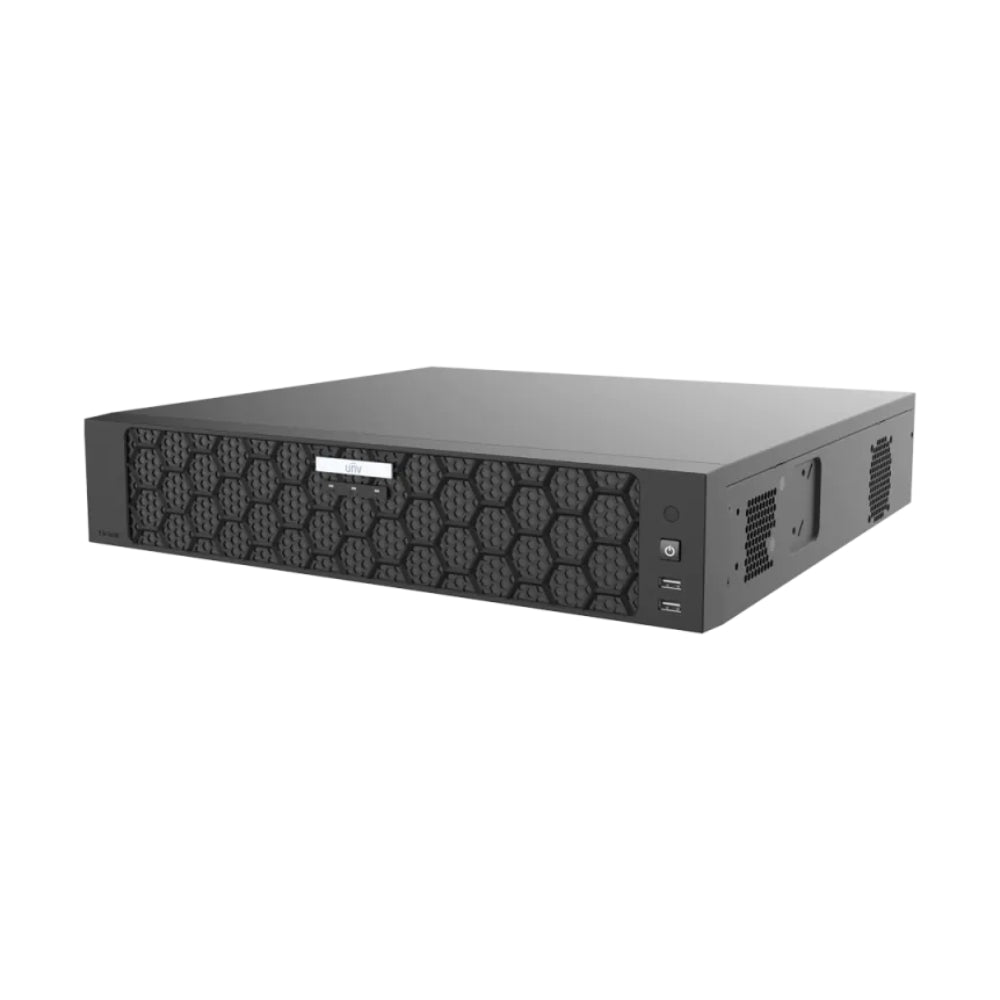

The Uniview NVR804-16-IX-G is a 16-channel network video recorder with 4 SATA drive bays and recording support up to 8MP / 4K. It connects to cameras over the network and requires an external PoE switch for PoE cameras. Incoming bandwidth is 384 Mbps; storage and analytics should be sized for the intended camera configuration.

Specifications
Model NVR804-16-IX-G
IP Camera Inputs 16 channels
Maximum Recording Resolution 8MP / 4K
Compression Ultra 265, H.265, H.264
Incoming Bandwidth 384 Mbps
Outgoing Bandwidth 384 Mbps
Built-in PoE None; use an external PoE switch or separately powered cameras
Network 2 × RJ45 10/100/1000 Mbps
SATA Bays 4
HDD Capacity Up to 24 TB per drive; 96 TB raw total. Maximum capacity requires ambient temperature no higher than 40°C; supported HDD size and usable capacity depend on configuration.
RAID RAID 0, 1, 5
Power AC 100–240 V
Power Consumption ≤ 50 W without HDDs
Reliability ANR (automatic network replenishment); disk group and redundant storage
Video Outputs 3 × HDMI + 1 × VGA; HDMI1/VGA simultaneous; HDMI1/VGA, HDMI2 and HDMI3 independent. HDMI up to 4K/60 Hz
Smart Search SeekFree (English), AcuSearch and AcuTrack: all channels with UNV SIP/UMD cameras; normal cameras up to 16 × 2MP, 8 × 4MP or 4 × 4K
Alarm I/O 16 inputs / 10 outputs
USB 2 × USB 2.0 front; 2 × USB 3.0 rear
eSATA 1
Warranty (Australia) 3 years · CCTV Guru Australia

Downloads

Manufacturer specifications Datasheet User Manual User Manual Quick Guide

Frequently Asked Questions

How many cameras and what resolution are supported?

Up to 16 IP cameras, recording at up to 8MP / 4K. Total incoming bitrate must stay within 384 Mbps.

Does it power cameras directly?

No. This model has no built-in PoE ports. Use an external PoE switch or a suitable separate camera power supply.

How much storage can it support?

Up to 24 TB per drive; 96 TB raw total. Maximum capacity requires ambient temperature no higher than 40°C; supported HDD size and usable capacity depend on configuration.

Does it support RAID?

RAID 0, 1, 5. RAID usable capacity depends on drive count and the selected RAID level.

What video outputs does it have?

3 × HDMI + 1 × VGA; HDMI1/VGA simultaneous; HDMI1/VGA, HDMI2 and HDMI3 independent. HDMI up to 4K/60 Hz.

What does ANR do?

With compatible cameras and configured camera-side storage, ANR can replenish recorder footage after a network interruption.

What power supply does it require?

AC 100–240 V. Consumption is ≤ 50 W without HDDs.

What are the smart-search limits?

SeekFree (English), AcuSearch and AcuTrack: all channels with UNV SIP/UMD cameras; normal cameras up to 16 × 2MP, 8 × 4MP or 4 × 4K. Available features depend on firmware and camera compatibility.

3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support

Uniview UNV NVR804-16-IX-G 16 Channel 4K SeekFree AI NVR — 4-Bay RAID, Non-PoE, NDAA

Product form

SKU: NVR804-16-IX-G

$2,219.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Add Ons & Accessories

    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    Uniview UNV · Network Video Recorder

    Uniview UNV NVR804-16-IX-G 16 Channel 4K SeekFree AI NVR — 4-Bay RAID, Non-PoE, NDAA

    The Uniview NVR804-16-IX-G is a 16-channel network video recorder with 4 SATA drive bays and recording support up to 8MP / 4K. It connects to cameras over the network and requires an external PoE switch for PoE cameras. Incoming bandwidth is 384 Mbps; storage and analytics should be sized for the intended camera configuration.

    Specifications
    Model NVR804-16-IX-G
    IP Camera Inputs 16 channels
    Maximum Recording Resolution 8MP / 4K
    Compression Ultra 265, H.265, H.264
    Incoming Bandwidth 384 Mbps
    Outgoing Bandwidth 384 Mbps
    Built-in PoE None; use an external PoE switch or separately powered cameras
    Network 2 × RJ45 10/100/1000 Mbps
    SATA Bays 4
    HDD Capacity Up to 24 TB per drive; 96 TB raw total. Maximum capacity requires ambient temperature no higher than 40°C; supported HDD size and usable capacity depend on configuration.
    RAID RAID 0, 1, 5
    Power AC 100–240 V
    Power Consumption ≤ 50 W without HDDs
    Reliability ANR (automatic network replenishment); disk group and redundant storage
    Video Outputs 3 × HDMI + 1 × VGA; HDMI1/VGA simultaneous; HDMI1/VGA, HDMI2 and HDMI3 independent. HDMI up to 4K/60 Hz
    Smart Search SeekFree (English), AcuSearch and AcuTrack: all channels with UNV SIP/UMD cameras; normal cameras up to 16 × 2MP, 8 × 4MP or 4 × 4K
    Alarm I/O 16 inputs / 10 outputs
    USB 2 × USB 2.0 front; 2 × USB 3.0 rear
    eSATA 1
    Warranty (Australia) 3 years · CCTV Guru Australia

    Downloads

    Manufacturer specifications Datasheet User Manual User Manual Quick Guide

    Frequently Asked Questions

    How many cameras and what resolution are supported?

    Up to 16 IP cameras, recording at up to 8MP / 4K. Total incoming bitrate must stay within 384 Mbps.

    Does it power cameras directly?

    No. This model has no built-in PoE ports. Use an external PoE switch or a suitable separate camera power supply.

    How much storage can it support?

    Up to 24 TB per drive; 96 TB raw total. Maximum capacity requires ambient temperature no higher than 40°C; supported HDD size and usable capacity depend on configuration.

    Does it support RAID?

    RAID 0, 1, 5. RAID usable capacity depends on drive count and the selected RAID level.

    What video outputs does it have?

    3 × HDMI + 1 × VGA; HDMI1/VGA simultaneous; HDMI1/VGA, HDMI2 and HDMI3 independent. HDMI up to 4K/60 Hz.

    What does ANR do?

    With compatible cameras and configured camera-side storage, ANR can replenish recorder footage after a network interruption.

    What power supply does it require?

    AC 100–240 V. Consumption is ≤ 50 W without HDDs.

    What are the smart-search limits?

    SeekFree (English), AcuSearch and AcuTrack: all channels with UNV SIP/UMD cameras; normal cameras up to 16 × 2MP, 8 × 4MP or 4 × 4K. Available features depend on firmware and camera compatibility.

    3-Year AU Warranty
    Fast AU-Wide Shipping
    AU Tech Support
