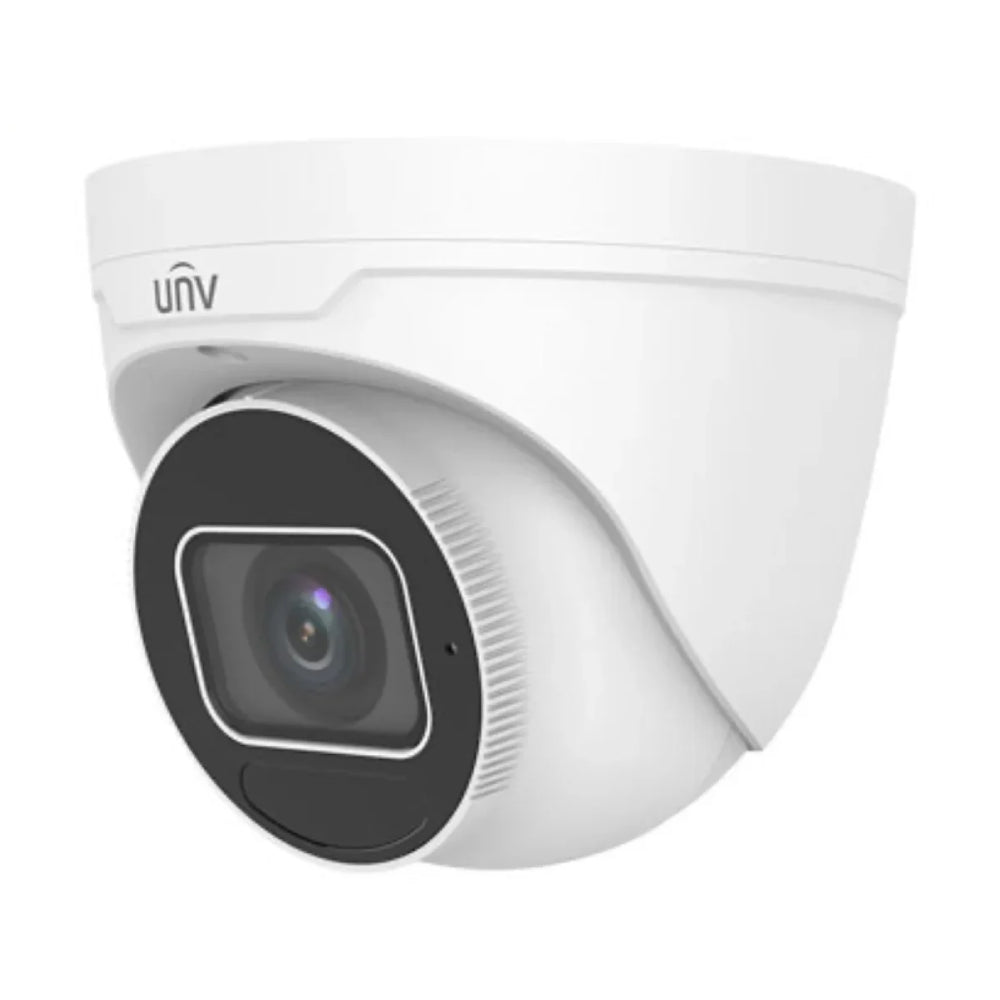

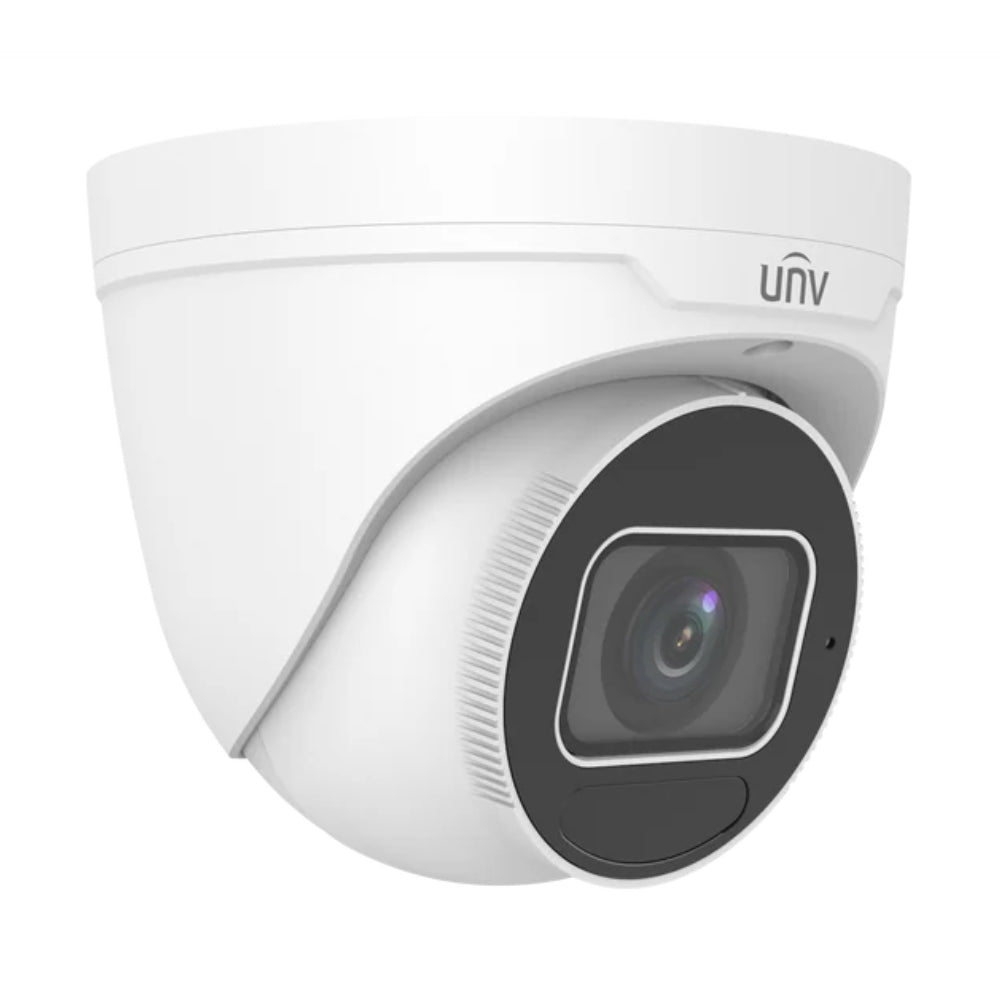

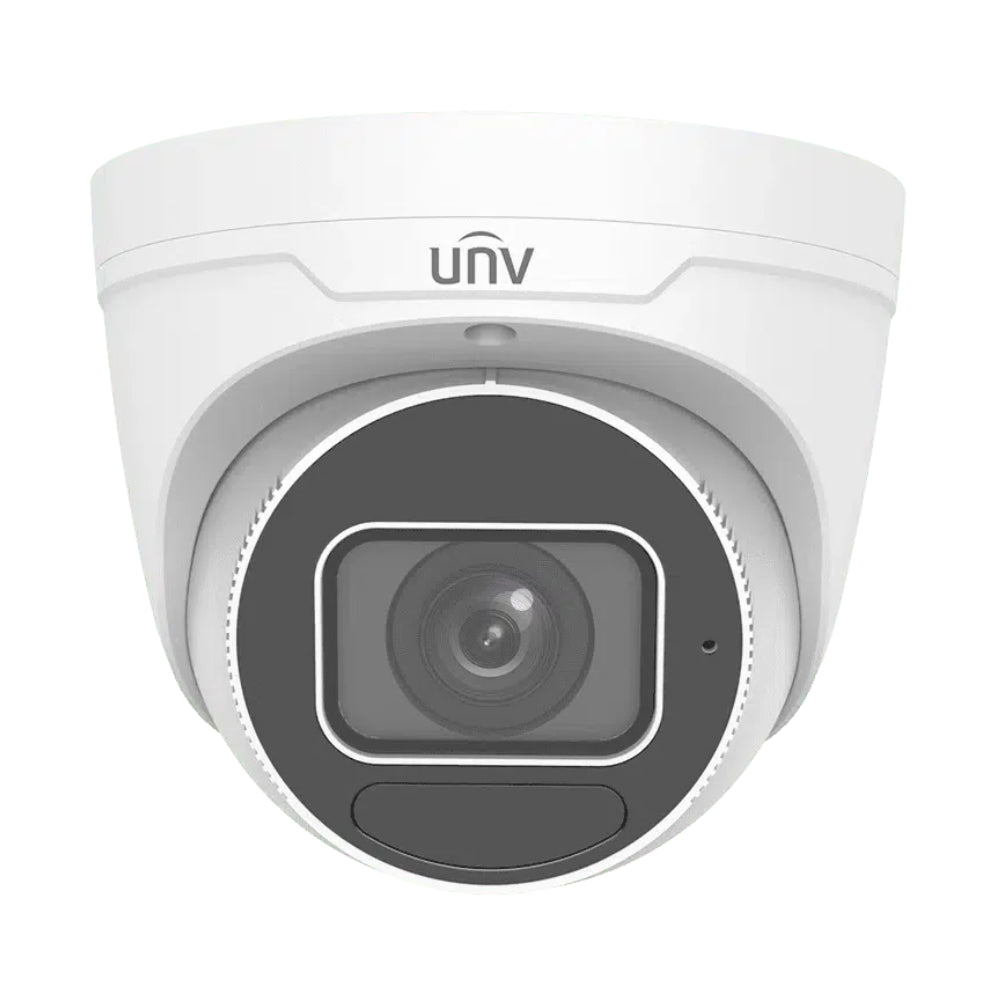

Uniview UNV IPC3635SB-ADZK-I0 5MP LightHunter Motorised Turret Camera — Smart IR 40m, IK10

Description

Uniview UNV · IP Camera

Uniview UNV IPC3635SB-ADZK-I0 5MP LightHunter Motorised Turret Camera — Smart IR 40m, IK10

The Uniview IPC3635SB-ADZK-I0 is a 5MP LightHunter turret camera with a 2.7–13.5 mm motorised lens. It combines 120 dB WDR, smart ir up to 40 m; lighthunter low-light colour imaging, local microSD recording and smart perimeter detection. Its built-in microphone records on-scene audio, while the IP67/IK10 metal housing supports outdoor surveillance.

Specifications
Model IPC3635SB-ADZK-I0
Camera Type 5MP LightHunter motorised varifocal turret
Image Sensor 1/2.7″ CMOS
Maximum Resolution / Frame Rate 2880 × 1620, up to 30 fps
Lens 2.7–13.5 mm motorised varifocal, F1.2
Horizontal Field of View 106.3°–32.5°
Wide Dynamic Range 120 dB true WDR
Night Vision Smart IR up to 40 m; LightHunter low-light colour imaging
Smart Detection Smart Intrusion Prevention with human, motor-vehicle and non-motor-vehicle classification; people-flow counting and crowd-density monitoring
Compression Ultra 265, H.265, H.264, MJPEG
Local Storage MicroSD up to 512 GB
Audio Built-in microphone; no built-in speaker. Listen-in audio; two-way audio not supported
Network 1 × RJ45 10/100 Mbps
Integration ONVIF Profiles S/G/T/M, API, SDK
Power DC 12 V ±25% or IEEE 802.3af PoE; maximum 7.0 W
Protection IP67, IK10; 6 kV surge protection
Housing Metal
Dimensions Ø129 × 110 mm
Weight 0.70 kg
Warranty (Australia) 3 years · CCTV Guru Australia

Downloads

Manufacturer specifications Datasheet User Manual Quick Guide

Frequently Asked Questions

What lens does it have?

2.7–13.5 mm motorised varifocal, F1.2. The motorised varifocal lens lets you adjust framing remotely.

How does it work at night?

Smart IR up to 40 m; LightHunter low-light colour imaging. Rated illumination distances are manufacturer maximums; scene conditions affect usable detail.

Does it support two-way audio?

Built-in microphone; no built-in speaker. Listen-in audio; two-way audio not supported.

Can it record locally?

It supports a microSD card up to 512 GB. A card must be fitted for local recording.

How is it powered?

DC 12 V ±25% or IEEE 802.3af PoE; maximum 7.0 W.

Is it suitable for outdoors?

Its metal housing is rated IP67 and IK10. Install and seal the connections according to the manufacturer guide.

What smart detection is available?

Smart Intrusion Prevention with human, motor-vehicle and non-motor-vehicle classification; people-flow counting and crowd-density monitoring.

Which recorder can it connect to?

It supports ONVIF Profiles S/G/T/M and Uniview integration. Supported analytics depend on the recorder and its firmware.
