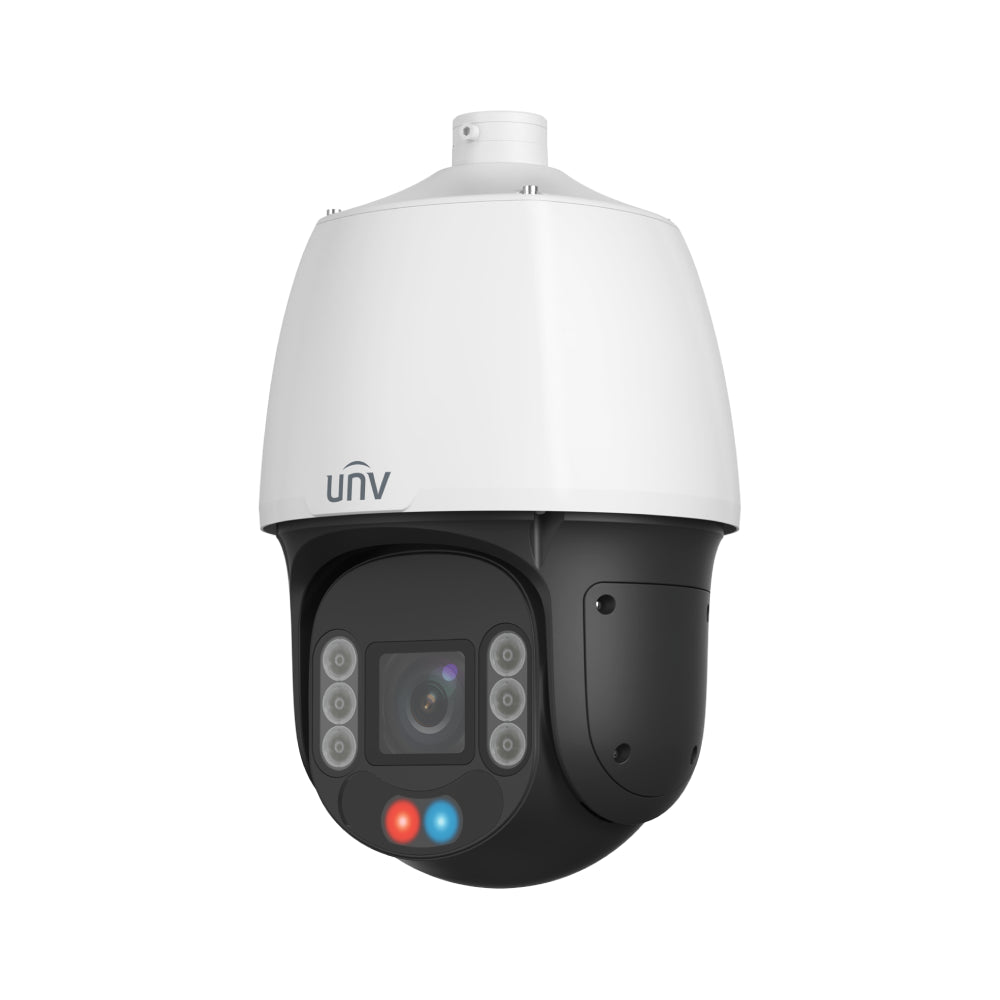

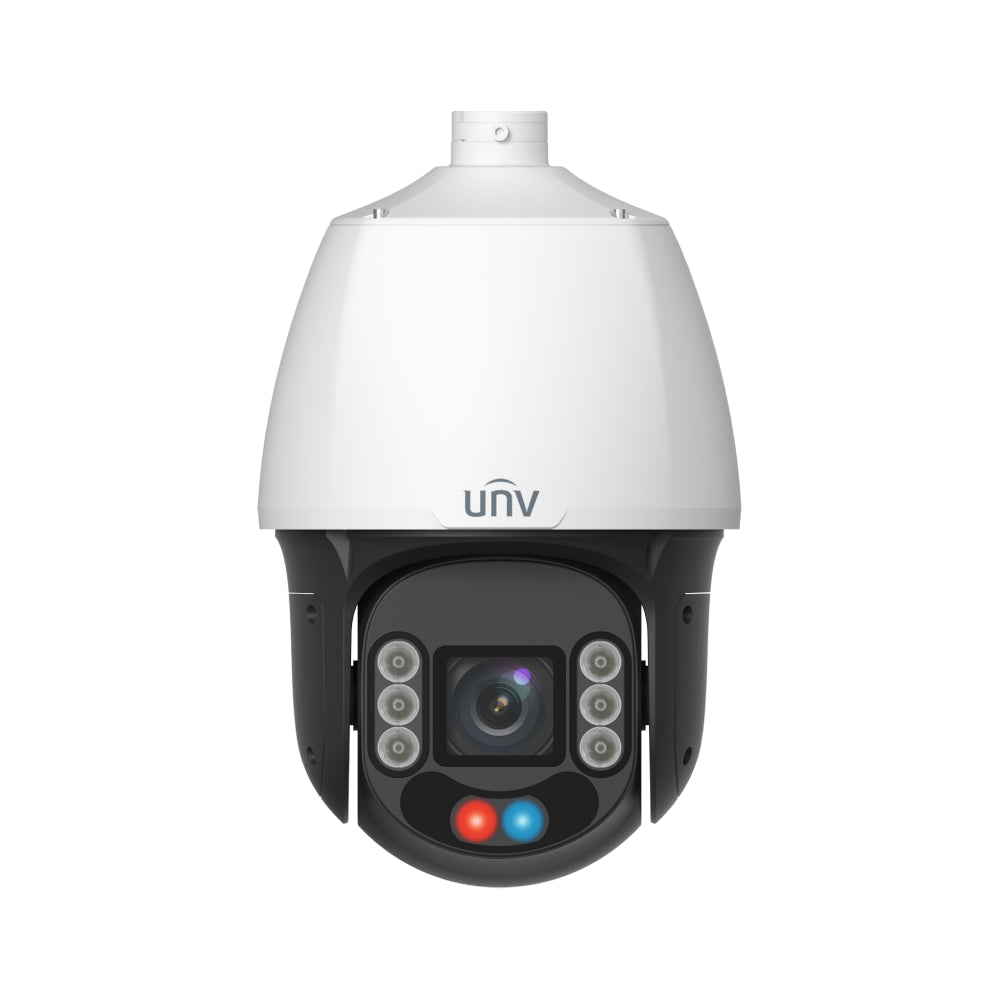

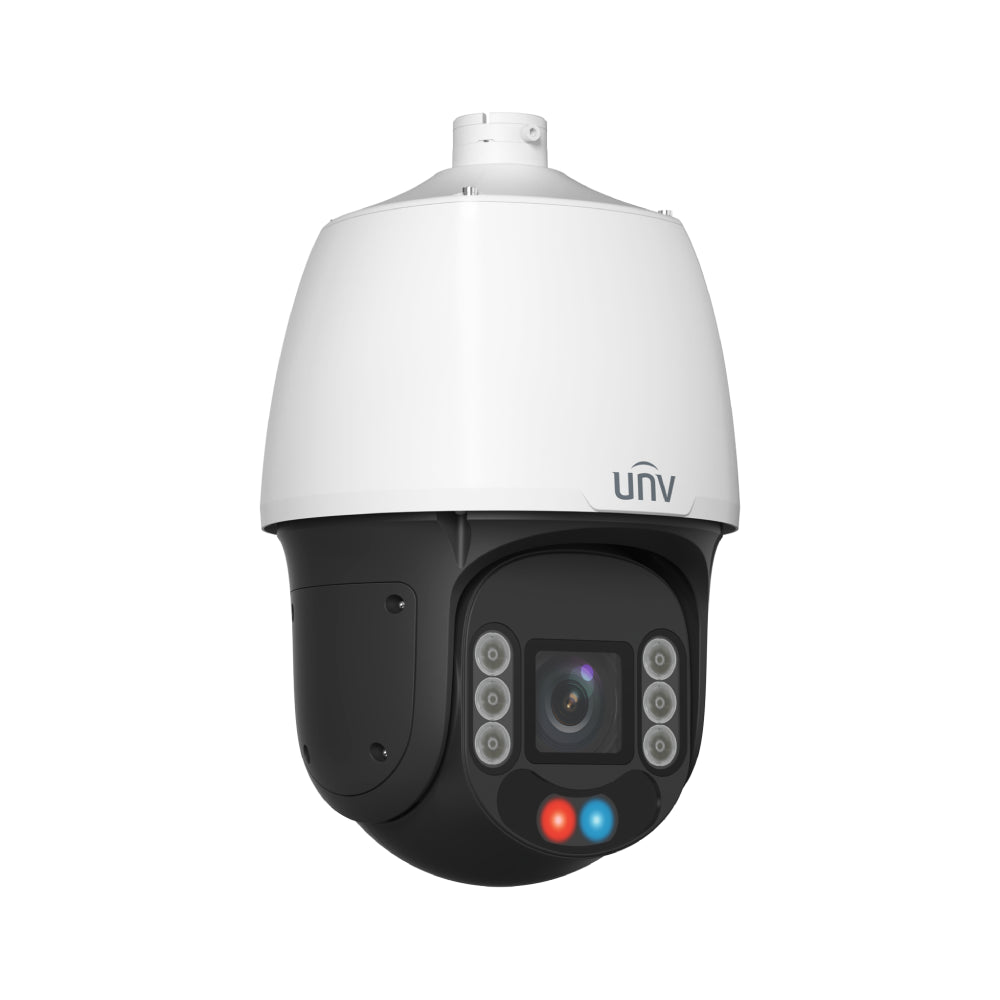

Uniview IPC6624SFW-X25-C-VH2 4MP 25× PTZ Network Camera

Description

UNIVIEW · IPC6624SFW-X25-C-VH2

Uniview IPC6624SFW-X25-C-VH2 4MP 25× PTZ Network Camera

The Uniview IPC6624SFW-X25-C-VH2 is a 4MP ptz network camera with a 4.8 to 120 mm lens and 120 dB WDR. It records 4MP (2688 × 1520), up to 60 fps, supports local microSD storage up to 512 GB, and uses ir up to 200 m; warm light up to 100 m illumination. Audio input/output for external audio devices; built-in speaker and two-way audio. Protection: IP67 (IEC 60529) ; IK10 (IEC62262; Anti-Vandalism Except for the Front Window).

Specifications
Model IPC6624SFW-X25-C-VH2
Design PTZ
Image Sensor 1/2.8" CMOS
Resolution / Frame Rate 4MP (2688 × 1520), up to 60 fps
Lens 4.8 to 120 mm, F1.65 to F3.8
Horizontal View 53.90° to 3.00°
WDR 120 dB
Illumination IR up to 200 m; warm light up to 100 m
Audio Audio input/output for external audio devices; built-in speaker and two-way audio
Audio I/O 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O 2/1
Local Storage MicroSD up to 512 GB
Power DC 24 V±25%, AC 24 V±25%, PoE (IEEE 802.3at)
Power Consumption Max. 21.7 W
Protection IP67 (IEC 60529) ; IK10 (IEC62262; Anti-Vandalism Except for the Front Window)
Dimensions Ø226 mm × 390 mm (Ø8.9" × 15.4") (Ø × H)
Weight 5.2 kg (11.46 lb)
Compression Ultra 265, H.265, H.264, MJPEG
Network RJ45 10/100 Mbps
Auto Tracking UNV Large Model

Frequently Asked Questions

What lens and resolution does it have?

4.8 to 120 mm, F1.65 to F3.8. 4MP (2688 × 1520), up to 60 fps.

How does it work at night?

IR up to 200 m; warm light up to 100 m. Actual image detail depends on the scene and installation.

Does it have two-way audio?

Audio input/output for external audio devices; built-in speaker and two-way audio.

Can it record without an NVR?

It supports local recording with a microSD card up to 512 GB. A card is required for local storage.

How is it powered?

DC 24 V±25%, AC 24 V±25%, PoE (IEEE 802.3at); Max. 21.7 W.

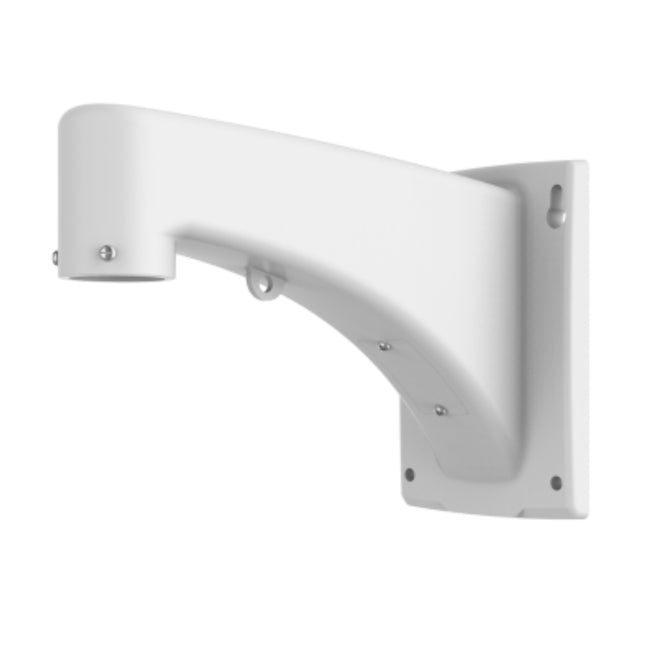

Which mounts are compatible?

Use the exact camera model in the Uniview accessory list. The linked mounting products are compatible choices; mounting assemblies may require an adapter or pendant.

Technical DatasheetQuick Start GuideOperation Manual
