UNV PTZ Cameras

NDAA Compliant · 4MP OwlView Tri-Guard PTZUNV 4MP PTZ IPC6324LWH-AX5C-VG2 4MP OwlView Tri-Guard PTZ — Australian Stock & 3-Year Warranty The Uniview UNV IPC6324LWH-AX5C-VG2 is a compact 4 MP OwlView PTZ with 5× optical zoom (2.7–13.5 mm), built for active perimeter coverage across Australian car parks, yards and building entrances. It pairs a large 1/1.8″ CMOS sensor with ColorHunter + Wise-ISP for vivid low-light colour, Tri-Guard active deterrence with warm light to 40 m, 120 dB true WDR, smart auto-tracking, built-in mic & speaker for two-way audio, and a weatherproof IP66 metal body — powered over PoE (802.3at) and backed by a 3-year Australian warranty. Why the IPC6324LWH-AX5C-VG2 stands out Resolution 4MP / 2688×1520 Low-Light ColorHunter + 120dB WDR Deterrence Warm light to 40m Lens / Zoom 5× optical · 2.7–13.5mm Built for Australian conditions Zoom in and follow the action 5× optical zoom (2.7–13.5 mm) lets you pull in detail across a wide area, while smart auto-tracking locks onto and follows human targets as they move through the scene. Vivid colour after dark ColorHunter with Wise-ISP keeps footage in full colour in low light, and Tri-Guard warm light reaches up to 40 m to deter intruders and reveal colours that IR alone cannot. Talk down intruders A built-in mic and speaker with two-way audio, plus 1/1 alarm I/O, let you issue live warnings and integrate with sirens or gates for active deterrence. One-cable, weatherproof install PoE (IEEE 802.3at) carries power and data over a single Cat6 run, and the IP66 metal housing handles Australian sun, dust and rain from -30 °C to 60 °C. Technical specifications Uniview UNV IPC6324LWH-AX5C-VG2 — Full Specifications Brand / Series Uniview UNV · OwlView PTZ Model IPC6324LWH-AX5C-VG2 Image Sensor 1/1.8″ progressive-scan CMOS Resolution 4 MP — 2688×1520 @ 30fps Lens / Zoom 2.7–13.5 mm motorised · 5× optical zoom Field of View 113.69°–50.29° (H) · 59.46°–28.45° (V) Low-Light Tech ColorHunter + Wise-ISP full-colour Deterrence / Light Tri-Guard warm light up to 40 m Wide Dynamic Range 120 dB true WDR · 2D/3D DNR · digital defog Smart Analytics Auto-tracking (human) · Smart Intrusion Prevention: cross-line & intrusion (human/vehicle) Audio Built-in mic & speaker · two-way audio · Audio I/O 1/1 Alarm I/O 1 / 1 Compression Ultra 265 / H.265 / H.264 / MJPEG · triple streams · U-Code Storage MicroSD up to 512 GB · ANR · NAS Network / Security RJ45 10/100M · ONVIF S/G/T · HTTPS / TLS 1.3 Power PoE (IEEE 802.3at) / DC 12V ±25% Weather / Env. IP66 metal housing · -30 °C to 60 °C · ≤95% RH Form Factor Mini PTZ dome Compliance NDAA / Section 889 compliant Warranty 3-Year Australian warranty Frequently asked questions How much zoom does it have?It has a 5× optical zoom (2.7–13.5 mm) motorised lens, so you can frame a wide area or pull in close detail and let the PTZ pan, tilt and follow targets. Does it record in colour at night?Yes. ColorHunter with Wise-ISP delivers full-colour low-light imaging, and Tri-Guard warm light reaches up to 40 m to keep colour and deter intruders in the dark. Does it auto-track?Yes — smart auto-tracking locks onto human targets and follows them through the scene, with Smart Intrusion Prevention for cross-line and intrusion events. Is the IPC6324LWH-AX5C-VG2 NDAA compliant?Yes. Uniview UNV OwlView PTZ cameras are NDAA Section 889 compliant, making them suitable for government, commercial and security-sensitive sites in Australia. Does it support two-way audio?Yes — a built-in mic and speaker with Audio I/O 1/1 enable two-way audio for live talk-down (check local laws before recording audio). How is it powered?Single-cable PoE (IEEE 802.3at) over Cat6 to a PoE+ NVR or switch. A 12V DC option is also supported. Which NVRs work with it?It works with Uniview UNV NVRs via plug-and-play and with most ONVIF (Profile S/G/T) recorders for video, PTZ control and AI events. Can it record without an NVR?Yes — a MicroSD card (up to 512 GB) enables on-camera recording, with ANR to fill gaps if the network drops. What warranty applies?This camera ships with a 3-year Australian warranty and local CCTV Guru tech support. Documentation & downloads IPC6324LWH-AX5C-VG2 Datasheet Uniview UNV PTZ Dome Quick Start Guide Uniview UNV PTZ User Manual 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

UNIVIEW · IPC6434LR-X16-VG1 Uniview IPC6434LR-X16-VG1 4MP 16× PTZ Network Camera The Uniview IPC6434LR-X16-VG1 is a 4MP ptz network camera with a 5.5 to 88 mm lens and 120 dB WDR. It records 4MP (2688 × 1520), up to 30 fps, supports local microSD storage up to 512 GB, and uses ir: up to 100m (328 ft) ir range illumination. Audio input/output for external audio devices; two-way audio via external audio devices. Protection: IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002). Specifications Model IPC6434LR-X16-VG1 Design PTZ Image Sensor 1/2.9" CMOS Resolution / Frame Rate 4MP (2688 × 1520), up to 30 fps Lens 5.5 to 88 mm, F1.78-F3.73 Horizontal View 50.85° to 3.47° WDR 120 dB Illumination IR: Up to 100m (328 ft) IR range Audio Audio input/output for external audio devices; two-way audio via external audio devices Audio I/O 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] Alarm I/O 2/1 Local Storage MicroSD up to 512 GB Power DC 12 V (±10%, 3A), PoE+ (IEEE 802.3at) Power Consumption Max. 23 W Protection IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) Dimensions Ø167 mm × 181 mm (Ø6.6" × 7.1") (Ø × H) Weight 2.3 kg (5.07 lb.) Compression Ultra 265, H.265, H.264, MJPEG Network RJ45 10/100 Mbps Auto Tracking Support, target filtering: human and vehicle Frequently Asked Questions What lens and resolution does it have?5.5 to 88 mm, F1.78-F3.73. 4MP (2688 × 1520), up to 30 fps. How does it work at night?IR: Up to 100m (328 ft) IR range. Actual image detail depends on the scene and installation. Does it have two-way audio?Audio input/output for external audio devices; two-way audio via external audio devices. Can it record without an NVR?It supports local recording with a microSD card up to 512 GB. A card is required for local storage. How is it powered?DC 12 V (±10%, 3A), PoE+ (IEEE 802.3at); Max. 23 W. Which mounts are compatible?Use the exact camera model in the Uniview accessory list. The linked mounting products are compatible choices; mounting assemblies may require an adapter or pendant. Technical DatasheetQuick Start GuideOperation Manual

Read more less

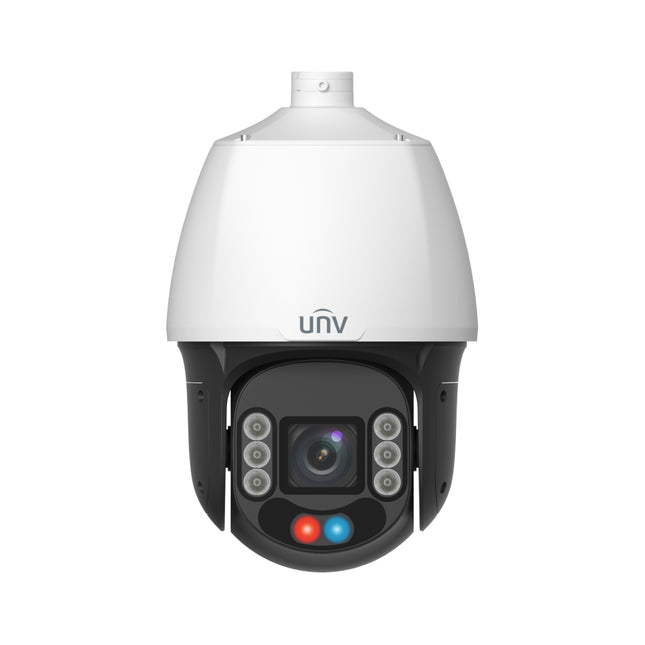

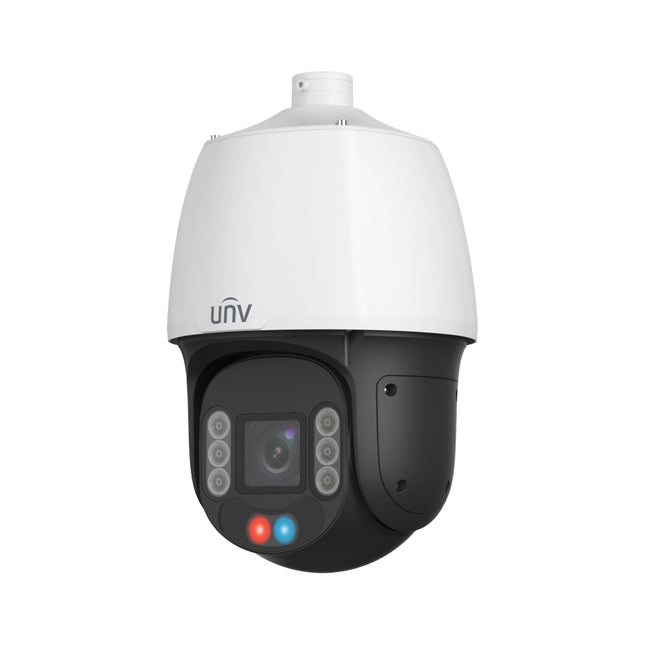

UNIVIEW · IPC6624SFW-X25-C-VH2 Uniview IPC6624SFW-X25-C-VH2 4MP 25× PTZ Network Camera The Uniview IPC6624SFW-X25-C-VH2 is a 4MP ptz network camera with a 4.8 to 120 mm lens and 120 dB WDR. It records 4MP (2688 × 1520), up to 60 fps, supports local microSD storage up to 512 GB, and uses ir up to 200 m; warm light up to 100 m illumination. Audio input/output for external audio devices; built-in speaker and two-way audio. Protection: IP67 (IEC 60529) ; IK10 (IEC62262; Anti-Vandalism Except for the Front Window). Specifications Model IPC6624SFW-X25-C-VH2 Design PTZ Image Sensor 1/2.8" CMOS Resolution / Frame Rate 4MP (2688 × 1520), up to 60 fps Lens 4.8 to 120 mm, F1.65 to F3.8 Horizontal View 53.90° to 3.00° WDR 120 dB Illumination IR up to 200 m; warm light up to 100 m Audio Audio input/output for external audio devices; built-in speaker and two-way audio Audio I/O 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] Alarm I/O 2/1 Local Storage MicroSD up to 512 GB Power DC 24 V±25%, AC 24 V±25%, PoE (IEEE 802.3at) Power Consumption Max. 21.7 W Protection IP67 (IEC 60529) ; IK10 (IEC62262; Anti-Vandalism Except for the Front Window) Dimensions Ø226 mm × 390 mm (Ø8.9" × 15.4") (Ø × H) Weight 5.2 kg (11.46 lb) Compression Ultra 265, H.265, H.264, MJPEG Network RJ45 10/100 Mbps Auto Tracking UNV Large Model Frequently Asked Questions What lens and resolution does it have?4.8 to 120 mm, F1.65 to F3.8. 4MP (2688 × 1520), up to 60 fps. How does it work at night?IR up to 200 m; warm light up to 100 m. Actual image detail depends on the scene and installation. Does it have two-way audio?Audio input/output for external audio devices; built-in speaker and two-way audio. Can it record without an NVR?It supports local recording with a microSD card up to 512 GB. A card is required for local storage. How is it powered?DC 24 V±25%, AC 24 V±25%, PoE (IEEE 802.3at); Max. 21.7 W. Which mounts are compatible?Use the exact camera model in the Uniview accessory list. The linked mounting products are compatible choices; mounting assemblies may require an adapter or pendant. Technical DatasheetQuick Start GuideOperation Manual

Read more less

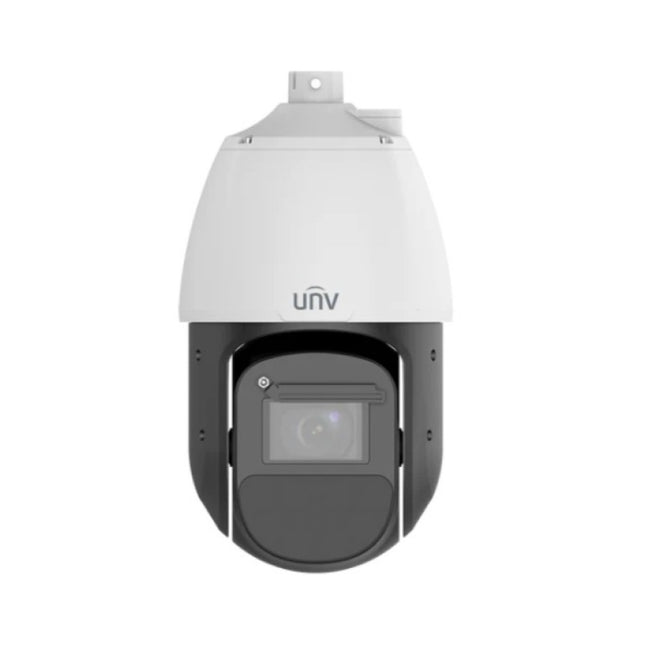

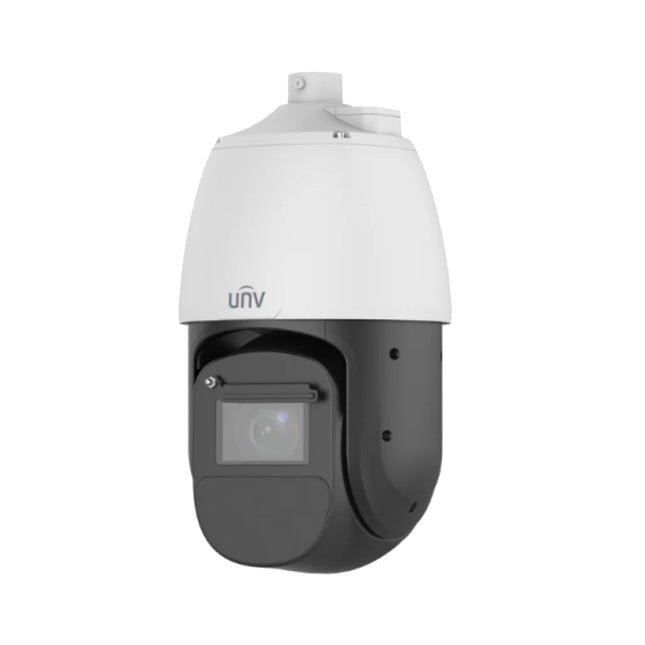

Uniview UNV · IP PTZ CameraUniview UNV IPC6828EL-X42-W-VH1 8MP 4K 42× Pro PTZ Camera — LightHunter, Auto-Tracking, IR 500m The Uniview IPC6828EL-X42-W-VH1 is an 8MP Pro Series PTZ camera with 42× optical zoom, intelligent target tracking and IR illumination rated up to 500 m. Gyroscope stabilisation, defog and a wiper support monitoring of large outdoor areas. Its 67 W maximum load requires a suitable 24 V supply or 802.3bt PoE source. Specifications Model IPC6828EL-X42-W-VH1 Image Sensor 1/1.8″ CMOS Resolution 8MP, 3840 × 2160, up to 30 fps Lens 6–252 mm, F1.2–F4.6; 42× optical zoom and 16× digital zoom Night Vision IR up to 500 m WDR 120 dB Smart Features Intelligent auto-tracking with human, vehicle and non-motor-vehicle filtering; Smart Intrusion Prevention; multi-target detection; people counting Image Features Gyroscope EIS, optical and digital defog, wiper Local Storage MicroSD up to 512 GB Audio 1 input / 1 output; two-way audio using external audio devices Alarm I/O 7 inputs / 2 outputs Network 1 × RJ45 10/100 Mbps; ONVIF S/G/T/M Power AC 24 V ±25%, DC 24 V ±25% or IEEE 802.3bt PoE; maximum 67 W Protection IP67, 6 kV surge protection Operating Temperature −40°C to 70°C Dimensions Ø226.7 × 440.3 mm Weight 6.9 kg Warranty (Australia) 3 years · CCTV Guru Australia Downloads Manufacturer specifications Datasheet Quick Guide Frequently Asked Questions How far does it zoom?6–252 mm, F1.2–F4.6; 42× optical zoom and 16× digital zoom. Identification distance depends on scene lighting, target size and camera setup. Does it automatically track targets?Intelligent auto-tracking with human, vehicle and non-motor-vehicle filtering; Smart Intrusion Prevention; multi-target detection; people counting. What power supply is required?AC 24 V ±25%, DC 24 V ±25% or IEEE 802.3bt PoE; maximum 67 W. Check the PoE source and cable run can support the camera load. Can it record locally?MicroSD up to 512 GB. Does it have two-way audio?1 input / 1 output; two-way audio using external audio devices. Is it suitable for outdoor use?IP67, 6 kV surge protection; operating temperature −40°C to 70°C. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

NDAA Compliant · 4MP+4MP LightHunter Dual-Lens PTZ UNV Dual-Lens LightHunter PTZ IPC94144SFW-X25-F40C 4MP+4MP LightHunter Dual-Lens PTZ — Australian Stock & 3-Year Warranty The Uniview UNV IPC94144SFW-X25-F40C combines a 4 MP panoramic fixed lens with a 4 MP PTZ 25× zoom in one device, so you can watch the whole scene and zoom in on close-up detail at the same time. LightHunter imaging and 120 dB true WDR sharpen low-light performance, while the PTZ channel reaches Smart IR to 100 m and the panorama channel adds warm light to 30 m. With triple streams, 1024 presets, two-way audio, PoE+ power and an IP66 housing, it is built for demanding Australian outdoor surveillance — backed by a 3-year Australian warranty. Why the IPC94144SFW-X25-F40C stands out Resolution 4MP + 4MP dual-lens Low-Light LightHunter + 120dB WDR Night Vision PTZ IR 100m · warm 30m Lens / Zoom Panorama + 25× PTZ Built for Australian conditions Overview and close-up at once A fixed 4 mm panoramic channel keeps the whole scene in view while the 25× PTZ channel (4.8–120 mm) zooms in and tracks detail — no blind spots while you investigate. Clear footage in tough light LightHunter imaging with 120 dB true WDR, HLC and digital defog balances bright and shaded areas, with Smart IR to 100 m on the PTZ and warm light to 30 m on the panorama. Cover every angle 360° pan, −15°~90° tilt and up to 1024 presets with patrols, routes and home position let the PTZ revisit key points automatically across large sites. One-cable, weatherproof install PoE+ (IEEE 802.3at, max 24W) powers both channels over a single Cat6 run, and the IP66 housing with 6 kV surge protection handles Australian sun, dust and storms from -40 °C to 65 °C. Technical specifications Uniview UNV IPC94144SFW-X25-F40C — Full Specifications Brand / Series Uniview UNV · LightHunter Dual-Lens PTZ Model IPC94144SFW-X25-F40C Panorama Channel 4 MP 1/1.8″ CMOS · 4 mm F1.0 · FOV 94.9°(H)/51.5°(V)/116.7°(D) PTZ Channel 4 MP 1/2.7″ CMOS · 4.8–120 mm F1.5–F3.8 · 25× zoom · FOV(H) 55.46°–3.09° Max Frame Rate Both channels up to 4 MP (2688×1520) @ 30fps per stream Low-Light Tech LightHunter · 120 dB true WDR · 2D/3D DNR · HLC · digital defog Illumination PTZ Smart IR up to 100 m (850 nm) · Panorama warm light up to 30 m Pan / Tilt Pan 360° · Tilt −15°~90° · up to 80°/s Presets / Patrol 1024 presets · patrol / route / home position Compression Ultra 265 / H.265 / H.264 / MJPEG · triple streams · ROI · U-Code Audio / Alarm I/O Two-way audio (1/1) · built-in speaker · Alarm 2/1 · RS-485 Storage MicroSD up to 256 GB · ANR · NAS Network / Security RJ45 · ONVIF S/G/T · IPv4 / HTTPS / TLS · up to 32 users Power PoE+ (IEEE 802.3at) / DC 12V ±25% · max 24W Weather / Env. IP66 · 6 kV surge · -40 °C to 65 °C · ≤95% RH Dimensions / Weight Φ163 × 304 mm · 2.27 kg Form Factor Dual-lens PTZ Compliance NDAA / Section 889 compliant Warranty 3-Year Australian warranty Frequently asked questions What does dual-lens mean here?It has two cameras in one body: a fixed 4 MP panoramic lens for the wide overview, plus a 4 MP PTZ with 25× optical zoom that pans, tilts and zooms to investigate detail — both at the same time. How much zoom does the PTZ channel have?The PTZ channel uses a 25× optical zoom (4.8–120 mm) with auto-focus for long-range detail, while the panorama lens stays fixed on the full scene. Does it record in colour at night?LightHunter delivers bright low-light imaging; the PTZ channel switches to Smart IR (to 100 m) for black-and-white night vision, while the panorama channel adds warm light to 30 m to keep colour up close. How far does the night vision reach?The PTZ channel illuminates up to 100 m with Smart IR, and the panorama channel reaches 30 m with warm light — ideal for large car parks and perimeters. Is the IPC94144SFW-X25-F40C NDAA compliant?Yes. Uniview UNV LightHunter dual-lens PTZ cameras are NDAA Section 889 compliant, making them suitable for government, commercial and security-sensitive sites in Australia. How is it powered?Single-cable PoE+ (IEEE 802.3at) over Cat6, drawing up to 24W for both channels. A 12V DC option is also supported. Which NVRs work with it?It works with Uniview UNV NVRs via plug-and-play and with most ONVIF (Profile S/G/T) recorders for video and PTZ control. Can it record without an NVR?Yes — a MicroSD card (up to 256 GB) enables on-camera recording, with ANR to fill gaps if the network drops. What warranty applies?This camera ships with a 3-year Australian warranty and local CCTV Guru tech support. Documentation & downloads IPC94144SFW-X25-F40C Datasheet Uniview UNV PTZ Dome Quick Start Guide Uniview UNV PTZ Camera User Manual 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less
