Uniview IPC6434LR-X16-VG1 4MP 16× PTZ Network Camera

Description

UNIVIEW · IPC6434LR-X16-VG1

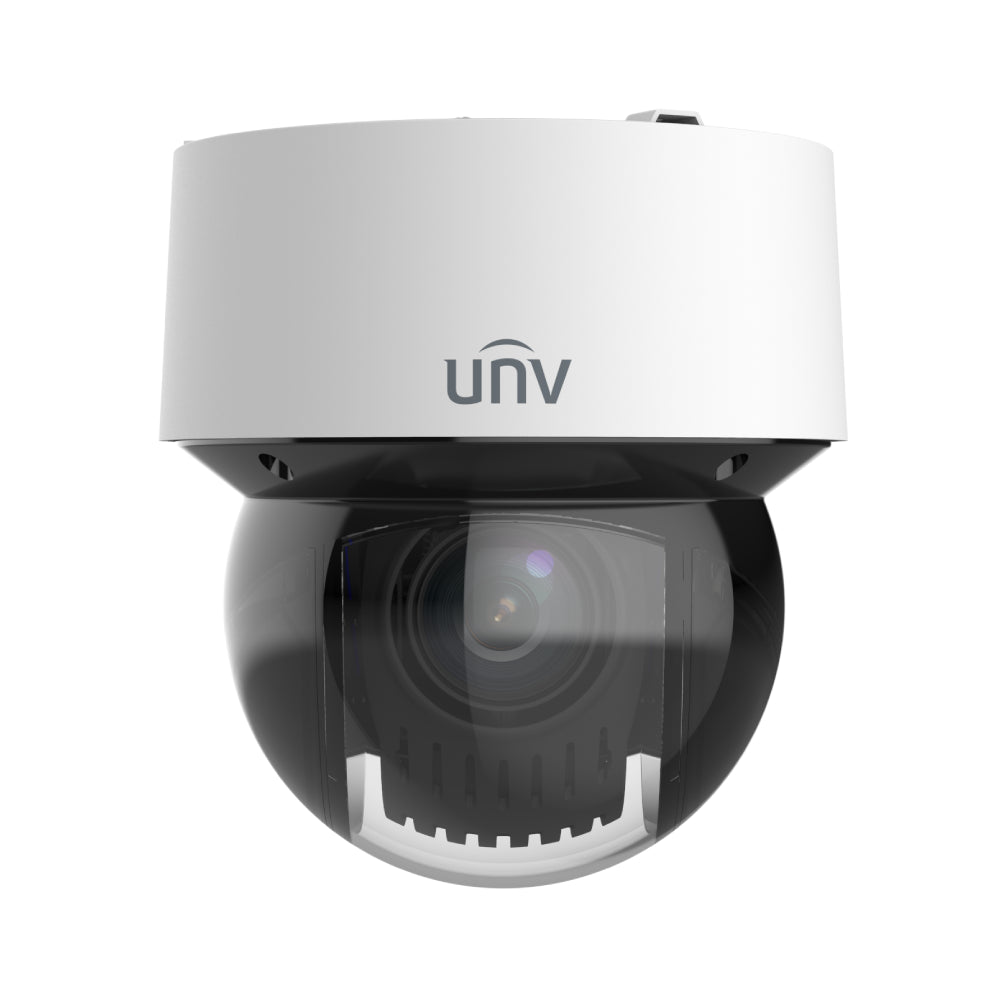

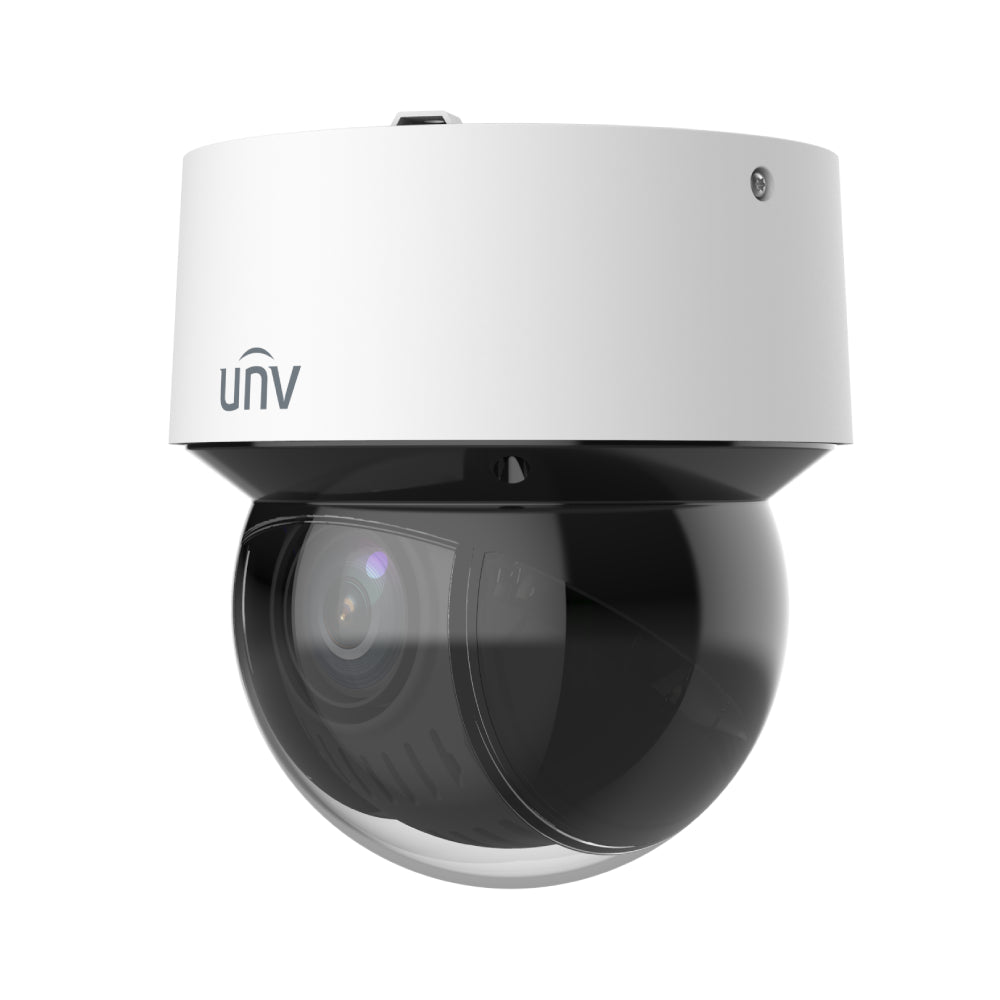

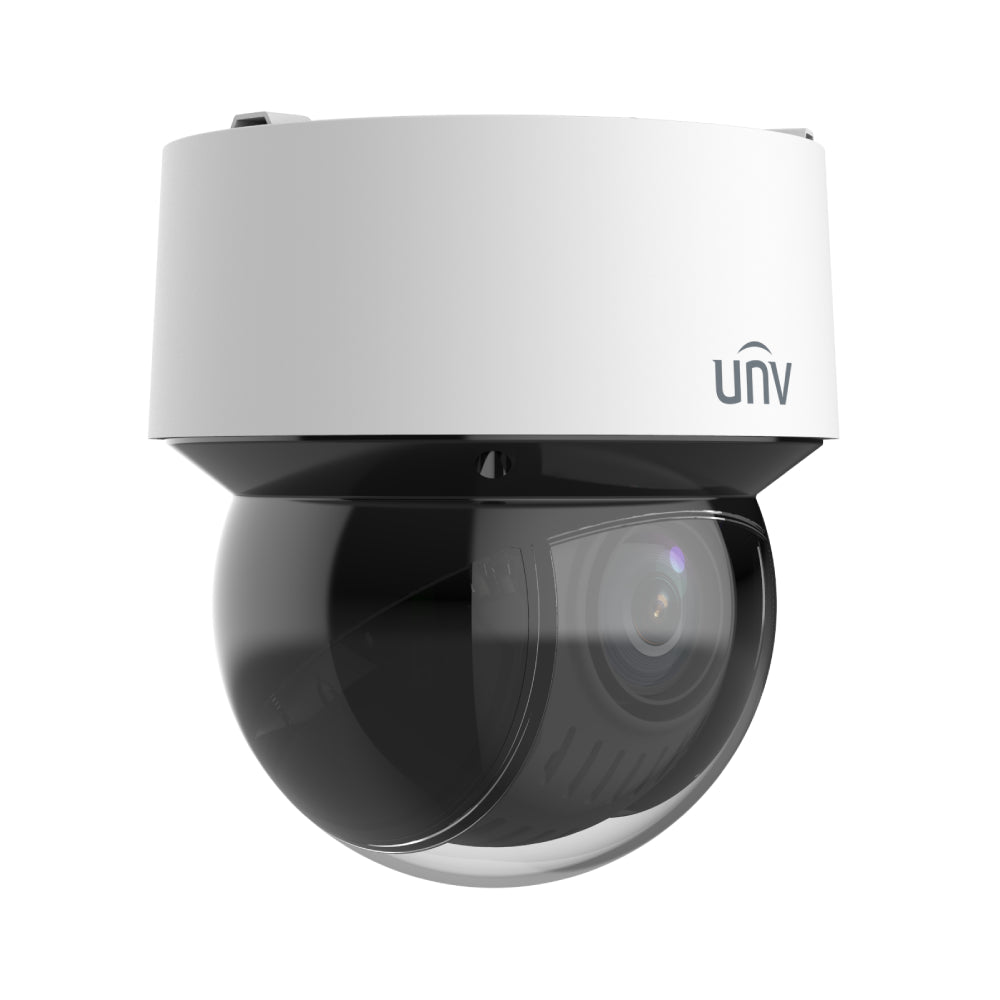

Uniview IPC6434LR-X16-VG1 4MP 16× PTZ Network Camera

The Uniview IPC6434LR-X16-VG1 is a 4MP ptz network camera with a 5.5 to 88 mm lens and 120 dB WDR. It records 4MP (2688 × 1520), up to 30 fps, supports local microSD storage up to 512 GB, and uses ir: up to 100m (328 ft) ir range illumination. Audio input/output for external audio devices; two-way audio via external audio devices. Protection: IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002).

Specifications
Model IPC6434LR-X16-VG1
Design PTZ
Image Sensor 1/2.9" CMOS
Resolution / Frame Rate 4MP (2688 × 1520), up to 30 fps
Lens 5.5 to 88 mm, F1.78-F3.73
Horizontal View 50.85° to 3.47°
WDR 120 dB
Illumination IR: Up to 100m (328 ft) IR range
Audio Audio input/output for external audio devices; two-way audio via external audio devices
Audio I/O 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O 2/1
Local Storage MicroSD up to 512 GB
Power DC 12 V (±10%, 3A), PoE+ (IEEE 802.3at)
Power Consumption Max. 23 W
Protection IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002)
Dimensions Ø167 mm × 181 mm (Ø6.6" × 7.1") (Ø × H)
Weight 2.3 kg (5.07 lb.)
Compression Ultra 265, H.265, H.264, MJPEG
Network RJ45 10/100 Mbps
Auto Tracking Support, target filtering: human and vehicle

Frequently Asked Questions

What lens and resolution does it have?

5.5 to 88 mm, F1.78-F3.73. 4MP (2688 × 1520), up to 30 fps.

How does it work at night?

IR: Up to 100m (328 ft) IR range. Actual image detail depends on the scene and installation.

Does it have two-way audio?

Audio input/output for external audio devices; two-way audio via external audio devices.

Can it record without an NVR?

It supports local recording with a microSD card up to 512 GB. A card is required for local storage.

How is it powered?

DC 12 V (±10%, 3A), PoE+ (IEEE 802.3at); Max. 23 W.

Which mounts are compatible?

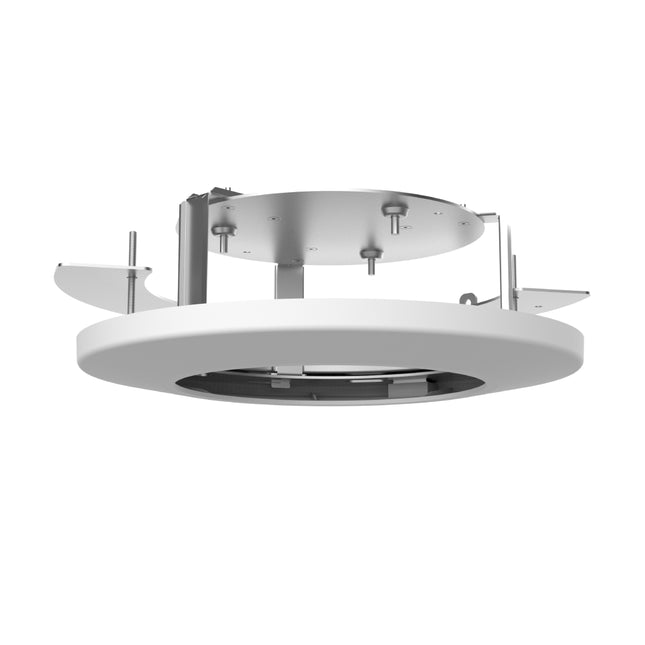

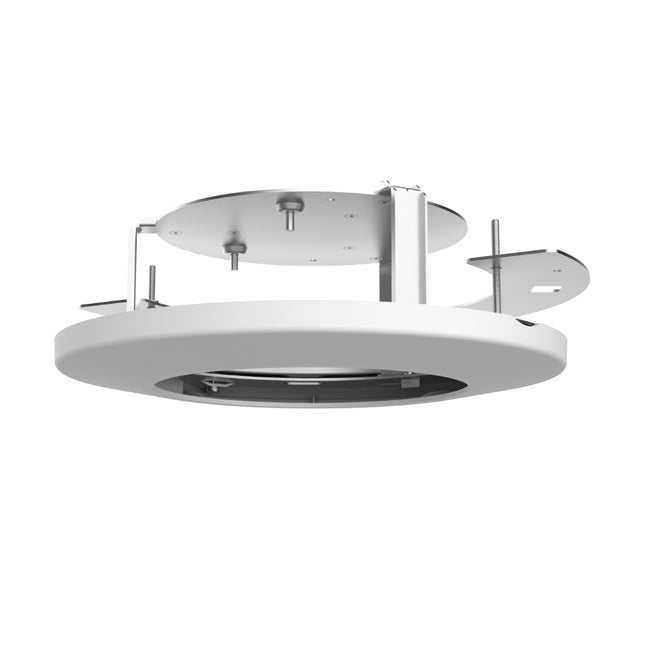

Use the exact camera model in the Uniview accessory list. The linked mounting products are compatible choices; mounting assemblies may require an adapter or pendant.

Technical DatasheetQuick Start GuideOperation Manual

Uniview IPC6434LR-X16-VG1 4MP 16× PTZ Network Camera

Product form

SKU: IPC6434LR-X16-VG1

$529.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Add Ons & Accessories

    • Shipped today? Order within: Oct 09, 2026 14:00:00 +1100
    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    UNIVIEW · IPC6434LR-X16-VG1

    Uniview IPC6434LR-X16-VG1 4MP 16× PTZ Network Camera

    The Uniview IPC6434LR-X16-VG1 is a 4MP ptz network camera with a 5.5 to 88 mm lens and 120 dB WDR. It records 4MP (2688 × 1520), up to 30 fps, supports local microSD storage up to 512 GB, and uses ir: up to 100m (328 ft) ir range illumination. Audio input/output for external audio devices; two-way audio via external audio devices. Protection: IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002).

    Specifications
    Model IPC6434LR-X16-VG1
    Design PTZ
    Image Sensor 1/2.9" CMOS
    Resolution / Frame Rate 4MP (2688 × 1520), up to 30 fps
    Lens 5.5 to 88 mm, F1.78-F3.73
    Horizontal View 50.85° to 3.47°
    WDR 120 dB
    Illumination IR: Up to 100m (328 ft) IR range
    Audio Audio input/output for external audio devices; two-way audio via external audio devices
    Audio I/O 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
    Alarm I/O 2/1
    Local Storage MicroSD up to 512 GB
    Power DC 12 V (±10%, 3A), PoE+ (IEEE 802.3at)
    Power Consumption Max. 23 W
    Protection IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002)
    Dimensions Ø167 mm × 181 mm (Ø6.6" × 7.1") (Ø × H)
    Weight 2.3 kg (5.07 lb.)
    Compression Ultra 265, H.265, H.264, MJPEG
    Network RJ45 10/100 Mbps
    Auto Tracking Support, target filtering: human and vehicle

    Frequently Asked Questions

    What lens and resolution does it have?

    5.5 to 88 mm, F1.78-F3.73. 4MP (2688 × 1520), up to 30 fps.

    How does it work at night?

    IR: Up to 100m (328 ft) IR range. Actual image detail depends on the scene and installation.

    Does it have two-way audio?

    Audio input/output for external audio devices; two-way audio via external audio devices.

    Can it record without an NVR?

    It supports local recording with a microSD card up to 512 GB. A card is required for local storage.

    How is it powered?

    DC 12 V (±10%, 3A), PoE+ (IEEE 802.3at); Max. 23 W.

    Which mounts are compatible?

    Use the exact camera model in the Uniview accessory list. The linked mounting products are compatible choices; mounting assemblies may require an adapter or pendant.

    Technical DatasheetQuick Start GuideOperation Manual
