Ubiquiti · UNIFI ROUTING
A UniFi gateway with a tidy magnetic mounting option
This Australian distributor bundle pairs one UXG-Lite Gateway Lite with one UACC-FM Floating Mount. It provides wired routing and security functions in a compact format, with the matching mount included for a cleaner installation.
Key features
Gigabit WAN and LAN
Two Gigabit RJ45 ports provide one default WAN connection and one LAN connection.
Routing and security
Stateful and application-aware firewall functions, with up to 1Gbps IDS/IPS throughput under manufacturer test conditions.
Separate UniFi management
Manage the gateway using a supported UniFi Network host. The management host is separate from this gateway.
UACC-FM mount included
The included Floating Mount provides magnetic, screw or anchor mounting options; it is not a fibre-network interface.

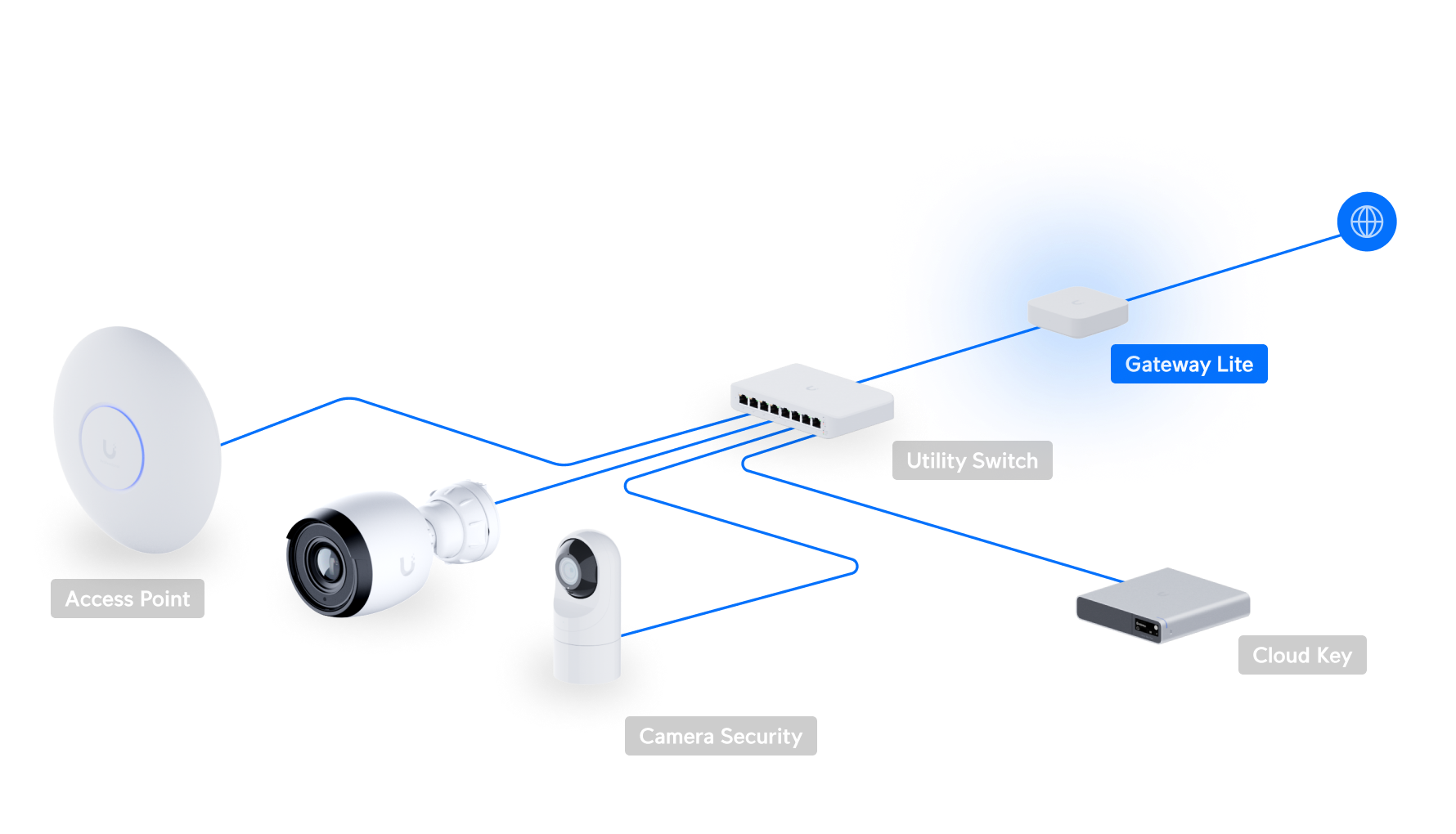

Where this gateway fits
Gateway Lite can sit between a compatible internet connection and the local wired network. It is useful when you want UniFi routing and firewall management without choosing a gateway that also contains a full UniFi application console. Check your internet speed, network layout and management-host requirements before selecting it.
Plan the rest of your network
A supported UniFi Network management host is required. Ubiquiti currently specifies UniFi Network 8.3.32 or later for the platform. A compatible CloudKey, supported UniFi OS Server or Official UniFi Hosting can provide management; these options are separate from this bundle.
Gateway Lite does not provide Wi-Fi, replace a required ISP modem or add PoE output for access points. Add a suitable switch and Wi-Fi access point where the network needs them. The two RJ45 interfaces are Gigabit, so a faster switch elsewhere does not turn them into multi-gigabit ports.

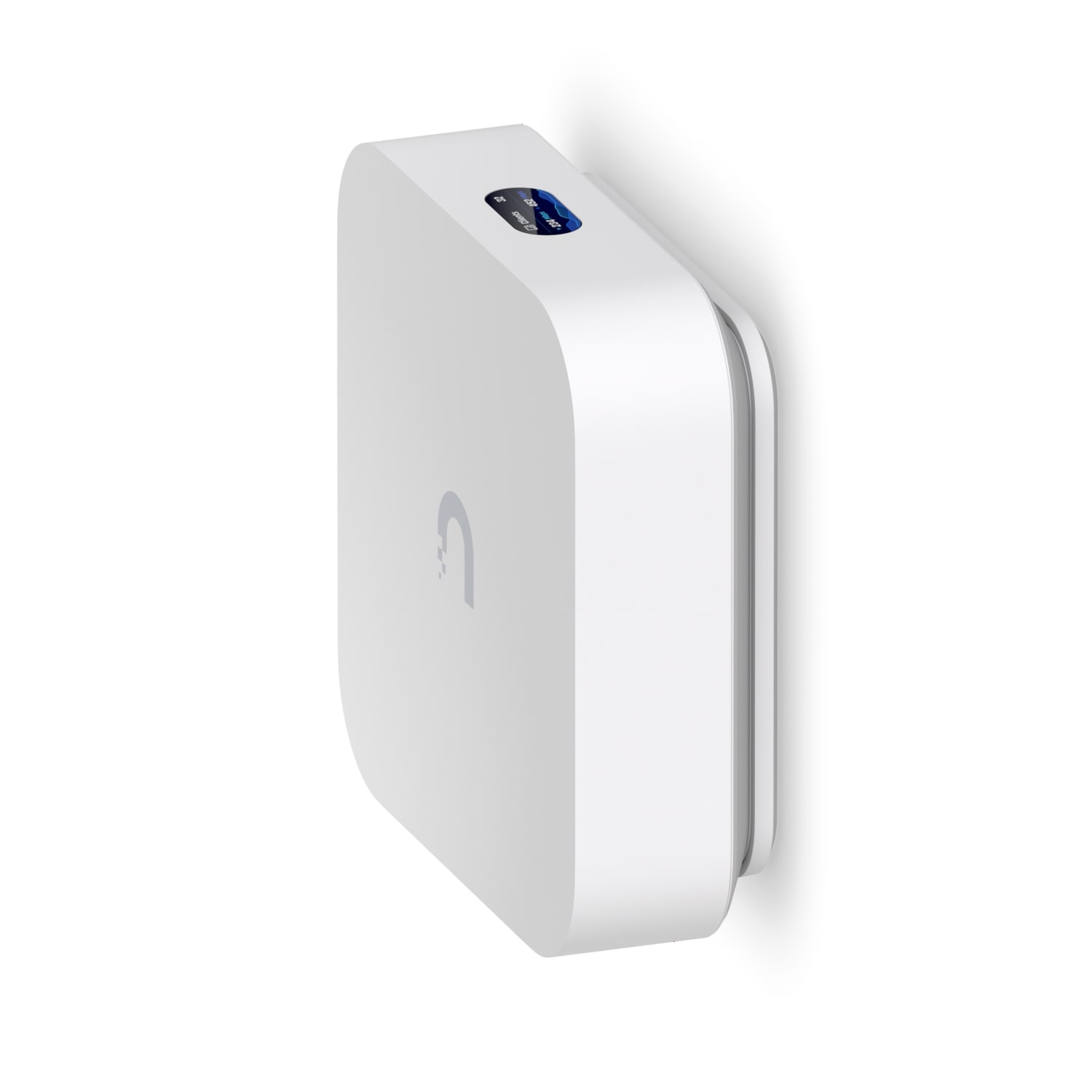

What the Floating Mount adds
The UACC-FM is a physical mounting accessory. Use its magnetic or fixed-mount arrangement only on a suitable surface and follow Ubiquiti’s installation instructions. It does not add ports, an SFP slot or a wireless connection.
What is included
One UXG-Lite gateway, its USB-C power adapter and one UACC-FM Floating Mount. A management host, ISP modem, switch, access point and additional network cables are separate.
Suggested companion products
A CloudKey+ UCK-G2-SSD is one management-host option. An existing supported host may already meet that need. A Cat6 patch cable can complete a local Gigabit link; check the required length and ports before ordering.
Technical specifications
| Bundle SKU |
NHU-UXG-Lite-MountKit |
| Gateway |
UXG-Lite |
| Mount |
UACC-FM |
| Ethernet |
2 × Gigabit RJ45 |
| Power |
USB-C, 5V DC / 3A |

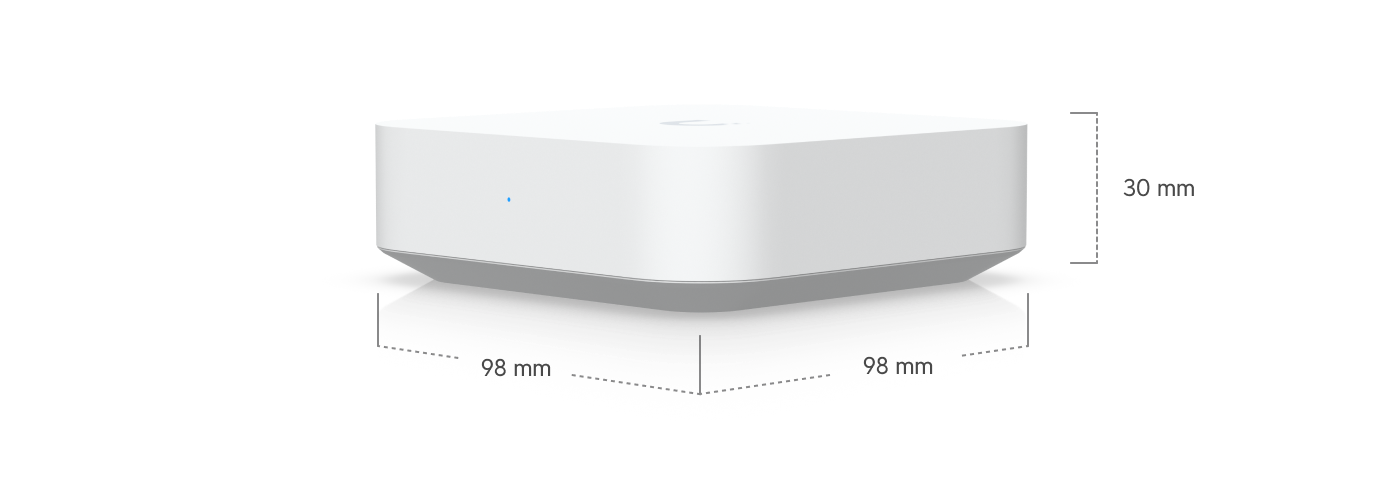

| Gateway dimensions |
98 × 98 × 30 mm |
| Australian supply warranty |
12 months |
Official Ubiquiti hardware video
Official Gateway Lite hardware presentation from Ubiquiti. The supplier bundle adds the UACC-FM mount described above; other equipment shown is separate.
Official resources
Frequently asked questions
Does this bundle include a UniFi controller?
No. It includes the UXG-Lite gateway and UACC-FM mount. A separate supported UniFi Network host is required.
Does it have Wi-Fi?
No. Add a compatible access point and the network equipment needed to connect and power it.
Can the mount add fibre connectivity?
No. UACC-FM is a mounting accessory. The UXG-Lite has two Gigabit RJ45 network ports.
Does the gateway power an access point over Ethernet?
No PoE output is specified for these gateway ports. Plan a suitable PoE switch or injector for a PoE-powered access point.
Is 1Gbps IDS/IPS a guaranteed internet speed?
No. It is the manufacturer’s throughput specification under test conditions. Configuration, inspection settings, traffic and the internet service affect real performance.
What warranty applies?
This Australian supplier bundle is listed with a 12-month warranty. Retain your invoice and contact CCTV Guru for assistance.
12-month Australian supply warranty
