| Mechanical |
| Dimensions |

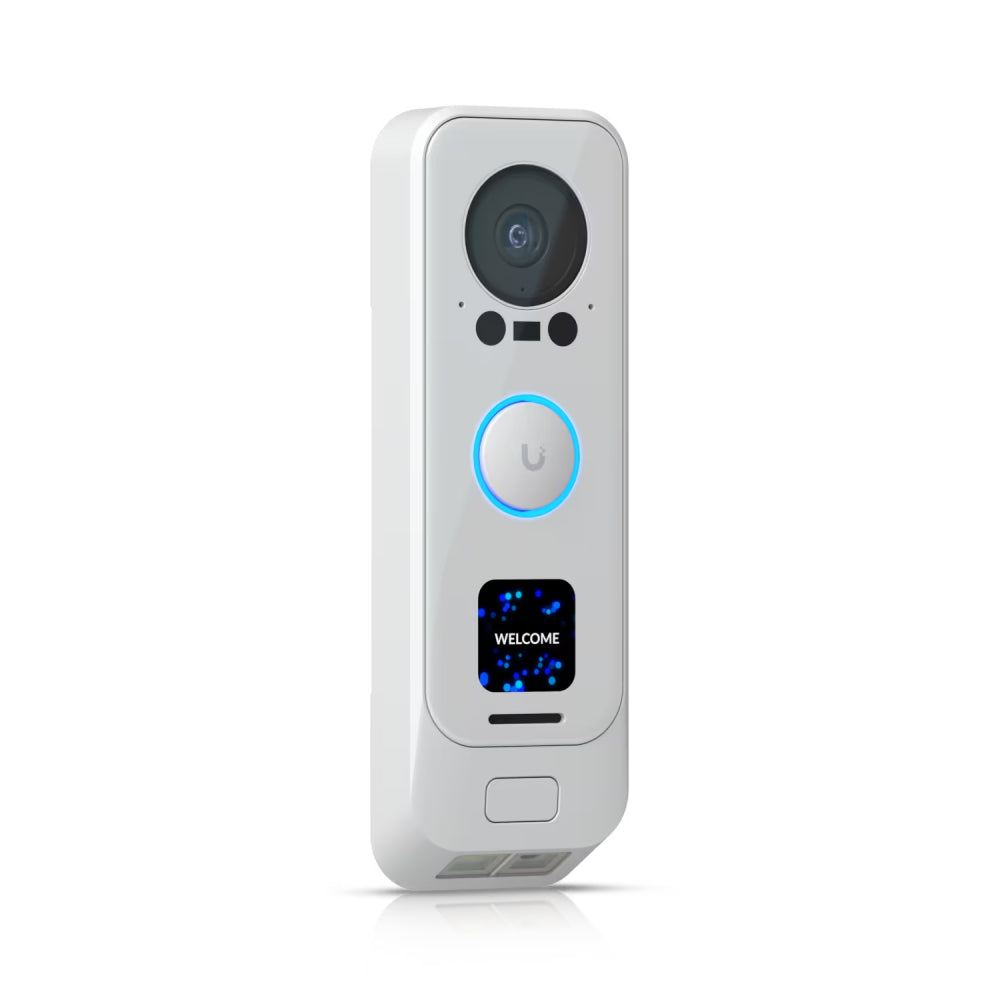

UVC-G4 Doorbell Pro
Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4")
Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7")
Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1")
On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1")

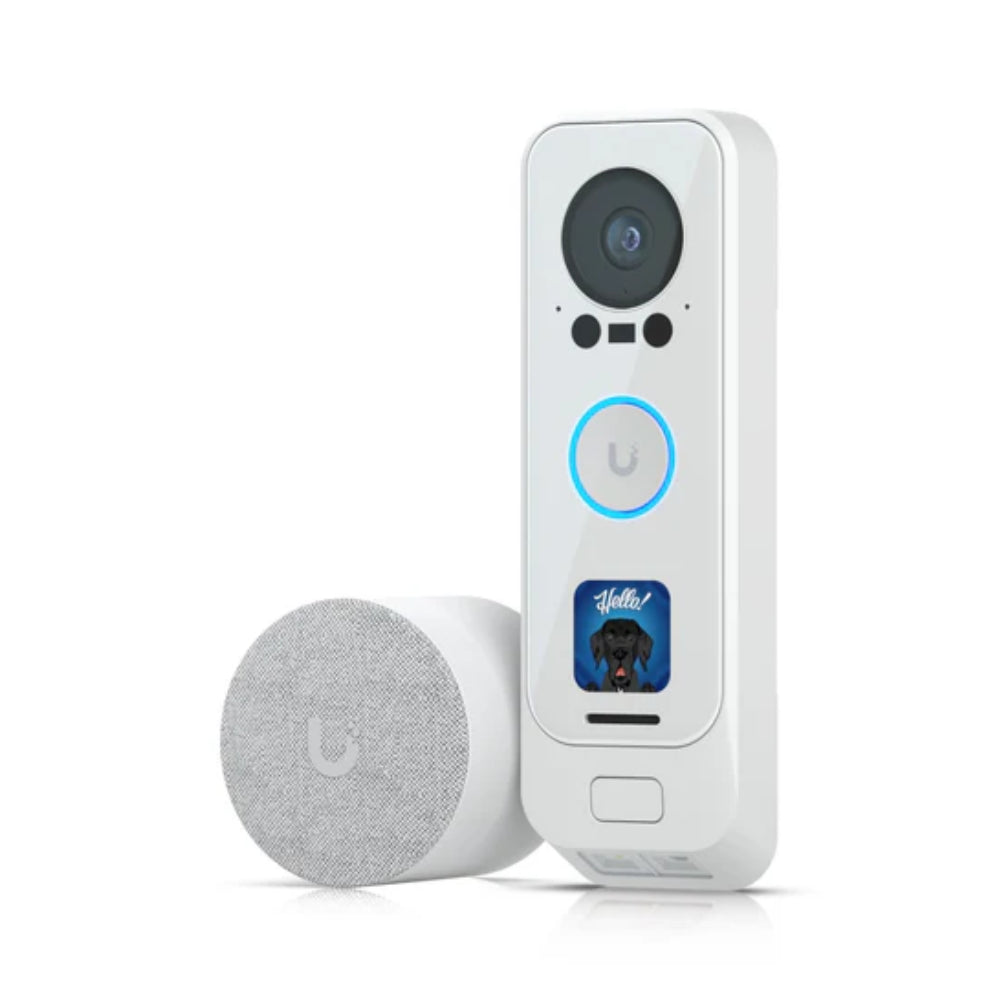

UP-Chime PoE
Device: Ø62 x 54 mm (Ø2.5 x 2.1")
In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5")
On-wall mount: Ø62 x 20.2 mm (Ø2.5 x 0.8") |
| Weight |
UVC-G4 Doorbell Pro
Device: 264 g (9.3 oz)
Wall mount: 56 g (2 oz)
Wedge: 33 g (1.2 oz)
On-wall mount: 53 g (1.9 oz)
UP-Chime PoE
Device: 158 g (5.6 oz)
In-wall mount: 91 g (3.2 oz)
On-wall mount: 28 g (1 oz) |
| Enclosure material |
Aluminum alloy, polycarbonate |
| Mount material |
Wall mount: aluminum alloy
Wedge: polycarbonate
On-wall mount: polycarbonate
Chime mout: polycarbonate, zinc alloy |
| Weatherproofing |
IPX4 (UVC-G4 Doorbell Pro) |
| Color |
Black
White |
| Optics |
| Sensor |
Main camera: 5MP CMOS
Package camera: 8MP CMOS |
| Lens |
Fixed focal length |
| View angle |
Main camera: H: 138°, V: 114°, D: 155° (LDC On)
Main camera: H: 160°, V: 117°, D: 160° (LDC Off)
Package camera: H: 97.5°, V: 79.4°, D: 118.2° |
| Night mode |
Built-in IR LED illumination and IR cut filter |
| Video |
| Resolution |
Main camera: 2MP 1600 x 1200 (4:3)
Package camera: 2MP 1600 x 1200 (4:3) |
| Max. frame rate |
30 FPS |
| System |
| Processor |
Quad-core Arm® Cortex®-A53 based chip |
| Networking interface |

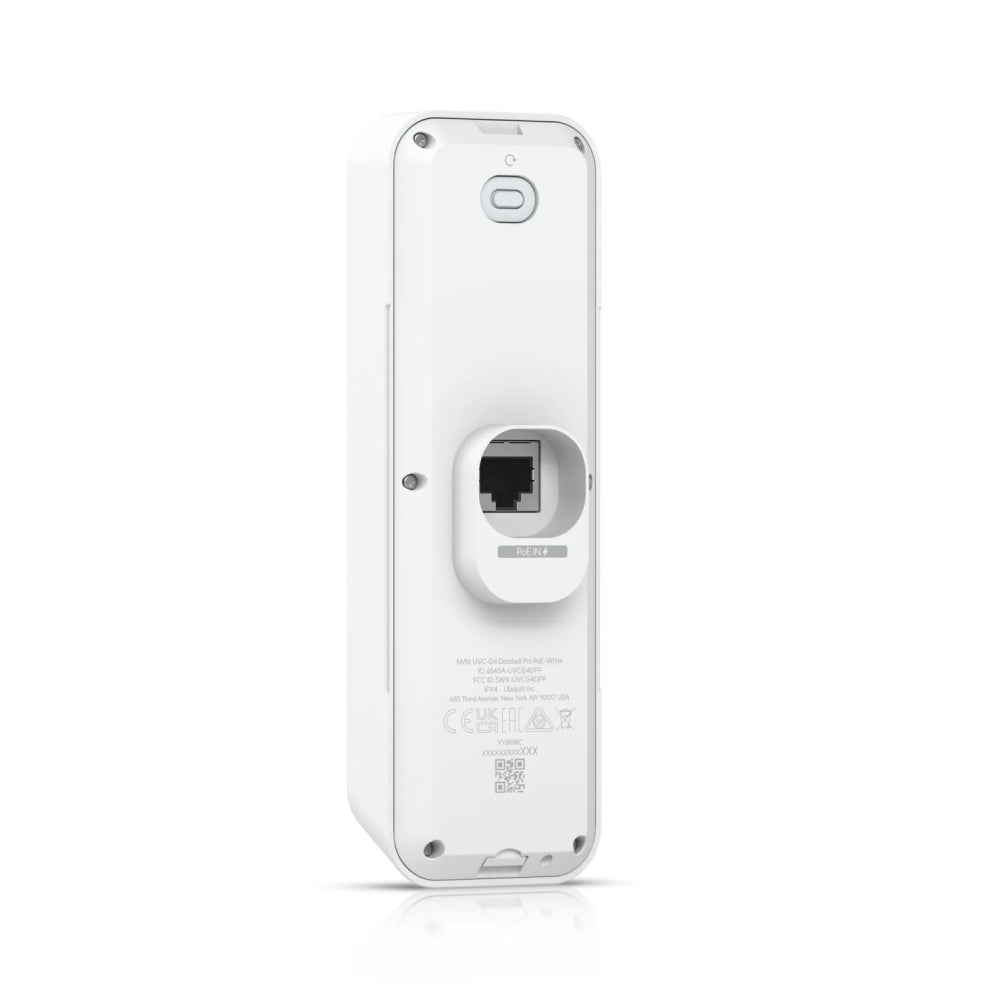

UVC-G4 Doorbell Pro: GbE RJ45 port
UP-Chime PoE: 10/100 MbE port |
| Power method |
PoE |
| Supported voltage range |
UVC-G4 Doorbell Pro: 37—57V DC
UP-Chime PoE: 44–57V DC |
| Max. power consumption |
UVC-G4 Doorbell Pro: 7W
UP-Chime PoE: 3.5W |
| LED |
Link/activity |
| Buttons |
(1) Ring button
(1) Factory reset |
| Ambient operating temperature |
UVC-G4 Doorbell Pro: -30 to 40º C (-22 to 104º F)
UP-Chime PoE: 0 to 40° C (32 to 104° F) |
| Ambient operating humidity |
UVC-G4 Doorbell Pro: 0 to 90% noncondensing
UP-Chime PoE: 10 to 90% noncondensing |
| Certifications |
CE, FCC, IC |
| Audio |
| Microphone |
Yes (Can be disabled for the Doorbell) |
| Speaker |
Yes |
| Buzzer |
Yes (UP-Chime PoE) |
| Software |
| UniFi OS application |
UniFi Protect |
| Mobile app |
UniFi Protect iOS™ and Android™ |
