Ubiquiti PoE & Power Accessories
Multi-Gigabit 2.5GbE Power Over Ethernet Injector for High-Performance Networking
The UACC-PoE+-2.5G is a high-performance 2.5GbE PoE+ injector engineered to deliver up to 30W of 802.3at PoE+ power alongside multi-gigabit data throughput over a single Cat5e/Cat6 Ethernet cable. Purpose-built for bandwidth-intensive Wi-Fi 6, Wi-Fi 6E, Wi-Fi 7 access points, multi-gigabit security cameras, and VoIP infrastructure, this compact power adapter ensures maximum network speed without replacing existing non-PoE network switches.
Power Output
30W 802.3at PoE+
Ethernet Speed
2.5 GbE Multi-Gigabit
Circuit Protection
Surge & ESD Shielded
Design Factor
Compact Wall Mountable
Next-Gen Wireless Access Point Powering & Surge Shielding
Engineered for seamless integration into high-density commercial networks, the UACC-PoE+-2.5G eliminates performance bottlenecks by supporting full 2.5Gbps data passthrough while supplying clean, regulated 48V DC power. Integrated electrostatic discharge (ESD) and over-voltage surge clamping safeguard sensitive connected equipment against unexpected electrical transients in both indoor and outdoor deployments.
Uncompromised 2.5Gbps Multi-Gigabit Transfer
Delivers full 2.5 GbE data pass-through without signal attenuation or latency, making it the ideal power pairing for Wi-Fi 6 and Wi-Fi 7 access points operating on multi-gigabit backhaul connections.
Enterprise Surge & ESD Protection
Built with physical Earth grounding and advanced surge clamping circuits to absorb power spikes and electrostatic discharge, extending device longevity in harsh electrical environments.
Technical Specification Matrix
| Injector Model |
UACC-PoE+-2.5G |
| Maximum Power Output |
30 W |
| PoE Standard Compliance |
802.3at PoE+ (48V DC Output) |
| Ethernet Data Rate |
10/100/1000 Mbps / 2.5 Gbps Multi-Gigabit |

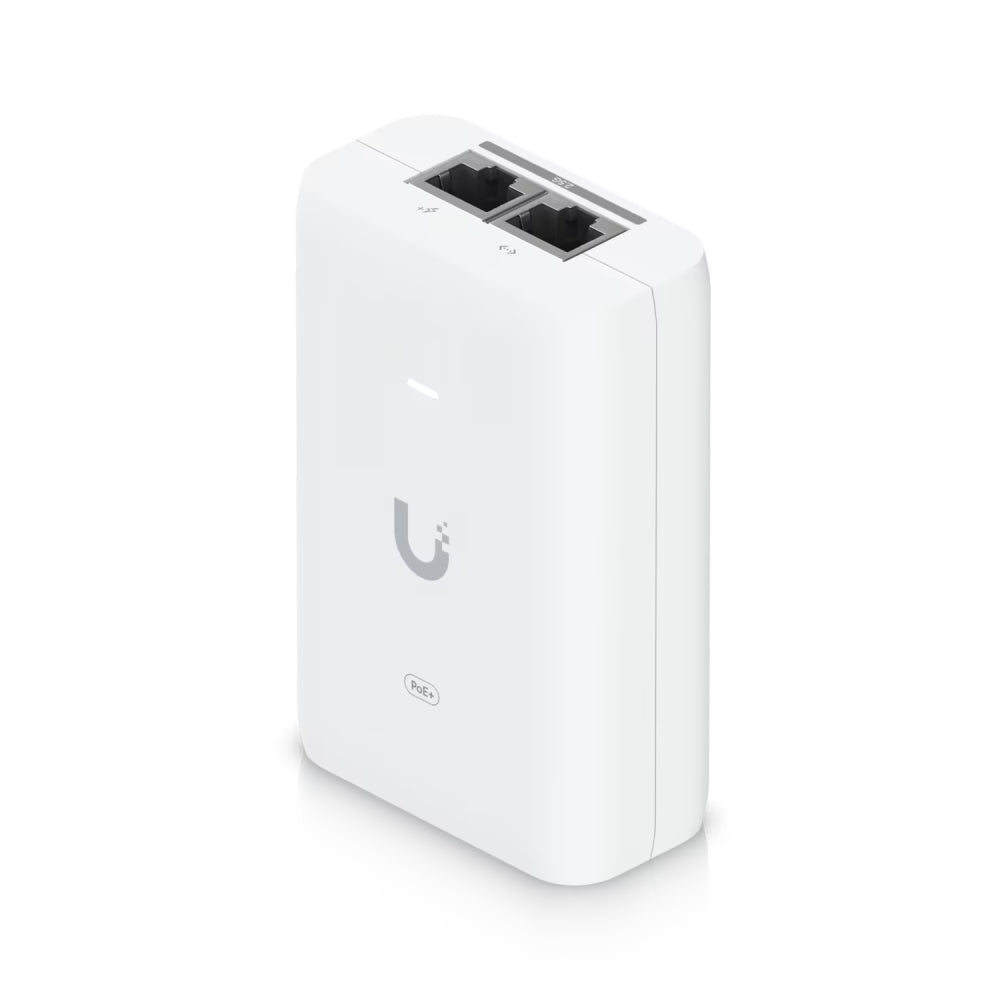

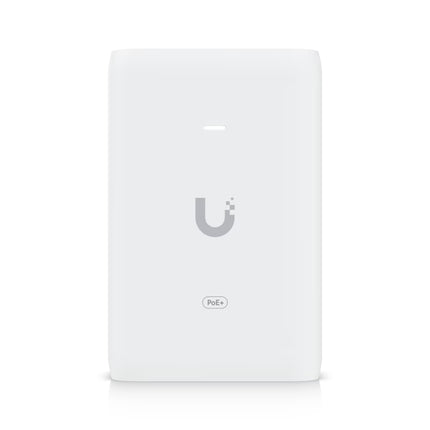

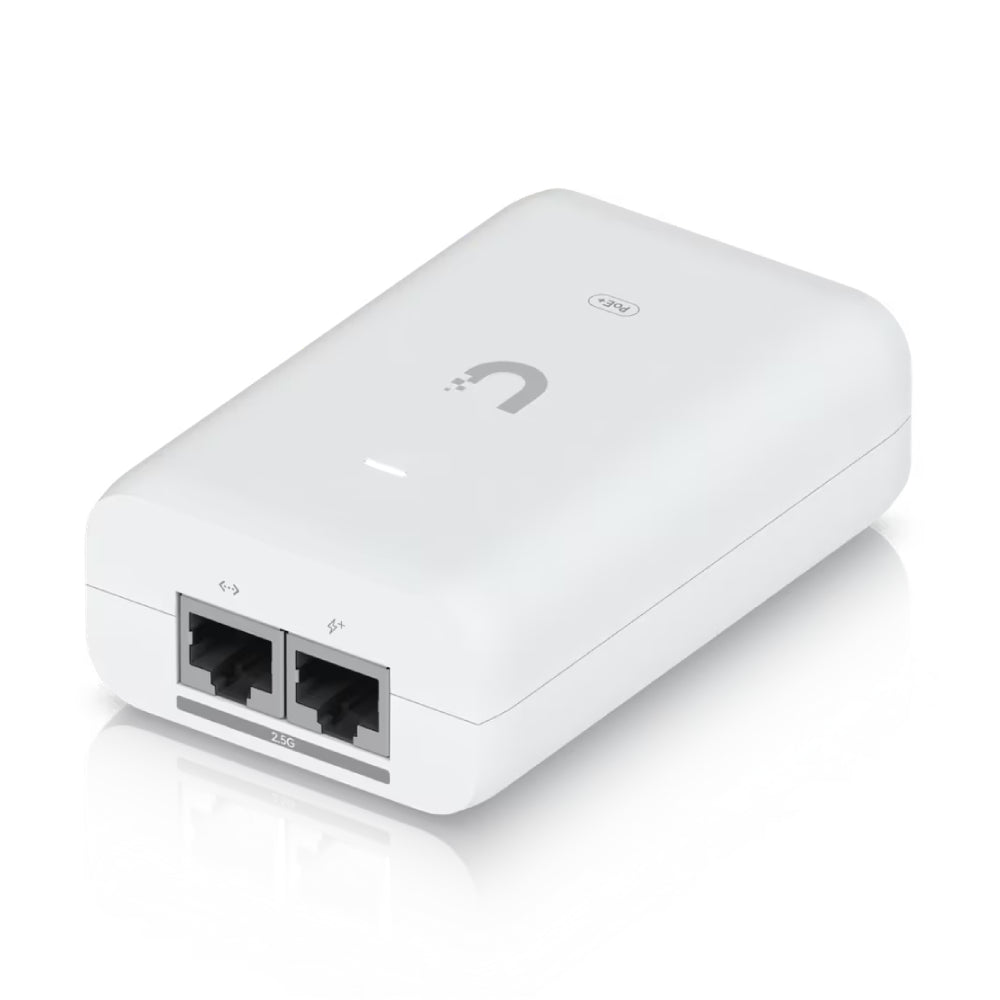

| Interface Connections |
(1) Data In RJ45 Port, (1) Data/PoE Out RJ45 Port |
| AC Input Voltage Range |
100–240 V AC, 50/60 Hz |
| Protection Features |
Surge Protection, Clamping Protection, ESD Shielding |
| Compatibility |
UniFi U6 Enterprise, U7 Pro, Multi-Gigabit IP Cameras & Access Devices |
Does the UACC-PoE+-2.5G support 2.5 Gbps Ethernet speeds?
Yes, it supports multi-gigabit Ethernet speeds up to 2.5 Gbps, making it fully compatible with high-speed Wi-Fi 6/7 access points and multi-gigabit network ports.
How much power can this PoE+ injector deliver?
The injector delivers up to 30W of 802.3at PoE+ output power at 48V DC, suitable for powering demanding PoE+ devices over standard Cat5e/Cat6 wiring.
Can I use this injector with standard 1Gbps or 100Mbps Ethernet devices?
Yes, the RJ45 Ethernet interfaces are backward compatible with 10/100/1000 Mbps legacy speed standards.

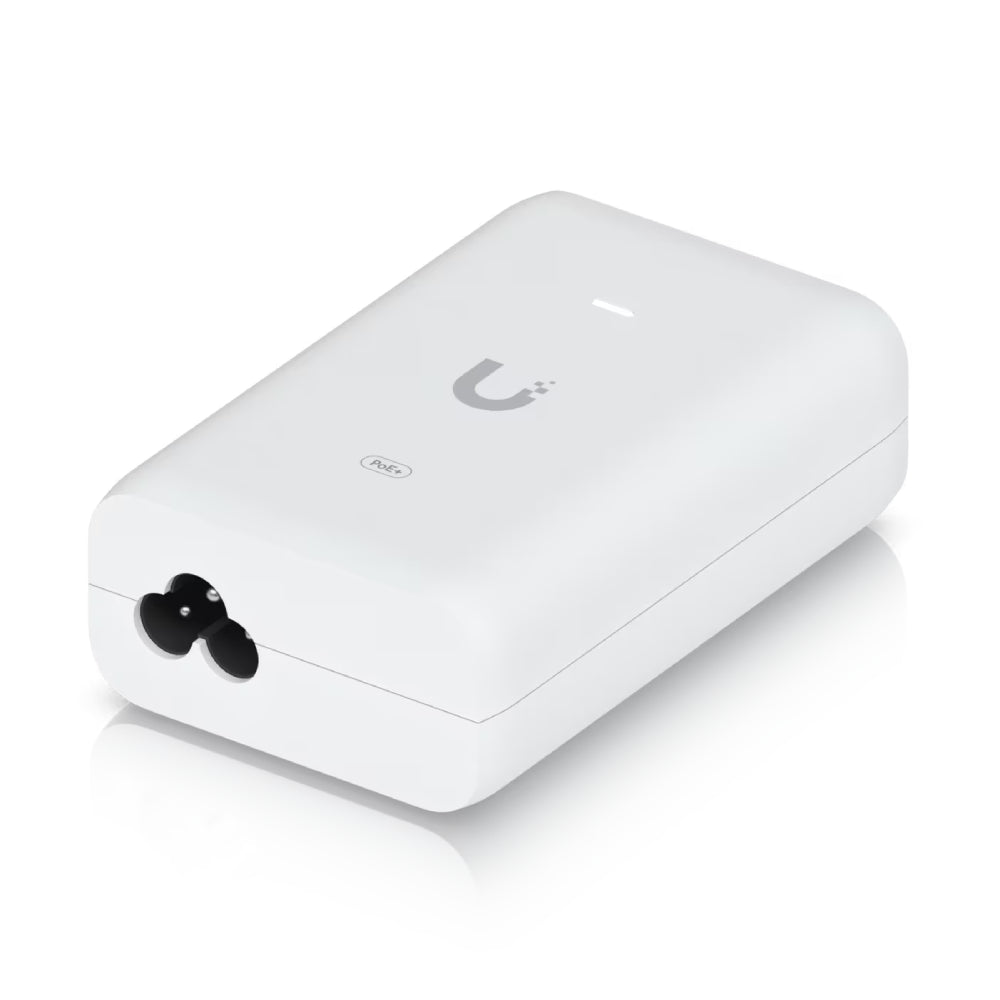

Is an AC power cable included with the adapter?
Yes, the package includes the standard AC power cord required to connect the injector to mains electrical supply.
