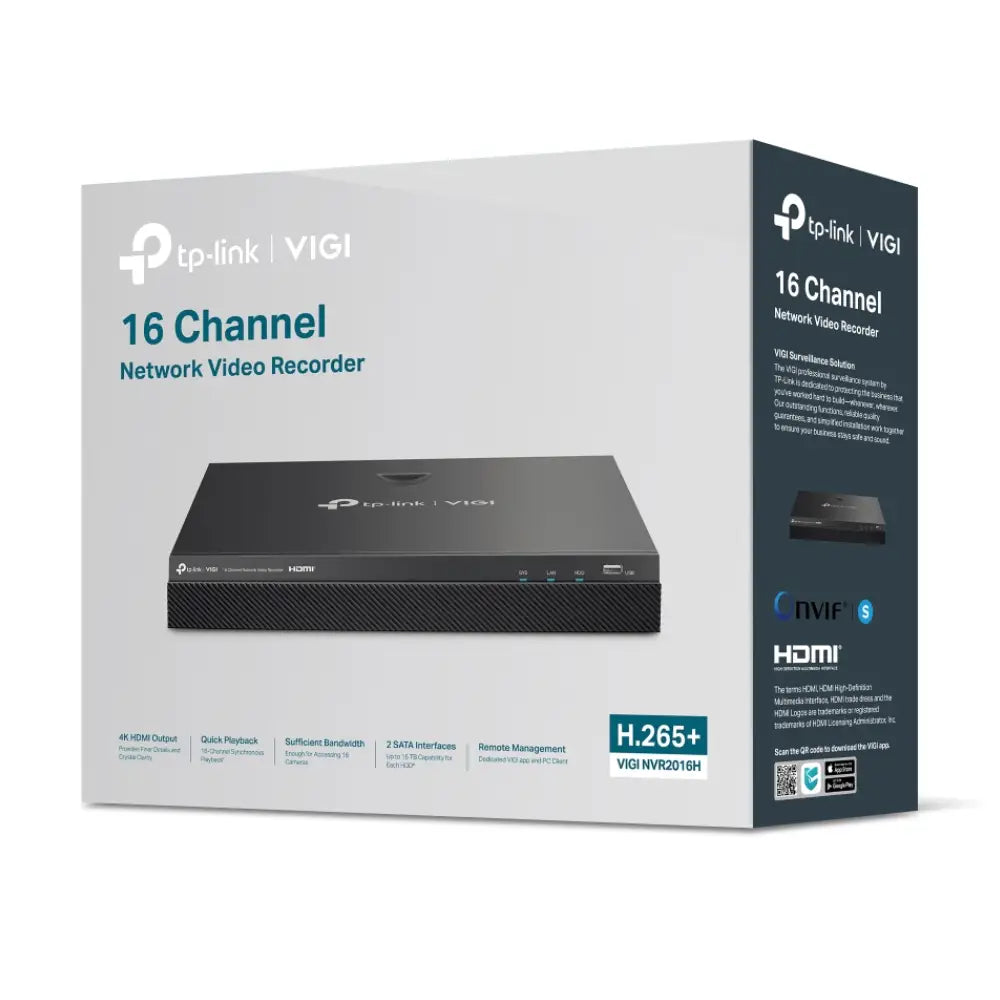

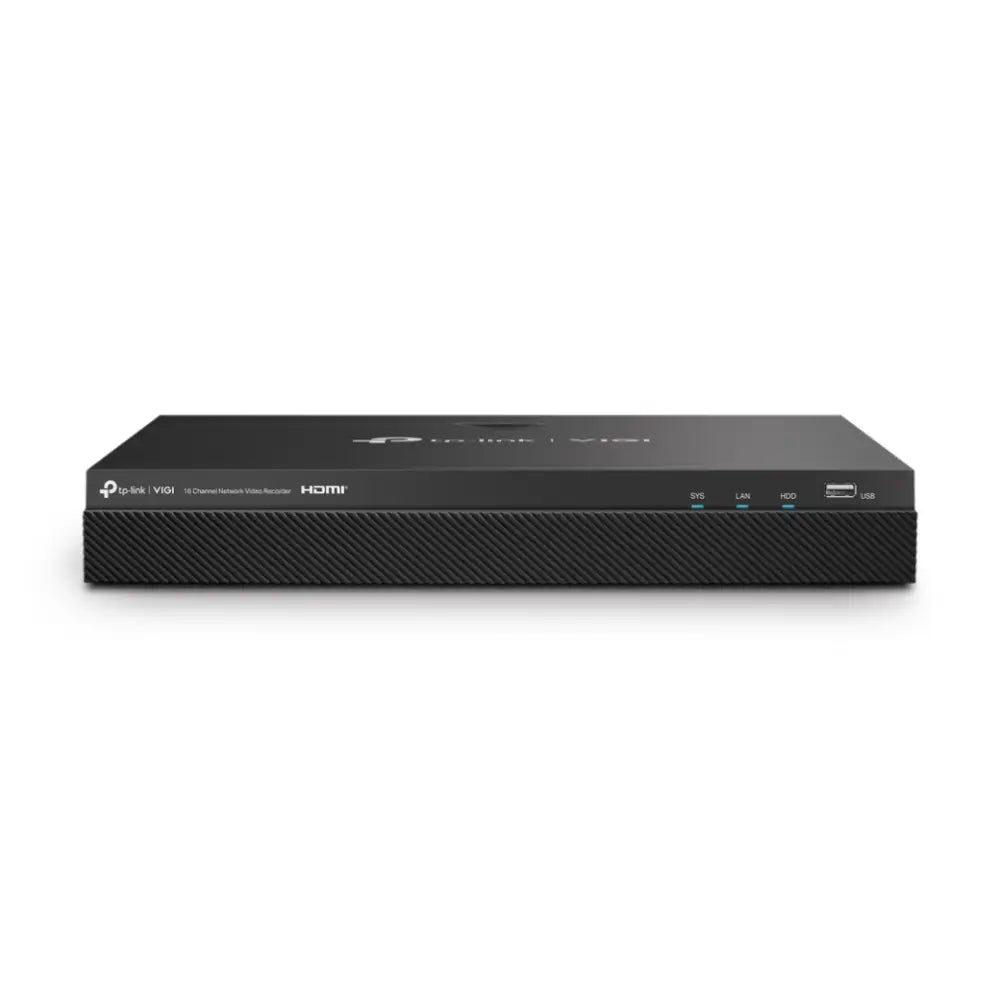

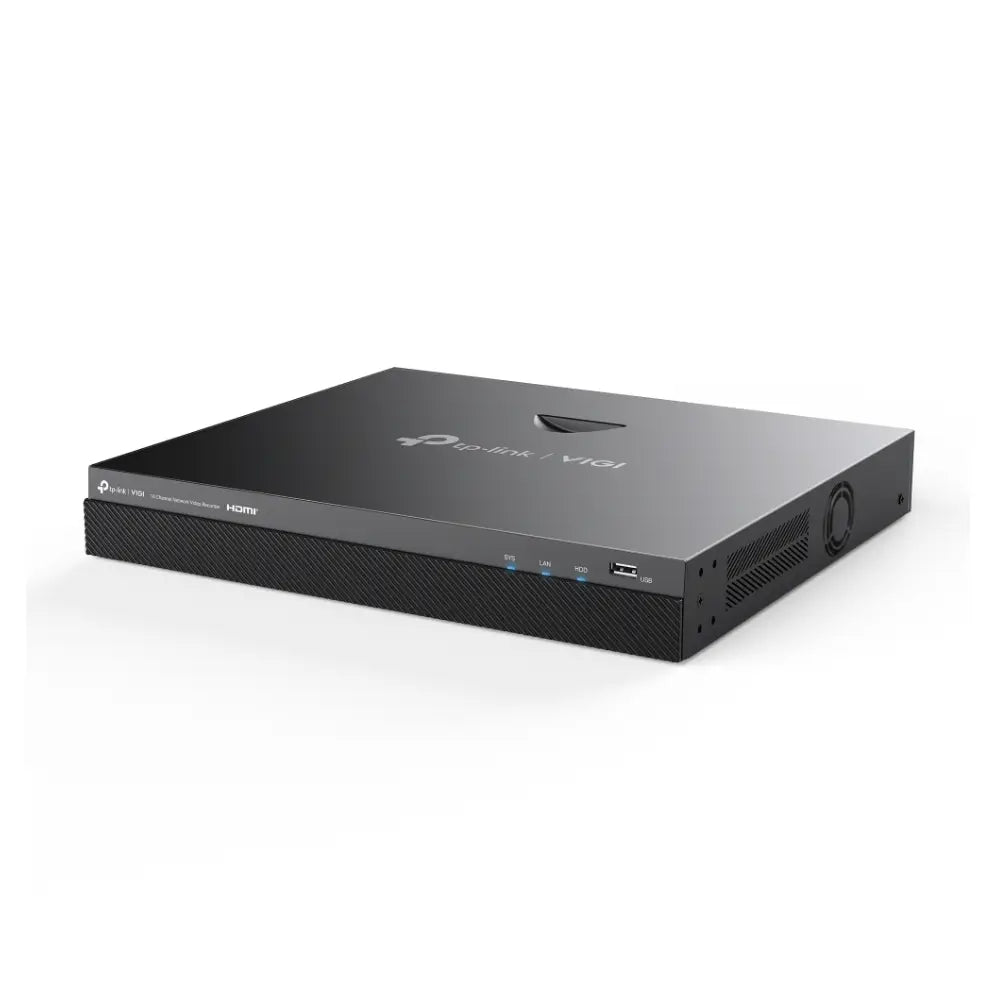

Description TP-Link VIGI NVR2016H — 16-Channel Network Video Recorder
The TP-Link VIGI NVR2016H is a professional 16-channel network video recorder designed for business CCTV deployments where cameras are powered via a separate PoE switch or individual power supplies. With 4K HDMI output, H.265+ compression, 160 Mbps recording bandwidth, and full integration with the TP-Link VIGI ecosystem, it delivers a clean, scalable, and installer-friendly foundation for IP surveillance across retail, commercial, warehouse, and office environments across Australia.
Key Features
16-Channel IP Video Recording: Supports up to 16 simultaneous IP camera channels for small to medium business CCTV systems with room to grow.
4K HDMI Output: Connect a monitor for live view and playback at up to 3840×2160 @ 30Hz, with simultaneous VGA output at up to 1080p @ 60Hz.
H.265+ Compression: Significantly reduces storage and bandwidth requirements compared to H.264, without compromising recording quality.
160 Mbps Bandwidth: 160 Mbps incoming and outgoing bandwidth supports reliable multi-camera recording and simultaneous 16-channel playback.
Dual SATA HDD Bays: Supports two SATA hard drives with up to 16TB capacity each (HDDs sold separately) for extended local storage up to 32TB total.
Synchronous 16-Channel Playback: Review footage from all 16 cameras simultaneously, with timeline-based event search and variable playback speed.
ONVIF Profile S Compatible: Works with TP-Link VIGI cameras and third-party ONVIF-compliant IP cameras for flexible system design.
Remote Viewing: Access live and recorded footage remotely via the VIGI app on Android and iOS, or via VIGI Security Manager on desktop.
Smart Detection Support: Compatible with VIGI cameras featuring human and vehicle classification, line crossing, and intrusion detection for intelligent alert management.
Alarm I/O: 4 alarm inputs and 2 alarm outputs for integration with external sensors, sirens, and access control devices.
Audio I/O: 1-channel RCA audio input and output for audio recording and monitoring.
Flexible Management: Manage via web browser UI, VIGI Security Manager software, or the VIGI mobile app.
Use Cases
Retail & Hospitality: Monitor entrances, counters, aisles, stock rooms, and customer-facing areas with reliable 16-camera recording from a single unit.
Warehouses & Logistics: Cover loading docks, storage areas, car parks, and perimeter zones — pair with a PoE switch for clean single-cable camera runs.
Offices & Commercial Buildings: Centralise surveillance across reception, corridors, server rooms, and car parks with remote access for management teams.
Clinics & Education Facilities: Scalable 16-channel capacity suits medium-sized facilities requiring comprehensive internal and perimeter coverage.
Installer Projects (Existing Infrastructure): Ideal where cameras are already powered via a dedicated PoE switch or 12V DC supplies — the NVR2016H slots in as the recording and management hub.
Specifications
Model
VIGI NVR2016H
IP Video Channels
16
PoE Ports
None (non-PoE model)
Incoming / Outgoing Bandwidth
160 Mbps / 160 Mbps
HDMI Output
3840 × 2160 @ 30Hz (4K)
VGA Output
1920 × 1080 @ 60Hz
Video Compression
H.265+ / H.265 / H.264+ / H.264
Max Recording Resolution
Up to 8MP (4K)
Synchronous Playback
16 channels
HDD Bays
2 × SATA (up to 16TB each, not included)
Max Total Storage
Up to 32TB

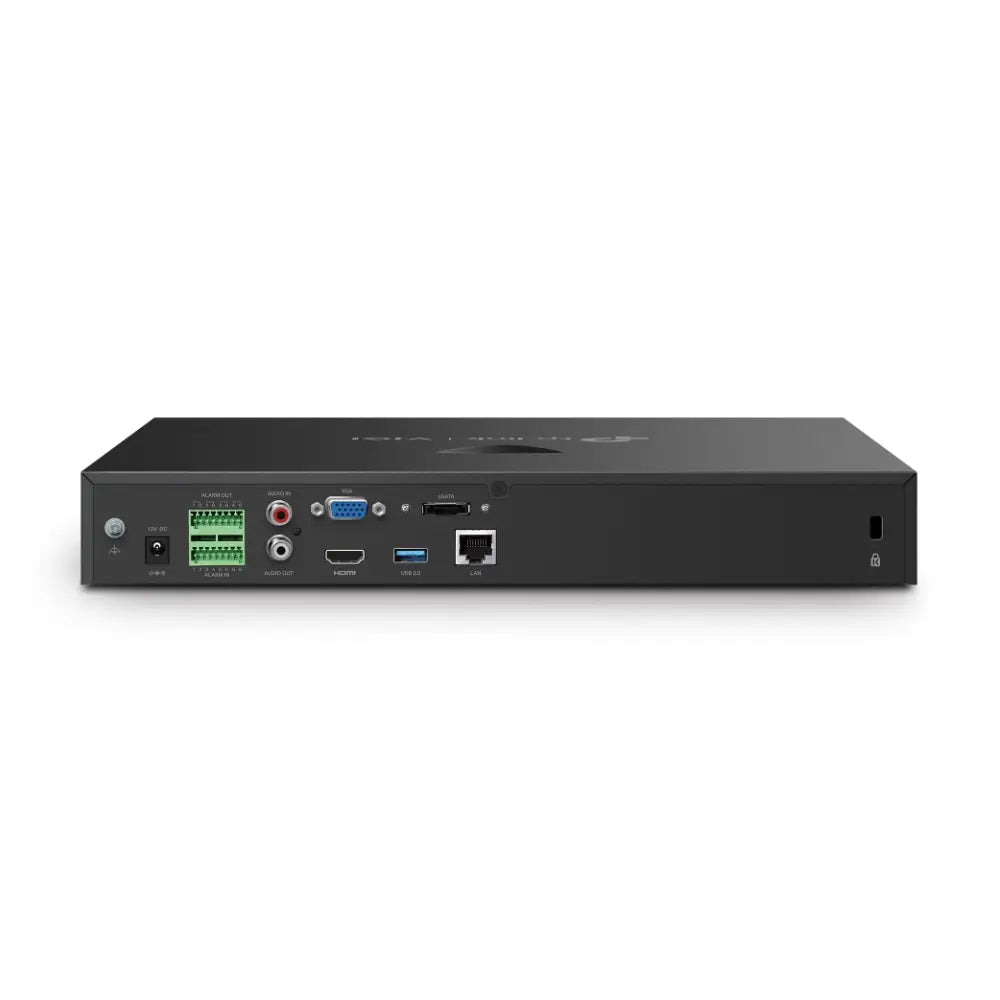

Network Interface
2 × RJ45 10/100/1000 Mbps
USB
1 × USB 2.0 (front), 1 × USB 3.0 (rear)
Audio I/O
1-ch RCA input, 1-ch RCA output
Alarm I/O
4 inputs / 2 outputs
Interoperability
ONVIF Profile S, CGI
Mobile Access
Android, iOS (VIGI App)
Operating Temperature
-10°C to 55°C
Dimensions
330 × 285 × 45 mm
In the Box
NVR, power adapter, power cable, HDD power & data cables, mounting accessories, mouse, quick installation guide
Official Videos
VIDEO
How to Set Up People Counting Using VIGI VMS — Official TP-Link tutorial for configuring people counting analytics on the VIGI platform.
VIDEO
How to Upgrade VIGI NVR Firmware — Official TP-Link walkthrough for keeping your VIGI NVR firmware up to date.
Frequently Asked Questions
Does the VIGI NVR2016H have built-in PoE ports?
No. The NVR2016H is a non-PoE model and does not include built-in PoE ports. Cameras must be powered separately via a PoE switch, PoE injector, or 12V DC power supply. If you need built-in PoE, consider the VIGI NVR2016H-16P , which includes 16 built-in PoE+ ports.
Is a hard drive included?
No. The NVR2016H does not include a hard drive. It supports two SATA HDDs with up to 16TB each (32TB total). Surveillance-grade drives such as WD Purple or Seagate SkyHawk are recommended for reliable 24/7 recording.
Can I view cameras remotely?
Yes. Remote live view and playback are supported via the free VIGI app on Android and iOS, and via VIGI Security Manager on desktop, provided the NVR has an active internet connection.
Does it work with non-VIGI cameras?
Yes. The NVR2016H supports ONVIF Profile S, allowing compatible third-party IP cameras to be added. For full smart detection and AI analytics features, TP-Link VIGI cameras are recommended.
What is the difference between the NVR2016H and the NVR2016H-16P?
The key difference is power delivery. The NVR2016H-16P includes 16 built-in PoE+ ports (90W total budget) to power cameras directly. The NVR2016H has no built-in PoE — cameras must be powered separately. The NVR2016H also features 2 Gigabit network interfaces versus 1 on the 16P model, and has a lower alarm I/O count (4 in / 2 out vs 6 in / 4 out).
How much storage can the NVR2016H support?
It supports two SATA hard drives simultaneously, each up to 16TB, for a total of up to 32TB of local storage.
Is this NVR suitable for commercial CCTV installations in Australia?
Yes. The NVR2016H is well suited to retail, office, warehouse, hospitality, and commercial CCTV projects requiring up to 16 camera channels, particularly where cameras are already powered via a dedicated PoE switch or existing infrastructure.
Downloads
📄 VIGI NVR2016H Resources — Datasheet, Firmware & User Guide (TP-Link AU)
