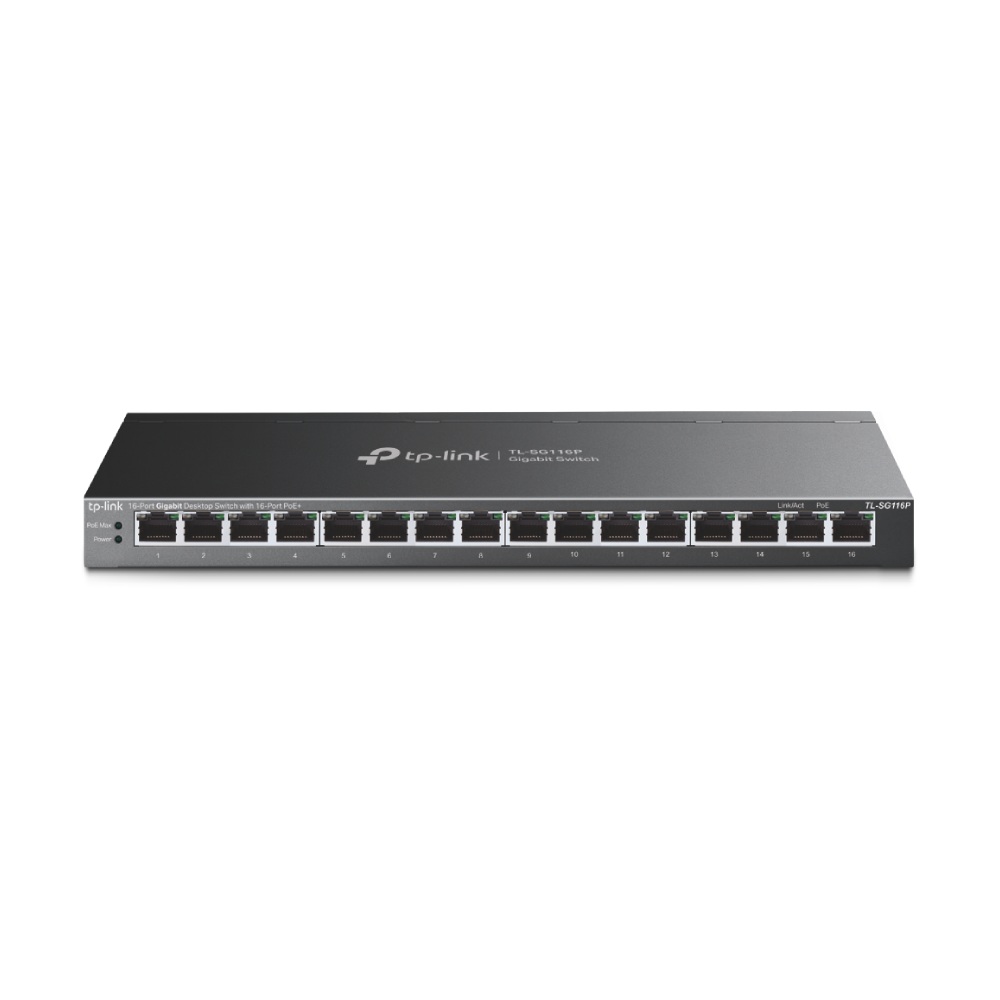

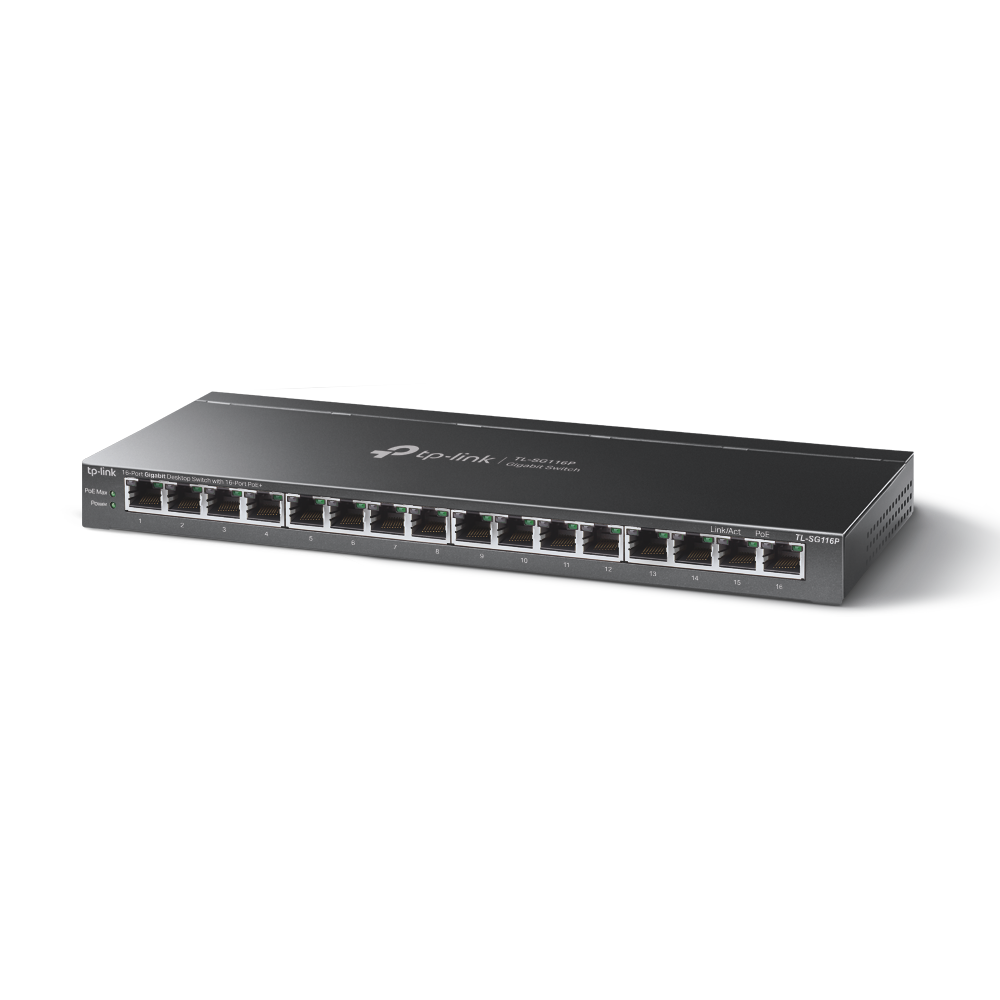

TP-Link TL-SG116P – 16-Port Gigabit Unmanaged Desktop Switch with 16-Port PoE+
The TP-Link TL-SG116P is a plug-and-play 16-port Gigabit desktop switch with full PoE+ on every port — no uplink-only PoE, no compromises. With a 120W total PoE budget, 30W per port, and intelligent power management built in, it’s purpose-built for IP camera installations, wireless access point deployments, and small business networks where simplicity and reliability matter. PoE Auto Recovery automatically reboots unresponsive devices, reducing the need for manual intervention on site.
Key Features
-
16 × Gigabit PoE+ Ports: Every port delivers both data and power — no dedicated uplink ports consuming PoE budget. Supports IEEE 802.3af/at with up to 30W per port.
-
120W Total PoE Budget: Sufficient to simultaneously power multiple IP cameras, wireless APs, VoIP phones, and access control readers across all 16 ports with intelligent load management.
-
PoE Auto Recovery: Automatically detects and reboots dropped or unresponsive PoE-powered devices (cameras, APs) without manual intervention — critical for unattended installations.
-
Extend Mode — Up to 250m: Extends data and power transmission range to 250 metres over a single Cat5e/Cat6 cable, well beyond the standard 100m Ethernet limit — ideal for large properties and perimeter camera runs.
-
Priority Mode: Ports 1–4 are assigned high priority to guarantee bandwidth and power for latency-sensitive devices such as NVRs, primary cameras, or VoIP phones.
-
Isolation Mode: One-click client traffic separation prevents devices on the switch from communicating with each other — useful for guest networks, multi-tenant environments, and security-conscious deployments.
-
Intelligent Power Management: When total PoE consumption approaches 120W, the switch automatically reduces power to lower-priority ports to protect higher-priority devices and prevent overload.
-
Plug and Play: No configuration, software, or management interface required — connect and go.
-
Durable Metal Casing: High-quality metal enclosure protects internal components and passes stringent reliability testing for long-term deployment in demanding environments.
Ideal Use Cases
- Powering and connecting up to 16 IP cameras in a CCTV or surveillance installation without separate power supplies.
- Deploying multiple wireless access points across an office, warehouse, school, or retail environment from a single switch.
- Small business and SME networks requiring a reliable, zero-configuration Gigabit PoE switch.
- Dormitory, apartment, or multi-tenancy installations where Isolation Mode keeps client traffic separated.
- Long-distance camera runs up to 250m using Extend Mode on large properties, farms, or perimeter security systems.
- VoIP phone deployments where Priority Mode ensures call quality is maintained under load.
Technical Specifications
| Specification |
Detail |
| Model |
TL-SG116P |
| Total Ports |
16 × 10/100/1000Mbps RJ45 |
| PoE Ports |
16 × PoE+ (all ports) |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at (PoE+) |
| Max PoE Per Port |
30W |
| Total PoE Budget |
120W |
| Switching Capacity |
32Gbps |
| Forwarding Rate |
23.8Mpps |
| MAC Address Table |
8K |
| Extend Mode Range |
Up to 250m (data & power, at reduced speed) |
| Special Modes |
Extend Mode, Priority Mode, Isolation Mode |
| PoE Auto Recovery |
Yes (automatic PD device reboot) |
| Management |
Unmanaged (plug and play) |
| Enclosure |
Metal desktop |
| Fan |
Fanless |
| Weight |
2kg |
| SKU |
TL-SG116P |
| Barcode (EAN) |
4895252500301 |
Downloads
Frequently Asked Questions
Does every port on the TL-SG116P support PoE+?
Yes. All 16 ports are PoE+ capable, each delivering up to 30W. There are no dedicated uplink ports that consume PoE budget without powering devices.
How many IP cameras can the TL-SG116P power simultaneously?
With a 120W total PoE budget, the number of cameras depends on each camera’s power draw. For example, 16 cameras drawing 7.5W each would consume exactly 120W. Most standard IP cameras draw between 5W and 15W, so real-world capacity is typically 8–16 cameras depending on the models used.
What is Extend Mode and when should I use it?
Extend Mode increases the maximum cable run from the standard 100m Ethernet limit to 250 metres by reducing the link speed to 10Mbps. It’s ideal for perimeter cameras, gate cameras, or any device located far from the switch on a large property. Enable it via the hardware DIP switch on the unit.
What does PoE Auto Recovery do?
PoE Auto Recovery periodically checks the status of connected PoE devices. If a device (such as an IP camera or wireless AP) stops responding, the switch automatically cuts and restores power to reboot it — similar to unplugging and replugging the device — without any manual intervention required.
Can I use the TL-SG116P with non-PoE devices?
Yes. The switch automatically detects whether a connected device is PoE-capable. Non-PoE devices (such as computers or NVRs) connect normally via Ethernet without receiving any power — there is no risk of damage to non-PoE equipment.
Is the TL-SG116P managed or unmanaged?
The TL-SG116P is an unmanaged switch — it requires no software, web interface, or configuration to operate. Mode settings (Extend, Priority, Isolation) are configured via physical DIP switches on the unit. If you require VLAN, QoS, or remote management, consider TP-Link’s managed PoE switch range.
Is it fanless?
Yes. The TL-SG116P operates silently without a cooling fan, making it suitable for quiet environments such as offices, reception areas, and meeting rooms.
