Description

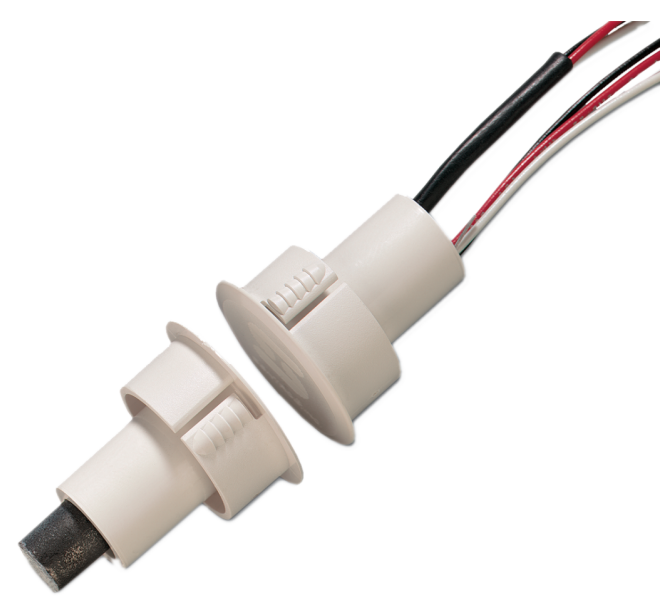

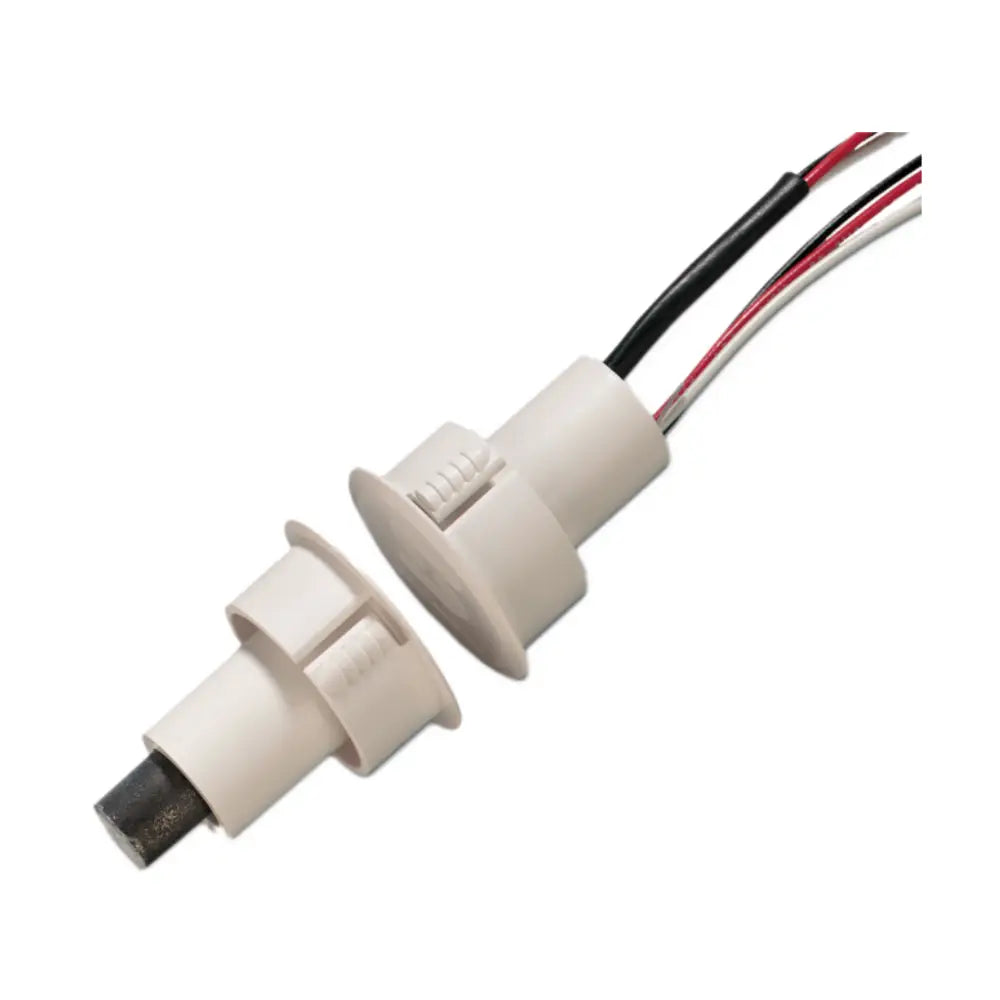

Sentrol Hardwired Reed Switch White Detection Gap 9.52mm 1x N/C Output (Dry) Plastic Recessed Mount 18.8mm Hole Cutout
The Sentrol Hardwired Reed Switch is engineered for reliable security in steel door applications. Featuring a 9.52mm detection gap and a single normally closed (N/C) dry contact output, it ensures precise monitoring. Its rugged plastic recessed mount with an 18.8mm hole cutout offers secure, tamper-resistant installation. Designed specifically for steel doors, the self-locking housing and recessed magnetic contact provide enhanced durability and discreet integration. This switch is ideal for commercial settings requiring dependable, high-security door monitoring with straightforward installation.
Features
- Special design for steel mounting
- Self-lock mounting
- Rugged construction
- Attactive, added security of recessed installation
Recessed magnetic contact for steel doors
Steel door applications
The Sentrol 1078(C/T) series steel door contacts are designed specifically for use in the steel doors commonly found in commercial building applications. Many models including, wide gap, SPDT and biased for high security applications make the 1078 series the most widely used and comprehensive line available.
Easy Installation
The unique housing design features a rugged body construction with flexible ribbed sides for quick, secure installation without gluing. The magnet housing isolates the magnet from the surrounding steel for maximum gap distances, both make and break.
Durability and dependability
The Sentrol high performance magnetic contacts have been designed to facilitate installation and ensure durability and dependability. Most are conservatively rated at 10,000,000 cycles, guaranteeing a long life. Every reed connection is hand soldered and each magnetic contact is tested before they leave the factory, 100% of the time.
High quality components and materials
Reed legs are plated with rhodium or ruthenium, and hermetically sealed in dry nitrogen. This offers superior protection against sticking and provides a moisture free environment therefore preventing corrosion.
More Information
Sentrol 1078C-N Datasheet
