Smart CCTV PoE Switch

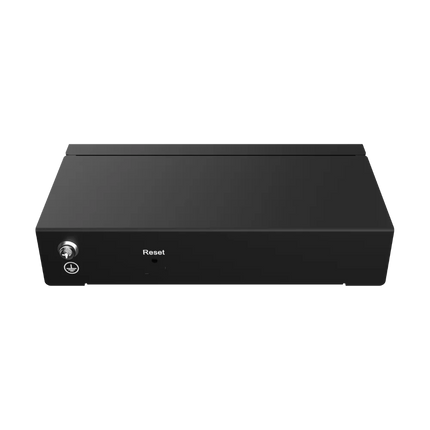

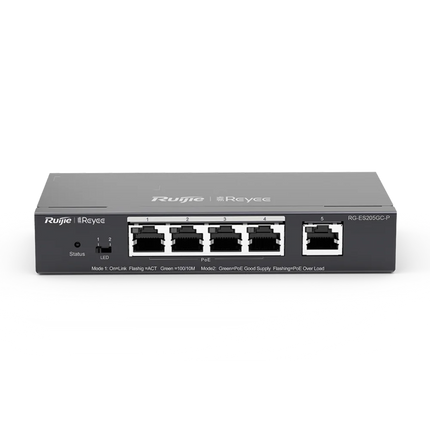

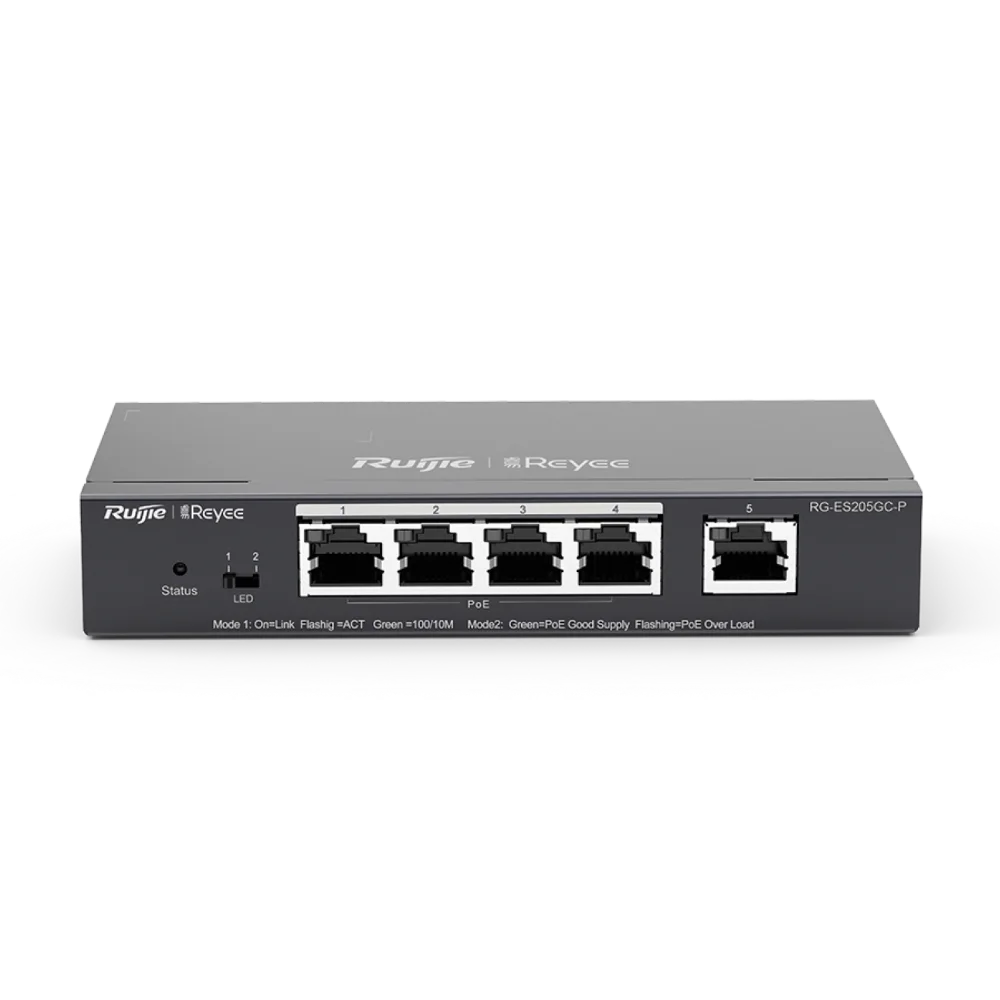

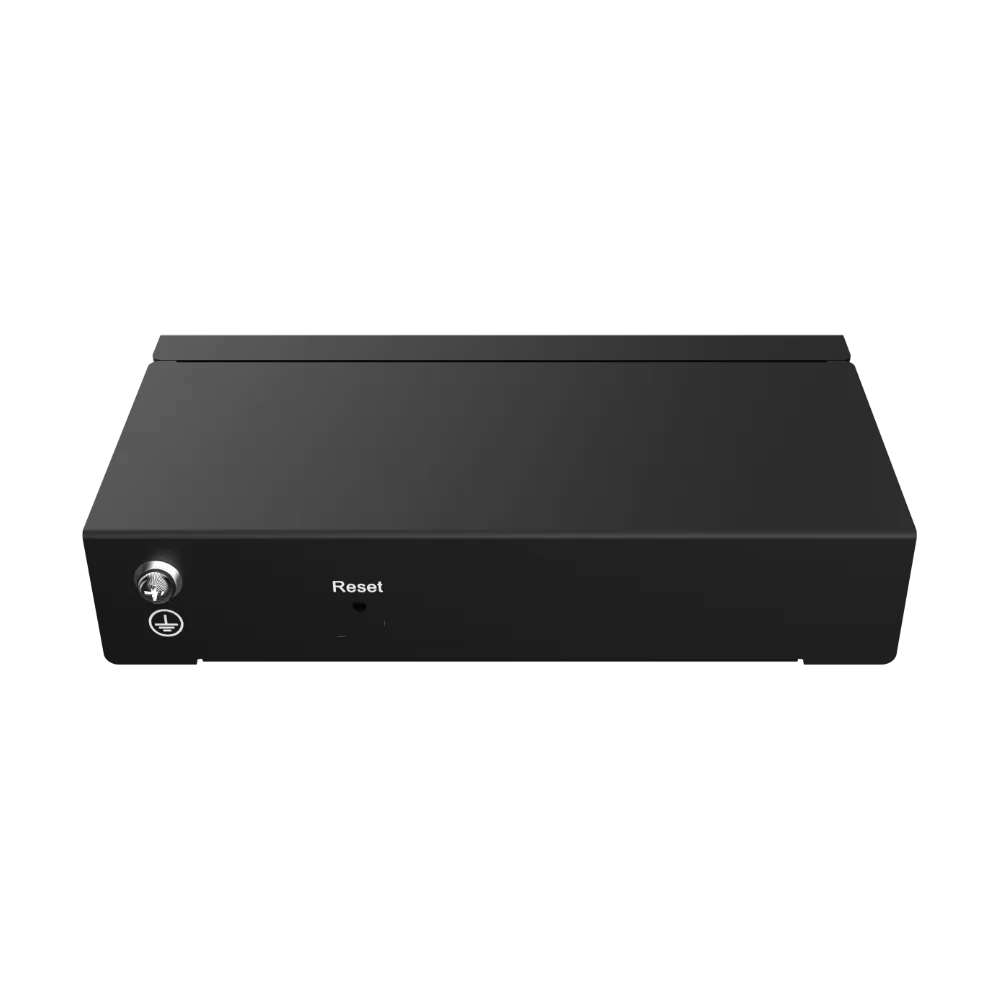

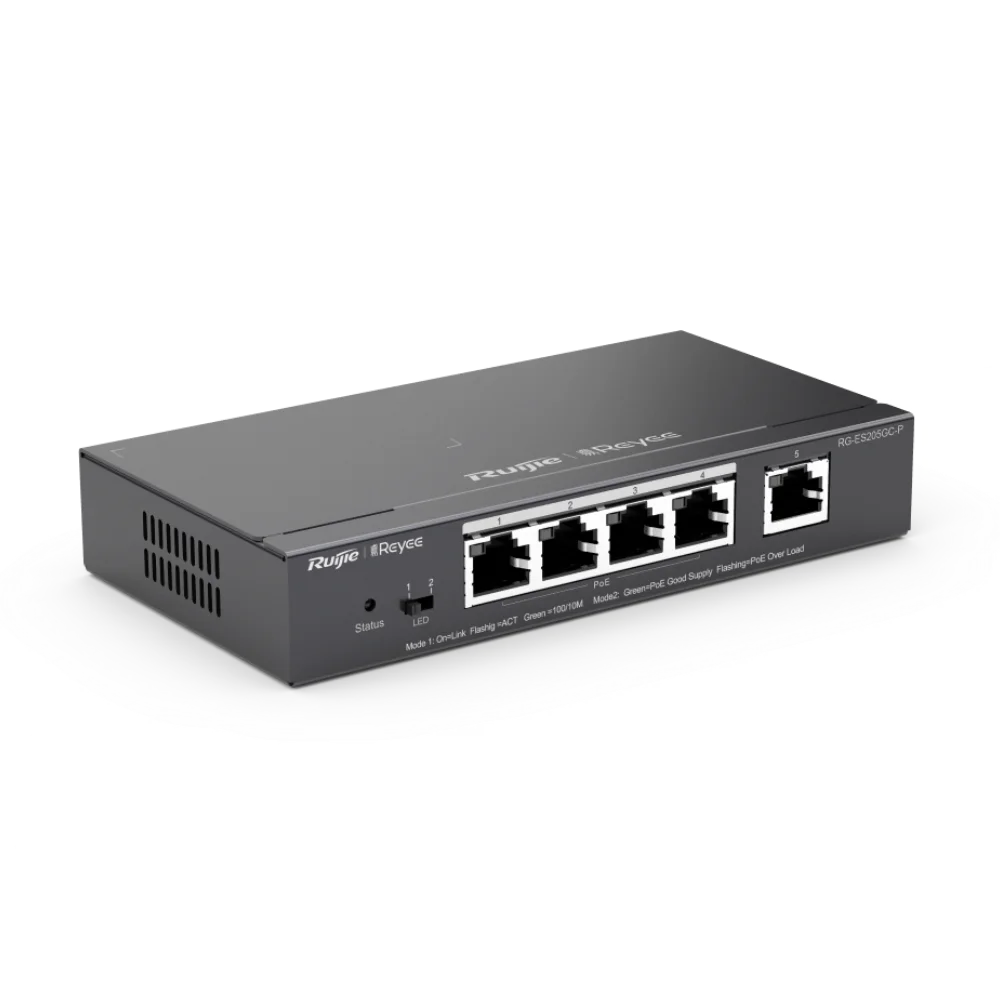

Ruijie Reyee RG-ES205GC-P 5-Port Gigabit PoE+ Smart CCTV Switch
The Ruijie Reyee RG-ES205GC-P is a compact, cloud-managed Gigabit PoE+ switch designed specifically for CCTV, security and small business networking applications. Featuring 4 Gigabit PoE+ ports, a 54W PoE budget and intelligent CCTV-focused features, it provides a simple and reliable way to power IP cameras, NVRs, wireless bridges and access points from a single device.
Unlike basic unmanaged switches, the RG-ES205GC-P includes Ruijie Cloud management, IP camera recognition, PoE watchdog functionality, automatic loop prevention and remote troubleshooting tools that make deployment and maintenance significantly easier for installers and business owners. [oai_citation:1‡reyee.ruijie.com](https://reyee.ruijie.com/en-global/products/reyee-switch/smart-cctv-switch/es205gc-p?utm_source=chatgpt.com)
Why Choose the RG-ES205GC-P?
Built for CCTV Networks
Unlike generic switches, the RG-ES205GC-P can recognise IP cameras and NVRs automatically, making deployment faster and simplifying troubleshooting for CCTV installations. [oai_citation:2‡reyee.ruijie.com](https://reyee.ruijie.com/en-global/products/reyee-switch/smart-cctv-switch/es205gc-p?utm_source=chatgpt.com)
Smart Cloud Management
Monitor, configure and manage your network remotely through Ruijie Cloud. View switch status, configure VLANs and diagnose problems without travelling to site. [oai_citation:3‡reyee.ruijie.com](https://reyee.ruijie.com/en-global/products/reyee-switch/smart-cctv-switch/es205gc-p?utm_source=chatgpt.com)
PoE+ Power for Cameras
Four PoE+ ports provide power and data through a single network cable, reducing installation costs and simplifying cable runs.
Automatic Loop Prevention
Network loops are a common cause of CCTV outages. Built-in loop prevention helps maintain network stability and service continuity. [oai_citation:4‡reyee.ruijie.com](https://reyee.ruijie.com/en-global/products/reyee-switch/smart-cctv-switch/es205gc-p?utm_source=chatgpt.com)
Perfect For
Small CCTV Systems
Ideal for 1–4 IP camera installations where PoE power and Gigabit performance are required.
Home Security
Power IP cameras, wireless bridges and smart security devices from one compact switch.
Retail Stores
Support security cameras, NVRs and network devices with simple cloud management.
Small Business Networks
Perfect for offices, warehouses, workshops and remote networking applications.
Key Specifications
| Model |
RG-ES205GC-P |
| Switch Type |
Layer 2 Smart Cloud Managed Switch |
| Total Ports |
5 × Gigabit RJ45 Ports |
| PoE Ports |
4 × PoE+ (802.3af / 802.3at) |
| PoE Budget |
54W |
| Switching Capacity |
10 Gbps |
| Forwarding Rate |
7.4 Mpps |
| Cloud Management |
Ruijie Cloud Supported |
| Loop Prevention |
Supported |
| PoE Watchdog |
Supported |
| Port Isolation |
Supported |
| Operating Temperature |
0°C to 40°C |
| Warranty |
3 Years |
Recommended Accessories
IP Cameras
Pair with Ruijie, Hikvision, Dahua, UniFi or TP-Link VIGI IP cameras for compact CCTV systems.
Wireless Bridges
Combine with the Reyee RG-EST310V2 wireless bridge for remote camera installations.
Network Video Recorders
Ideal for connecting PoE cameras back to a central NVR.
Outdoor Cat6 Cable
Use quality solid copper Cat6 cable for maximum reliability and PoE performance.
Frequently Asked Questions
How many cameras can this switch power?
The switch provides four PoE+ ports with a total 54W PoE budget. Actual camera capacity depends on the power consumption of each device.
Does it support Gigabit speeds?
Yes. All five ports are Gigabit Ethernet ports supporting 10/100/1000Mbps connectivity.
Can I manage it remotely?
Yes. The RG-ES205GC-P supports free Ruijie Cloud management and monitoring.
Does it support CCTV features?
Yes. Features include IP camera recognition, PoE watchdog, loop prevention and CCTV-specific optimisation.
Is it fanless?
Yes. The fanless design makes it quiet and suitable for office or home installations. [oai_citation:5‡Powertec Wireless Technology](https://powertec.com.au/ruijie-reyee-rg-es205gc-p-5-port-managed-poe-switch/?utm_source=chatgpt.com)
Can it power wireless bridges and access points?
Yes. Any compatible IEEE 802.3af or 802.3at PoE device can be powered within the available PoE budget.
