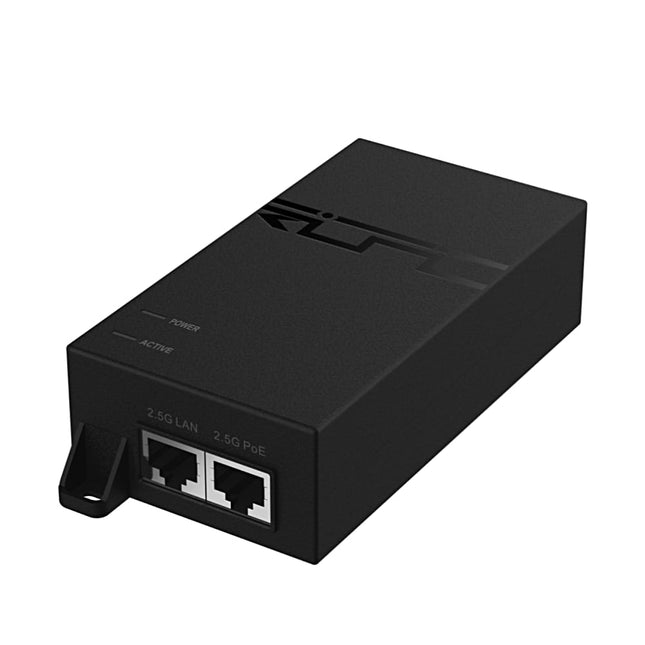

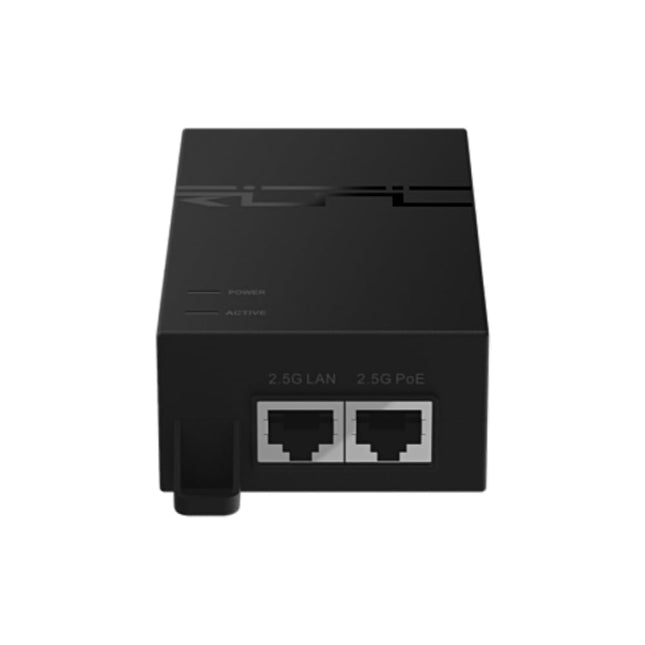

The Reyee RG-POE-50-60W-MG is a high-performance 60W Passive PoE Adapter delivering 56V DC @ 1.08A with a 2.5G LAN port. Designed with superior surge protection and efficiency, it ensures stable power delivery for access points, surveillance cameras, and high-demand PoE devices Key Features Model: RG-POE-50-60W-MG Power Output: 56V DC @ 1.08A, 60W capacity LAN Port: 2.5 Gigabit support Surge Protection: 500A (8/20µs), <1ns response time Wide Input Voltage: 100–240V AC @ 50/60Hz High Efficiency: 80%+ Operating Temp: 0°C to 40°C Certifications: CE, FCC, CCC Technical Specifications Specification RG-POE-50-60W-MG (60W) Output Voltage 56V DC @ 1.08A Power Capacity 60W LAN Port 2.5 Gigabit Input Voltage 100–240V AC @ 50/60Hz Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -30°C to 70°C Surge Protection 500A (8/20µs), <1ns response Certifications CE, FCC, CCC Dimensions 137.4 × 62.3 × 32.6 mm Weight 225 g More Information Reyee RG-POE-50-60W-MG 60W PoE Adapter Datasheet

Read more less

Smart CCTV PoE Switch Ruijie Reyee RG-ES205GC-P 5-Port Gigabit PoE+ Smart CCTV Switch The Ruijie Reyee RG-ES205GC-P is a compact, cloud-managed Gigabit PoE+ switch designed specifically for CCTV, security and small business networking applications. Featuring 4 Gigabit PoE+ ports, a 54W PoE budget and intelligent CCTV-focused features, it provides a simple and reliable way to power IP cameras, NVRs, wireless bridges and access points from a single device. Unlike basic unmanaged switches, the RG-ES205GC-P includes Ruijie Cloud management, IP camera recognition, PoE watchdog functionality, automatic loop prevention and remote troubleshooting tools that make deployment and maintenance significantly easier for installers and business owners. Ports 5 Gigabit Ports PoE 4 × PoE+ Ports Power Budget 54W PoE Management Ruijie Cloud Why Choose the RG-ES205GC-P? Built for CCTV Networks Unlike generic switches, the RG-ES205GC-P can recognise IP cameras and NVRs automatically, making deployment faster and simplifying troubleshooting for CCTV installations. Smart Cloud Management Monitor, configure and manage your network remotely through Ruijie Cloud. View switch status, configure VLANs and diagnose problems without travelling to site. PoE+ Power for Cameras Four PoE+ ports provide power and data through a single network cable, reducing installation costs and simplifying cable runs. Automatic Loop Prevention Network loops are a common cause of CCTV outages. Built-in loop prevention helps maintain network stability and service continuity. Perfect For Small CCTV Systems Ideal for 1–4 IP camera installations where PoE power and Gigabit performance are required. Home Security Power IP cameras, wireless bridges and smart security devices from one compact switch. Retail Stores Support security cameras, NVRs and network devices with simple cloud management. Small Business Networks Perfect for offices, warehouses, workshops and remote networking applications. Key Specifications Model RG-ES205GC-P Switch Type Layer 2 Smart Cloud Managed Switch Total Ports 5 × Gigabit RJ45 Ports PoE Ports 4 × PoE+ (802.3af / 802.3at) PoE Budget 54W Switching Capacity 10 Gbps Forwarding Rate 7.4 Mpps Cloud Management Ruijie Cloud Supported Loop Prevention Supported PoE Watchdog Supported Port Isolation Supported Operating Temperature 0°C to 40°C Warranty 3 Years Recommended Accessories IP Cameras Pair with Ruijie, Hikvision, Dahua, UniFi or TP-Link VIGI IP cameras for compact CCTV systems. Wireless Bridges Combine with the Reyee RG-EST310V2 wireless bridge for remote camera installations. Network Video Recorders Ideal for connecting PoE cameras back to a central NVR. Outdoor Cat6 Cable Use quality solid copper Cat6 cable for maximum reliability and PoE performance. Frequently Asked Questions How many cameras can this switch power? The switch provides four PoE+ ports with a total 54W PoE budget. Actual camera capacity depends on the power consumption of each device. Does it support Gigabit speeds? Yes. All five ports are Gigabit Ethernet ports supporting 10/100/1000Mbps connectivity. Can I manage it remotely? Yes. The RG-ES205GC-P supports free Ruijie Cloud management and monitoring. Does it support CCTV features? Yes. Features include IP camera recognition, PoE watchdog, loop prevention and CCTV-specific optimisation. Is it fanless? Yes. The fanless design makes it quiet and suitable for office or home installations. Can it power wireless bridges and access points? Yes. Any compatible IEEE 802.3af or 802.3at PoE device can be powered within the available PoE budget. Genuine Ruijie Reyee Cloud Managed CCTV Optimised

Read more less

Ruijie Reyee Wireless Bridge · Pair Kit (2 Pre-Paired Units) Ruijie Reyee RG-EST310V2 5GHz Wireless Bridge — Pre-Paired Pair Kit for CCTV & Network PTP Links (1KM) Supplied as a complete pair — two factory pre-paired RG-EST310V2 units that link straight to each other out of the box, with no manual pairing or configuration to get a connection running. One unit goes at each end of your link to form a single point-to-point (PTP) wireless bridge of up to 1KM, sending CCTV, NVR, internet or network data between two locations without trenching or running long outdoor cable. The Ruijie Reyee RG-EST310V2 is a 5GHz dual-stream 802.11ac bridge with 10dBi directional antennas and up to 867Mbps wireless throughput — ideal for homes, farms, sheds, gates, warehouses, campuses and commercial sites where a stable link is needed across distance. Backed by a 3-Year Australian warranty. Complete Kit 2 Pre-Paired Units Wireless Speed Up to 867Mbps Range & Antenna 1KM PTP · 10dBi Outdoor Rated IP54 Weatherproof What's in the Box 2 × Bridge Units Two RG-EST310V2 units, factory pre-paired as a matched set — one for each end of the link. Power PoE injector supplied per unit — power and data over a single Ethernet run to each bridge. Mounting Pole / wall mounting hardware included for each unit. Warranty 3-Year Australian warranty · local CCTV Guru tech support. Why Choose the RG-EST310V2 Pair Kit? Two Units, Pre-Paired Out of the Box You get both ends of the link in one box. The two units arrive factory pre-paired and auto-rebridge after a power cut, so there's no manual pairing — mount, power up and connect. Perfect for CCTV Between Buildings Send camera or network traffic from a remote shed, gate, granny flat or detached building back to your main network without trenching or long cable runs. 5GHz 2×2 MIMO Performance The 5GHz single-band dual-stream 802.11ac design with 10dBi directional antennas supports up to 867Mbps for stable bridge data transmission. Outdoor-Ready Housing IP54 weatherproof protection and -30°C to +55°C operating temperature suit many outdoor Australian installation environments. Best Uses CCTV Camera Links Connect remote IP cameras back to your NVR or network where Ethernet cable is not practical. Sheds & Workshops Bridge network access from the main building to a shed, garage, workshop or outbuilding. Gates & Driveways Useful for gate cameras, intercoms or access control points where cabling is difficult. Commercial Sites Suitable for warehouses, yards, campuses, temporary links and building-to-building networking. Key Specifications Model RG-EST310V2 Package Contents 2 × units (factory pre-paired) — complete PTP kit Product Type 5GHz wireless bridge Recommended Link Distance Up to 1KM point-to-point Wireless Standard 5GHz single-band dual-stream 802.11ac Wireless Rate Up to 867Mbps Antenna Gain 10dBi directional Radio Design Single-radio, 2 spatial streams, 2×2 MIMO Channel Width Auto / 20 / 40 / 80MHz Ethernet Port 1 × FE (Fast Ethernet) port per unit PoE Input 1 × PoE In port per unit Antenna Orientation 60° horizontal / 30° vertical Weather Rating IP54 Operating Temperature -30°C to +55°C Dimensions (each) 76mm × 37mm × 147mm, excluding mounting bracket Warranty (Australia) 3 years · CCTV Guru Australia Installation Notes For best performance, install the two bridge units with clear line of sight between locations. Avoid large trees, walls, metal structures and other obstructions between the two points. Final speed and stability may vary depending on distance, interference, mounting height and local environment. For CCTV use, we recommend confirming the number of cameras, camera resolution, bitrate and NVR location before installation so the bridge link is sized correctly. More Information Review the official Ruijie Reyee datasheet for full technical details and deployment guidance. Official Datasheet FAQs Does this come as a pair? Yes. It is supplied as a complete pair — two RG-EST310V2 units, factory pre-paired, so you have both ends of the point-to-point link in one purchase. Do I need to pair or configure them? No. The two units are pre-paired at the factory and auto-rebridge after power is restored — mount them, power up and they link automatically. What is the maximum distance? It is positioned as a 1KM wireless bridge. Real-world performance depends on line of sight, interference, mounting height and site conditions. Is this suitable for CCTV? Yes. The RG-EST310V2 is a cost-effective wireless bridge for CCTV applications where running cable is difficult. Is it weatherproof? Yes. Each unit has an IP54 weatherproof rating and operates from -30°C to +55°C. Does it need line of sight? Clear line of sight is strongly recommended for stable long-distance wireless bridge performance. 3-Year AU Warranty Australia-Wide Shipping Fast Dispatch

Read more less

The Ruijie Reyee RG-EST100-E is a robust outdoor 2.4 GHz dual-stream wireless bridge engineered for reliable point-to-point connectivity up to 500 metres. With pre-paired factory configuration and IP55 weatherproof construction, it’s perfect for outdoor CCTV backhaul links and remote wireless networking where cable deployment is impractical.  Key Features Dual-stream 2.4 GHz wireless bridge with reliable long-distance link up to 500 metres.  IEEE 802.11b/g/n compliant, up to 300 Mbps throughput.  Factory pre-paired and easy configuration for quick deployment.  IP55 rated weatherproof housing, built for outdoor conditions (-30 °C to 60 °C).  Supports multiple 3 MP camera feeds: up to 10 at 100 m and 5 at 500 m.  Visual statistics & management via Ruijie Cloud remote app.  Directional 8 dBi antenna and robust MU-MIMO design. Technical Specifications Specification Details Radio Band 2.4 GHz Dual-Stream (802.11b/g/n)  Max Throughput Up to 300 Mbps  Range Up to 500 m  Antenna Gain 8 dBi directional  Spatial Streams 2×2 MU-MIMO  IP Rating IP55 weatherproof  Operating Temp -30 °C to 60 °C  PoE Support Passive PoE included  Cloud Management Ruijie Cloud platform support  Ideal For CCTV & outdoor network backhaul Performance & Design Equipped with IEEE 802.11b/g/n support and MU-MIMO architecture, the bridge offers up to 300 Mbps real-time transmission. Its directional 8 dBi antennas and robust weatherproof casing handle harsh environments without compromise.  Easy Setup & Management Factory pre-paired for fast deployment, the RG-EST100-E can be monitored and maintained through the Ruijie Cloud portal, making remote sites easy to manage.  Use Cases Deploy this wireless bridge to extend networks across outdoor spaces, link CCTV clusters without trenching cables, or provide reliable backbone connectivity for campus buildings and elevators.  Ideal Applications Outdoor CCTV backhaul & surveillance links Campus / Building wireless backbone Elevator remote connectivity Temporary or hard-to-cable installations What’s in the Box RG-EST100-E Wireless Bridge unit × 2 PoE Injector(s) Mounting Bracket Kit Quick Start Guide(Exact contents based on variant & region) More Information Reyee RG-EST100-E Datasheet
