Compact 4-Port PoE+ Switch for IP Cameras
Simple, reliable PoE for small CCTV installations

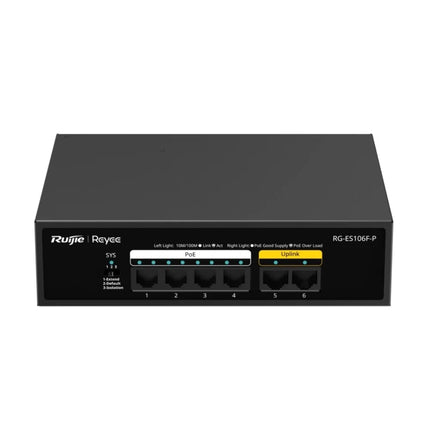

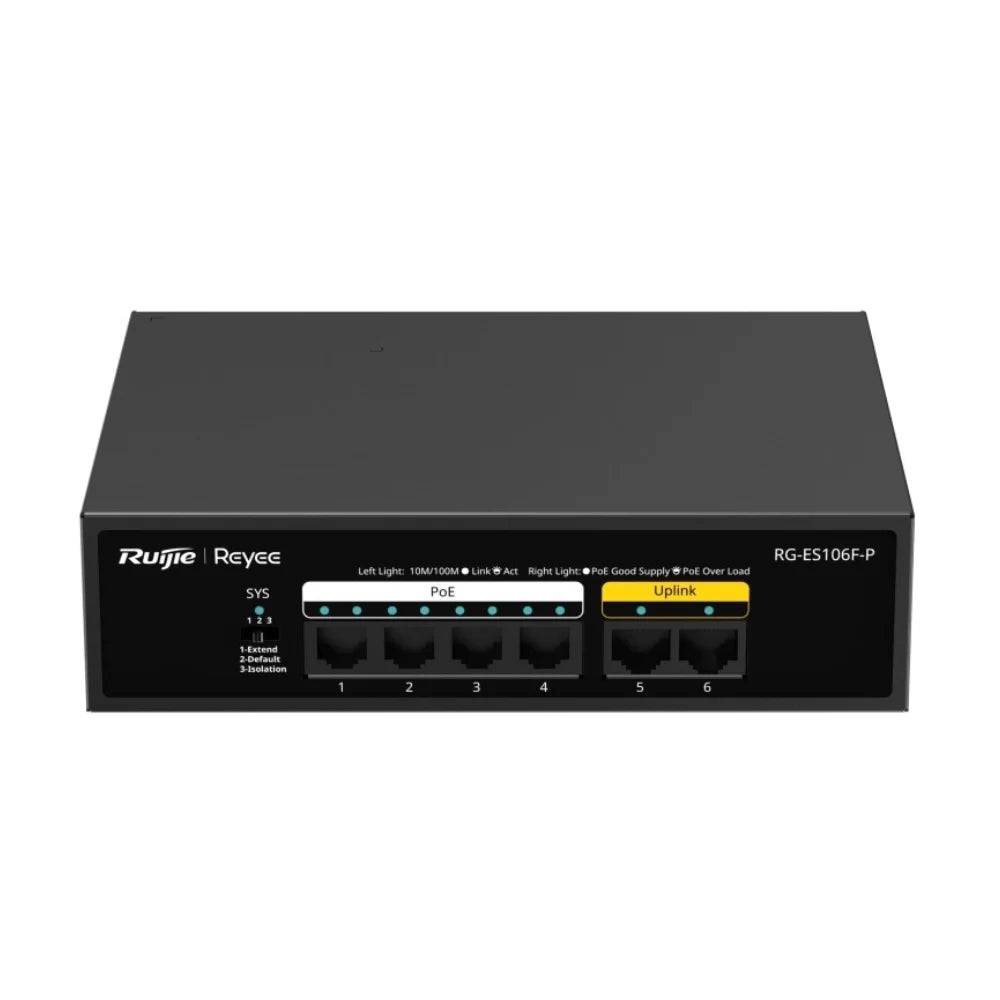

The Ruijie Reyee RG-ES106F-P is a compact, plug-and-play network switch designed for small IP surveillance systems. Four PoE+ ports carry power and data to compatible cameras, while two additional 10/100 Mbps ports connect the switch to an NVR, router or the wider network.
With a 54 W total PoE budget, fanless metal housing and intelligent PoE protection, it is a practical choice for homes, small shops, cafés and offices. This is a Fast Ethernet (10/100 Mbps) model—not a Gigabit switch—so it is best suited to modest camera networks where simple installation matters more than high backbone throughput.
6 Fast Ethernet Ports
4 PoE+ camera ports plus 2 uplink ports
54 W PoE Budget
Up to 30 W on a compatible PoE+ port
Up to 250 m Extend Mode
Long-reach transmission under suitable conditions
Fanless Metal Design
Quiet operation with a three-year warranty
Why choose the RG-ES106F-P?
Connect up to four PoE cameras
Four IEEE 802.3af/at ports supply power and network connectivity through one Ethernet cable per camera. The two remaining ports can be used for an NVR and router or network uplink.
Automatic PoE recovery
PoE watchdog functionality can help restart an unresponsive powered device automatically, reducing the need for a manual power cycle.
Useful CCTV operating modes
Extend mode supports transmission distances up to 250 m in suitable cable and device conditions, while port isolation helps separate camera traffic for a more secure surveillance network.
Optional Ruijie Cloud visibility
The switch is unmanaged and requires no configuration. It can appear in Ruijie Cloud topology when at least one compatible managed Ruijie switch is deployed on the same network.
Technical specifications
| Model |
RG-ES106F-P |
| Switch type |
Layer 2 unmanaged, plug-and-play |
| Network ports |
6 × 10/100BASE-T RJ45 |
| PoE ports |
4 × IEEE 802.3af/at PoE/PoE+ |
| PoE output |
Up to 30 W per compatible port; 54 W total budget |
| Switching capacity |
1.2 Gbps |
| Forwarding rate |
0.9 Mpps |
| CCTV functions |
PoE watchdog, port isolation and extend mode |
| Extended transmission |
Up to 250 m under suitable laboratory, cabling and powered-device conditions |

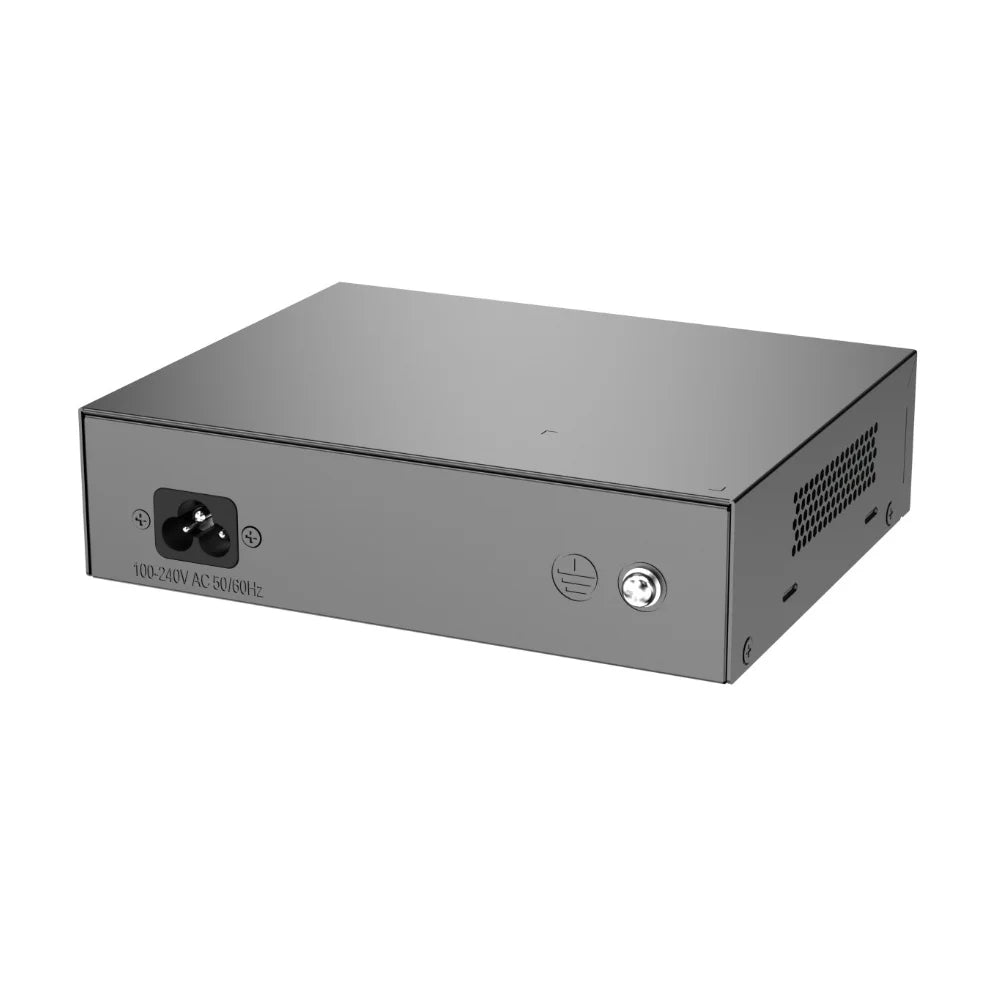

| Power input |
100–240 V AC, 50/60 Hz |
| Operating temperature |
0°C to 45°C |
| Construction |
Fanless metal casing |
| Warranty |
3 years |
What’s in the box?
- Ruijie Reyee RG-ES106F-P PoE switch
- Power cord
- Mounting screws and expansion anchors
- Manual and warranty information
Downloads & resources
Frequently asked questions
Is this a Gigabit switch?
No. All six ports are 10/100 Mbps Fast Ethernet. Choose a Gigabit model when your NVR, internet uplink or aggregate camera bandwidth needs more than 100 Mbps.
How many PoE cameras can it power?
Up to four compatible PoE or PoE+ cameras, provided their combined power demand stays within the switch’s 54 W PoE budget.
Does it need configuration?
No. It is an unmanaged plug-and-play switch. Connect power, cameras and your uplink devices, then allow the connected equipment to negotiate normally.
Can it be managed in Ruijie Cloud?
It is not a standalone cloud-managed switch. It can be shown in Ruijie Cloud topology when a compatible managed Ruijie switch is also deployed on the same network.
What does extend mode do?
Extend mode can increase Ethernet transmission distance to as much as 250 m under suitable conditions. Actual results depend on cable quality, connected devices and installation conditions.
Is the switch suitable for quiet areas?
Yes. Its fanless design operates silently, making it suitable for homes, offices, cafés and small retail sites.
