Description

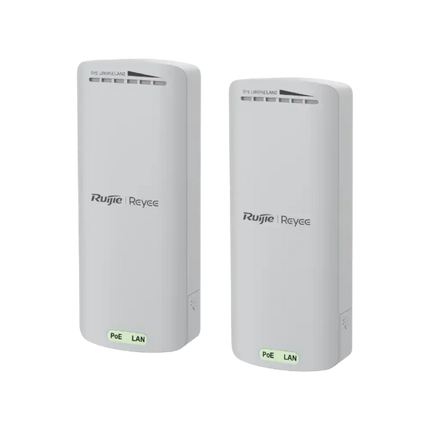

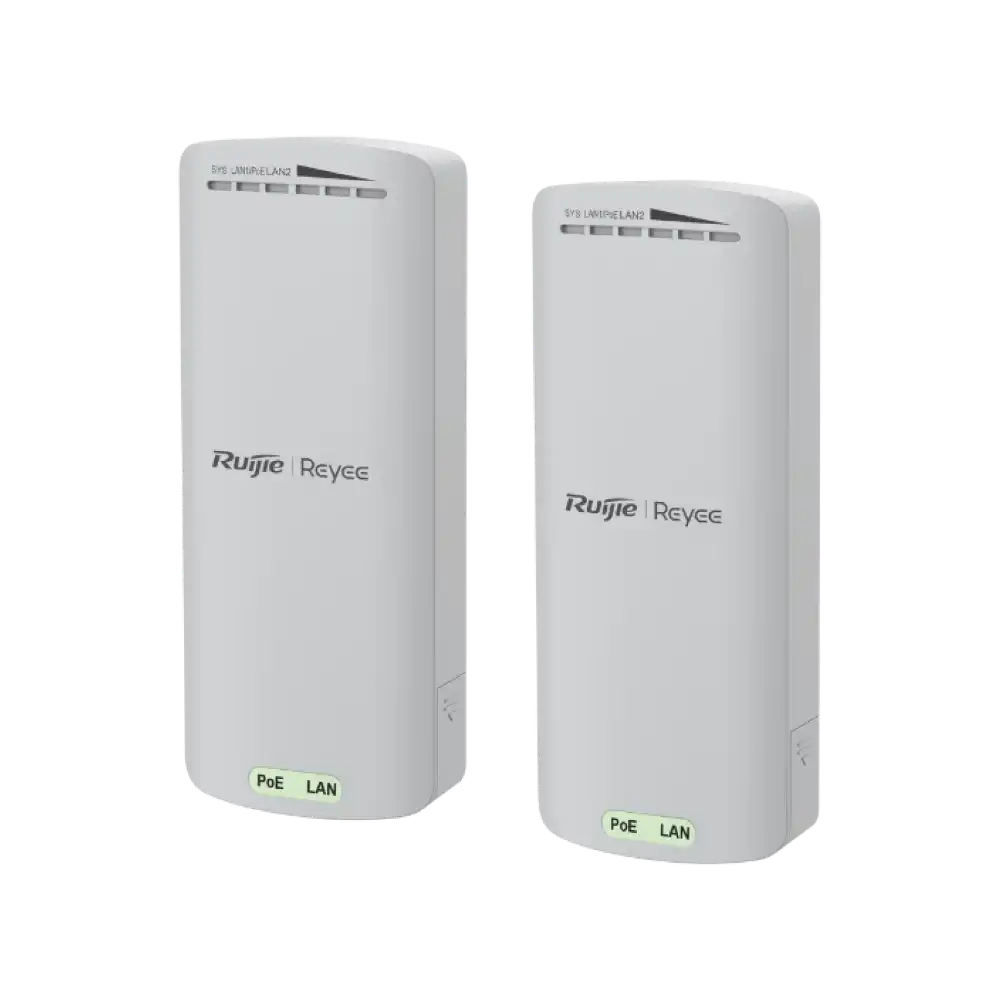

The Ruijie Reyee RG-EST100-E is a robust outdoor 2.4 GHz dual-stream wireless bridge engineered for reliable point-to-point connectivity up to 500 metres. With pre-paired factory configuration and IP55 weatherproof construction, it’s perfect for outdoor CCTV backhaul links and remote wireless networking where cable deployment is impractical.
Key Features
- Dual-stream 2.4 GHz wireless bridge with reliable long-distance link up to 500 metres.
- IEEE 802.11b/g/n compliant, up to 300 Mbps throughput.
-
Factory pre-paired and easy configuration for quick deployment.
-
IP55 rated weatherproof housing, built for outdoor conditions (-30 °C to 60 °C).
- Supports multiple 3 MP camera feeds: up to 10 at 100 m and 5 at 500 m.
- Visual statistics & management via Ruijie Cloud remote app.
- Directional 8 dBi antenna and robust MU-MIMO design.
Technical Specifications
|
Specification
|
Details
|
|
Radio Band
|
2.4 GHz Dual-Stream (802.11b/g/n)
|
|
Max Throughput
|
Up to 300 Mbps
|
|
Range
|
Up to 500 m
|
|
Antenna Gain
|
8 dBi directional
|
|
Spatial Streams
|
2×2 MU-MIMO
|
|
IP Rating
|
IP55 weatherproof
|
|
Operating Temp
|
-30 °C to 60 °C
|
|
PoE Support
|
Passive PoE included
|
|
Cloud Management
|
Ruijie Cloud platform support
|
|
Ideal For
|
CCTV & outdoor network backhaul
|
Performance & Design
Equipped with IEEE 802.11b/g/n support and MU-MIMO architecture, the bridge offers up to 300 Mbps real-time transmission. Its directional 8 dBi antennas and robust weatherproof casing handle harsh environments without compromise.
Easy Setup & Management
Factory pre-paired for fast deployment, the RG-EST100-E can be monitored and maintained through the Ruijie Cloud portal, making remote sites easy to manage.
Use Cases
Deploy this wireless bridge to extend networks across outdoor spaces, link CCTV clusters without trenching cables, or provide reliable backbone connectivity for campus buildings and elevators.
Ideal Applications
- Outdoor CCTV backhaul & surveillance links
- Campus / Building wireless backbone
- Elevator remote connectivity
- Temporary or hard-to-cable installations
What’s in the Box
- RG-EST100-E Wireless Bridge unit × 2
- PoE Injector(s)
- Mounting Bracket Kit
- Quick Start Guide
(Exact contents based on variant & region)
More Information
Reyee RG-EST100-E Datasheet
