Description

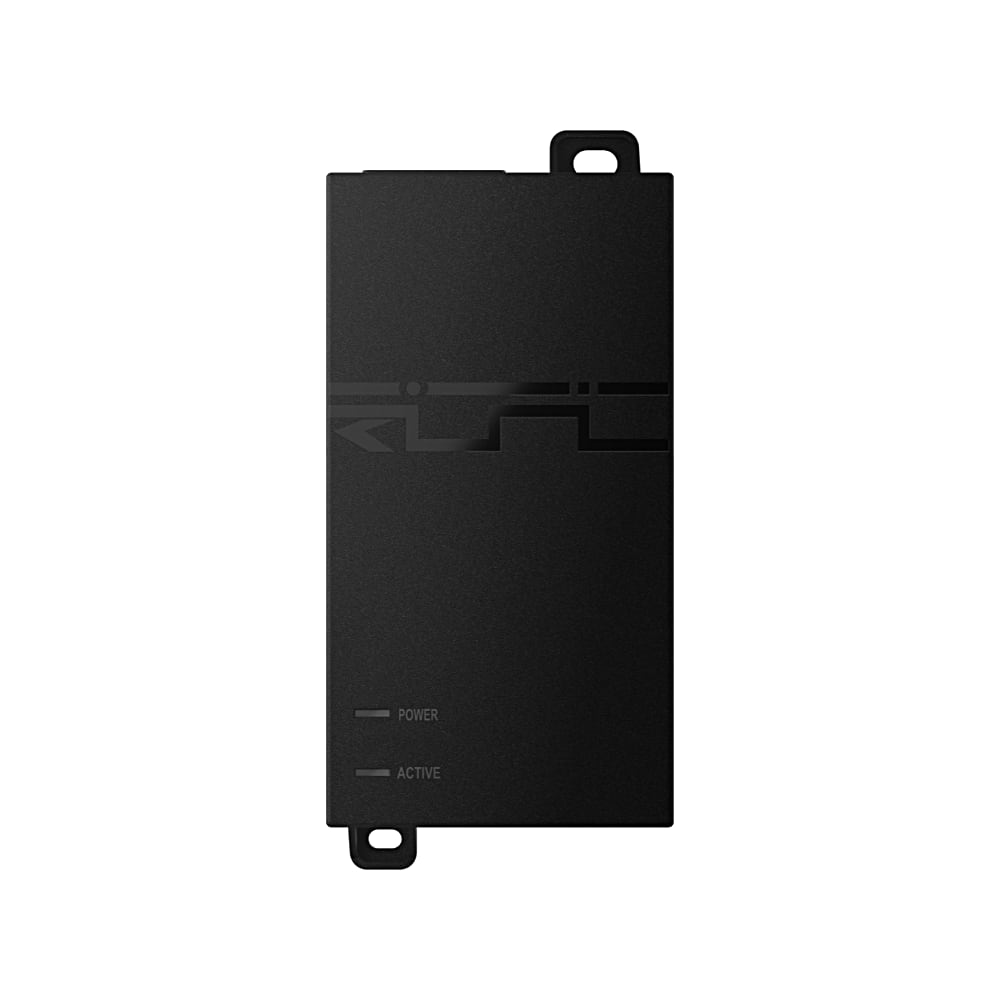

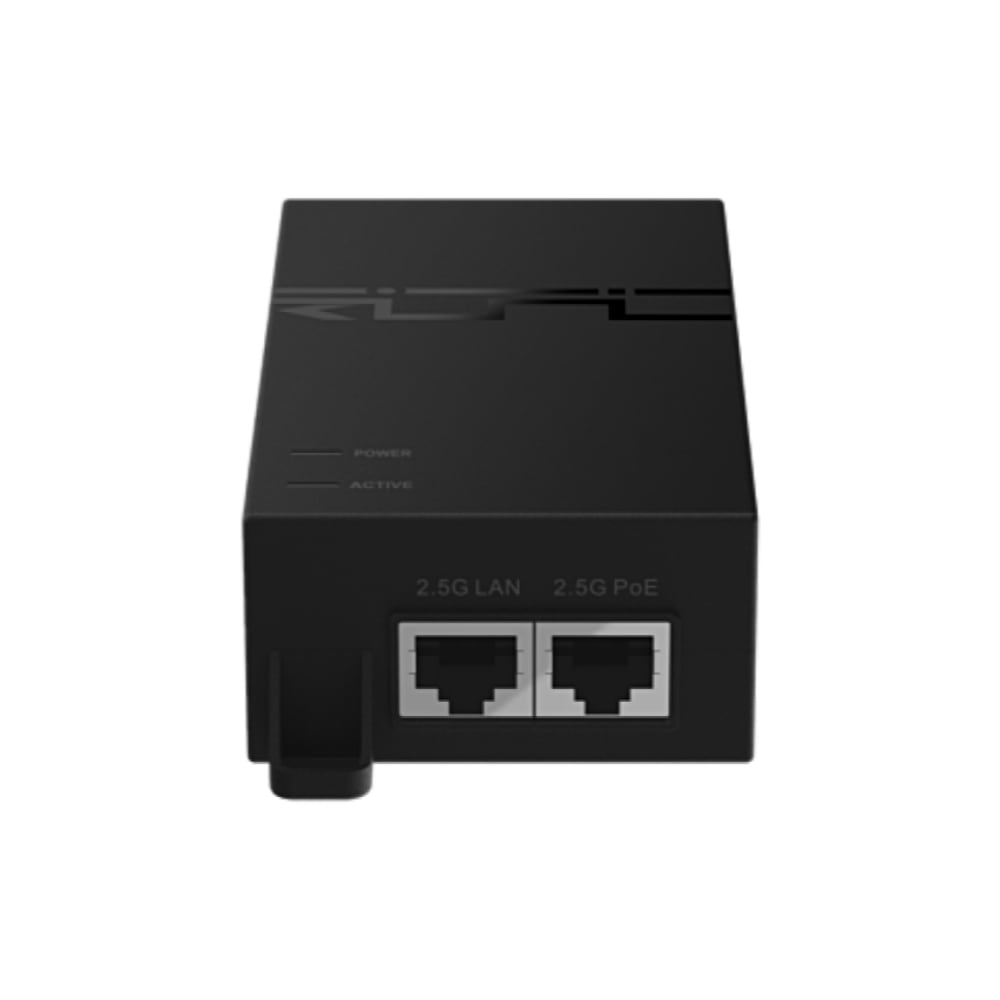

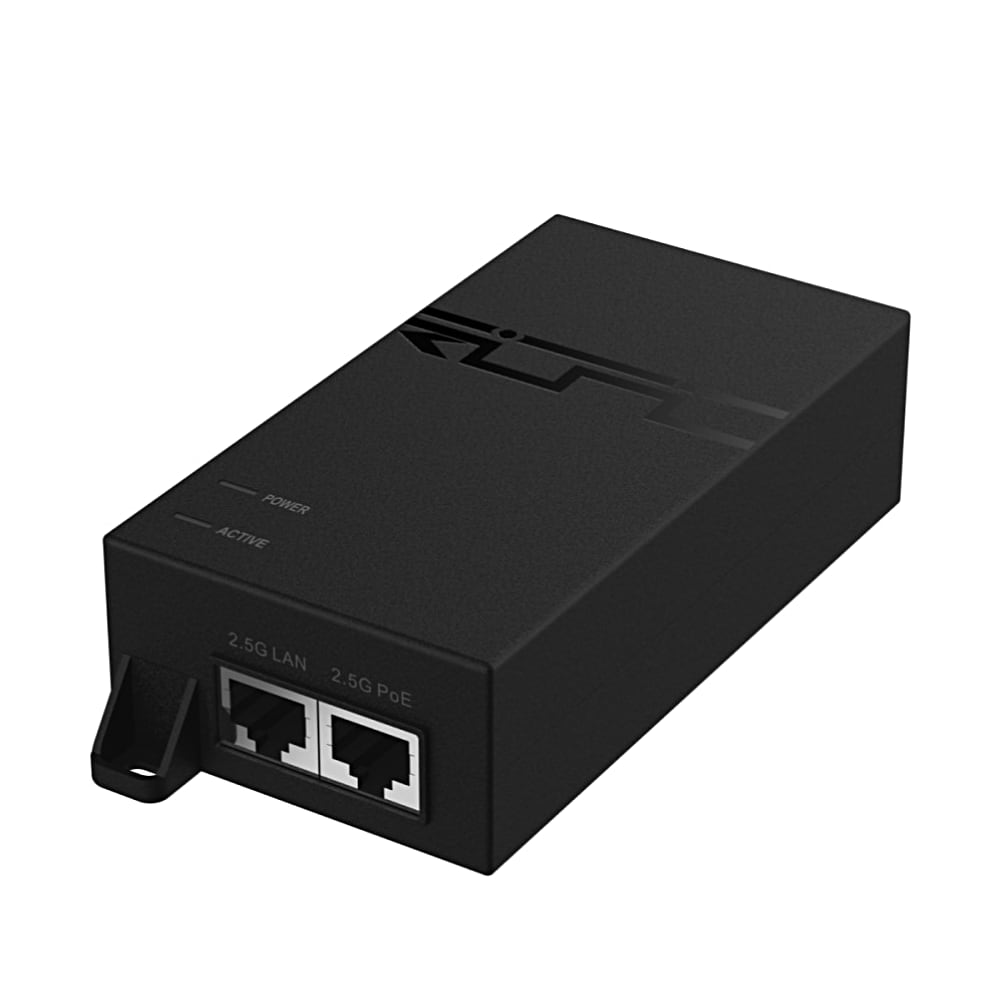

The Reyee RG-POE-50-60W-MG is a high-performance 60W Passive PoE Adapter delivering 56V DC @ 1.08A with a 2.5G LAN port. Designed with superior surge protection and efficiency, it ensures stable power delivery for access points, surveillance cameras, and high-demand PoE devices
Key Features
-
Model: RG-POE-50-60W-MG
-
Power Output: 56V DC @ 1.08A, 60W capacity
-
LAN Port: 2.5 Gigabit support
-
Surge Protection: 500A (8/20µs), <1ns response time
-
Wide Input Voltage: 100–240V AC @ 50/60Hz
-
High Efficiency: 80%+
-
Operating Temp: 0°C to 40°C
-
Certifications: CE, FCC, CCC
Technical Specifications
| Specification |
RG-POE-50-60W-MG (60W) |
| Output Voltage |
56V DC @ 1.08A |
| Power Capacity |
60W |
| LAN Port |
2.5 Gigabit |
| Input Voltage |
100–240V AC @ 50/60Hz |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-30°C to 70°C |
| Surge Protection |
500A (8/20µs), <1ns response |
| Certifications |
CE, FCC, CCC |
| Dimensions |
137.4 × 62.3 × 32.6 mm |
| Weight |
225 g |
More Information
Reyee RG-POE-50-60W-MG 60W PoE Adapter Datasheet
