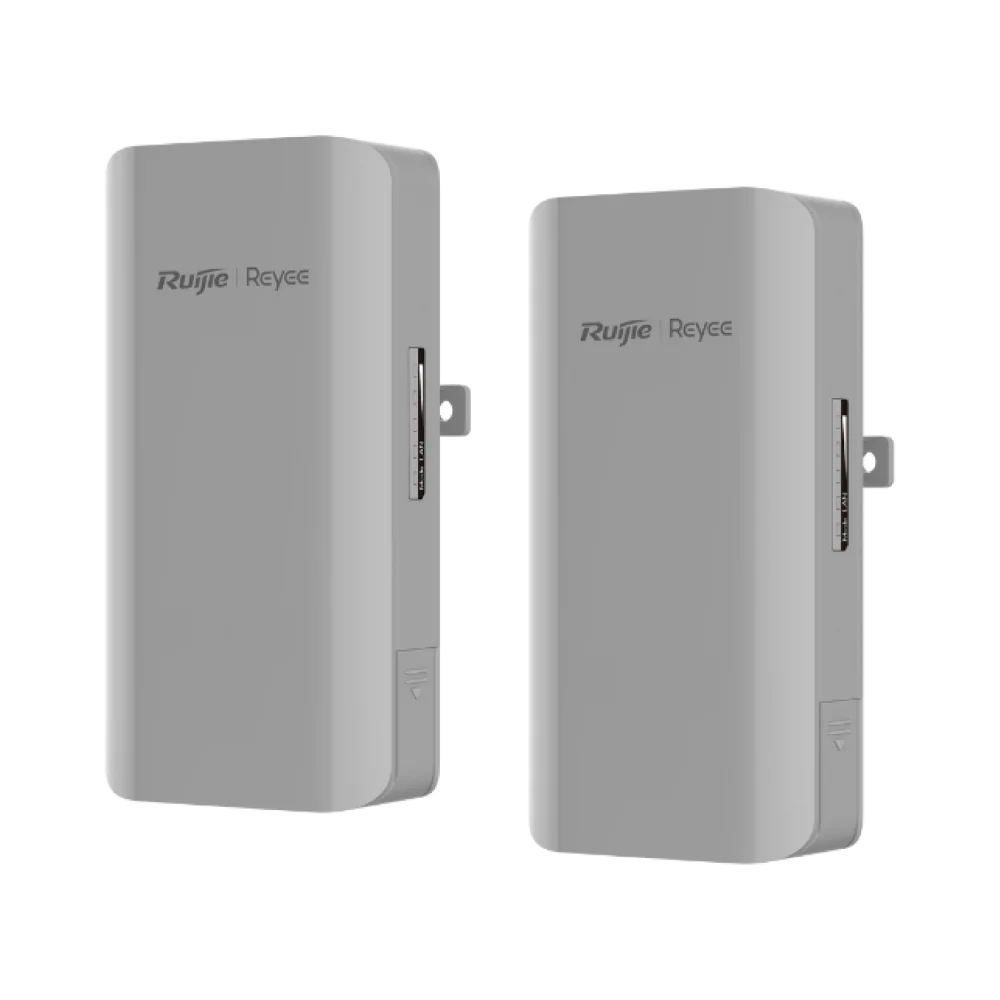

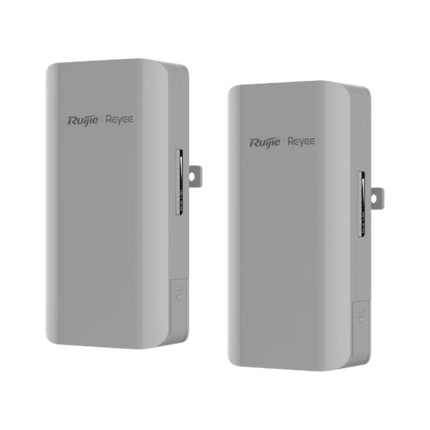

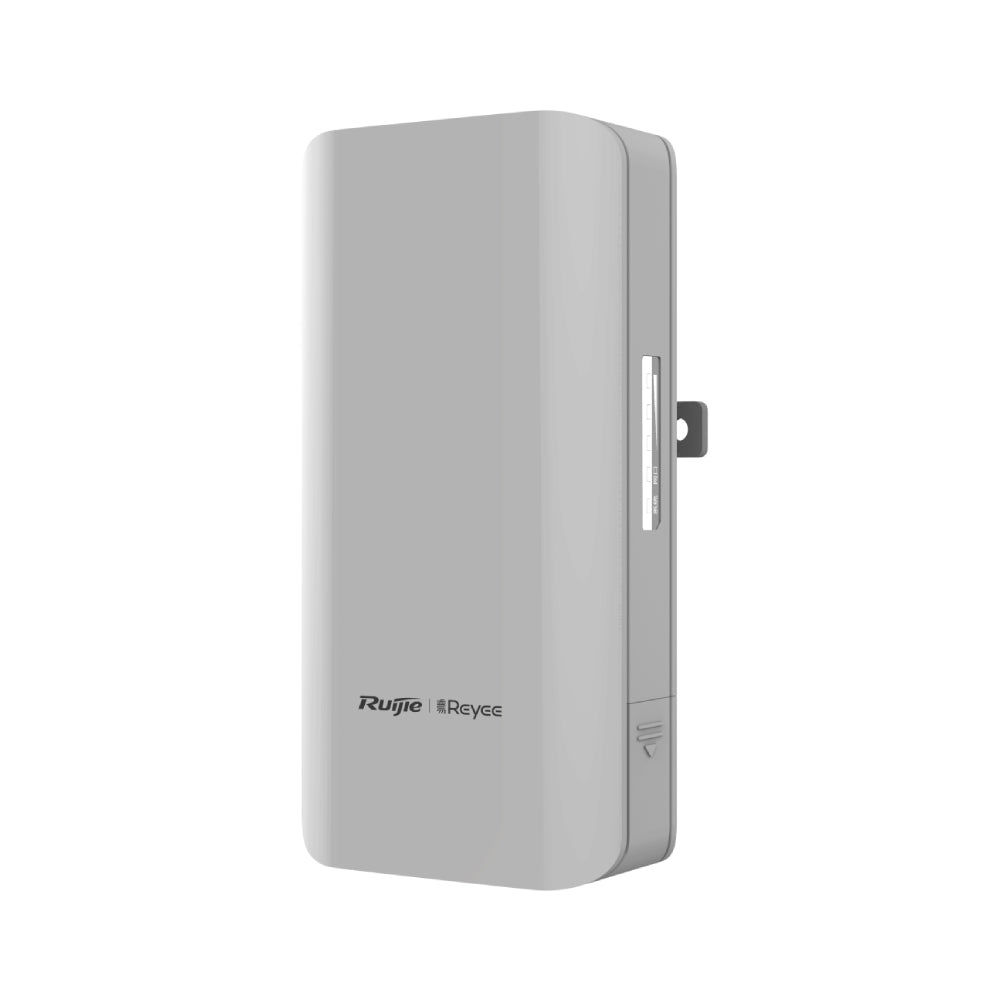

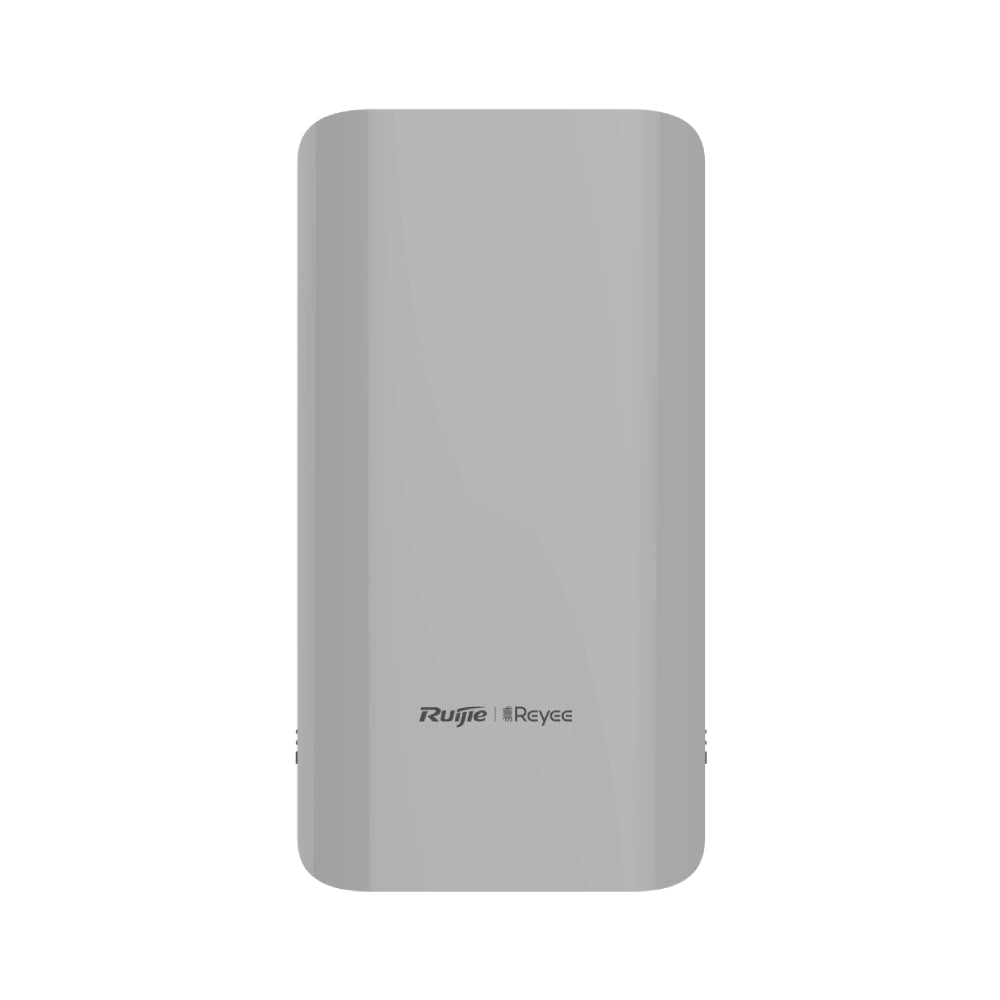

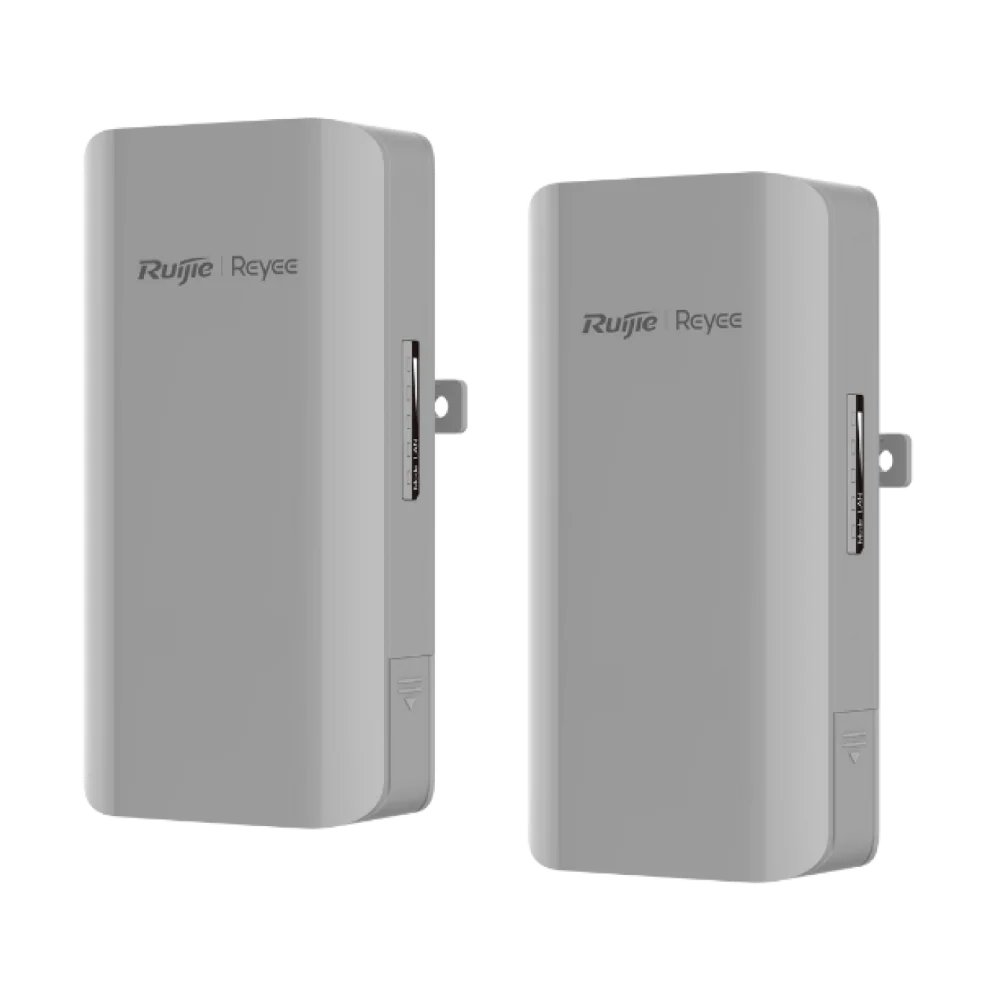

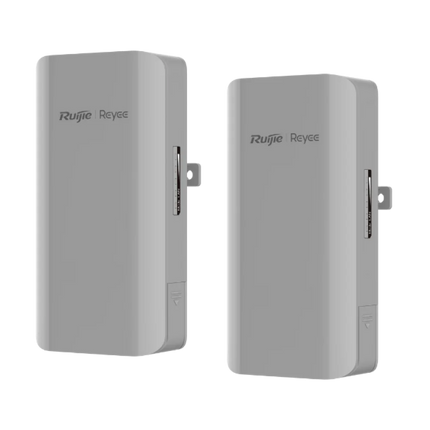

Ruijie Reyee RG-EST310V2 1KM 5GHz Wireless Bridge for CCTV & Network Links
The Ruijie Reyee RG-EST310V2 is a 5GHz dual-stream 802.11ac wireless bridge designed for
point-to-point network links up to 1KM. It is a practical solution for sending CCTV, NVR,
internet or network data between buildings without running long outdoor cable.
Ideal for homes, farms, sheds, warehouses, gates, campuses and commercial sites, the RG-EST310V2 is built for
CCTV bridge applications where stable wireless transmission is required across distance.
Wireless Link
1KM PTP Bridge
Wireless Speed
Up to 867Mbps
Outdoor Rated
IP54 Weatherproof
Why Choose the RG-EST310V2?
Perfect for CCTV Between Buildings
Send camera or network traffic from a remote shed, gate, granny flat, workshop or detached building back
to your main network without trenching or long cable runs.
Factory-Paired for Easier Setup
The RG-EST310V2 is designed for quick bridge deployment with factory pairing and auto-rebridge after power
restoration, helping reduce setup time.
5GHz 2×2 MIMO Performance
The 5GHz single-band dual-stream 802.11ac design supports up to 867Mbps wireless transmit rate for stable
bridge data transmission.
Outdoor-Ready Housing
IP54 weatherproof protection and -30°C to +55°C operating temperature make it suitable for many outdoor
Australian installation environments.
Best Uses
CCTV Camera Links
Connect remote IP cameras back to your NVR or network where Ethernet cable is not practical.
Sheds & Workshops
Bridge network access from the main building to a shed, garage, workshop or outbuilding.
Gates & Driveways
Useful for gate cameras, intercoms or access control points where cabling is difficult.
Commercial Sites
Suitable for warehouses, yards, campuses, temporary links and building-to-building networking.
Key Specifications
| Model |
RG-EST310V2 |
| Product Type |
5GHz wireless bridge |
| Recommended Link Distance |
Up to 1KM point-to-point |
| Wireless Standard |
5GHz single-band dual-stream 802.11ac |
| Wireless Rate |
Up to 867Mbps |
| Radio Design |
Single-radio, 2 spatial streams, 2×2 MIMO |
| Channel Width |
Auto / 20 / 40 / 80MHz |

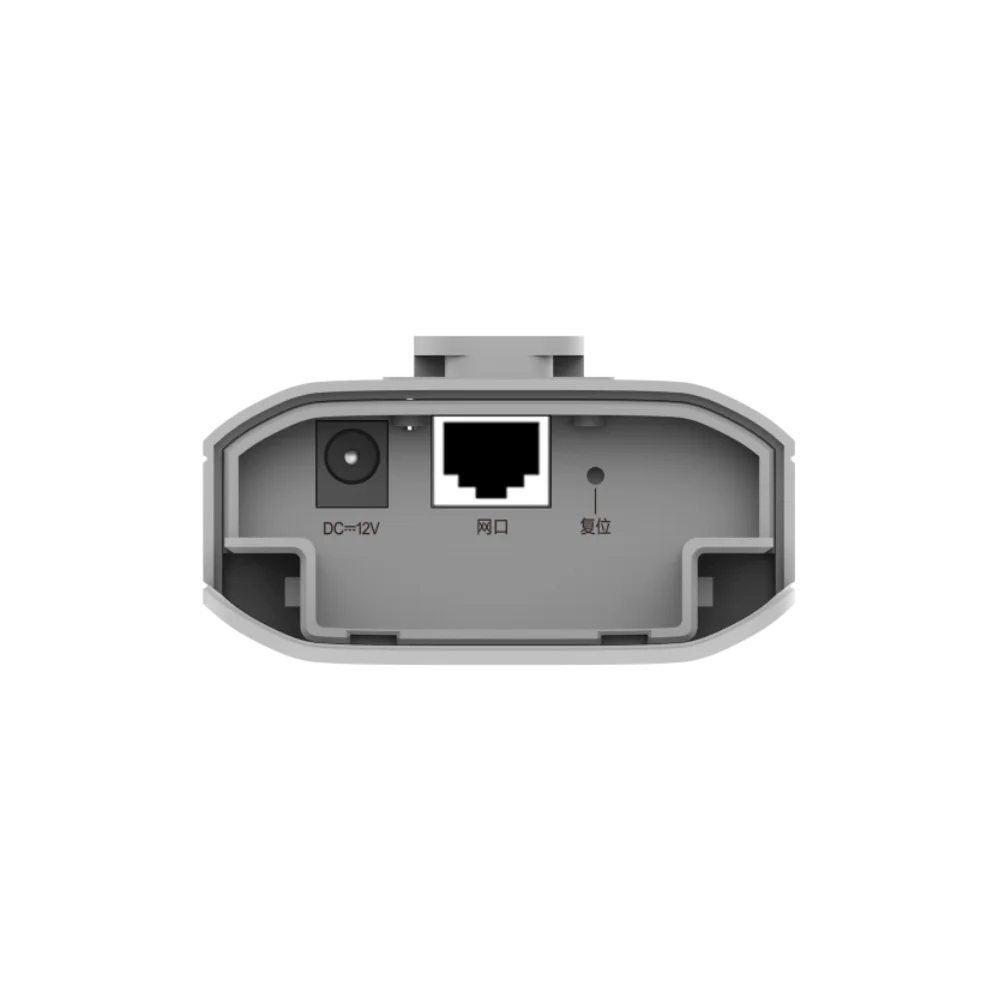

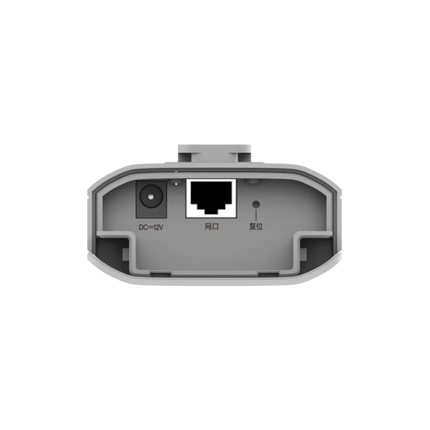

| Ethernet Port |
1 × FE port |
| PoE Input |
1 × PoE In port |
| Antenna Orientation |
60° horizontal / 30° vertical |
| Weather Rating |
IP54 |
| Operating Temperature |
-30°C to +55°C |
| Dimensions |

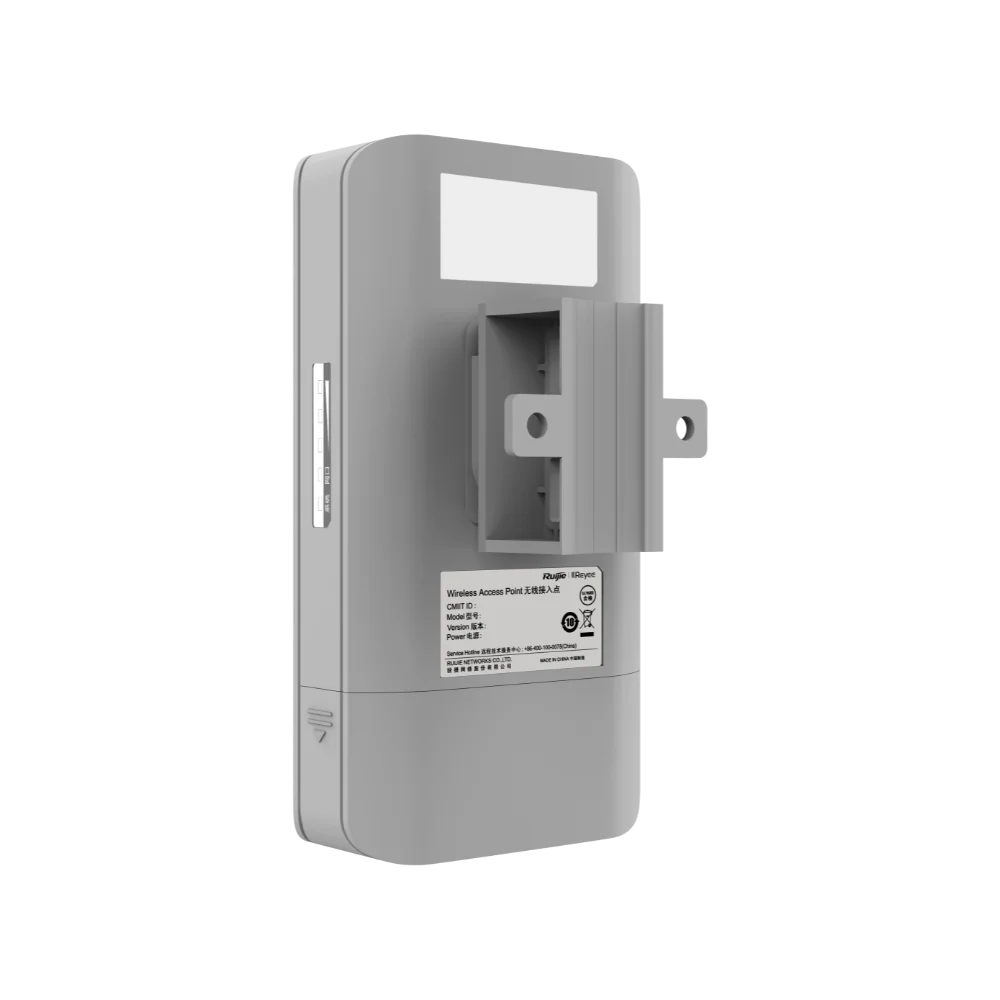

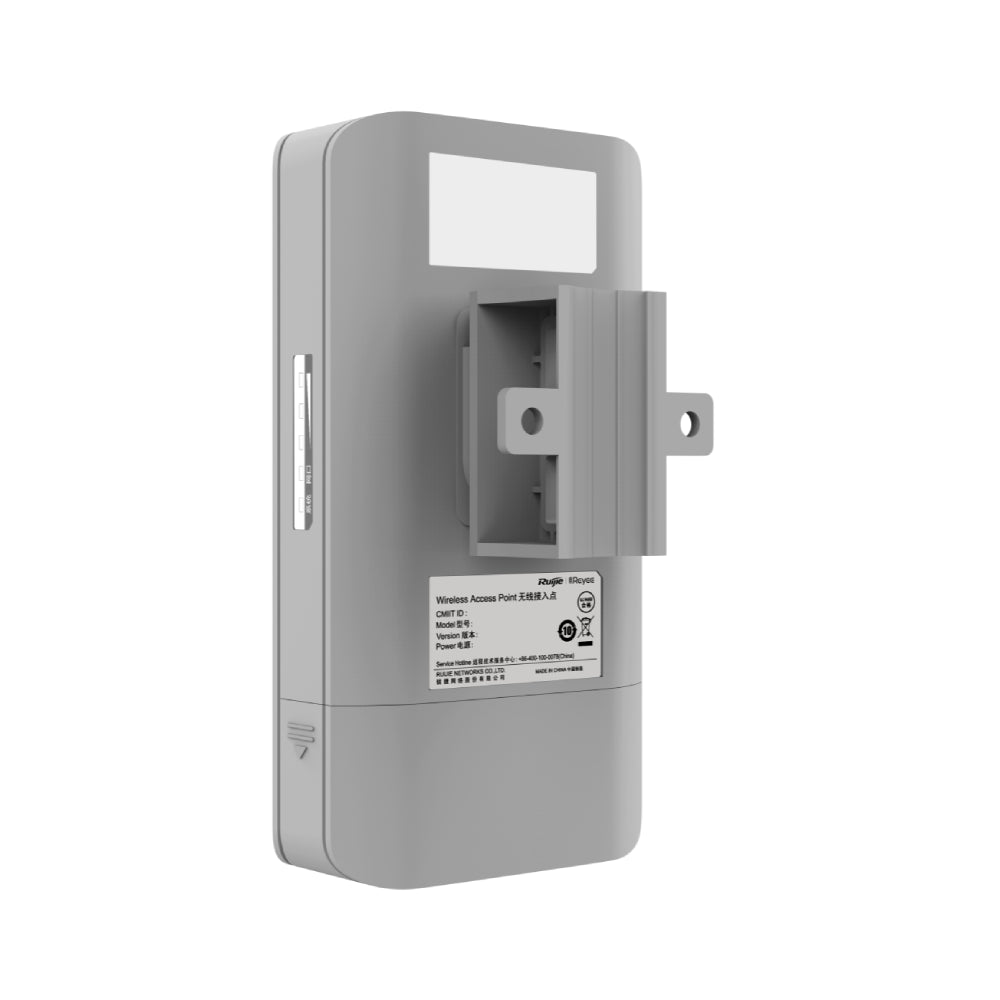

76mm × 37mm × 147mm, excluding mounting bracket |
Installation Notes
For best performance, install the two bridge units with clear line of sight between locations. Avoid large
trees, walls, metal structures and other obstructions between the two points. Final speed and stability may
vary depending on distance, interference, mounting height and local environment.
For CCTV use, we recommend confirming the number of cameras, camera resolution, bitrate and NVR location before
installation so the bridge link is sized correctly.
Recommended Add-ons
PoE Switch
Use a PoE switch to power IP cameras and connect the bridge into your CCTV network.
Outdoor Junction Box
Recommended for cleaner cabling and extra protection around outdoor cable connections.
Cat6 Outdoor Cable
Use quality outdoor-rated Cat6 cable for reliable connection from the bridge to your network equipment.
NVR or Network Recorder
Pair with your CCTV recorder when using the bridge to connect remote IP cameras.
More Information
Review the official Ruijie Reyee product page for full technical details, datasheets and deployment guidance.
FAQs
What is the RG-EST310V2 used for?
It is used to create a wireless point-to-point network link, commonly for CCTV cameras, buildings, sheds,
gates and remote network connections.
Is this suitable for CCTV?
Yes. The RG-EST310V2 is designed as a cost-effective wireless bridge solution for CCTV applications where
running cable is difficult.
What is the maximum distance?
It is positioned as a 1KM wireless bridge. Real-world performance depends on line of sight, interference,
mounting height and site conditions.
Does it support 5GHz?
Yes. It uses 5GHz single-band dual-stream 802.11ac wireless bridging.
Is it weatherproof?
Yes. It has an IP54 weatherproof rating and operates from -30°C to +55°C.
Does it need line of sight?
Clear line of sight is strongly recommended for stable long-distance wireless bridge performance.
