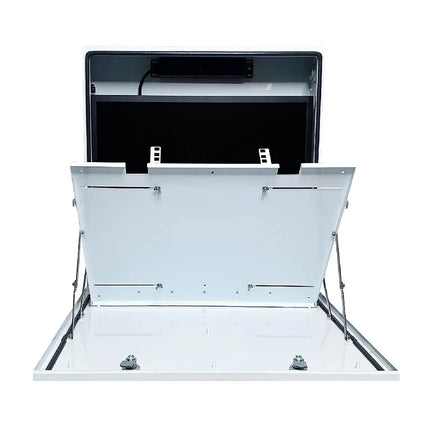

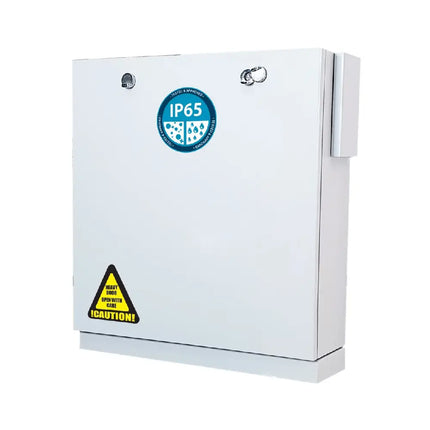

This Outdoor Security Cabinet, PA-WMCAB-W - DVR/NVR shelf has a capacity of up to 2U height, up to 490mm width & 400mm depth, with space to mount up to a 24'' LCD monitor*. It can accommodate most DVR/NVR’s and other access control and alarm system, making it a versatile Controller Cabinet
Features
- Compact: size 585(W) x 650(H) x 180(D)mm (closed)
- Capacity: 2RU, 200~490mm width, 400mm depth
- Cable management knock-outs are in the wet and dry compartment
- Ventilation: Temperature controlled 12VDC Low Noise Fan and air intake filter

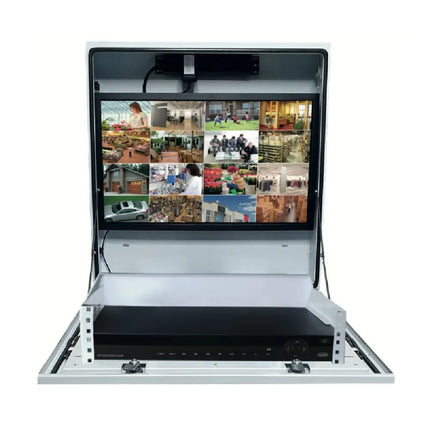

- Fits up to 24” monitor, with 75/100 VESA mounts
- 2 x cabinet locks use padlocks for additional security
- 30kg cabinet load bearing capacity (10kg vertical shelf)
- 440mm width between mounting points to fit wall studs
- Mild steel construction and white powder coating
- 4 x outlet power distribution unit(included)
- Temperature controlled Cooling Fan (included)
- Cooling Fan Power Supply (12VDC 1A included)
- 1.5m Power Cord included.
* Ensure that the monitor has horizontal / downwards-facing input ports & power connectors
Notes:
- We recommend only using slimline thin bezel monitors (max Size 540x340x45 WxHxD); other monitors may not fit.
- 4 x M4 x 10mm screws included for monitor mounting
-
4 x washers included - to be ONLY used as a spacer if the monitor bracket fits into a recess at the back of the monitor.
Shipping Weight and Dimensions Cabinet Dimensions
- Width-585mm ~ Height – 650mm ~ Depth – 180mm ~ Weight 16.5Kg
Packing Dimensions
- Width-630mm ~ Height – 690mm ~ Depth – 230mm ~ Weight 18Kg
Unboxing and Pre-installation Check
The cabinet is approximately 18Kgs and care should be taken when unboxing.
Suggested: open the end opposite to the product label and place open end on the floor or table. Slide the box up and remove. 2 cabinet lock keys will be fixed to the side packing foam.
Technical and Installation Guide for DVR / NVR Secure Wall Mount Cabinet
- It is recommended that the cabinet be mounted in a well ventilated area.
- The Right side of the cabinet must have a minimum of 200mm clear space
- The bottom of the cabinet must have no less than 300mm clear space
- Once a suitable location is found, mount the box with the center of the monitor bracket
- at eye level.
- It is recommended that the top mounting holes be at least 1600-1700mm from the floor.
- Use M6x50mm wood, metal or masonry screws secure the box to the wall.
- Use the 2 top mounting KEYHOLE type anchor points first 440mm apart.
- Use the 2 bottom mounting slot holes to level and secure the cabinet to the wall
- Ensure all 4 mounting screws are secure.
