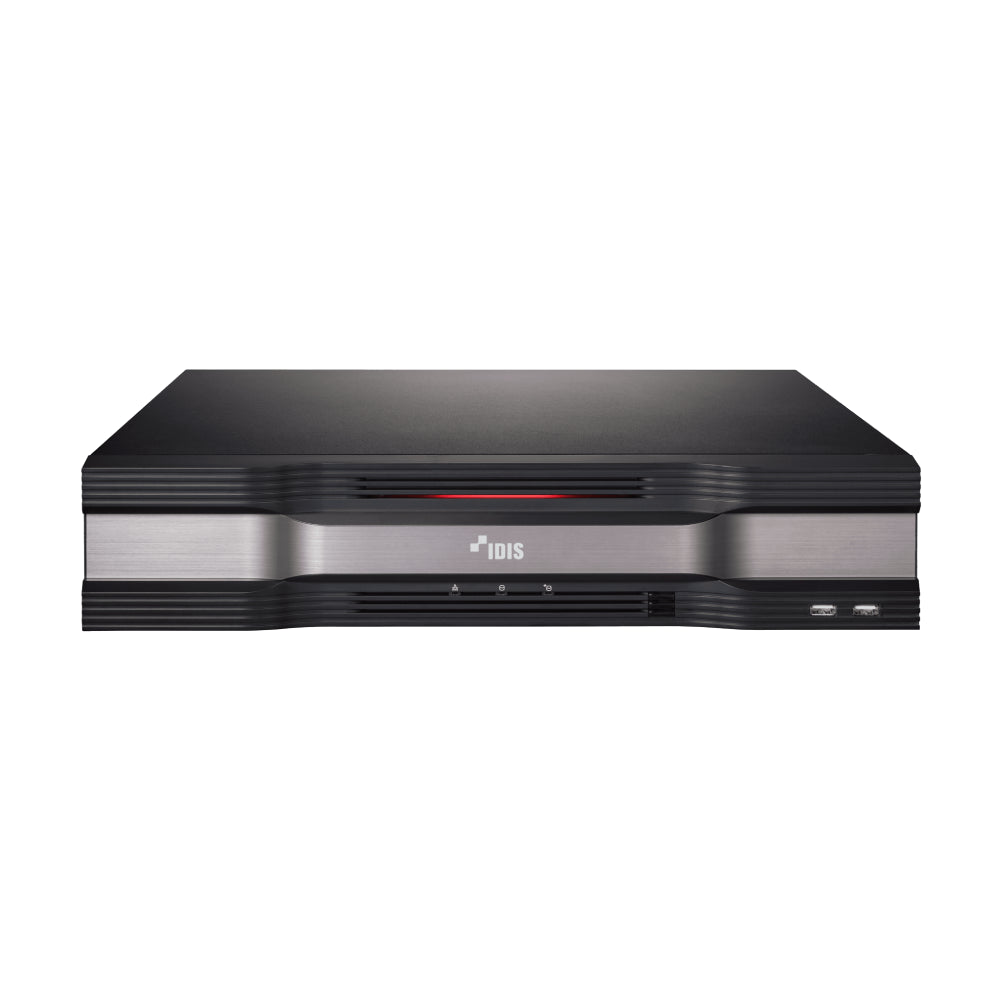

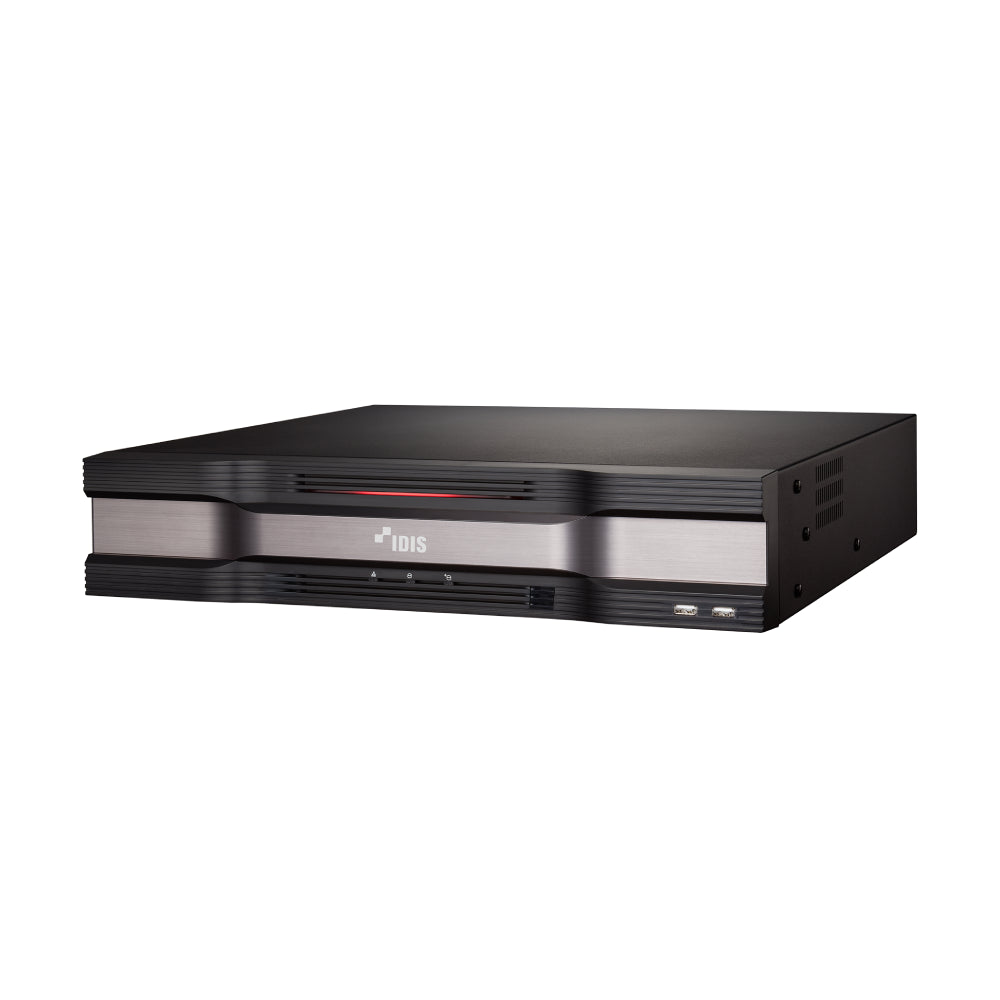

IDIS DR-6532P-A 32-Channel 4K H.265 DirectIP Network Video Recorder (4TB)

Description

IDIS DIRECTIP 6500 SERIES · 4TB ENTERPRISE STORAGE · NDAA & TAA COMPLIANT

High-Capacity Enterprise 32-Channel 4K Surveillance Network Core (4TB)

The IDIS DR-6532P-A (4TB variant) stands as a heavyweight 32-channel network video recorder designed to anchor large-scale enterprise surveillance deployments across critical infrastructures. Powered by an ultra-high performance processing core, it features a massive 370Mbps incoming throughput to cleanly ingest high-resolution camera grids without dropped frames. Outfitted with zero-configuration DirectIP® technology, this network core strips away tedious IT setups—simply connect your IP hardware to instantly automate device discovery, addressing, and security mapping. Pre-configured with 4TB of surveillance-grade storage, it is ideal for corporate high-rises, sprawling industrial complexes, transportation terminals, and hospital campuses requiring flawless 24/7 reliability.

Throughput Limits
370Mbps Max Incoming
Storage Baseline
4TB Fitted / 6 SATA Bays
PoE Integration
16-Port Switch Built-In
Compliance
NDAA & TAA Compliant

Massive Storage Expansion with Hardware RAID 1 Redundancy

To support massive arrays, the physical architecture of the IDIS DR-6532P-A is engineered for extreme data volume and hardware fault tolerance. The robust 2U chassis accommodates up to 6 internal SATA hard drives and features 4 external eSATA storage array expansion links to seamlessly scale up to 252TB of total memory space. Critical recording feeds are heavily guarded via hardware-integrated RAID 1 mirroring, ensuring that even if an operational hard drive fails unexpectedly, your secondary mirrored drive preserves your security footage without a second of recording downtime. Paired with H.265 compression protocols and IDIS Intelligent Codec optimizations, local storage bandwidth consumption drops by up to 90%, maximizing your 4TB baseline footprint into a vast, deep-history server repository.

Integrated 16-Port High-Output PoE Switch

The back panel features an integrated 16-port PoE switch with a robust 200W active power profile. This enables direct, plug-and-play connection and power delivery to 16 edge cameras over single Ethernet lines, while the remaining 16 channels can be configured over an external switch.

Dual HDMI 4K UHD Telemetry Real-Time Monitoring

Drive dual-screen monitoring environments with uncompressed, low-latency clarity. Featuring 2 native HDMI monitor ports, this server effortlessly renders smooth 4K real-time multi-window visual arrays up to a blinding 960ips (images per second) live display speed.

Technical Specification Matrix
NVR Product Designation DR-6532P-A (4TB)
Video Stream Capacity 32 IP Channels Max (DirectIP Native Auto-Detect, Axis, Panasonic, ONVIF Core)
Max Processing Throughput 370Mbps Total Incoming Bandwidth / 230Mbps Heavy Recording Processing Allocation
Local Output Display Channels 2x Integrated HDMI Outputs (Primary Monitor Resolution up to 3840 x 2160 UHD)
Live Rendering Speed Up to 960ips UHD Synchronous Live Display Real-Time Rendering Matrix
Advanced Decoding Formats H.265, H.264, and Proprietary IDIS Intelligent Codec Tuning
Embedded PoE Power Matrix 16x RJ45 Fast Ethernet Built-In Base Switch (IEEE 802.3at Class 4 Specs)
Total Active PoE Budget 200W Distributed Power Over Ethernet Supply Ceiling
Storage Component Array 6x Internal SATA Hard Drive Interface Bays (Fitted with 4TB Surveillance-Grade Storage)
External Capacity Bridges 4x Dedicated High-Throughput eSATA External Storage System Links
Internal Drive Redundancy Hardware-Engineered RAID 1 Real-Time Mirroring System Redundancy Protection
Network Client Connections 1x Dedicated Gigabit Client LAN, 16x PoE IP Ports, 1x Gigabit Ext IP Port
Audio & Alarm I/O Ports 1 RCA Audio In, 1 RCA / 2 HDMI Audio Out; 4 Local Terminal Inputs, 1 Relay Output
Deep Learning Analytics IDLA Metadata Triggers (Object Tracking, Intrusion, Loitering, Line Cross, Face Alerts)
Chassis Form Calculations 430mm (W) x 88mm (H) x 412.8mm (D) | Pro 2U Rackmount Profile Chassis
Compliance Directives Fully Certified NDAA Compliant Frameworks & TAA Manufacturing Protocols
How do I connect the full 32 cameras if there are only 16 physical PoE ports on the rear panel?

The integrated 16-port PoE switch directly manages and powers cameras 1 through 16 via direct lines on the back panel. Channels 17 through 32 are easily integrated by connecting an external network switch to the dedicated Gigabit "Ext IP" network uplink port on the unit.

What are the benefits of the RAID 1 support feature on this model?

RAID 1 configuration mirrors incoming camera data simultaneously across two identical internal hard drives. In the event of a physical mechanical drive failure, the secondary drive immediately continues logging and retrieving critical historical data with zero system disruption.

Can I run advanced AI and deep learning video analytics with this model?

Yes. The DR-6532P-A fully supports IDIS Deep Learning Analytics (IDLA) metadata processing engine protocols. When paired with smart edge cameras, you can configure object tracking, zone intrusion fields, loitering parameters, line-crossing metrics, and face tracking events.

Does this device use a subscription model for mobile remote streaming?

No. Remote viewing via the IDIS Mobile application or IDIS Center client software is completely licensing-free. Security teams can securely login from around the globe using automated FEN (For Every Network) technology, which avoids manual port-forwarding steps.

Technical Datasheet Quick Start Guide
Operation Manual Installation Manual
