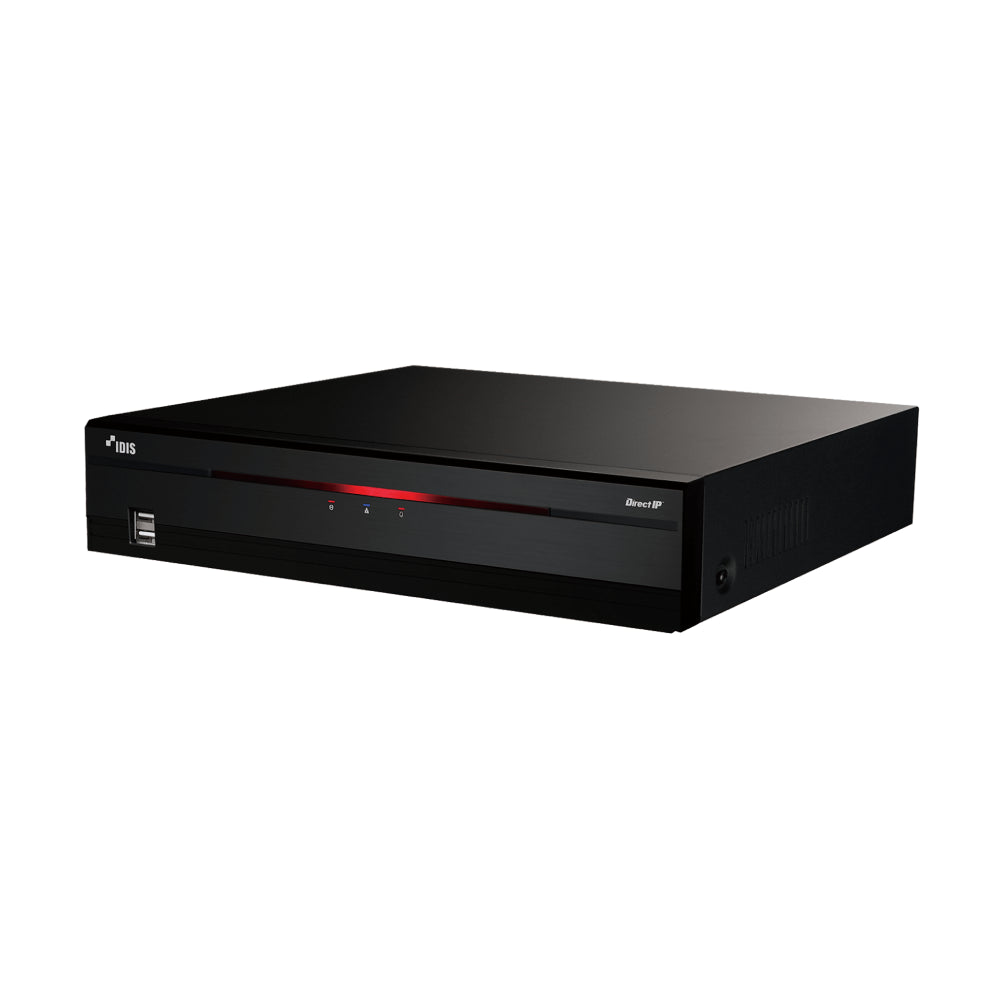

IDIS DR-2508P-A 8-Channel 4K H.265 DirectIP Network Video Recorder

Description

IDIS DIRECTIP NVR SERIES · NDAA & TAA COMPLIANT

Plug-and-Play 4K Ultra HD Surveillance Recording Network Engine

The IDIS DR-2508P-A functions as a high-density, business-grade 8-channel network video recorder built to anchor next-generation IP surveillance ecosystems. Utilizing specialized DirectIP® architecture, this machine removes the typical configuration complexities of IP addressing, subnet routing, and port mapping during field deployments. Perfectly matched for mid-sized commercial builds, multi-site retail businesses, banking spaces, and medical offices, this enterprise NVR provides instantaneous plug-and-play camera initialization while streaming pristine 4K resolution real-time video feeds safely onto local storage volumes.

Throughput Capacity
200Mbps Max Recording
Video Performance
8-Channel 4K UHD DirectIP
Integrated Switch
8-Port Embedded PoE Base
Data Integrity
Smart Failover Protection

Advanced Storage Redundancy & Smart Codec Compression Efficiencies

The processing engine behind the IDIS DR-2508P-A delivers exceptional system performance while prioritizing high data uptime. Engineered with native Intelligent Codec support alongside standard H.265 compression protocols, this recorder minimizes structural bandwidth requirements by up to 90% compared to legacy setups, freeing up your local network traffic overhead. Most importantly, it features an integrated Smart Failover architecture that acts as a guard against network drops. If a primary connection to a camera fails, individual edge SD cards store the missing video packets and automatically synchronize them back to the hard drive once the link recovers, ensuring a continuous chain of evidence for regulatory audit compliance.

Built-In PoE Switch Infrastructure

Equipped with an 8-port embedded PoE network switch running a total power budget of 120W, this recorder powers and configures matching edge cameras through single Ethernet connections, cutting out auxiliary hardware frames and complex infrastructure racks.

True 4K UHD Live Monitoring

Drive native, pixel-precise security control directly to command panels. The hardware features dedicated HDMI and VGA display outputs, streaming crisp real-time 4K live display layouts with low latencies, ideal for immediate structural control actions.

Technical Specification Matrix
NVR Model DR-2508P-A
Video Input Capacity 8-Channel IP Network Camera Configurations
Recording Throughput Maximum 200Mbps Network Processing Capacity
Max Output Resolution 4K Ultra HD (Up to 3840 x 2160 Output Grid Rendering)
Video Decoding Formats H.265, H.264, and IDIS Intelligent Codec Optimization
Integrated PoE Switch 8 Ports Embedded RJ45 IEEE 802.3at PoE Architecture
Total PoE Budget 120W Distributed Power Provisioning Matrix
Internal Storage Drive Bays 2x SATA Interfaces (Supporting up to 10TB per HDD Bay)
External Data Interfaces 1x USB 2.0 Front, 1x USB 3.0 Rear, 1x eSATA Storage Port
Audio & Alarm I/O Connections Local Audio Line In/Out, RCA Connector; 4 Terminal Inputs, 1 Relay Output
Power Consumption Profile AC 100-240V Input, Maximum Operational Pull 180W (With PoE Full Load)
Chassis Form Dimensions 300mm (W) x 62mm (H) x 231mm (D)
Compliance Standards NDAA Compliant Supply Framework, TAA Sourced Assemblies
Can this NVR support third-party IP cameras outside of IDIS?

Yes. While native plug-and-play functionality is fully optimized for IDIS DirectIP cameras, the DR-2508P-A also includes standard ONVIF protocol support. This allows you to discover and record profile-compliant third-party network cameras.

How does the Smart Failover storage system work?

If the network switch loses connection to the NVR, the cameras immediately record video onto their internal SD cards. Once the connection is restored, the NVR automatically ingests and syncs the missing video, leaving no gaps in your footage.

Can I access my camera live streams remotely from a mobile phone?

Yes. The system connects seamlessly to the IDIS Mobile app and IDIS Solution Suite software. It features a unique FEN (For Every Network) setup, allowing quick remote access without tedious router adjustments or static IP setups.

What happens if the total power draw from my cameras goes past 120W?

The system's integrated 8-port switch is strictly capped at a 120W continuous delivery threshold. If you need to deploy several long-range PTZs or specialized multi-sensor cameras with heavy draws, you can use external midspan PoE injectors to offload power demand.

Technical Datasheet Quick Start Guide
Operation Manual Installation Manual
Official IDIS Stock
NDAA & TAA Certified
Aust-Wide Delivery
