IDIS ACCESSORIES · NDAA & TAA COMPLIANT
Enterprise-Grade Power Delivery for High-Demand Security Infrastructure

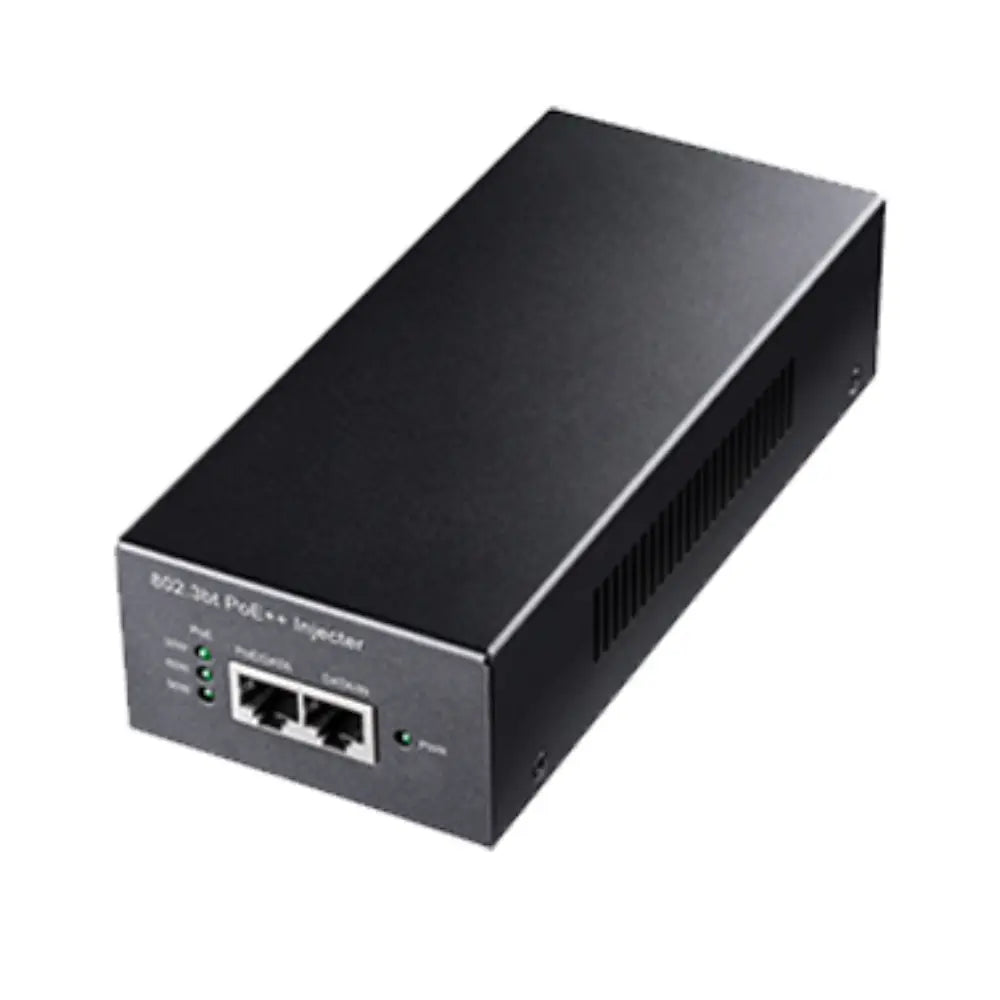

The IDIS DA-PI PoE400 is a premier single-port High-PoE injector designed to meet the rigorous power demands of modern commercial surveillance systems. Engineered for high-density environments, infrastructure expansions, and complex perimeter deployments, this midspan solution guarantees seamless power and data distribution to heavy-duty edge devices like multi-sensor panoramic cameras and ruggedized PTZ domes. By delivering massive power budgets without infrastructure overhaul, it ensures your high-tier surveillance operations stay online continuously in critical enterprise sectors.
Power Output
Up to 90W High-PoE
Compatibility
802.3af / at / bt
Network Speed
10/100/1000 Mbps
Protection
Auto-Detection Guard
Advanced Power Management & Smart Terminal Protection
The technical integration of the IDIS DA-PI PoE400 safeguards downstream hardware via its proprietary intelligent detection mechanism. It automatically identifies non-standard ethernet terminals and regulates power handshakes, ensuring that low-power devices receive only the specific wattage they require without risking electrical overstress. Operating across standard CAT5 or better cabling up to 100 meters, this device delivers stable 56V DC power while running full Gigabit line-rate transmission speeds. It eliminates packet loss and maintains high-throughput video analytics pipelines without interruption.
IEEE 802.3bt Multi-Protocol Compliance
Backward compatible with IEEE 802.3af and 802.3at protocols, the injector automatically scales down from its 90W ceiling to safely power minor system peripherals, providing a versatile single-point solution across varied device deployments.
Plug-and-Play Industrial Form Factor
Requiring no complex software configuration, the unit features a highly resilient, compact chassis designed to fit into server racks, structured media enclosures, or compact utility boxes, streamlining field labor and accelerating deployment times.
Technical Specification Matrix
| Camera Model |
DA-PI PoE400 |
| Network Connection |
RJ45 x1 (Data-in), RJ45 x1 with PSE |
| PSE Power Output |
56V DC, Max. 90 Watts |
| Transmission Speed |
10/100/1000 Base-T Gigabit Ethernet |
| Maximum Distance |
Up to 100 meters (328 feet) via CAT5 or better |
| Power Input Range |
100 ~ 240V AC, 50/60Hz, 1A |
| Operating Environmental Specs |
0°C to +45°C (32°F to 113°F) / 0% to 90% RH |
| Regulatory Approvals |
FCC, CE, NDAA Compliant, TAA Compliant |
| Dimensions (W x H x D) |
46mm x 80mm x 178.5mm (1.8" x 3.1" x 7") |
| Unit Weight |
580g (1.28 lbs) |
Will this injector damage standard IP cameras that only require 15W or 30W of power?
No. The DA-PI PoE400 features auto-detection circuitry that identifies the connected device's specific IEEE profile. It safely delivers only the exact power requested, fully protecting standard low-power hardware from overvoltage.
Can this injector support 1000Mbps Gigabit data backhaul lines?
Yes. The injector supports full 10/100/1000 Base-T network environments, ensuring that high-throughput streams from ultra-high-resolution cameras pass into the network core with zero latency or bandwidth reduction.
Is the IDIS DA-PI PoE400 fully compliant with government procurement mandates?
Yes, this hardware is fully NDAA and TAA compliant, making it eligible and secure for deployment within federal, military, municipal, and enterprise environments with strict security compliance standards.
Does this device require a separate power brick or adapter?
No, the DA-PI PoE400 features an internal power supply circuit. It accepts a standard 100-240V AC power cord input directly into its chassis, minimizing cable clutter in your enclosures.
