Description

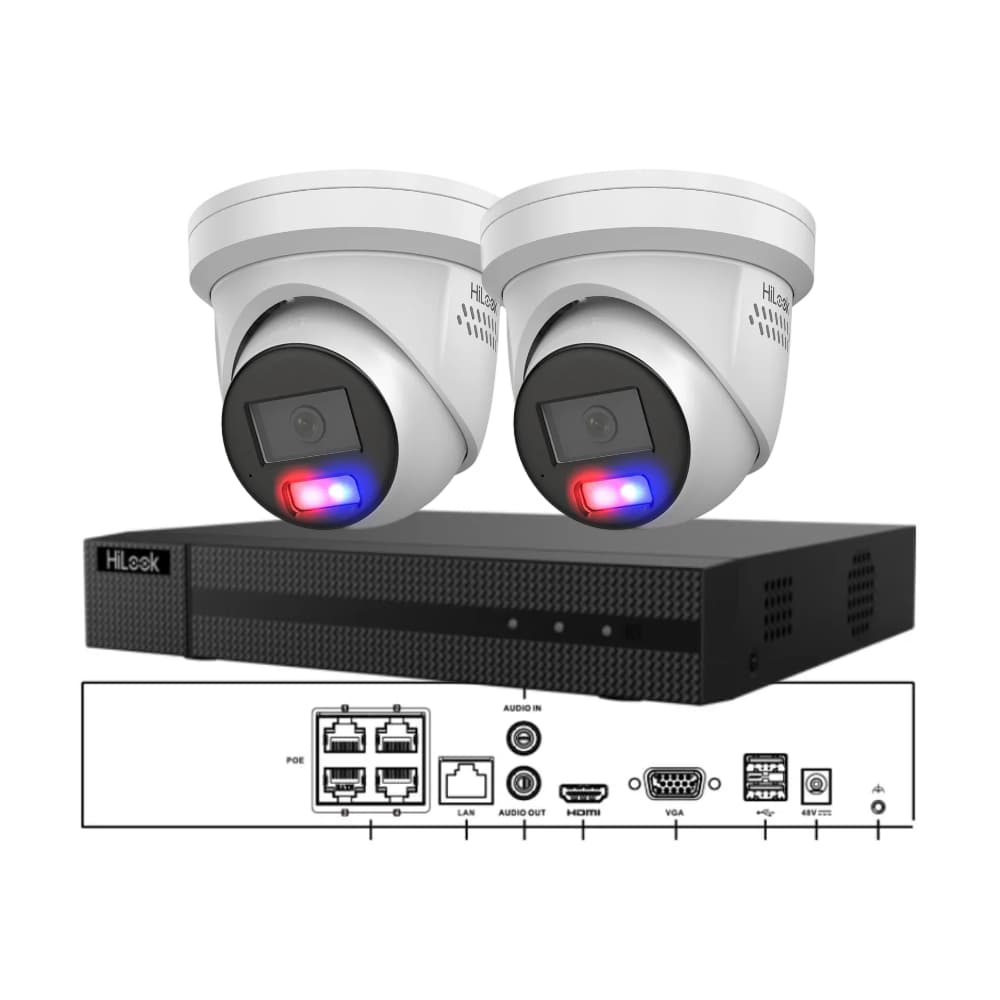

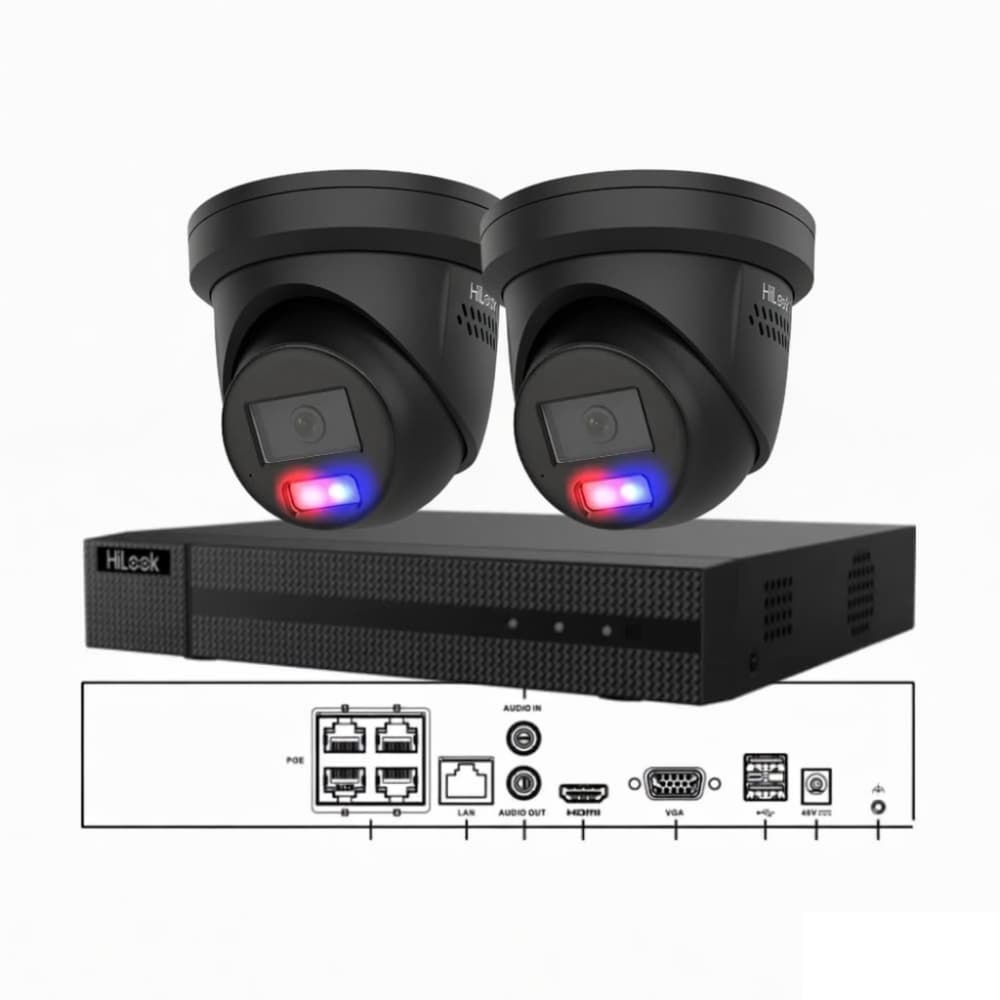

HiLook CCTV Kit, 2 x 6 MP Fixed Turret Camera + 4 Channel 4K NVR
This kit comes with
2 x IPC-T269H-MU-SL-2
1 x NVR-104MH-C/4P with 2TB
The overview of the kit are outlined below. For additional specs, please click the SKU link.
HiLook IPC-T269H-MU/SL(2.8mm) 6 MP All-in-One Fixed Turret Network Camera
2 x IPC-T269H-MU-SL-2
- High quality imaging with 6 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Human and vehicle targets classification based on deep learning
- Active red and blue strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- 24/7 colorful imaging
- Smart Dual -light Supplement,auto switch IR to White light supplement when event triggered
- Water and dust resistant (IP67)
HiLook NVR-104MH-C/4P 4-ch Mini 1U 4 PoE 4K NVR
1 x NVR-104MH-C/4P
- Up to 4-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
- Up to 40 Mbps incoming bandwidth
Extra Requirements
You must purchase a separate HDD Hard Disk Drive / storage device for your NVR recorder. We recommend a 4TB hard drive for 10-14 days of footage and an 8TB drive for 20-30 days, depending on the amount of footage you plan to record. Additionally, you will need to purchase cables for this CCTV kit. These cameras are PoE cameras, so you will only need to use RJ45 Category 6 network cables.
Diagram for CCTV Cameras & NVR Connection
