8MP 4K · 180° Panoramic · Smart Hybrid Light · AcuSense AI · 8-Ch PoE
8MP 4K · 4-Camera Kit

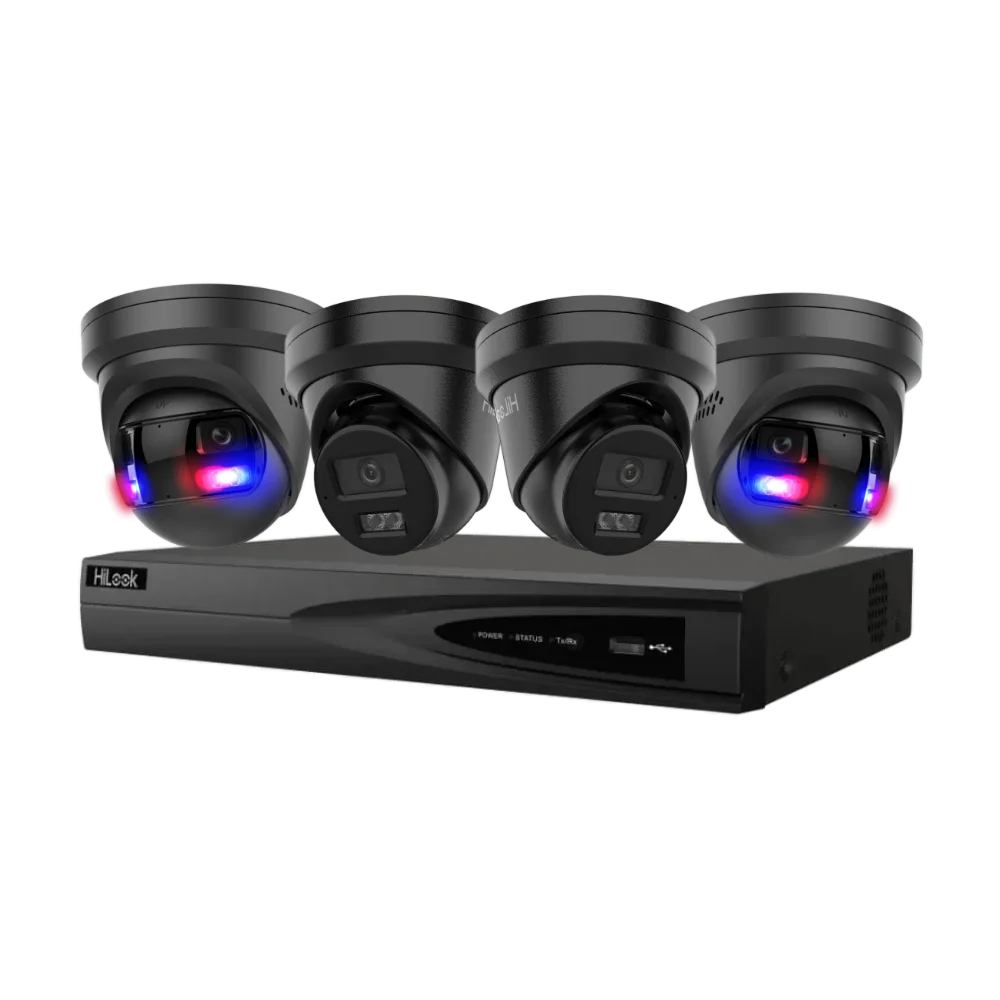

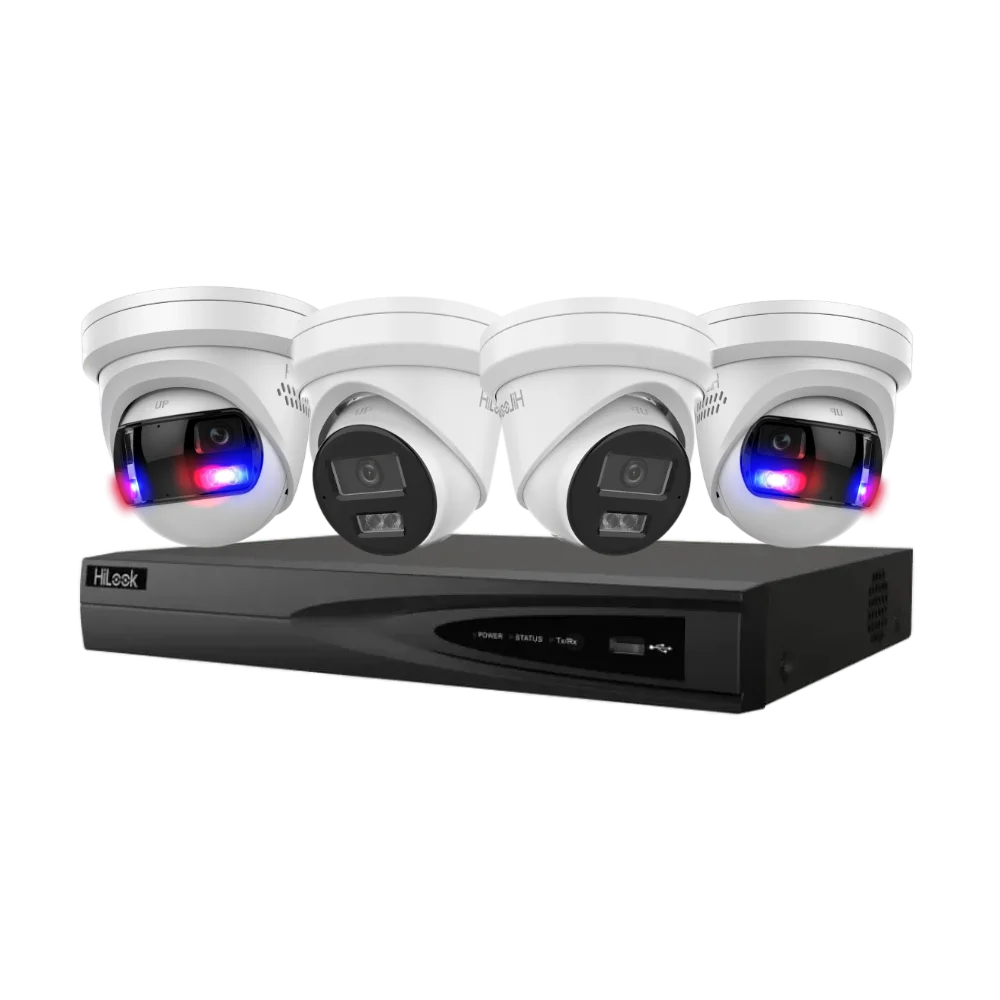

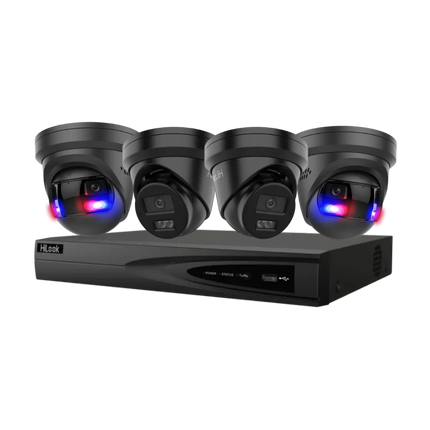

HiLook 4× 8MP 4K Smart Hybrid Light CCTV Kit — Australian Stock & 3-Year Warranty
Built for larger Australian homes, this HiLook (by Hikvision) 4K kit pairs two IPC-T289PH-MU/SL 180° panoramic turrets for wide front-yard and backyard coverage with two IPC-T381H-MU AcuSense turrets that lock down narrow side paths and gates — all running into an 8-channel NVR-108MH-K/8P AI recorder with built-in PoE. Every camera shoots true 8 MP (4K), sees in full colour at night with Smart Hybrid Light, classifies people and vehicles on-device, and the panoramic units can warn off intruders with an active strobe and siren. Available with a 4 TB surveillance HDD pre-installed, all backed by genuine Australian stock and a 3-year warranty.
Resolution
4K Ultra HD · 8MP
Cameras
2× 180° + 2× Turret
Night Vision
Smart Hybrid Light
Smart AI
AcuSense Human & Vehicle
Recorder
8-Channel 4K AI NVR
Storage
4TB Option · 16TB Max
180° From a Single Camera
Each IPC-T289PH-MU/SL stitches twin 2 mm lenses into one seamless 180° panoramic 8 MP image, so a single unit covers a whole front lawn, driveway or backyard with no central blind spot.
Focused Detail on Side Paths
Two IPC-T381H-MU AcuSense turrets put sharp 4K detail down the narrow access points intruders use most — clear faces, clothing and number plates at the gate.
Smart Hybrid Light & Deterrence
All four cameras switch between discreet infrared and bright white light for full-colour night footage, while the panoramic units add a red & blue strobe and siren that trigger automatically on AI events.
AcuSense AI & Two-Way Audio
On-camera deep learning filters out animals, branches and rain so you're alerted only to real people and vehicles, and the panoramic cameras let you speak to visitors live through the app.
See It In Action
HiLook Pro Smart Hybrid Light — Unboxing & Demonstration
What's Included
Kit Contents
| Panoramic Cameras |
2 × HiLook IPC-T289PH-MU/SL — 8 MP 180° panoramic turret, Smart Hybrid Light, active deterrence, two-way audio |
| Path Cameras |
2 × HiLook IPC-T381H-MU — 8 MP 4K AcuSense turret, Smart Hybrid Light, built-in mic, 120 dB WDR |
| Recorder |
1 × HiLook NVR-108MH-K/8P — 8-channel 4K AI NVR, 8 × built-in PoE, 1U, 1 × HDD bay |
| Storage |
4 TB surveillance-grade HDD (24/7 rated) on the 4TB variant — pre-installed; choose Barebone for no drive |
| In the Box |
Mounting hardware and quick start guides; PoE cabling not included |
Best For
Large Properties
Two 180° cameras blanket wide open front and back yards from a single mount each.
Side Paths & Gates
Focused 4K turrets capture detailed faces and plates at narrow access points.
Active Deterrence
Strobe, siren and two-way audio warn off intruders before they reach the house.
Night Coverage
Full-colour Smart Hybrid Light keeps every zone identifiable after dark.
Fewer False Alarms
AcuSense AI keeps alerts to real people and vehicles, not pets or weather.
Room to Grow
Eight channels leave four spare PoE ports for additional HiLook cameras.
Camera Specifications
IPC-T289PH-MU/SL — 180° Panoramic Turret (×2)
| Image Sensor |
1/2.4" Progressive Scan CMOS |
| Max. Resolution |
8 MP — 4256 × 1888 @ 20 fps |
| Lens / FoV |
Twin 2 mm fixed · 180° horizontal, 77° vertical |
| Supplement Light |
Smart Hybrid Light (IR + White Light) up to 30 m |
| Active Deterrence |
Red & blue strobe + audible siren |
| Two-Way Audio |
Built-in microphone + speaker (max. 97 dB) |
| Smart Detection |
Person & Vehicle detection, line crossing, intrusion |
| WDR |
120 dB |
| Power / Build |
PoE (802.3af) or 12 VDC · IP67 · −30 °C to 60 °C |
IPC-T381H-MU — 8 MP 4K AcuSense Turret (×2)
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Max. Resolution |
8 MP — 3840 × 2160 |
| Lens |
2.8 mm fixed wide angle |
| Supplement Light |
Smart Hybrid Light (IR + White Light) up to 30 m |
| Smart Detection |
AcuSense Human & Vehicle classification, line crossing, intrusion |
| Audio |
Built-in microphone |
| WDR |
120 dB |
| Compression |
H.265+/H.265/H.264+/H.264 |
| Power / Build |
PoE (802.3af) · IP67 · −30 °C to 60 °C |
Recorder Specifications
NVR-108MH-K/8P — 8-Channel 4K AI NVR
| IP Channels |
8-ch IP inputs with 8 × built-in PoE ports |
| Recording |
Up to 8 MP per channel, H.265+/H.265/H.264+/H.264 |
| Incoming Bandwidth |
Up to 80 Mbps |
| Video Output |
4K HDMI (3840 × 2160) + VGA |
| AI Features |
Human/vehicle detection, perimeter protection, facial recognition |
| Storage |
1 × SATA up to 16 TB (4 TB included on 4TB variant) |
| PoE Budget |
≤ 75 W |
| Remote Access |
HiLookVision / Hik-Connect app (iOS & Android) |
How Much Footage Can It Hold?
| HDD Size |
Continuous (all 4 cameras) |
Motion / Event Only |
| 4 TB |
≈ 21 days |
≈ 43 days |
| 6 TB |
≈ 32 days |
≈ 64 days |
| 8 TB |
≈ 43 days |
≈ 86 days |
| 16 TB |
≈ 86 days |
≈ 172 days |
Estimates assume four 8 MP cameras at roughly 4 Mbps each, H.265+, 24/7 recording and about 93% usable disk space. AcuSense motion/event recording typically doubles retention. Actual figures vary with scene activity, bitrate and settings.
Installation Notes
- Mount the panoramic cameras 3 m+ high, looking out over the open area, so the full 180° sweep is unobstructed.
- Aim the turret cameras down side paths with subjects 8–12 m away for the clearest AcuSense detection and number-plate capture.
- Each camera runs on one Cat5e/Cat6 cable to a PoE port on the NVR — keep runs under 100 m. On the Barebone variant, fit your own 24/7-rated SATA drive before first power-up.
Downloads & Resources
Frequently Asked Questions
What cameras and recorder are in this kit?
Two IPC-T289PH-MU/SL 180° panoramic turrets, two IPC-T381H-MU 4K AcuSense turrets and one 8-channel NVR-108MH-K/8P AI recorder with built-in PoE.
Is this kit suitable for a large property?
Yes. The two 180° panoramic cameras cover wide open areas like a front lawn or backyard, while the two turret cameras give focused detail on side paths and gates.
Is a hard drive included?
The 4TB variant ships with a 4 TB surveillance HDD pre-installed. Choose Barebone — No HDD if you'd rather fit your own larger drive (up to 16 TB).
Does it record in colour at night?
Yes. Smart Hybrid Light delivers full-colour night footage and switches on bright white light only when motion is detected.
Will it alert me to people and not animals?
AcuSense uses on-camera AI to classify humans and vehicles, filtering out most animals, foliage and weather to cut false alarms.
Can the cameras scare off intruders?
The two panoramic cameras have an active red/blue strobe and siren plus two-way audio, so you can trigger a deterrent automatically or speak through the camera from your phone.
How many cameras can the NVR take?
It's an 8-channel recorder with 8 PoE ports — this kit uses 4, leaving room for up to 4 more HiLook cameras.
Do I need a separate power supply?
No. Each camera runs on a single network cable via the NVR's built-in PoE — power and video in one run.
Can I view it on my phone?
Yes — the free HiLookVision / Hik-Connect app gives live view, playback and push alerts on iOS and Android from anywhere.
Is it weatherproof for Australian conditions?
All four cameras are IP67-rated and operate from −30 °C to +60 °C, suited to sun, rain and dust.
