6 × 6MP All-in-One · Smart Dual-Light · Active Deterrence · 8ch Pro AI NVR
6 × 6MP Deterrence Kit

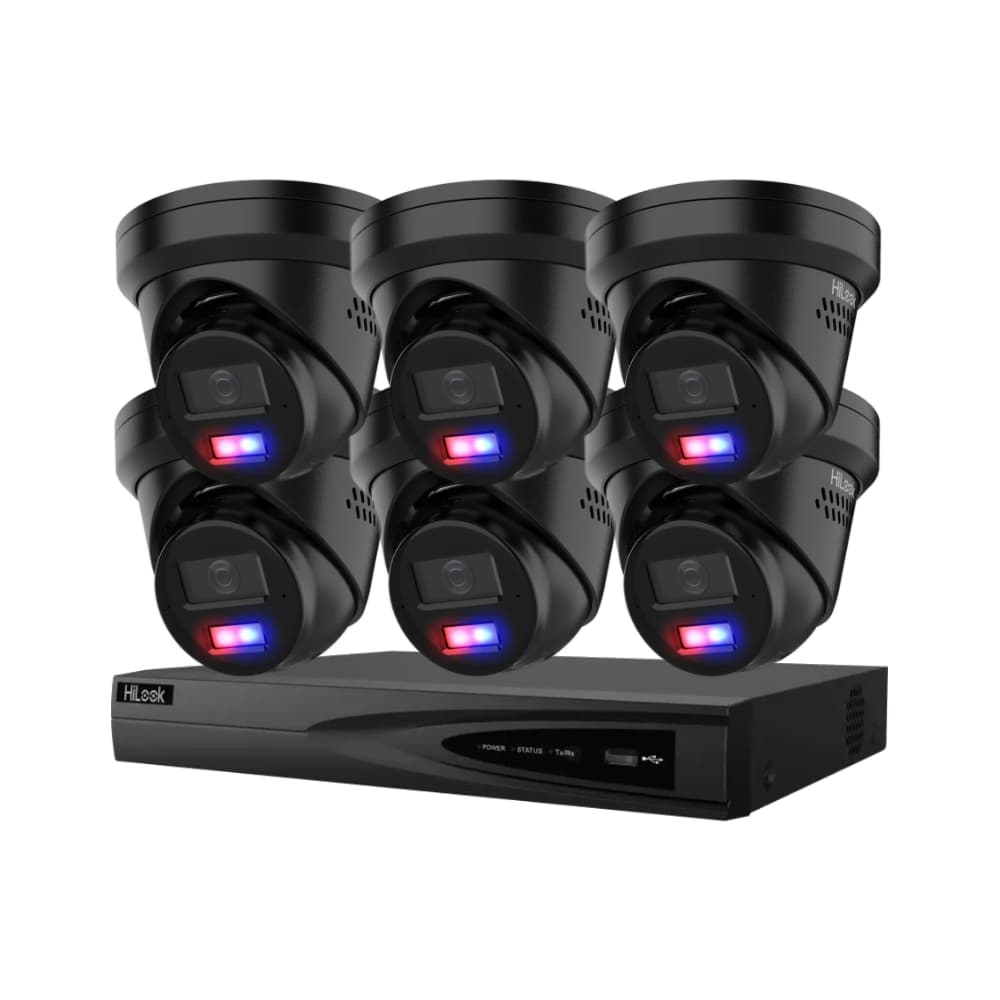

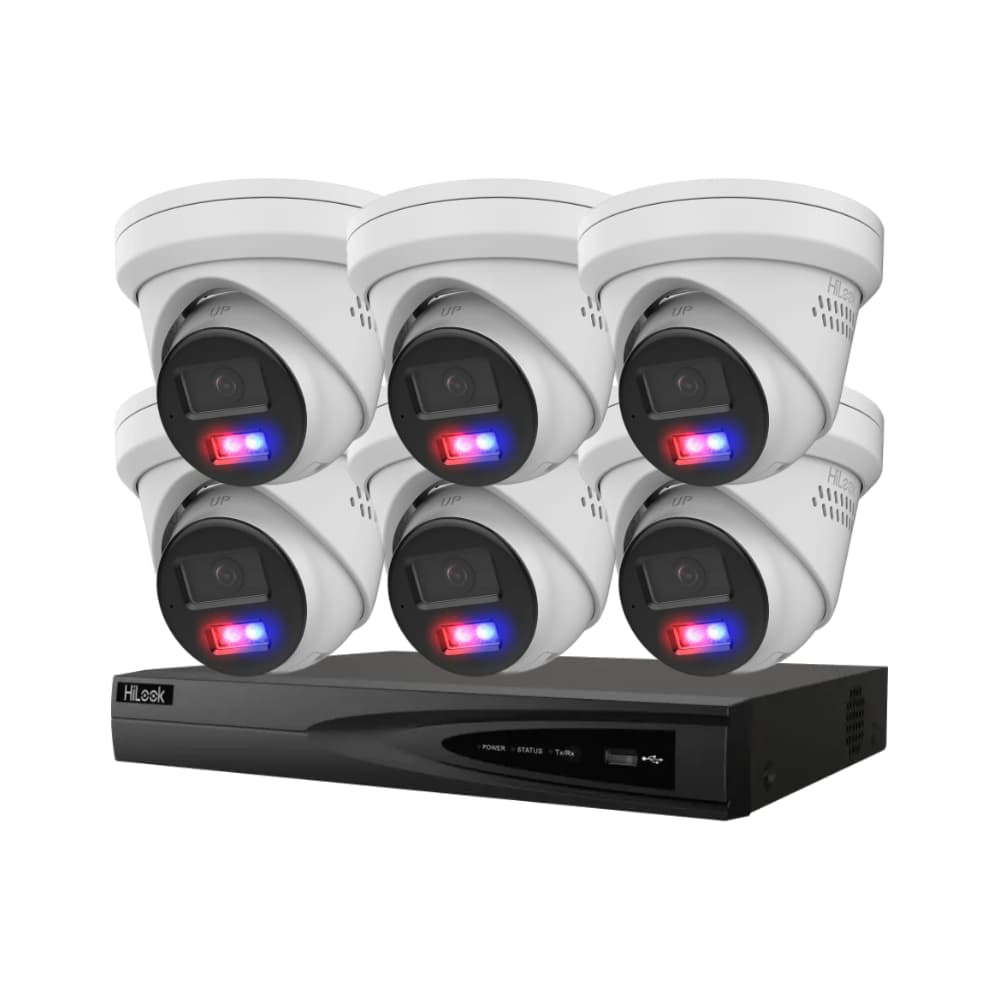

HiLook 6× 6MP All-in-One Deterrence CCTV Kit — Australian Stock & 3-Year Warranty
This HiLook kit pairs six IPC-T269H-MU/SL 6 MP all-in-one turret cameras with an 8-channel NVR-108MH-K/8P Pro AI recorder for complete, plug-and-play protection. Each camera does far more than record: Smart Dual-Light, an active red & blue strobe, an audible alarm and two-way audio let you warn intruders off live. The K-Series NVR adds on-board Motion Detection 2.0 human/vehicle filtering and facial recognition across all channels, with eight built-in PoE ports so the whole system runs on a single cable per camera. Backed by genuine Australian stock and a 3-year warranty.
Night Vision
Smart Dual-Light 30 m
Deterrence
Strobe + Two-Way Audio
Smart AI
Person & Vehicle
PoE Ports
8 × Built-in PoE
Warranty
3-Year Australian
6 MP All-in-One Cameras
Six 6 MP (3200 × 1800) turrets deliver crisp, high-resolution detail with 120 dB true WDR — far more pixels on target than 1080p, keeping faces and plates legible when you zoom in.
Smart Dual-Light & Deterrence
Each camera runs discreet infrared to 30 m, then switches to white light and flashes a red & blue strobe with an audible alarm the instant a person or vehicle appears — scaring intruders off before they act.
Two-Way Audio on Every Camera
A built-in microphone and 95 dB speaker on each turret let you listen and speak live through the Hik-Connect app to challenge anyone on your property in real time.
Pro AI 8-Channel NVR
The K-Series recorder adds on-board Motion Detection 2.0 human/vehicle filtering and facial recognition across all channels, with eight PoE ports and 4K HDMI output — no separate switch required.
What's Included
Kit Contents
| 6 × Camera |
HiLook IPC-T269H-MU/SL — 6 MP all-in-one turret, Smart Dual-Light, red & blue strobe, two-way audio |
| 1 × Recorder |
HiLook NVR-108MH-K/8P — 8-channel K-Series Pro AI 4K NVR with 8 built-in PoE ports |
| Cabling & Mounts |
Mounting accessories for eaves installation included; brick-wall fixings sold separately |
| Hard Drive |
Surveillance HDD up to 10 TB (1 × SATA bay). Where an HDD variant is selected it is supplied but not pre-installed, ready to fit |
Best For
Homes & Townhouses
Full-colour deterrence around doors, driveways and yards.
Shops & Cafés
Two-way audio to warn off loiterers and after-hours intruders.
Small Business
Six-camera cover for entrances, storerooms and car parks.
Trades & Yards
Active strobe and siren to discourage tool and stock theft.
Rural Blocks
Human/vehicle AI cuts false alerts from livestock and wildlife.
Investment Property
Remote viewing and alerts via Hik-Connect from anywhere.
Camera Specifications
HiLook IPC-T269H-MU/SL (×6)
| Image Sensor |
1/2.4" Progressive Scan CMOS |
| Max. Resolution |
6 MP — 3200 × 1800 @ 25/30 fps |
| Lens |
Fixed 2.8 mm, F1.6, M12 mount |
| Field of View (2.8 mm) |
Horizontal 105.1° |
| WDR |
120 dB |
| Supplement Light |
Smart Dual-Light (IR + White Light) up to 30 m |
| Active Deterrence |
Red & blue strobe + audible alarm/siren |
| Two-Way Audio |
Built-in microphone + speaker (max 95 dB SPL) |
| Smart Detection |
Person & Vehicle detection (deep learning), line crossing, tampering |
| Compression |
H.265+/H.265/H.264+/H.264 |
| Power |
PoE IEEE 802.3af (Class 3) or 12 VDC |
| Weather Rating |
IP67 dust & water resistant, −30 °C to 60 °C |
Recorder Specifications
HiLook NVR-108MH-K/8P (×1)
| IP Video Input |
8-ch, up to 8 MP (4K) resolution |
| Incoming / Outgoing Bandwidth |
80 Mbps / 80 Mbps |
| AI / Smart Analytics |
Motion Detection 2.0 (human/vehicle, 8-ch), facial detection & comparison |
| Compression |
H.265+/H.265/H.264+/H.264 |
| PoE Ports |
8 × RJ-45 10/100 Mbps, IEEE 802.3af/at, total budget ≤ 75 W |
| HDMI / VGA Output |
HDMI up to 4K @ 30 Hz; VGA up to 1080p — independent output |
| Storage |
1 × SATA, up to 10 TB |
| Remote Access |
Hik-Connect, iVMS-4200, HiLookVision |
How Much Footage Can It Hold?
Estimated Continuous Recording (6 × 6MP, H.265+)
| 2 TB |
≈ 10 days |
| 4 TB |
≈ 21 days |
| 6 TB |
≈ 31 days |
| 8 TB |
≈ 42 days |
| 10 TB |
≈ 53 days |
Estimates assume all six cameras recording 24/7 at ~3 Mbps each with H.265+ compression. Real-world retention varies with scene activity, motion, frame rate and resolution settings — motion-only or schedule-based recording typically lasts far longer.
Installation Notes
- Mount cameras above 2.7 m angled slightly down; keep subjects within 8–12 m for best face and plate capture from the Smart Dual-Light.
- Each camera runs on a single Cat cable to one of the NVR's 8 PoE ports — no separate switch or power supplies needed (≤75 W total budget).
- Fit a surveillance-grade SATA HDD (up to 10 TB) before first use; where supplied it is not pre-installed, ready to fit.
Downloads & Resources
Frequently Asked Questions
What's in this kit?
Six HiLook IPC-T269H-MU/SL 6 MP all-in-one turret cameras and one 8-channel NVR-108MH-K/8P Pro AI recorder with 8 built-in PoE ports.
What makes the cameras "all-in-one"?
Each combines 6 MP imaging, Smart Dual-Light, an active red & blue strobe, an audible alarm and two-way audio in a single turret — surveillance and live deterrence in one unit.
How does the active deterrence work?
On an AI person or vehicle event the camera flashes a red & blue strobe and sounds an alarm, and you can speak through it live via Hik-Connect.
Does the NVR add AI even with non-AI cameras?
Yes — the K-Series runs on-board Motion Detection 2.0 human/vehicle filtering and facial recognition, so you get smart alerts across all channels.
Do I need a separate PoE switch?
No. The NVR has 8 built-in PoE ports, so each camera runs on a single cable for both power and data (≤75 W total).
What hard drive does it take?
One SATA surveillance HDD up to 10 TB. Where an HDD variant is selected it is supplied but not pre-installed, ready to fit.
How long will recordings last?
Roughly 21 days on 4 TB or 42 days on 8 TB with all six cameras recording 24/7; motion-only recording lasts much longer.
Why choose 6 MP over 1080p?
6 MP gives around three times the pixels on target, so faces and number plates stay sharp when you zoom into recorded footage.
Will it cope with Australian weather?
Yes — the cameras are IP67 rated with a −30 °C to 60 °C operating range for full sun, dust and heavy rain.
How do I view it remotely?
Through the free Hik-Connect mobile app or the iVMS-4200 desktop client for live view, playback and notifications anywhere.
