HIKVISION AX PRO SERIES

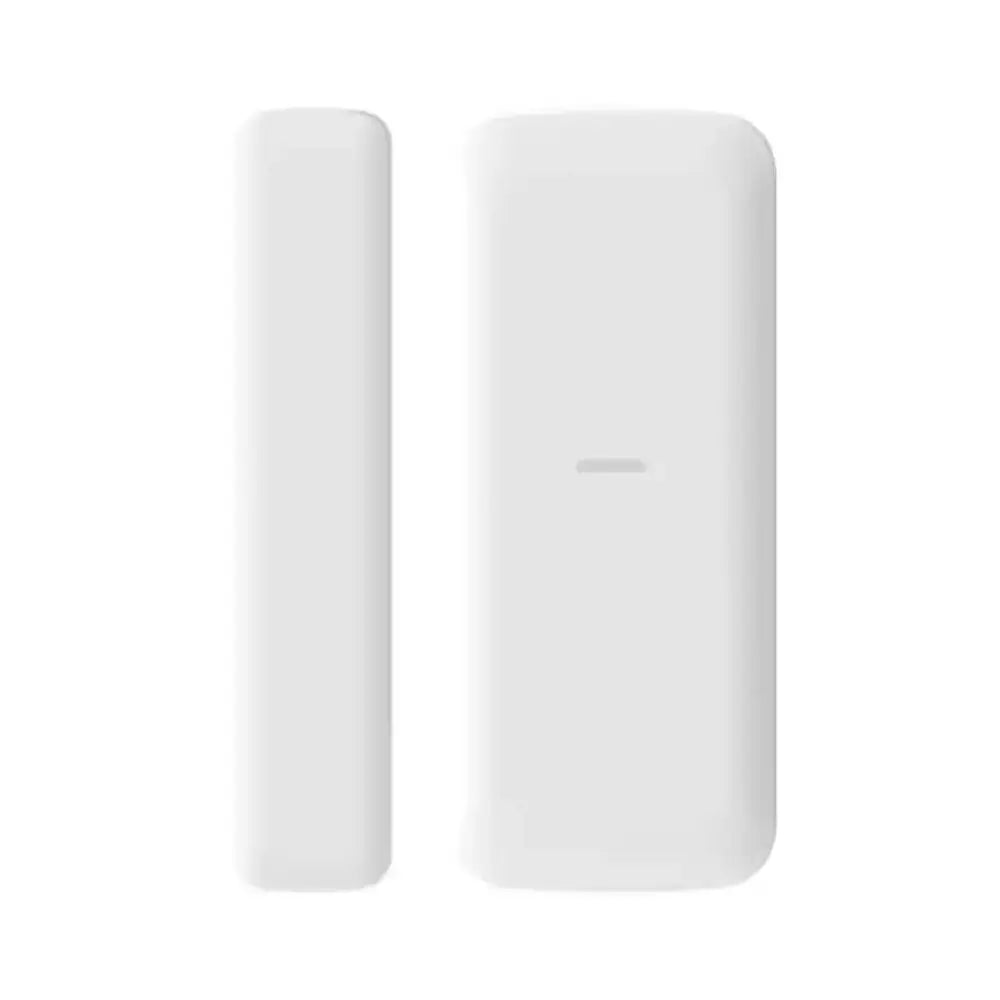

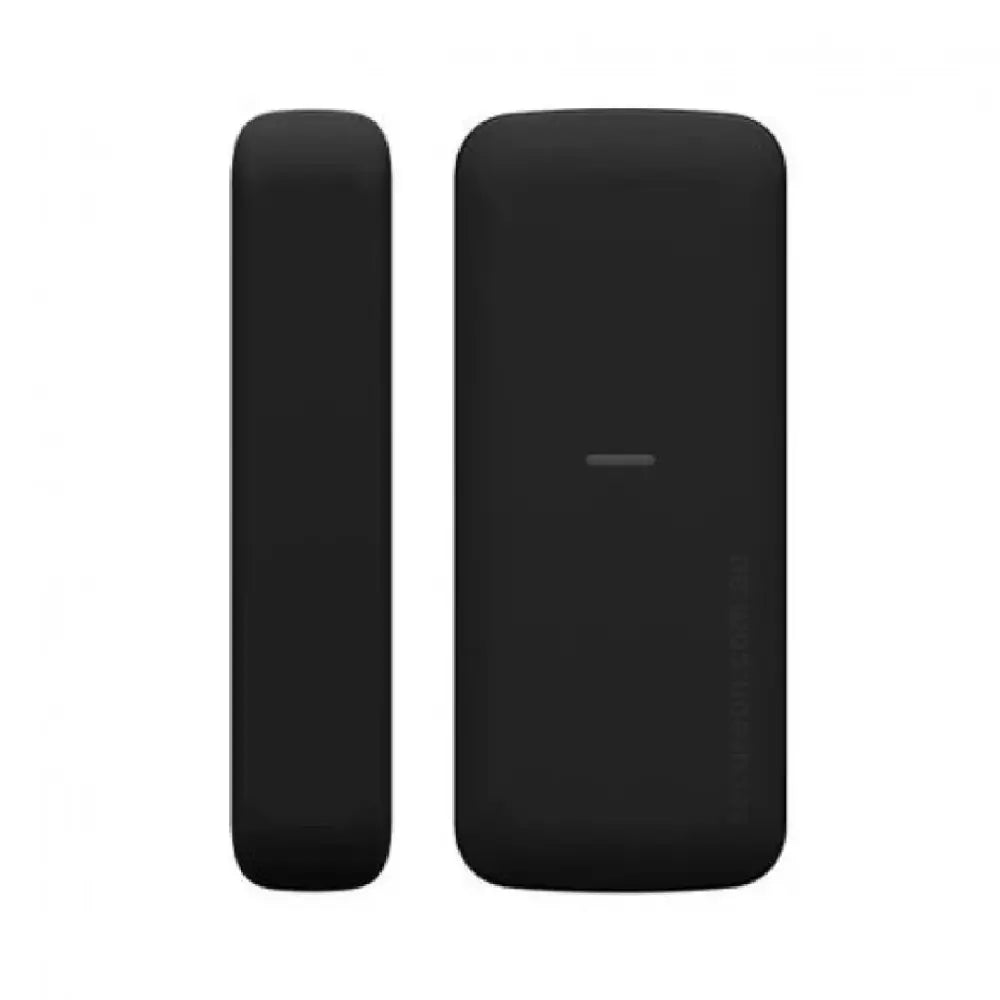

AX PRO Ultra-Slim Wireless Magnetic Contact Detector
The DS-PDMCS-EG2-WB is an ultra-slim wireless opening detector specifically engineered for unobtrusive, vanishing installation on narrow door and window frames. Designed for high-density residential and commercial perimeter security, it discreetly alerts alarm control units at the first sign of intrusion caused by a forced door or opened window. Featuring two-way Tri-X wireless communication, frequency hopping against RF jamming, and dual front-and-rear tamper protection, the DS-PDMCS-EG2-WB delivers exceptional reliability and immediate threat detection in modern indoor security ecosystems.
Detection Gap
52mm Max Opening
Wireless Protocol
Tri-X 2-Way 433MHz
RF Range & Security
1.0km / AES-128
Power & Battery
CR2450 / 3-Year Life
Advanced Security Integration & Instant Remote Configuration
Seamlessly integrated into the Hikvision AX PRO wireless ecosystem, the Hikvision DS-PDMCS-EG2-WB simplifies setup with multiple automated pairing methods, including power-up enrollment, remote ID, and instant QR code scanning through the Hik-Connect application. System administrators and end-users benefit from real-time operational feedback, including signal strength indicators (SSI) and environmental temperature telemetry. Utilizing advanced AES-128 RF encryption and dynamic frequency hopping, this slim sensor protects against signal jamming and unauthorized interception, ensuring secure, continuous transmission across distances up to 1,000 meters in open spaces.
Discreet Vanishing Profile
Designed specifically for narrow window frames and slim architectural structures where standard surface-mount magnetic contacts would be too bulky, offering complete perimeter protection without compromising interior aesthetics.
Dual Tamper Protection & Diagnostics
Equipped with dual front and rear tamper switches that trigger instant system alarms upon unauthorized opening or removal from mounting surfaces, complemented by live app diagnostics for battery voltage and ambient temperature.
Technical Specification Matrix
| Device Model |
DS-PDMCS-EG2-WB |
| Detection Method |
Opening Contact |
| Maximum Detection Gap |
52 mm Max |
| Wireless Technology |
Tri-X Two-Way RF Wireless (433 MHz) |
| Transmission Range & Security |
1,000 m (Free Space) / AES-128 Encryption |
| Tamper Protection |
Front and Rear Enclosure Switch |
| Battery Spec & Lifespan |
1x CR2450 3V (Up to 3 Years Standby / Operation) |
| Dimensions (Sensor / Magnet) |
29mm × 69mm × 10mm / 14mm × 69mm × 10mm |
| Operating Conditions |
-10 °C to 55 °C (14 °F to 131 °F) / Humidity 10% to 90% |
How does the slim design benefit window installations?
The ultra-thin depth of only 10mm allows the DS-PDMCS-EG2-WB to fit neatly within tight window frame recesses and narrow door channels where conventional magnetic contacts cannot sit flush.
Can this contact sensor be mounted on metal doors or frames?
The DS-PDMCS-EG2-WB is optimized for wooden and non-metallic structures. Direct installation on metal surfaces can affect magnetic gaps and RF signal performance.
How are alerts sent when a door or window is opened?
The contact transmits an instant AES-128 encrypted signal over Tri-X wireless to the AX PRO central hub, triggering the main alarm and sending push notifications directly to the user's smartphone app.
How long does the battery last and how is it replaced?
Powered by a single standard CR2450 3V lithium battery, it offers up to 3 years of standby life. Replacing the battery is straightforward via the tool-less snap chassis.
