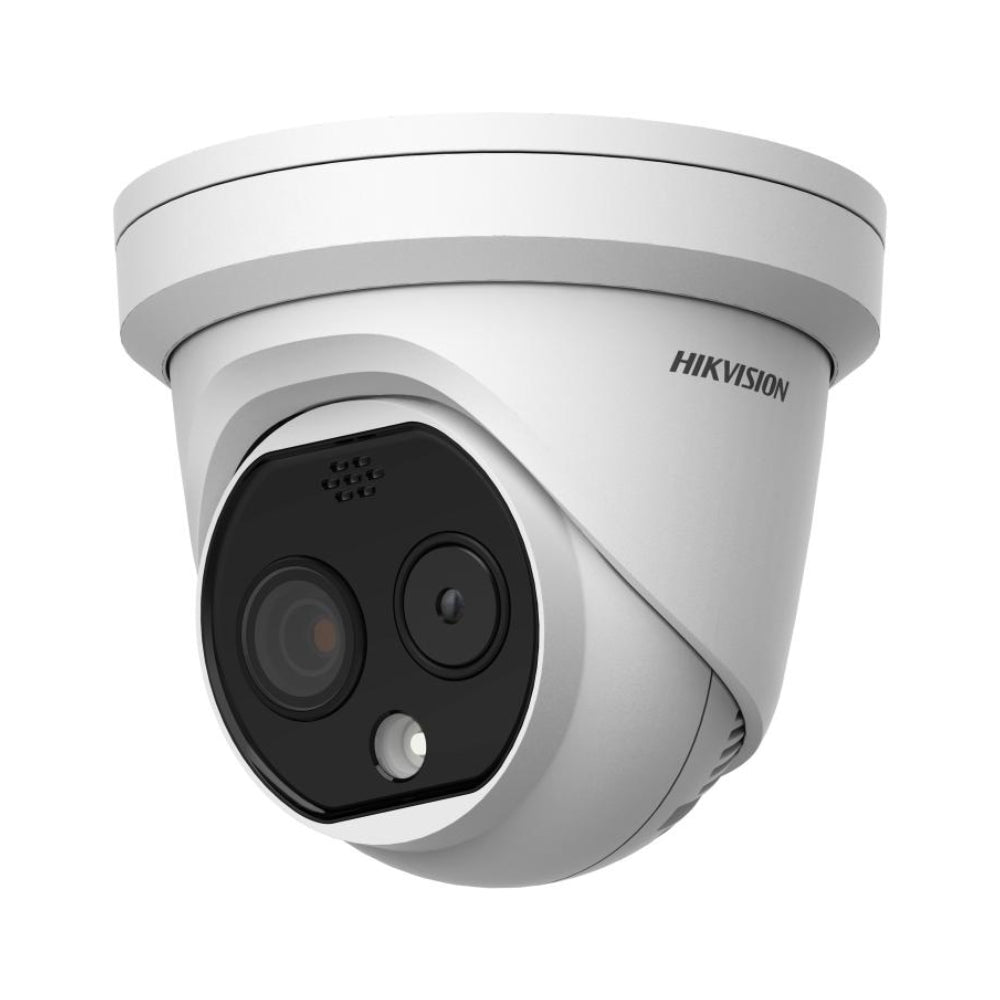

Hikvision DS-2TD1228-3/QA HeatPro Thermal & Optical Bi-spectrum Turret Camera (3.6mm Lens)

Description

Hikvision HeatPro Series · Thermal Security Hikvision Thermal Turret

Bi-Spectrum Thermal Imaging, Early Fire Detection & Active Deterrence

The Hikvision DS-2TD1228-3/QA is a high-performance HeatPro series thermal and optical bi-spectrum turret network camera designed for early fire detection, temperature exception monitoring, and round-the-clock perimeter protection. Equipped with a 256 × 192 thermal sensor and a 4 MP optical image sensor, this compact camera bridges thermal target detection with visible light verification. Built-in deep learning algorithms enable precise human and vehicle classification, drastically reducing false alarms caused by wildlife or environmental factors, while onboard white light strobes and audio alerts deliver proactive on-site deterrence.

Sensor Resolution
256x192 Thermal / 4MP Optical
Thermal Lens / FOV
3.6mm (50.0° × 37.3°)
Analytics & Alarms
Fire Detect & Active Strobe/Siren
Protection Rating
IP66 Weatherproof / TVS 6000V

Precision Temperature Measurement & Perimeter Target Analytics

The Hikvision DS-2TD1228-3/QA excels in temperature monitoring across critical infrastructures, server rooms, recycling centers, and commercial facilities. Capable of measuring temperatures ranging from -20°C to 150°C with high accuracy, it instantly flags thermal anomalies before real fire hazards break out. Featuring bi-spectrum image fusion, operators can overlay thermal channels with 4 MP optical video to quickly identify exact hot spots and intruders in total darkness, fog, or smoke.

Active Strobe Light & Audio Deterrence

Triggers a white flashing light and audible alarm warnings automatically upon detecting line crossings, perimeter intrusion, or fire hazards to warn off intruders immediately.

Advanced Fire & Temperature Alarm

Monitors pre-set temperature thresholds and detects early combustion or smoldering materials to notify operators long before traditional optical smoke alarms trigger.

Technical Specification Matrix
Camera Model DS-2TD1228-3/QA
Thermal Sensor Resolution 256 × 192 (Uncooled Focal Plane Arrays)
Optical Sensor Resolution 1/2.7" Progressive Scan CMOS, 2688 × 1520 (4 MP)
Thermal Lens & FOV 3.6 mm focal length (Horizontal: 50.0°, Vertical: 37.3°)
Temperature Measurement Range -20 °C to 150 °C (-4 °F to 302 °F), ±8 °C accuracy
Smart Functions Line Crossing, Intrusion Detection, Fire Detection, Temperature Alarm
Optical IR Range Up to 15 m IR distance
Audio & Alarm I/O Built-in speaker, integrated strobe light, alarm in/out, audio in/out
Storage & Power MicroSD slot (up to 256 GB), 12 VDC & PoE (802.3af)
Protection Ratings IP66 Weatherproof, TVS 6000V Lightning Surge Protection
What is the benefit of a bi-spectrum camera?

Bi-spectrum cameras combine a thermal sensor for long-range heat/motion detection with an optical camera for clear visual verification in a single compact housing.

How does early fire detection work on the DS-2TD1228-3/QA?

The thermal sensor detects sudden rises in heat and spots flames or smoldering hot spots, triggering immediate alarms before smoke builds up enough to activate conventional optical smoke sensors.

Can this camera distinguish humans and vehicles from animals?

Yes, built-in HeatPro deep learning video analytics filter out false alarms caused by small animals, foliage, shadows, or weather elements to focus exclusively on human and vehicle targets.

Does the camera support active deterrence?

Yes, upon rule violations, the camera activates a white flashing light and customised audio messages or siren sounds to deter intruders on site.

Technical Datasheet Quick Start Guide
User Manual
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery

Hikvision DS-2TD1228-3/QA HeatPro Thermal & Optical Bi-spectrum Turret Camera (3.6mm Lens)

Product form

SKU: DS-2TD1228-3/QA

$1,120.00  $1,019.00 Incl. GST
