Hikvision AcuSense · 8 × 8MP 4K · 8CH 8K NVR
8 × 8MP AcuSense Kit

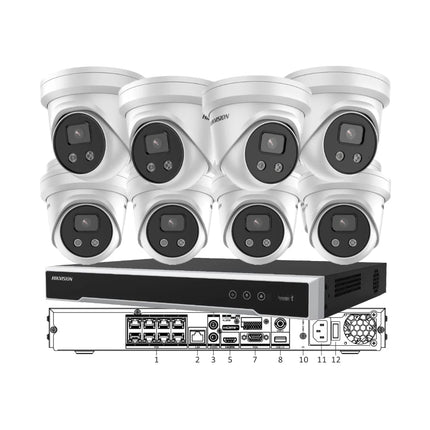

Hikvision 8 × 8MP 4K AcuSense CCTV Kit with 8-Channel 8K NVR
The Hikvision 8-Camera 8MP AcuSense Kit is a ready-to-install bundle for Australian homes and businesses — houses, shops, warehouses, offices and small commercial sites. It pairs eight DS-2CD2386G2-IU 8MP 4K AcuSense turret cameras with a DS-7608NI-M2/8P 8-channel 8K NVR. AcuSense deep-learning AI classifies people and vehicles to cut false alarms, and all 8 PoE ports power each camera over a single Cat6 run.
Recorder
8CH 8K NVR · 8 PoE
Smart AI
AcuSense Human/Vehicle
Night Vision
Smart IR up to 30 m
True 4K (8MP) Detail
A 1/1.8" sensor captures 3840 × 2160 detail with the headroom to digitally zoom into recorded footage and still identify a face or number plate.
AcuSense AI — Fewer False Alarms
Deep-learning classification separates people and vehicles from animals, foliage and shadows, so only real events trigger alerts and recording.
8-Port PoE — Plug & Play
One Cat6 cable per camera carries power and video to the NVR's 8 built-in PoE ports — no separate power supplies, no extra switch.
Add Your Own Storage
Two free SATA bays accept surveillance HDDs up to 32 TB total, so you choose the retention period that suits your site across eight 4K channels.
| 8 × Cameras |

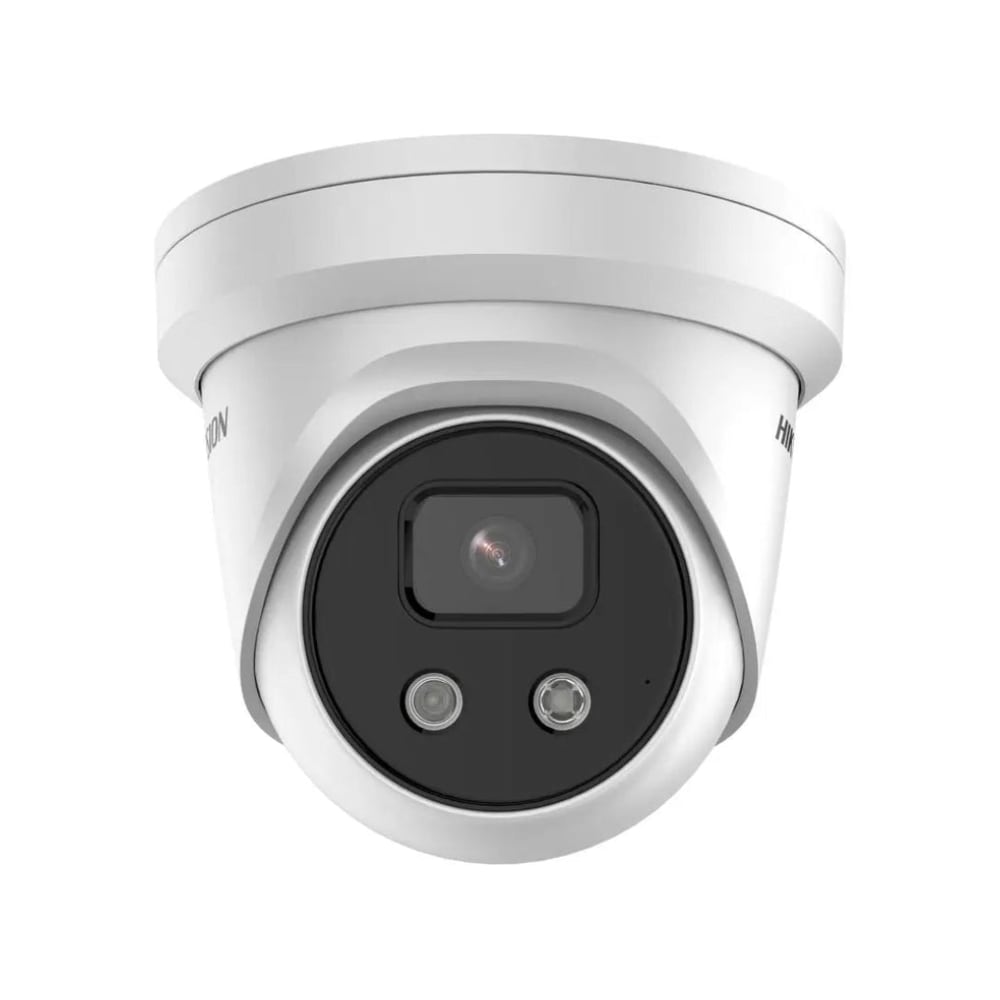

DS-2CD2386G2-IU — 8MP 4K AcuSense turret, 2.8 mm (~109° FOV), Smart IR 30 m, 120 dB WDR, built-in mic, IP67. Each ships with mounting bracket, drill template, screws & quick start guide. |
| 1 × Recorder |
DS-7608NI-M2/8P — 8-channel 8K M-Series NVR with 8 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 8K HDMI output and Hik-Connect remote access. |
| Storage |
No hard drive is included — choose your own capacity. The NVR has two SATA bays for up to 32 TB total; add a surveillance-grade HDD sized to your retention needs. |
| Power |
8 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately. |
| Mounting |
Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Hikvision wall-mount bracket per camera; a junction box is also available for tidy cable management. |
| Warranty |
3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock. |
Best For
Family homes
Front and back entries, driveways, garages and yards with 4K plate and face detail.
Retail & hospitality
Shopfloor, POS, stockroom, kitchen and back-of-house with built-in audio.
Small warehouses
Loading docks, racking aisles, perimeters and offices with 4K detail.
Commercial offices
Reception, lift lobbies, server rooms, car parks and shared common areas.
Rural & acreage
Sheds, gates, yards and driveways across the property on one recorder.
Outdoor perimeters
Wide coverage with IP67 weatherproof cameras for tough Australian conditions.
| Camera Type |
8MP 4K AcuSense Fixed Turret |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Max. Resolution |
8MP · 3840 × 2160 |
| Min. Illumination |
Colour 0.003 lux @ F1.6 · 0 lux with IR |
| Lens |
Fixed 2.8 mm · ~109° horizontal FOV |
| Night Vision |
Smart IR up to 30 m |
| WDR |
120 dB True WDR |
| AI Functions |
AcuSense · human & vehicle classification · perimeter protection |
| Audio |
Built-in microphone |
| On-Board Storage |
microSD / SDHC / SDXC up to 512 GB |
| Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Power |
12 VDC / PoE (IEEE 802.3af) · max 8 W |
| Ingress Protection |
IP67 |
| Warranty (Australia) |
3 years · CCTV Guru Australia |
| Channels |
8 IP channels · up to 32 MP input |
| Incoming Bandwidth |
80 Mbps |
| PoE |
8 × PoE ports (IEEE 802.3 af/at) |
| Storage |
2 × SATA (up to 16 TB per bay, 32 TB total) · HDD not included |
| Video Output |
1 × HDMI (up to 8K) + 1 × VGA · simultaneous |
| AI Functions |
AcuSense human/vehicle · perimeter · facial (with compatible cameras) |
| Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Remote / App |
Hik-Connect (iOS & Android) · P2P · ONVIF |
Installation Notes
-
›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
-
›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.
-
›Storage sizing: eight 4K channels use significant bandwidth — fit a surveillance HDD sized to your needs, up to 32 TB total across both bays for 30+ days of retention.
Setup & Demo Videos — Hikvision
AcuSense — human & vehicle detection
AcuSense NVR — smart false-alarm filtering
Official NVR & Camera Setup Videos
Use these official Hikvision tutorials to complete the recorder startup wizard and connect the supplied PoE cameras. Menu names may vary slightly with firmware version.
NVR 5.0 Startup Wizard — Official Hikvision Tutorial
Add a PoE Camera to NVR 5.0 — Official Hikvision Tutorial
Downloads & Resources
Is a hard drive included?
No — this kit ships without an HDD so you can match storage to your needs. The NVR has two SATA bays for up to 32 TB total; we can fit a surveillance-grade drive before dispatch on request.
How does AcuSense reduce false alarms?
Deep-learning AI classifies motion as human, vehicle or other, so leaves, animals and shadows don't trigger alerts — only real events reach your phone.
How much storage do 8 × 4K cameras need?Estimate the hard drive capacity and recording time for this 8-camera kit using your preferred recording settings. Use our storage calculator for an estimate based on your settings.
How are the cameras powered?
Each camera runs on a single Cat6 cable to one of the NVR's 8 built-in PoE ports — no separate power supplies. Cat6 cabling is run on site and not included.
Can I mix in other Hikvision cameras?
Yes — the 8-channel NVR works with AcuSense, ColorVu and other Hikvision IP cameras. Talk to us to build a custom variant.
CCTV Storage Calculator
Estimate the hard drive capacity and recording time for this 8-camera kit using your preferred recording settings.
Open Storage Calculator
Recording time varies with bitrate, frame rate, scene activity and recording mode.
