Hikvision G2 Live-Guard · 4 × 6MP or 8MP ColorVu · 8CH PoE NVR · Active Deterrence
4 × G2 Live-Guard Kit

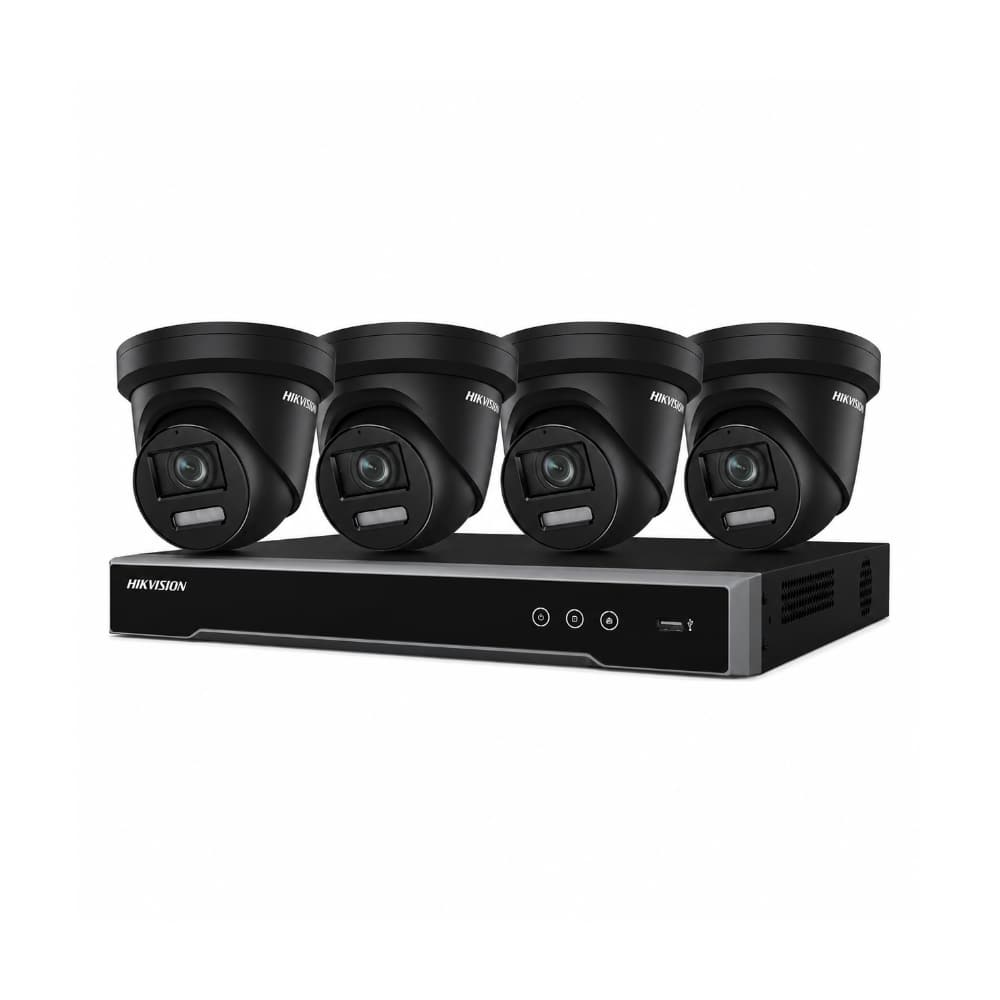

Hikvision 4-Camera G2 Live-Guard Active Deterrence CCTV Kit with 8-Channel PoE NVR — 6MP or 8MP
The Hikvision 4-Camera G2 Live-Guard Kit is a ready-to-install active-deterrence bundle for Australian homes, driveways, retail shops, offices and small commercial sites. Choose 6MP (DS-2CD2366G2H-IS2U/SL) or 8MP 4K (DS-2CD2386G2H-IS2U/SL) AcuSense Live-Guard turrets, paired with the DS-7608NI-M2/8P 8-channel PoE NVR. On AcuSense human/vehicle detection every camera fires a white-light strobe, sounds a built-in siren and lets you talk down live via two-way audio — stopping intruders instead of just recording them. Smart Hybrid Light delivers full-colour night imaging, and all four PoE ports power each camera over a single Cat6 run.
Active Deterrence
Strobe + Siren
Colour Night
Smart Hybrid Light
Audio
2-Way · Mic + Speaker
AI Detection
AcuSense Human/Vehicle
Live-Guard Active Deterrence
On AcuSense human/vehicle detection each camera flashes a white-light strobe, sounds a built-in siren and lets you talk down live via Hik-Connect — turning intruders away before they reach the door.
Smart Hybrid Light — Colour at Night
Switchable IR or white light (up to 30 m) delivers full-colour night imaging so you capture clothing and vehicle colour after dark, not grey IR. 8MP adds DarkFighter 2.0 for superior low-light performance.
8-Port PoE — Plug & Play
One Cat6 cable per camera carries power and video to the NVR's 8 built-in PoE ports — no separate power supplies, no extra switch, commissioning in minutes.
AcuSense AI — Fewer False Alarms
Deep-learning analytics classify people and vehicles and ignore trees, shadows, rain and insects, so the strobe, siren and your phone alerts trigger on real events only.
| 4 × Cameras |
4 × ColorVu Live-Guard turret (6MP or 8MP — choose your variant): DS-2CD2366G2H-IS2U/SL (6MP) or DS-2CD2386G2H-IS2U/SL (8MP 4K). AcuSense Smart Hybrid Light Live-Guard turret, 2.8 mm wide-angle, white strobe + audio siren + two-way audio, AcuSense human/vehicle detection, IP67. Each ships with mounting bracket, drill template, screws & quick start guide. |
| 1 × Recorder |
DS-7608NI-M2/8P — 8-channel M-Series NVR with 8 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 8K HDMI output and Hik-Connect remote access. |
| Storage |
No HDD is included with this kit as standard — add a surveillance-grade drive to suit your retention needs. The NVR has two SATA bays supporting up to 32 TB total; choose a surveillance HDD (up to 16 TB per bay) to match. |
| Power |
8 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately. |
| Mounting |
Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Hikvision wall-mount bracket per camera; a junction box is also available for tidy cable management. |
| Warranty |
3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock. Available in White & Black. |
Best For
Homes & driveways
Entry points, garages, gates and yards with active deterrence on every approach.
Retail & shopfronts
Entrances, counters and rear lanes — strobe & siren after hours, talk-down by day.
Warehouses & yards
Loading docks, perimeters and storage areas with full-colour night capture.
Offices & commercial
Staff entrances, parking and reception areas with remote viewing and smart alerts.
Front yards & side paths
Cover blind spots and access points with AI-targeted strobe and siren warnings.
Small business sites
Four channels of 4K-ready coverage with two free channels to expand later.
| Camera Type |
ColorVu AcuSense Smart Hybrid Light Live-Guard Fixed Turret |
| Max. Resolution |
8MP · 3840 × 2160 (DS-2CD2386G2H) · 6MP · 3200 × 1800 (DS-2CD2366G2H) |
| Image Sensor |
8MP: 1/1.8" Progressive Scan CMOS · 6MP: 1/2.4" Progressive Scan CMOS |
| Lens |
Fixed 2.8 mm · 8MP 105° FOV · 6MP 115° FOV (4 mm option available) |
| Supplement Light |
Smart Hybrid Light (IR + white light) · up to 30 m |
| Night Performance |
8MP: DarkFighter 2.0 ultra-low-light colour · full-colour with white light |
| WDR |
120 dB scene-adaptive |
| AI Functions |
AcuSense · human & vehicle classification · perimeter protection |
| Active Deterrence |
White-light strobe · built-in audio siren · two-way audio |
| Audio |
Built-in microphone + speaker · two-way talk-back |
| Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Power |
12 VDC / PoE (IEEE 802.3at) |
| Local Storage |
MicroSD slot · up to 512 GB |
| Ingress Protection |
IP67 weather resistance |
| Warranty (Australia) |
3 years · CCTV Guru Australia |
| Channels |
8 IP channels · up to 32 MP input |
| Incoming Bandwidth |
80 Mbps |
| PoE |
8 × PoE ports (IEEE 802.3 af/at) |
| Storage |
2 × SATA (up to 16 TB per bay, 32 TB total) · HDD not included |
| Video Output |
1 × HDMI (up to 8K) + 1 × VGA · simultaneous |
| AI Functions |
AcuSense human/vehicle · perimeter · facial (with compatible cameras) |
| Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Remote / App |
Hik-Connect (iOS & Android) · P2P · ONVIF |
Installation Notes
-
›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
-
›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.
-
›Deterrence zones: set AcuSense detection zones on the highest-risk approaches so the strobe and siren trigger on real human/vehicle events only.
Setup & Demo Videos — Hikvision
Smart Hybrid Light + ColorVu — colour night imaging
AcuSense — human & vehicle detection
Official NVR & Camera Setup Videos
Use these official Hikvision tutorials to complete the recorder startup wizard and connect the supplied PoE cameras. Menu names may vary slightly with firmware version.
NVR 5.0 Startup Wizard — Official Hikvision Tutorial
Add a PoE Camera to NVR 5.0 — Official Hikvision Tutorial
Downloads & Resources
What's the difference between the 6MP and 8MP option?
The 8MP (DS-2CD2386G2H) records true 4K at 3840 × 2160 with a 1/1.8" sensor and DarkFighter 2.0 low-light colour. The 6MP (DS-2CD2366G2H) records 3200 × 1800 — both share Live-Guard strobe, siren, two-way audio and AcuSense AI.
What is Live-Guard active deterrence?
On AcuSense human/vehicle detection each camera flashes a white-light strobe, sounds a built-in siren and lets you open live two-way audio via Hik-Connect — actively turning intruders away.
Do these see colour at night?
Yes — Smart Hybrid Light switches between IR and white light (up to 30 m) for full-colour night imaging. The 8MP model adds DarkFighter 2.0 for superior ultra-low-light colour.
Is a hard drive included?
No — this kit ships without an HDD so you can size storage to your needs. The NVR has two SATA bays (up to 32 TB total); add a surveillance-grade drive to suit your retention.
How are the cameras powered?
Each camera runs on a single Cat6 cable to one of the NVR's 8 built-in PoE ports — no separate power supplies. Cat6 cabling is run on site and not included.
