Dahua · CCTV Camera AccessoriesAluminium Camera Wall Mount Bracket

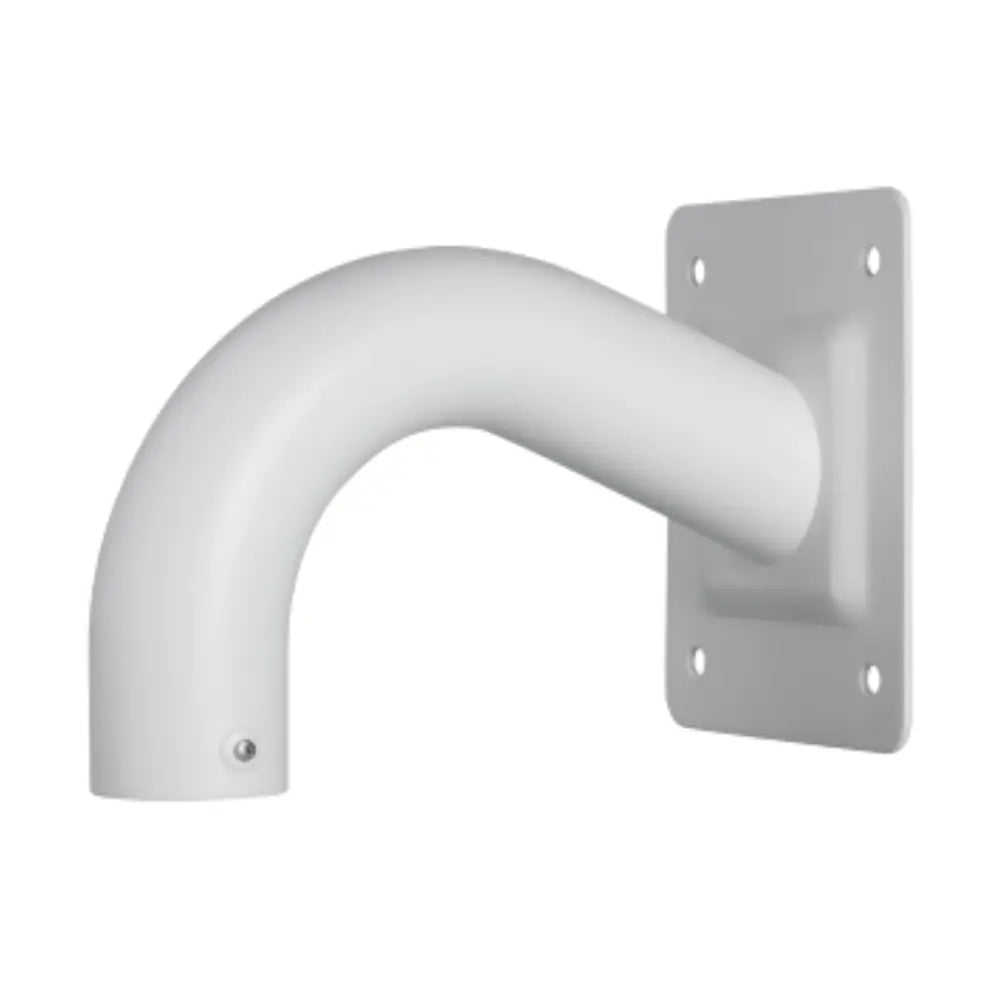

DH-PFB300S — Extend a compatible Dahua camera away from a wall using this aluminium wall bracket. The G1½ threaded interface suits specified mounting assemblies and supports a maximum rated load of 3 kg.
Key features
Dimensions
115 × 160 × 228 mm. Check the complete mounting arrangement against the official dimensions and installation requirements.
Applications & installation
Check the camera's required adapter and wall bracket combination. Protect any exposed connectors separately; the datasheet does not establish a waterproof enclosure rating for this bracket.
Technical Specifications
| Model |
DH-PFB300S |
| Material |
Aluminium |
| Colour |
White |
| Dimensions |
115 × 160 × 228 mm |
| Thread |
G1½ |
| Rated load |
3 kg |
| Net weight |
0.49 kg |
| Mounting |
Wall |
| Warranty |
36 months — subject to warranty terms |
Frequently asked questions
Will this fit every Dahua camera?
No. Match the exact camera, required adapters and mounting-hole pattern to the official datasheet. A similar product name or appearance is not a compatibility guarantee.
Is the camera included?
No. This listing is for the named mounting accessory. Cameras, additional brackets, power equipment and site-specific fixings are separate unless explicitly stated.
Downloads
Manufacturer documentation: the datasheet identifies the product or stated product family; general guides cover the applicable equipment type. Confirm model-specific instructions before installation.
