Dahua · CCTV Camera AccessoriesAnti-Corrosion Stainless Steel Pole Mount Bracket

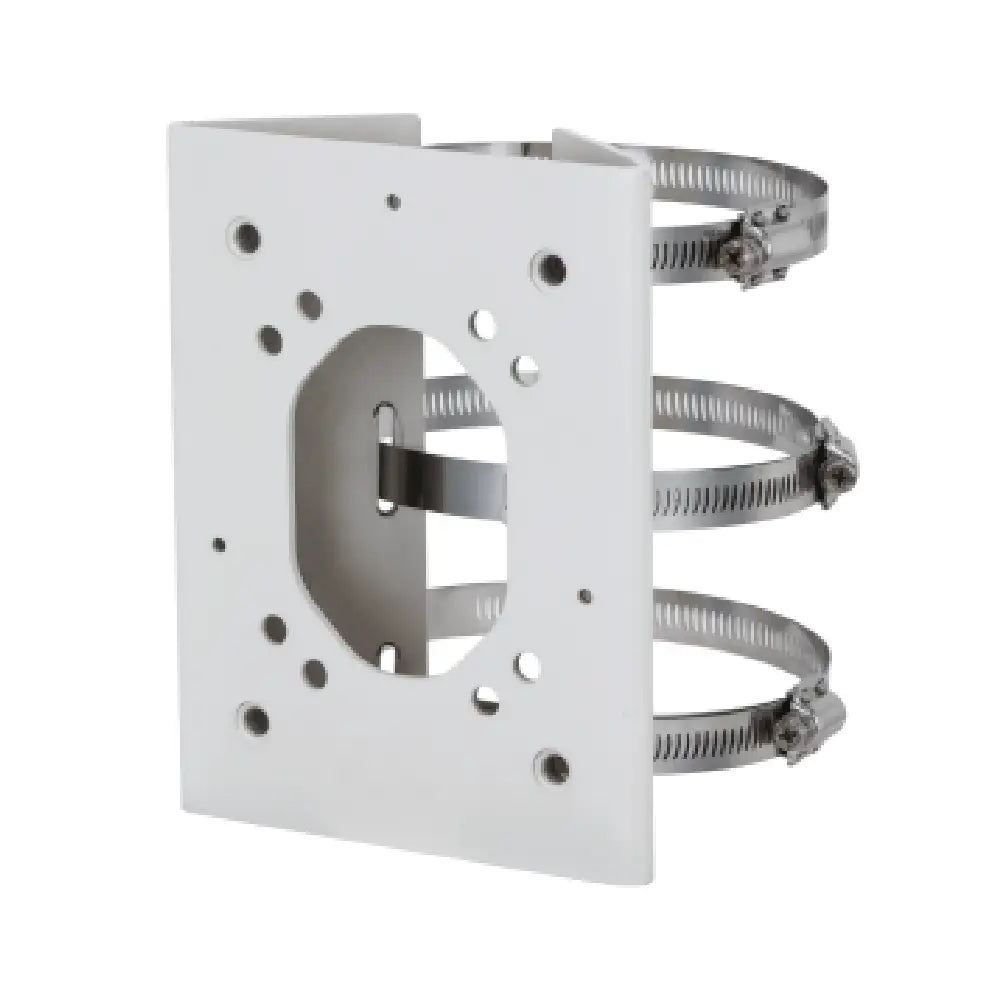

DH-PFA155A — Choose a corrosion-resistant mounting component for a compatible Dahua installation on an 80–150 mm pole. This stainless steel bracket carries a 7 kg rated load and has a white finish for a consistent outdoor camera installation.
Key features
Dimensions
170 × 130.4 × 45 mm. Check the complete mounting arrangement against the official dimensions and installation requirements.
Applications & installation
The datasheet lists NEMA 4X testing for 200 hours. This is a bracket specification, not a guarantee that the entire camera system is suitable for every marine or chemical environment. Confirm site exposure and camera compatibility.
Technical Specifications
| Model |
DH-PFA155A |
| Material |
Stainless steel |
| Colour |
White |
| Dimensions |
170 × 130.4 × 45 mm |
| Pole diameter |
80–150 mm |
| Rated load |
7 kg |
| Net weight |
0.85 kg |
| Anti-corrosion test |
NEMA 4X, 200 hours |
| Warranty |
36 months — subject to warranty terms |
Frequently asked questions
Will this fit every Dahua camera?
No. Match the exact camera, required adapters and mounting-hole pattern to the official datasheet. A similar product name or appearance is not a compatibility guarantee.
Is the camera included?
No. This listing is for the named mounting accessory. Cameras, additional brackets, power equipment and site-specific fixings are separate unless explicitly stated.
Downloads
Manufacturer documentation: the datasheet identifies the product or stated product family; general guides cover the applicable equipment type. Confirm model-specific instructions before installation.
