Dahua · CCTV Camera Accessories420 mm Camera Ceiling Mount Extension Pole

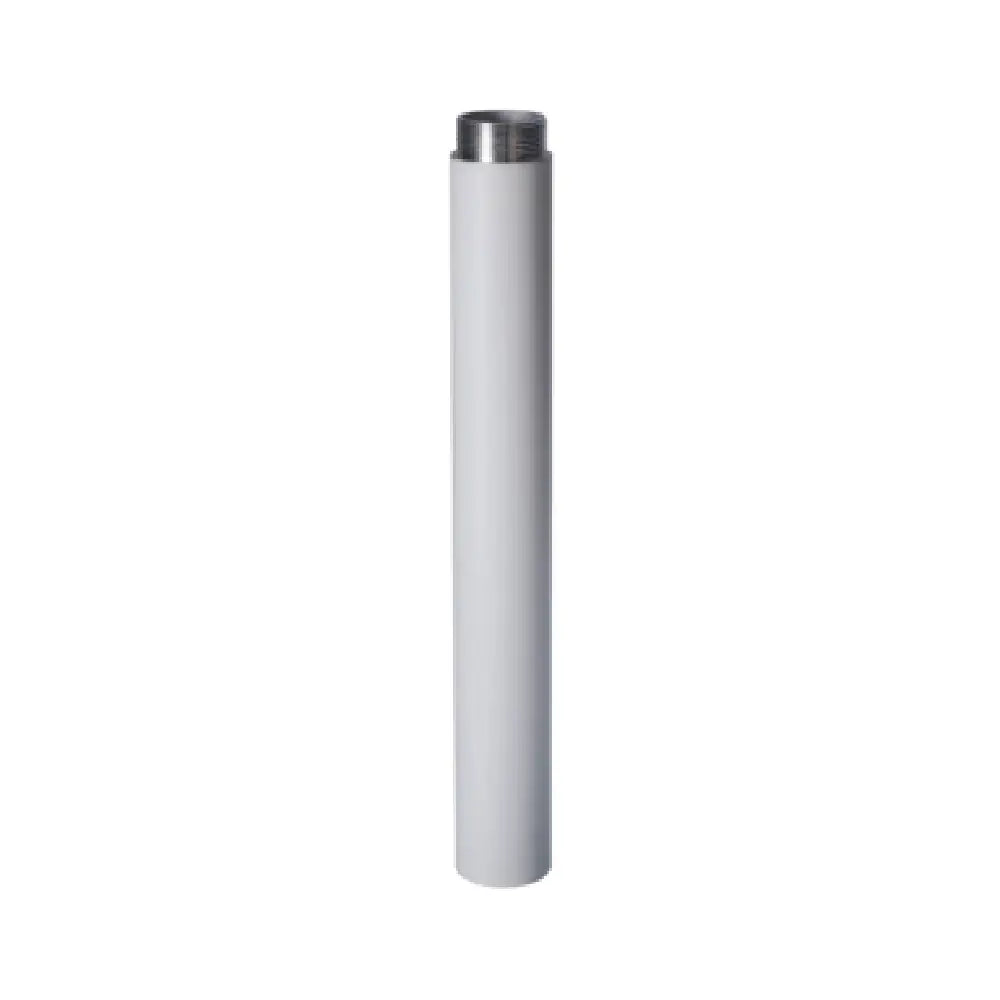

DH-PFA113 — Lower a compatible Dahua camera mounting assembly by 420 mm with this aluminium extension pole. It is useful where a high ceiling or an overhead obstruction prevents the camera from sitting at the required viewing height.
Key features
Dimensions
Ø53 × 420 mm. Check the complete mounting arrangement against the official dimensions and installation requirements.
Applications & installation
Connect only to the correct G1½ threaded mounting components. Include the camera, adapters and cabling in the load calculation, and check ceiling strength before installation.
Technical Specifications
| Model |
DH-PFA113 |
| Material |
Aluminium |
| Colour |
White |
| Dimensions |
Ø53 × 420 mm |
| Thread |
G1½ |
| Rated load |
7 kg |
| Net weight |
1 kg |
| Operating temperature |
−40°C to +60°C |
| Warranty |
36 months — subject to warranty terms |
Frequently asked questions
Will this fit every Dahua camera?
No. Match the exact camera, required adapters and mounting-hole pattern to the official datasheet. A similar product name or appearance is not a compatibility guarantee.
Is the camera included?
No. This listing is for the named mounting accessory. Cameras, additional brackets, power equipment and site-specific fixings are separate unless explicitly stated.
Downloads
Manufacturer documentation: the datasheet identifies the product or stated product family; general guides cover the applicable equipment type. Confirm model-specific instructions before installation.
