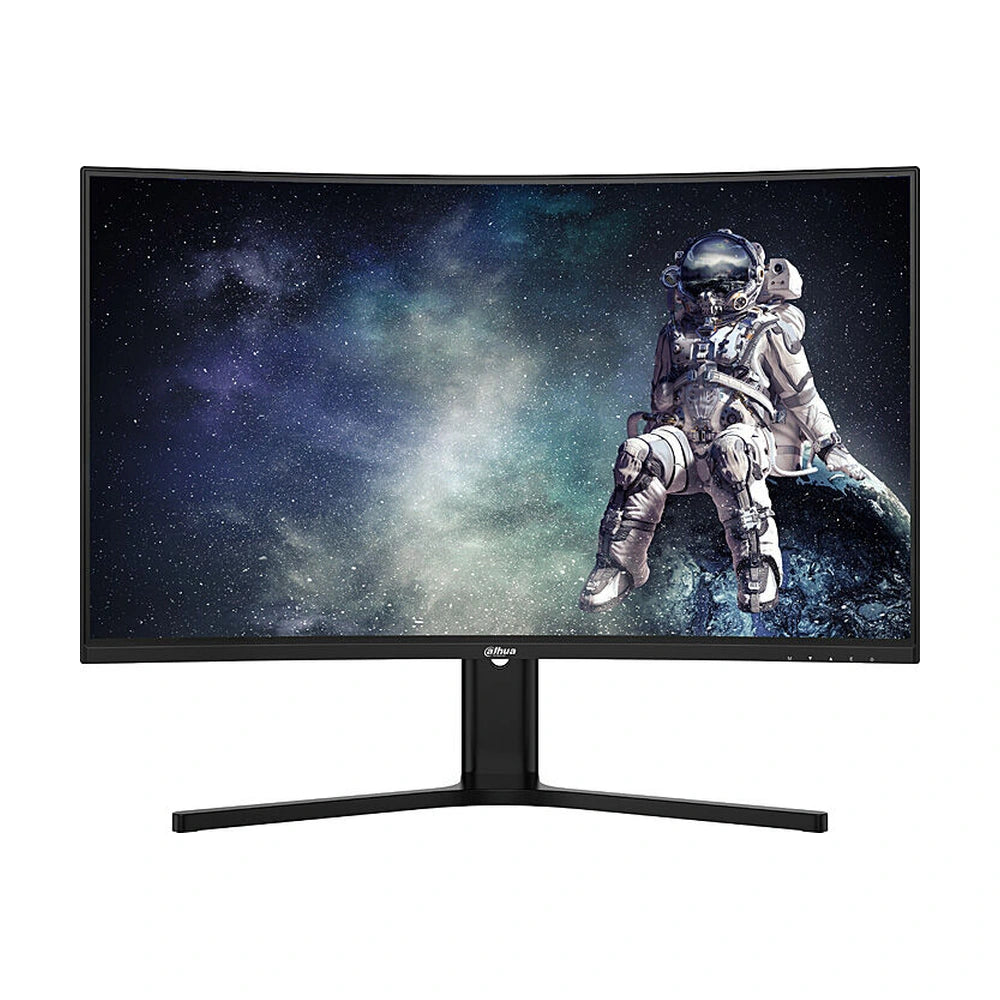

Dahua · 31.5-inch · QHD · 180HzDahua DHI-LM32-E330CA 31.5-inch QHD 180Hz Curved Gaming Monitor
The DHI-LM32-E330CA is a 31.5-inch QHD monitor for a responsive PC gaming setup. Its VA, 1500R curved panel combines a native 2560 × 1440 picture with up to 180Hz refresh. Choose it by screen size, desk space and the output connections on your computer—not just the model number.
The 1500R curve and height-adjustable stand suit a larger gaming desk. Use DisplayPort for QHD at 180Hz; the HDMI inputs support QHD at up to 144Hz.
Key Features
31.5-inch QHD
VA, 1500R curved panel with 2560 × 1440 native resolution.
180Hz maximum refresh
Smoother desktop motion with a compatible source. 2 × HDMI 2.0: QHD 144Hz; 2 × DisplayPort 1.4: QHD 180Hz
Practical connectivity
2 × HDMI 2.0: QHD 144Hz; 2 × DisplayPort 1.4: QHD 180Hz. Check audio requirements separately.
VESA mounting option
100 × 100mm mounting pattern. Choose a separately sold mount rated for the screen and its weight.
Technical Specifications
| Manufacturer model |
DHI-LM32-E330CA |
| Screen size |
31.5-inch |
| Panel |
VA, 1500R curved |
| Native resolution |
2560 × 1440 |
| Maximum refresh |
180Hz |
| Inputs and limits |
2 × HDMI 2.0: QHD 144Hz; 2 × DisplayPort 1.4: QHD 180Hz |
| Brightness |
300 cd/m² typical |
| Contrast ratio |
3000:1 |
| Response time |
1ms MPRT |
| Viewing angles |
178° horizontal / 178° vertical |
| HDR |
HDR10 |
| Stand adjustment |
100mm height adjustment; −5° to +15° tilt; ±35° swivel |
| Audio |
Audio output |
| Power input |
19V DC, 3.42A |
| Power consumption |
72W maximum |
| VESA mount |
100 × 100mm |
| Net weight |
7.0kg |
| Dimensions |
717.7 × 422.4 × 118.3mm, without base |
| Operating temperature |
0°C to +40°C |
| Warranty |
CCTV Guru 3-year Australian warranty |
Compare Related Dahua Monitors
| Model |
Screen and panel |
Native resolution |
Maximum refresh rate |
| DHI-LM32-E330CA |
31.5-inch VA, 1500R curved |
2560 × 1440 |
180Hz; see input limits |
| DHI-LM34-E330CA |
34-inch VA, 1500R curved |
3440 × 1440 |
200Hz; see input limits |
| DHI-LM49-EW410CA |
49-inch VA, 1800R curved |
5120 × 1440 |
120Hz; see input limits |
Refresh rates depend on the source device, connection, cable and display settings. A higher refresh-rate screen does not increase the frame rate of recorded CCTV footage.
Setup and Buying Advice
- Check your desk space, viewing distance and output connections.
- Fit the supplied base or a suitable VESA mount using the installation instructions.
- Connect the display and supplied power equipment with the devices powered off.
- Select the correct input, native resolution and supported refresh rate on your source device.
- Keep ventilation openings clear and use the display indoors.
For permanent CCTV operation, choose a monitor explicitly rated for your required operating hours. This office/gaming listing is not a claim of 24/7 duty. Compare our CCTV and security monitor range and select a model explicitly rated for 24/7 use if continuous surveillance is the priority.
Optional Accessories
A VESA mount must match the 100 × 100mm hole pattern and carry the display safely. Contact us before choosing a bracket. Add a Belkin surge protector for optional mains-side protection; it does not provide battery backup.
Frequently Asked Questions
Can I connect an NVR or DVR?
A compatible video output can be connected, but the recorder must support a resolution and timing accepted by the monitor. This screen is not an NVR and does not record footage.
How do I get the maximum refresh rate?
2 × HDMI 2.0: QHD 144Hz; 2 × DisplayPort 1.4: QHD 180Hz. Your computer, cable and selected display mode must also support the required resolution and refresh rate.
Does it have speakers?
Audio output. Do not assume an audio output means speakers are built in.
Can it be wall mounted?
Yes, with a separately selected VESA mount matching 100 × 100mm and the screen weight. Confirm screw size, depth and clearance in the installation guide.
What warranty is included?
CCTV Guru provides a 3-year Australian warranty. Contact our team for local product support.
Available to order from Australian supplier stock. Contact CCTV Guru to confirm dispatch timing and for product selection and compatibility advice. CCTV Guru’s 3-year Australian warranty is included.
