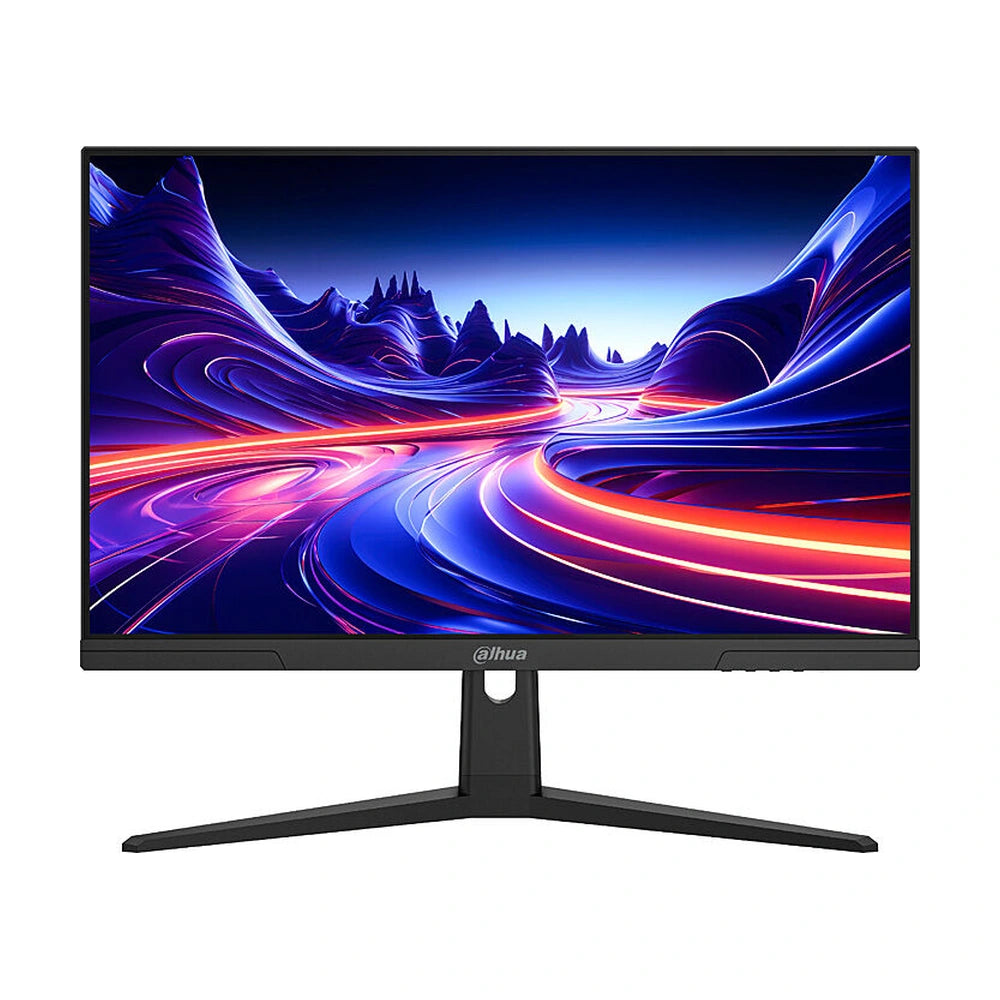

Dahua · 24.5-inch · Full HD · 240HzDahua DHI-LM25-E241B 24.5-inch Full HD 240Hz Gaming Monitor
The DHI-LM25-E241B is a 24.5-inch Full HD monitor for a responsive PC gaming setup. Its IPS panel combines a native 1920 × 1080 picture with up to 240Hz refresh. Choose it by screen size, desk space and the output connections on your computer—not just the model number.
HDMI provides a straightforward digital connection. Select the native resolution and supported refresh rate in your computer settings after connecting. For recorder use, check the NVR or DVR output mode before ordering.
Key Features
24.5-inch Full HD
IPS panel with 1920 × 1080 native resolution.
240Hz maximum refresh
Smoother desktop motion with a compatible source. HDMI 2.0: FHD 240Hz; DisplayPort 1.4: FHD 240Hz
Practical connectivity
HDMI 2.0: FHD 240Hz; DisplayPort 1.4: FHD 240Hz. Check audio requirements separately.
VESA mounting option
100 × 100mm mounting pattern. Choose a separately sold mount rated for the screen and its weight.
Technical Specifications
| Manufacturer model |
DHI-LM25-E241B |
| Screen size |
24.5-inch |
| Panel |
IPS |
| Native resolution |
1920 × 1080 |
| Maximum refresh |
240Hz |
| Inputs and limits |
HDMI 2.0: FHD 240Hz; DisplayPort 1.4: FHD 240Hz |
| Brightness |
350 cd/m² typical |
| Contrast ratio |
1000:1 |
| Response time |
1ms MPRT / 0.5ms OD |
| Viewing angles |
178° horizontal / 178° vertical |
| HDR |
HDR10 |
| Audio |
Audio output |
| Power input |
12V DC, 3A |
| Power consumption |
23.8W maximum |
| VESA mount |
100 × 100mm |
| Net weight |
2.93kg |
| Dimensions |
557.7 × 330.6 × 58.0mm, panel dimensions |
| Operating temperature |
0°C to +40°C |
| Warranty |
CCTV Guru 3-year Australian warranty |
Compare Related Dahua Monitors
| Model |
Screen and panel |
Native resolution |
Maximum refresh rate |
| DHI-LM25-E241B |
24.5-inch IPS |
1920 × 1080 |
240Hz; see input limits |
| DHI-LM27-E241B |
27-inch IPS |
1920 × 1080 |
240Hz; see input limits |
Refresh rates depend on the source device, connection, cable and display settings. A higher refresh-rate screen does not increase the frame rate of recorded CCTV footage.
Setup and Buying Advice
- Check your desk space, viewing distance and output connections.
- Fit the supplied base or a suitable VESA mount using the installation instructions.
- Connect the display and supplied power equipment with the devices powered off.
- Select the correct input, native resolution and supported refresh rate on your source device.
- Keep ventilation openings clear and use the display indoors.
For permanent CCTV operation, choose a monitor explicitly rated for your required operating hours. This office/gaming listing is not a claim of 24/7 duty. Compare our CCTV and security monitor range and select a model explicitly rated for 24/7 use if continuous surveillance is the priority.
Optional Accessories
A VESA mount must match the 100 × 100mm hole pattern and carry the display safely. Contact us before choosing a bracket. Add a Belkin surge protector for optional mains-side protection; it does not provide battery backup.
Frequently Asked Questions
Can I connect an NVR or DVR?
A compatible video output can be connected, but the recorder must support a resolution and timing accepted by the monitor. This screen is not an NVR and does not record footage.
How do I get the maximum refresh rate?
HDMI 2.0: FHD 240Hz; DisplayPort 1.4: FHD 240Hz. Your computer, cable and selected display mode must also support the required resolution and refresh rate.
Does it have speakers?
Audio output. Do not assume an audio output means speakers are built in.
Can it be wall mounted?
Yes, with a separately selected VESA mount matching 100 × 100mm and the screen weight. Confirm screw size, depth and clearance in the installation guide.
What warranty is included?
CCTV Guru provides a 3-year Australian warranty. Contact our team for local product support.
Available to order from Australian supplier stock. Contact CCTV Guru to confirm dispatch timing and for product selection and compatibility advice. CCTV Guru’s 3-year Australian warranty is included.
