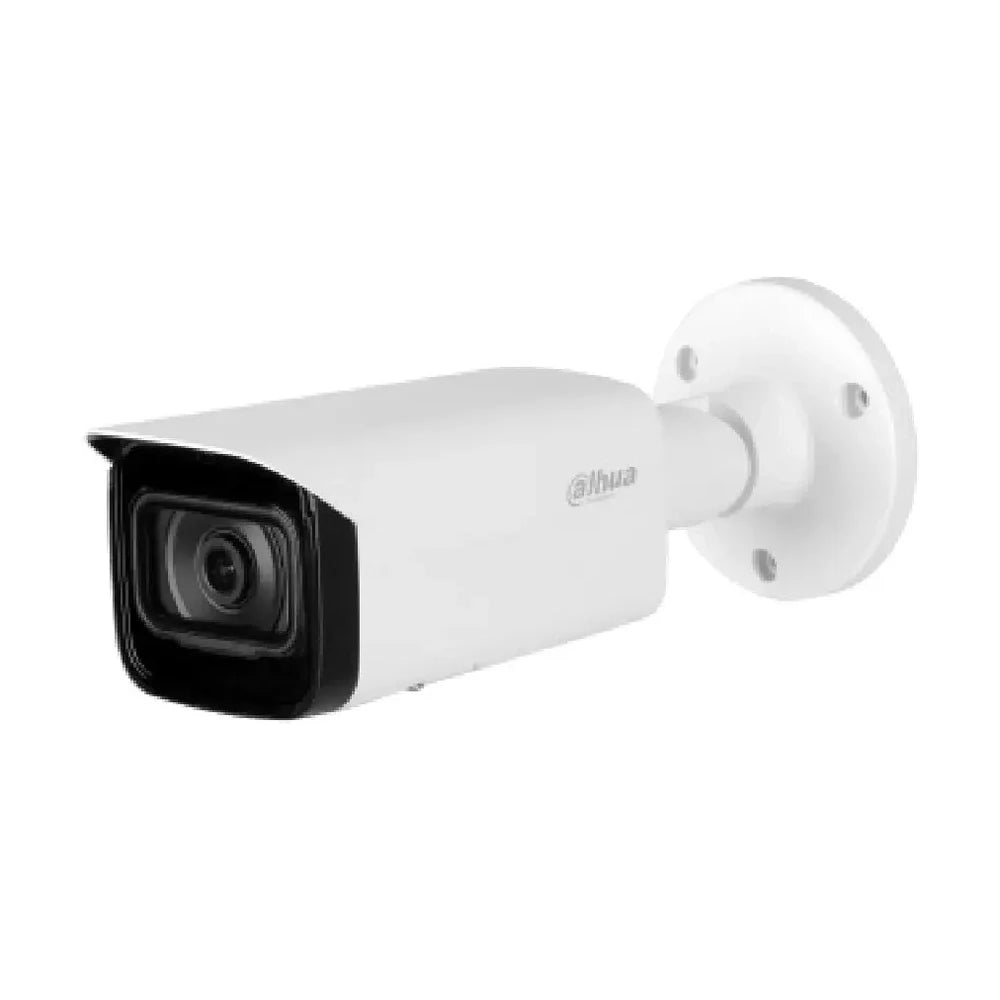

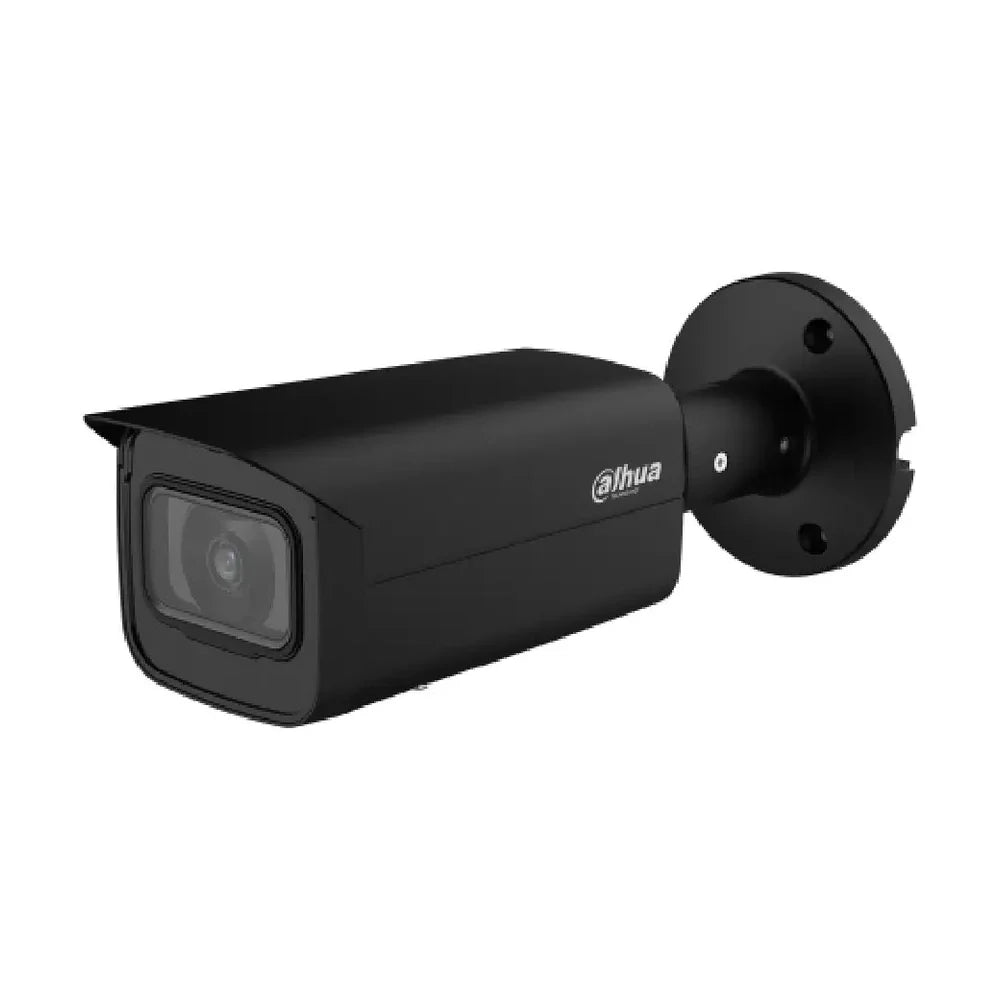

Dahua · IP Security Cameras5MP WizMind S 2.8 mm AI Bullet Camera
DH-IPC-HFW5541T-ASE-0280-S3 — Monitor a broad area with a 5MP fixed-lens bullet camera that combines an 80 m infrared rating with WizMind S analytics. The 2.8 mm lens provides a 111° horizontal view, while Deeplight image processing helps retain useful low-light detail.
Key features
Wide 5MP coverage
The supplied 2.8 mm lens covers a broad scene without a motorised zoom mechanism.
WizMind S analytics
Choose suitable event or counting rules instead of relying only on basic motion detection.
80 m infrared rating
Infrared illumination supports night surveillance, with actual usable detail determined on site.
Audio and edge recording
A built-in microphone and optional microSD recording add context and storage flexibility.
Applications & installation
Useful for business entrances, loading areas and wider perimeter views. Select the AI task that matches the application—such as perimeter protection, people counting or face detection—and check recorder support. Face detection is not the same as identifying a person from a face database.
Technical Specifications
| Model |
DH-IPC-HFW5541T-ASE-0280-S3 |
| Sensor |
1/2.7-inch CMOS |
| Video |
2960 × 1668, 5MP at 25/30 fps |
| Lens supplied |
2.8 mm fixed, F1.6 |
| Horizontal view |
111° |
| Night vision |
IR up to 80 m |
| Wide dynamic range |
120 dB |
| Image processing |
Deeplight / AI ISP |
| Analytics |
SMD 3.0, IVS, face detection, metadata, people counting, queue management, heat map and smart sound detection |
| Audio and alarms |
Built-in microphone; 1 audio input/output and 1 alarm input/output |
| Storage |
microSD up to 512 GB |
| Power |
12 V DC or IEEE 802.3af PoE; ePoE supported |
| Maximum PoE consumption |
9.8 W |
| Protection |
IP67 and IK10 |
| Net weight |
0.82 kg |
| Warranty |
60 months — subject to warranty terms |
Compatible options & add-ons
Optional items are sold separately. Select the components needed for your installation; mounting parts may need to be used together.
Official Dahua video
Dahua Technology UK & Ireland — WizMind S series overview
This is a manufacturer series overview. Features shown may vary by model; use the specifications above for this exact product.
Frequently asked questions
Is the lens motorised?
No. This Australian listing uses the fixed 2.8 mm lens. Choose a motorised varifocal model if you need remote optical framing.
Does every AI function run at once?
No. Available combinations depend on the camera's selected smart plan, firmware and recorder support. Configure and test the required functions before handover.
Downloads
Manufacturer documentation: the datasheet identifies the product or stated product family; general guides cover the applicable equipment type. Confirm model-specific instructions before installation.
