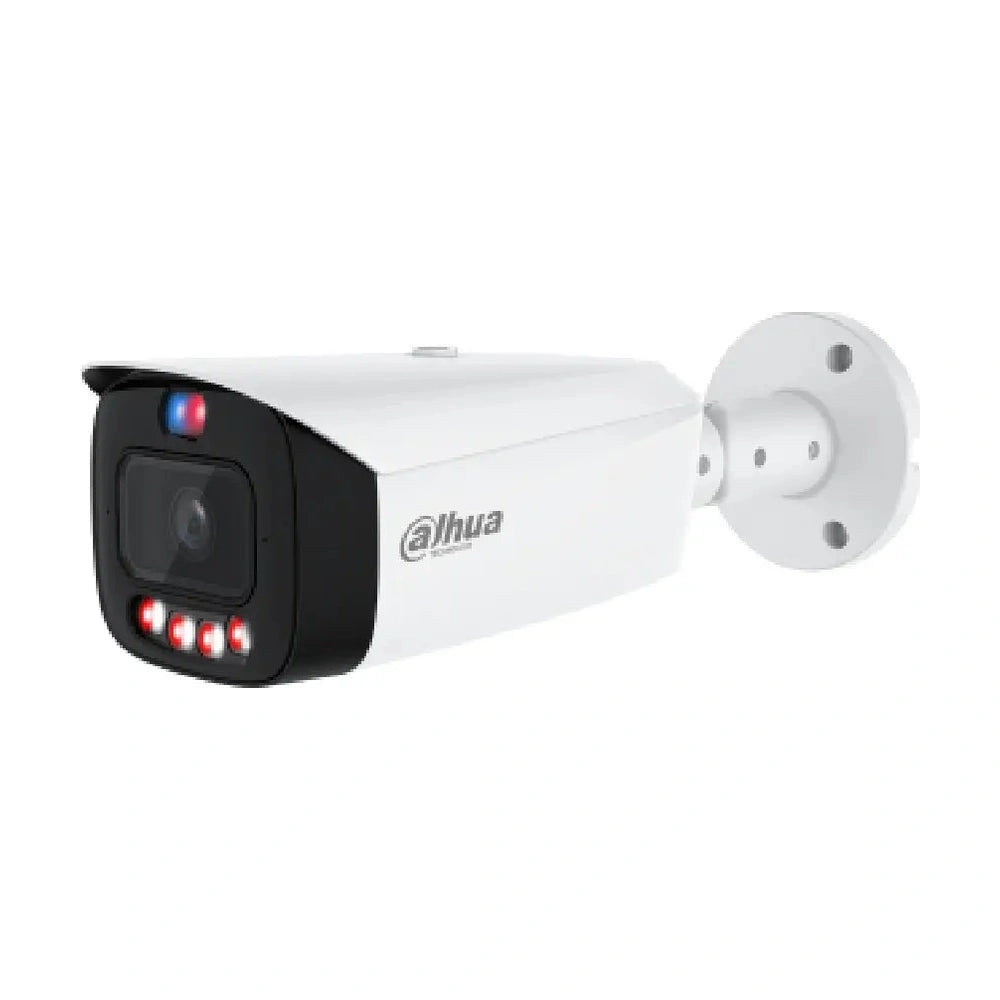

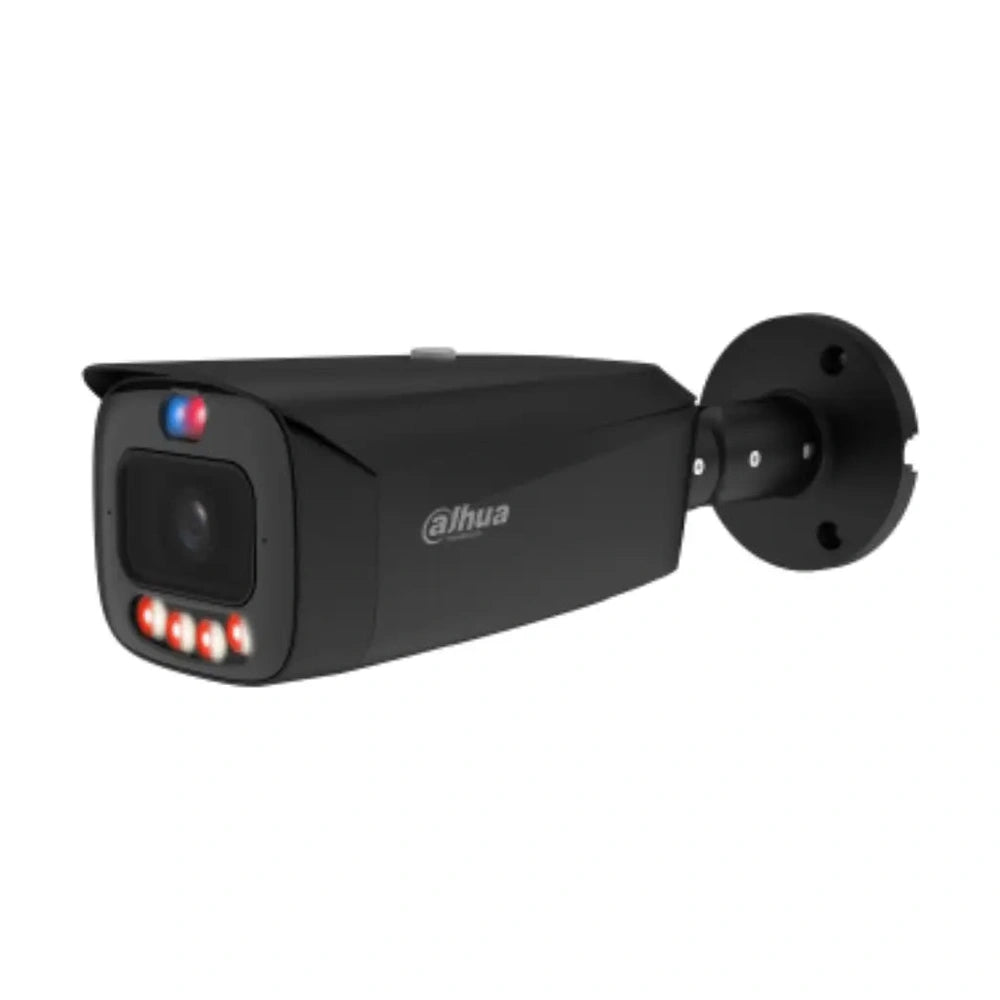

TiOC PRO · 8MP / 4K · 2.8mmDahua DH-IPC-HFW3849T1-AS-PV-PRO-ANZ 8MP TiOC PRO 2.8mm Bullet Camera
Monitor entrances and outdoor areas with detailed 4K footage and configurable deterrence. The DH-IPC-HFW3849T1-AS-PV-PRO-ANZ combines a large 1/1.8-inch sensor and F1.0 lens with Smart Dual Light, red/blue warning lights and two-way talk. The Australian 2.8mm model provides a wide fixed view for driveways, shops and building approaches.
Key Features
4K detail at full frame rate
Capture up to 25/30fps at 3840 × 2160. The 1/1.8-inch sensor and F1.0 aperture support low-light imaging, while 120dB WDR helps with backlit scenes.
IR and warm-light options
The Australian datasheet specifies up to 50m IR and 50m warm illumination. Colour images need scene light or the warm illuminator.
Configurable active deterrence
Red/blue warning lights and a built-in speaker can respond to configured events. Dual microphones support two-way audio.
Human and vehicle filtering
SMD 4.0 and perimeter protection help reduce irrelevant motion alerts. AcuPick requires a compatible recorder and firmware.
Technical Specifications
| Model |
DH-IPC-HFW3849T1-AS-PV-PRO-ANZ |
| Sensor / resolution |
1/1.8-inch CMOS; 3840 × 2160; up to 25/30fps |
| Australian lens configuration |
2.8mm fixed focal; F1.0 |
| Field of view |
109° horizontal; 59° vertical |
| Illumination |
Up to 50m IR and 50m warm light |
| Image processing |
120dB WDR; H.265/H.264; three streams |
| Analytics |
SMD 4.0; tripwire/intrusion with human and vehicle classification; AcuPick |
| Deterrence |
Red/blue warning lights and audible warning |
| Audio |
Built-in dual microphones and speaker; two-way talk |
| Storage |
microSD up to 512GB; NAS; FTP/SFTP; card sold separately |
| Network / integration |
10/100Mbps Ethernet; ONVIF S/G/T |
| Power |
12V DC or IEEE 802.3at PoE+ |
| Maximum consumption |
15.1W PoE; 11.8W DC |
| Protection / construction |
IP67; metal and plastic housing |
| Operating temperature |
−40°C to +60°C |
| Dimensions / weight |
288.4 × 94.4 × 84.7mm; 1.0kg |
Setup and Compatibility
Choose a PoE+ port or suitable 12V supply, position the fixed lens for the target distance and commission night lighting at the site. Set warning rules and schedules to suit nearby residents and the application. This page uses the Australian ANZ datasheet; specifications for other regional versions should not be substituted. Advanced analytics depend on compatible recorder hardware, firmware and settings.
Choosing Accessories
Select a compatible junction box and mounting bracket for the installation surface. The PFA130-E and PFA152-E are listed mounting options. Optional surveillance microSD storage and Cat6 leads are available below.
Downloads
Installation and operation manuals are shared Dahua guides. Available menus and functions depend on the exact model and firmware.
Frequently Asked Questions
Is this the 2.8mm Australian model?
Yes. This listing is for the Australian ANZ 2.8mm fixed-lens configuration.
Is it full colour in complete darkness without lighting?
No. Colour video requires available light or the built-in warm illumination. IR mode produces black-and-white night images.
Can I use a microSD card?
Yes, up to 512GB. A surveillance-rated card is sold separately and recording must be configured.
