Dahua DHI-SCP3022A-B Ultra Series 7″ Android 14 2-Wire IP Smart Control Panel

Description

Dahua Ultra Series · Android 14

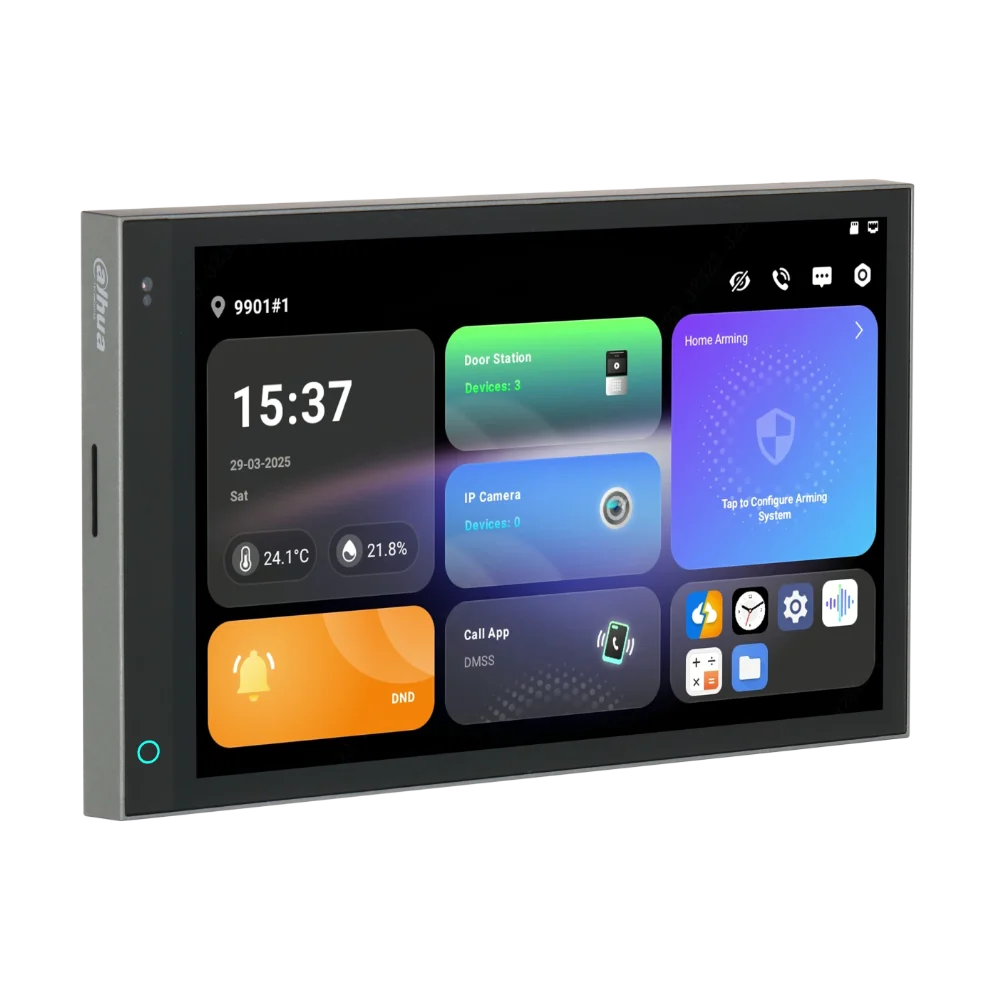

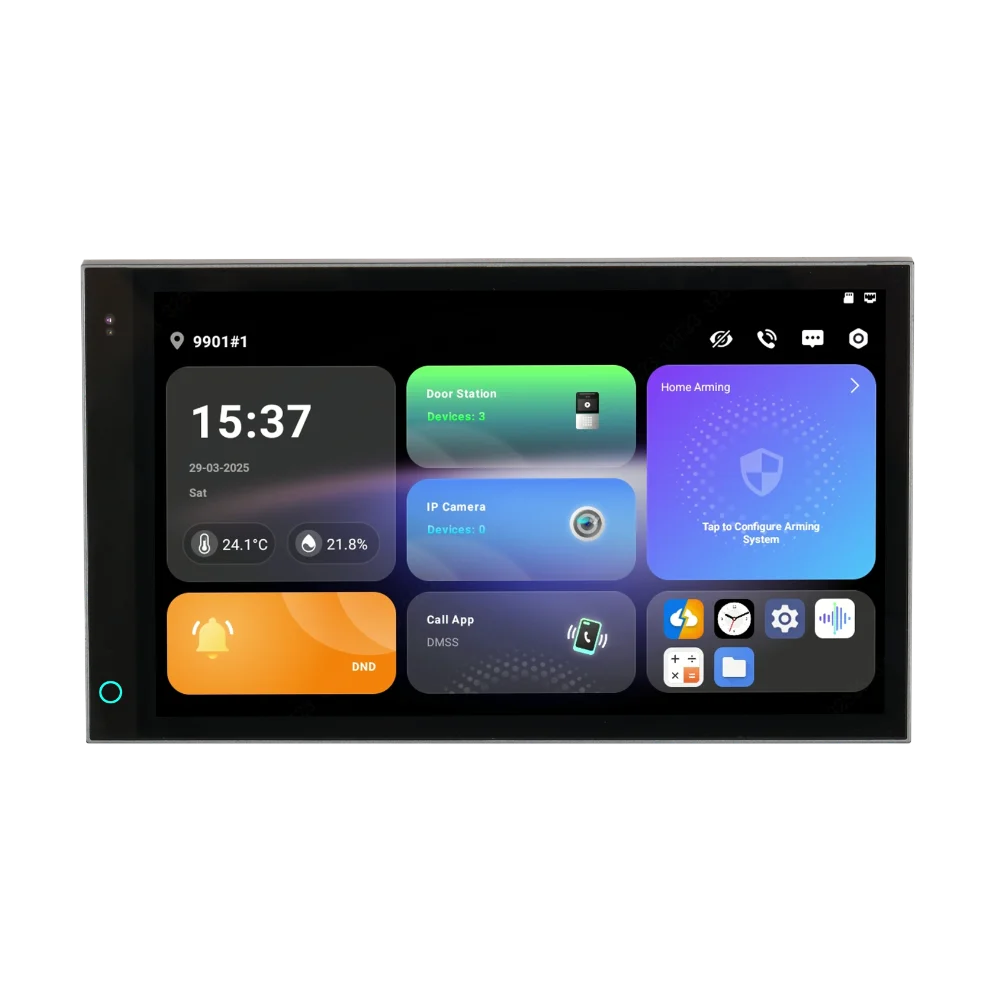

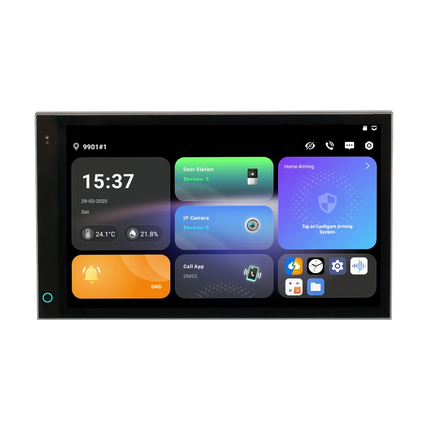

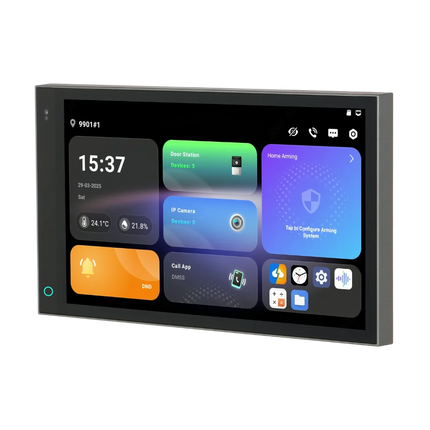

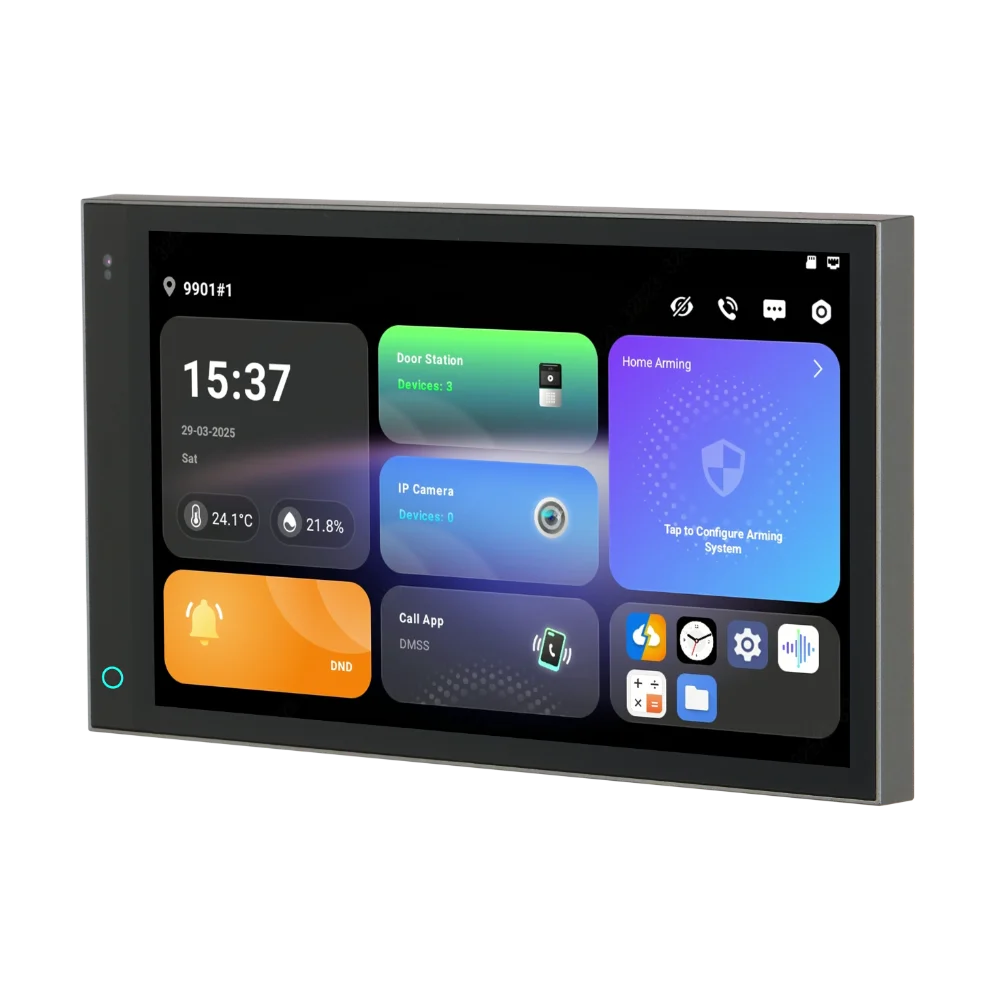

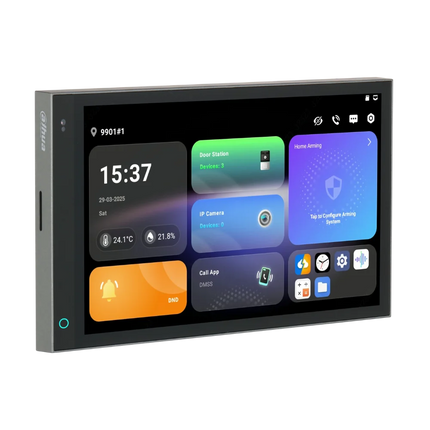

Dahua DHI-SCP3022A-B 7-inch smart control panel

The Dahua DHI-SCP3022A-B is a flush-mount indoor smart control panel for Dahua video intercom, monitoring and alarm workflows. It combines a 7-inch IPS capacitive touchscreen, Android 14, IP/Wi-Fi/digital two-wire connectivity, and built-in environmental sensors in a slim panel for apartments, villas, hotels and offices.

Display
7-inch IPS touch · 1024 × 600
Platform
Android 14 · 4GB RAM + 16GB ROM
Connectivity
IP · Wi-Fi 2.4GHz · digital 2-wire
Power
48 V DC · standard PoE

One panel for intercom, monitoring and indoor control

The full-screen panel wakes when a person approaches and uses its light sensor to adjust screen brightness. Built-in temperature and humidity detectors place live environmental information on the home screen. It supports two-way audio, information release, elevator control, do-not-disturb scheduling and local microSD storage up to 512GB.

Flexible system connection

Use the 10/100 Mbps Ethernet port and standard PoE for an IP installation, Wi-Fi on 2.4GHz 802.11b/g/n, or a compatible Dahua digital two-wire system. Pair it with a compatible Dahua 2-wire switch when retaining suitable existing cabling.

Practical integration ports

Includes RS-485, USB, 8 alarm inputs, 1 alarm output, a 12 V/200 mA power output and doorbell support via an alarm-input port. The bracket, RS-485/power-output cable and alarm cable are included; the power cord is optional.

Technical Specifications
Model DHI-SCP3022A-B
Operating system and memory Android 14; 4GB RAM + 16GB ROM
Display 7-inch IPS capacitive touchscreen; 1024 × 600
Audio Two-way audio; built-in speaker; echo suppression and digital noise reduction
Communication Full digital and digital 2-wire; IPv4, RTSP, UDP, DNS, FTP, RTP, TCP and SIP
Wi-Fi and Ethernet 2.4GHz IEEE 802.11b/g/n Wi-Fi; 1 × 10/100 Mbps Ethernet port
Storage and expansion microSD support up to 512GB; 1 × USB; 1 × RS-485
Control I/O 8 alarm inputs; 1 alarm output; 12 V/200 mA power output; doorbell via alarm input
Power and mounting 48 V DC/0.5 A or standard PoE; flush mount
Construction PC + ABS; indoor use; 176.2 × 103.1 × 32.2 mm
Operating range –10°C to +55°C; 10%–95% RH non-condensing

See the Dahua Smart Control Panel in action

Dahua Smart Control Panel Highlight

Choose the right screen size and intercom cabling

Choose the panel around the room, viewing distance and existing cabling. The SCP3022A-B is the compact 7-inch option for an IP, Wi-Fi or digital two-wire system. For a larger 10.1-inch screen and a system designed around IP, Wi-Fi 6 or analog four-wire, consider the Dahua DHI-SCP3044A-BZ 10.1-inch smart control panel.

7-inch vs 10.1-inch Smart Control Panel
Compact option DHI-SCP3022A-B — 7-inch, 1024 × 600, IP/Wi-Fi/digital two-wire, 48 V DC or PoE
Larger-screen option DHI-SCP3044A-BZ — 10.1-inch, 1280 × 800, IP/Wi-Fi 6/analog four-wire, 12 V DC or PoE
Choose the SCP3022A-B when You want a compact flush-mounted panel or are planning a compatible Dahua digital two-wire installation.
Choose the DHI-SCP3044A-BZ when You need a larger interface and your installation is designed for its supported IP, Wi-Fi 6 or analog four-wire connectivity.

Plan the system before installation

Select the connection method

Confirm whether the installation will use Ethernet with PoE, 2.4GHz Wi-Fi, or a Dahua digital two-wire switch. This decision affects the controller, cable path and power plan.

Match the entrance station

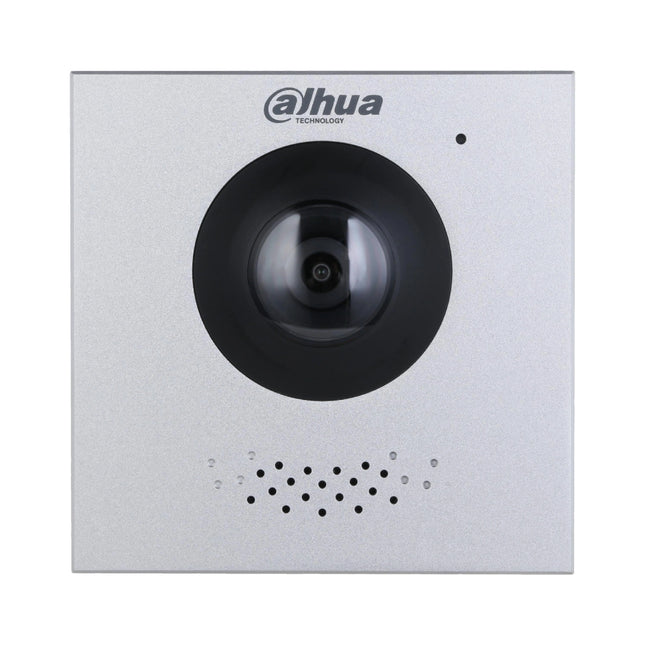

Pair the panel with a compatible Dahua door station such as the DHI-VTO4202F-P-S3 modular apartment door station, then select call buttons, access modules and mounting hardware to suit the property.

Allow for local storage

The SCP3022A-B accepts microSD storage up to 512GB. The linked WD Purple card is available in 128GB and 256GB capacities; choose capacity around the required local-recording retention.

Is the SCP3022A-B an indoor monitor?

Yes. It is an indoor Dahua smart control panel with a 7-inch touchscreen for video intercom, monitoring and supported control functions. It is designed for indoor flush mounting.

How can it connect to the intercom system?

It supports IP, 2.4GHz Wi-Fi and digital two-wire communication. For a two-wire retrofit, use a compatible Dahua two-wire switch and confirm the complete system design before installation.

Does it support PoE?

Yes. Dahua specifies standard PoE or a 48 V DC/0.5 A power supply.

Can it store calls or recordings locally?

It supports microSD storage up to 512GB. The compatible WD Purple 128GB/256GB microSD card is available under Add Ons & Accessories.

How many extensions can a system support?

Dahua specifies one main VTH plus up to nine extensions in villa mode, or one main VTH plus up to four extensions in apartment mode.

DHI-SCP3022A-B Datasheet (PDF) DHI-SCP3022A-B User Manual (PDF) DHI-SCP3022A-B Quick Start Guide (PDF)
