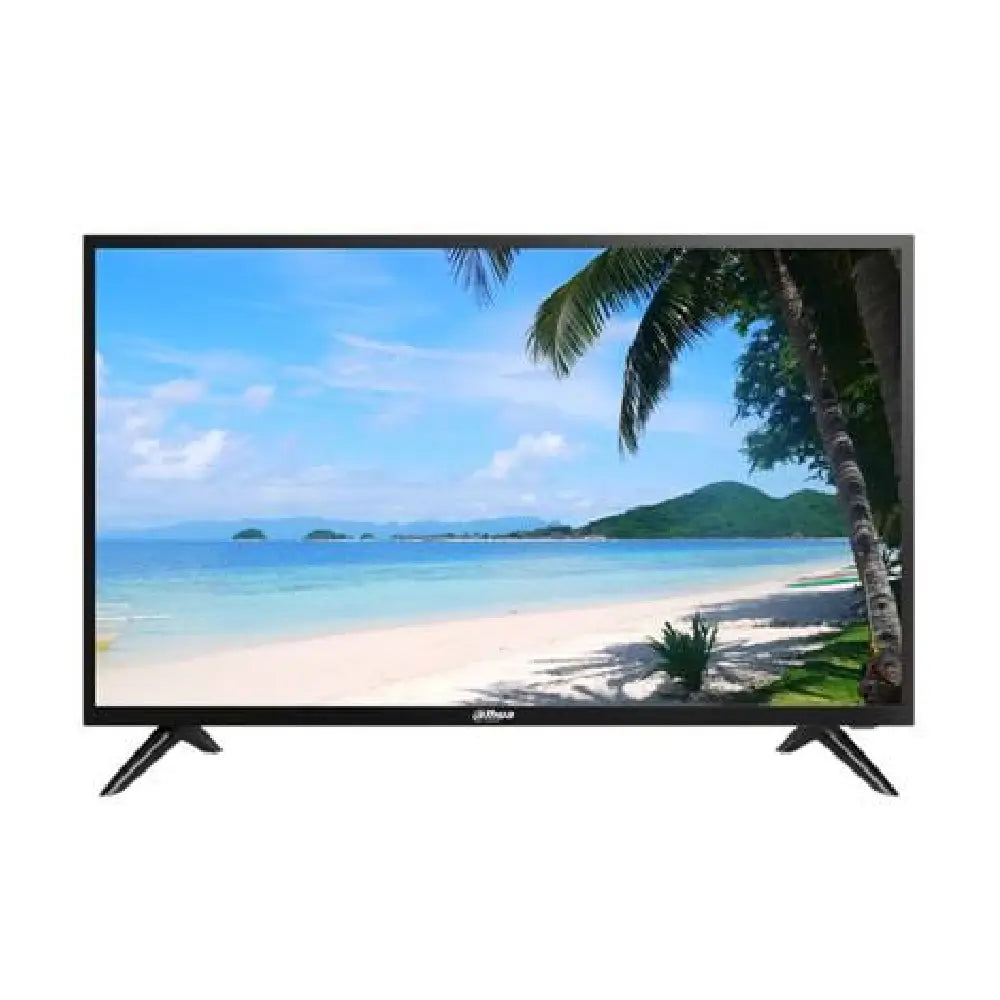

Dahua · CCTV Monitors32-Inch Full HD 24/7 CCTV Monitor
DHI-LM32-F200-S2 — View recorder output on a 31.5-inch Full HD panel sold in the 32-inch class. HDMI and VGA connections make this commercial monitor a practical display for compatible surveillance recorders and other video sources.
Key features
Full HD live view
Match the display to a compatible 1080p recorder output.
HDMI and VGA
Connect modern HDMI sources or supported legacy VGA equipment.
Built-in speakers
Use the integrated stereo speakers with a compatible audio signal.
24/7 operation
Specified for continuous display use within the operating conditions.
Applications & installation
For a reception desk, back office or small monitoring station that needs a larger live-view screen. Set the recorder output to a supported resolution, check audio routing and select a VESA mount rated for the monitor's weight. This is a display, not a recorder or a smart TV.
Technical Specifications
| Model |
DHI-LM32-F200-S2 |
| Screen class |
32-inch, 31.5-inch panel |
| Native resolution |
1920 × 1080 Full HD |
| Refresh rate |
60 Hz |
| Brightness |
240 cd/m² |
| Contrast |
1400:1 |
| Response time |
8 ms |
| Connections |
HDMI, VGA and USB |
| Speakers |
2 × 4 W |
| Operating duty |
24/7 |
| VESA pattern |
75 × 75 mm |
| Net weight |
3.9 kg |
| Power consumption |
55 W |
| Operating temperature |
0°C to +40°C |
| Datasheet scope |
LM32-F200 family document supplied for the S2 listing |
| Warranty |
36 months — subject to warranty terms |
Compatible options & add-ons
Optional items are sold separately. Select the components needed for your installation; mounting parts may need to be used together.
Frequently asked questions
Is the panel exactly 32 inches?
The panel diagonal is 31.5 inches and it is sold in the 32-inch size class.
Does the monitor record CCTV footage?
No. Recording is handled by the connected NVR, DVR or other recording system.
Downloads
Manufacturer documentation: the datasheet identifies the product or stated product family; general guides cover the applicable equipment type. Confirm model-specific instructions before installation.
