Premium Dahua Wireless Alarm Kit
Dahua DHI-ART-ARC3800H-06-FW2 Wireless Alarm Kit
The Dahua DHI-ART-ARC3800H-06-FW2 is a premium wireless alarm kit designed for Australian homes, offices, retail stores and commercial sites needing stronger wireless protection, smart app control and reliable multi-network communication.
Built around the ARC3800H-FW2 alarm hub, this complete Dahua alarm package includes PIR motion sensors, wireless keyfob control, indoor siren and outdoor siren, with support for WiFi, Ethernet and 4G LTE backup to help keep your alarm connected even if one network path fails.
Why Choose the Dahua ARC3800H-FW2 Alarm Kit?
📡 Triple Network Backup
Supports Ethernet, WiFi and 4G LTE redundancy for more reliable alarm communication.
📱 Smart Mobile App Control
Arm, disarm, monitor alarms and manage devices remotely using the Dahua mobile app.
🔊 Indoor & Outdoor Sirens
Includes both indoor and outdoor sirens for stronger deterrence and alarm visibility.
🛡 AES128 Encryption
Encrypted wireless communication helps improve alarm security and signal protection.
📷 Video Alarm Verification
Supports alarm video verification when integrated with compatible Dahua IP cameras.
☁ Cloud Updates
Supports remote cloud updates for the hub and compatible wireless accessories.

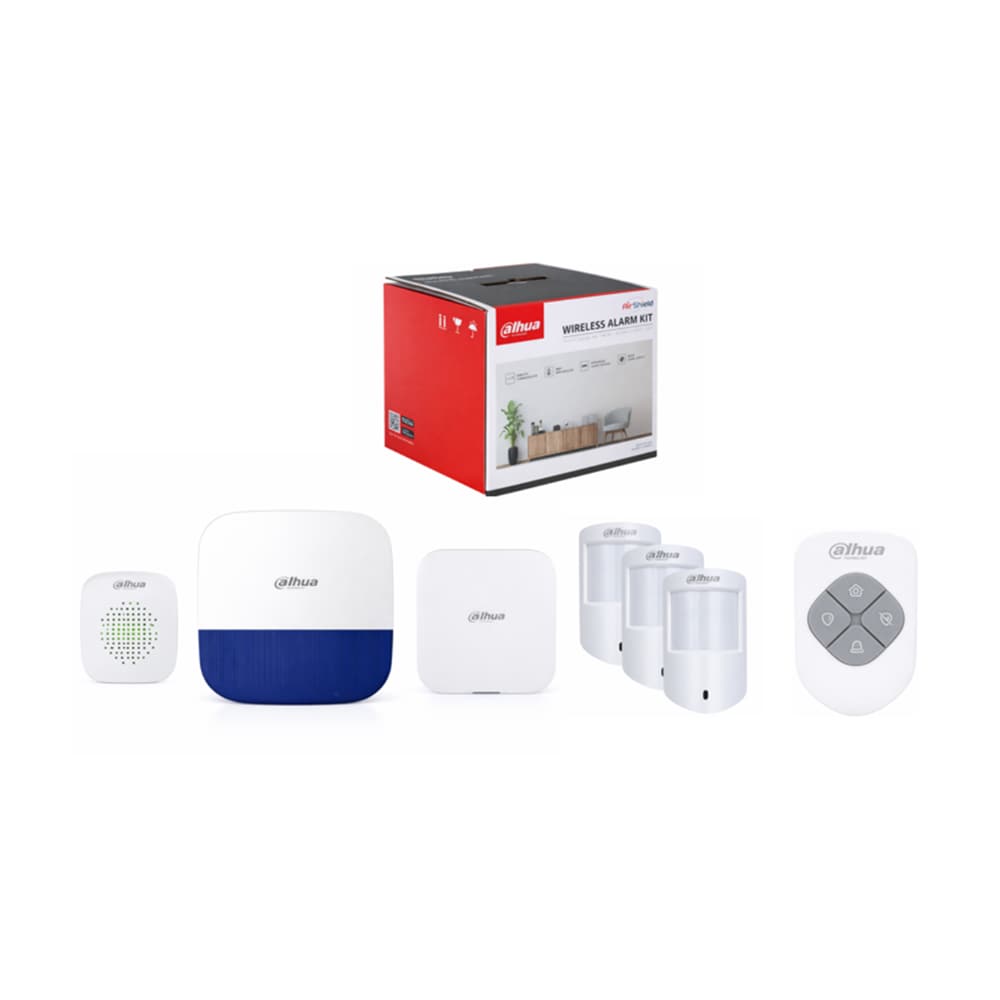

What’s Included in the Box
| Qty |
Product |
Model |
| 1 |
Dahua Alarm Hub |
ARC3800H-FW2 |
| 1 |
Dahua Wireless Keyfob |
ARA24-W2 |
| 3 |
Dahua Wireless PIR Motion Detector |
ARD1233-W2 |
| 1 |
Dahua Wireless Indoor Siren |
ARA12-W2 |
| 1 |
Dahua Wireless Outdoor Siren |
ARA13-W2 |
Designed for Smarter Wireless Protection
🏠 Homes
Ideal for larger homes needing multiple motion detection zones and stronger deterrence.
🏢 Offices
Suitable for offices, consulting rooms and business premises requiring reliable wireless alarm protection.
🛍 Retail Stores
Perfect for retail stores and shopfronts wanting app-based monitoring and audible alarm deterrence.
📡 Long Wireless Range
Supports long-range two-way wireless communication with compatible Dahua accessories.
📲 Expandable System
Supports up to 150 wireless peripherals including PIRs, sirens, keypads, repeaters and keyfobs.
🔋 Backup Battery
The built-in rechargeable battery helps keep the system running during temporary power outages.
Technical Specifications
| Specification |
Details |
| Model |
DHI-ART-ARC3800H-06-FW2 |
| System Type |
Wireless Alarm Kit |
| Wireless Zones |
150 wireless peripherals supported |
| Network Modes |
Ethernet, WiFi and 4G LTE |
| SIM Support |
Dual SIM supported (single active SIM) |
| Video Input |
8-channel IPC alarm video upload support |
| Audio Output |
1 channel |
| Phone Calls |
Up to 5 phone numbers |
| SMS Support |
Up to 5 phone numbers |
| Wireless Frequency |
433.1MHz–434.6MHz |
| Encryption |
AES128 |
| Frequency Hopping |
Yes |
| Hub Backup Battery |
4,750mAh rechargeable lithium battery |
| Hub Standby Time |
Up to 12 hours |
| Operating Temperature |
-10°C to +55°C indoor |
| Outdoor Siren Protection |
IP65 |
| Certifications |
CE, RCM |
Downloads
| Resource |
Link |
| Dahua DHI-ART-ARC3800H-06-FW2 Datasheet |
Download PDF
|
Frequently Asked Questions
Does this alarm kit support 4G backup?
Yes. The ARC3800H-FW2 supports Ethernet, WiFi and 4G LTE redundancy.
Does the kit include both indoor and outdoor sirens?
Yes. The package includes one indoor siren and one IP65-rated outdoor siren.
How many wireless devices can the system support?
The hub supports up to 150 wireless peripherals including PIRs, keyfobs, sirens, keypads and repeaters.
Can it work with Dahua cameras?
Yes. The system supports alarm video verification through integration with compatible Dahua IP cameras.
Upgrade to Smarter Wireless Alarm Protection
Protect homes, offices and commercial sites with reliable Dahua wireless alarm technology featuring WiFi and 4G LTE redundancy.
