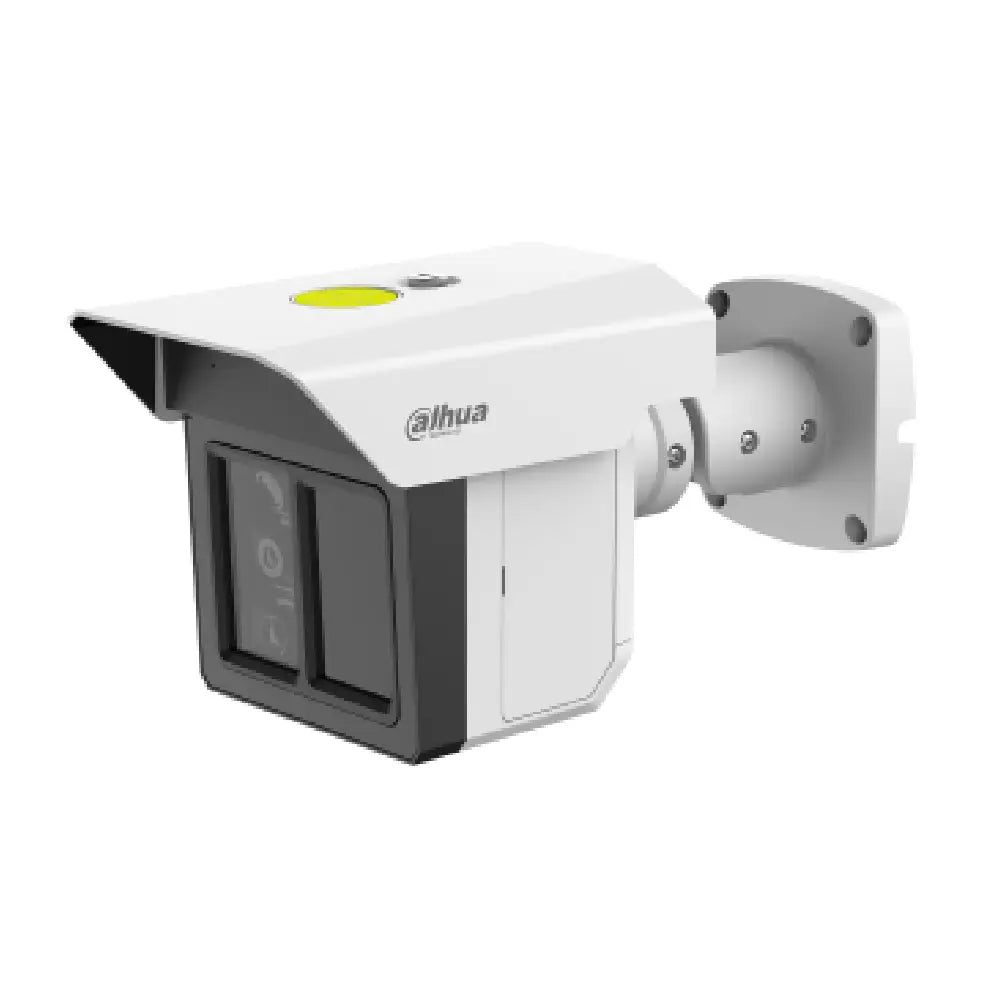

Dahua WizMind · Triple-Sight · Australian stockDahua DH-IPC-MFW5241T2-E3-ASE Triple-Sight Bullet Camera
Monitor a perimeter with three independent Full HD views from one camera. The White Australian model supplied by Seadan combines fixed 3.6mm, 12mm and 25mm lenses with human and vehicle classification, infrared illumination up to 100m and two-way audio.
Key features
- Three 1/2.8-inch CMOS sensors; each channel outputs 1920 × 1080 at up to 25 fps.
- Intrusion and tripwire detection with human and vehicle classification.
- Eight IR LEDs with illumination up to 100m; illumination can be controlled by area.
- Built-in dual microphones and speaker; audio input/output and two alarm inputs/outputs.
- H.265/H.264 compression; digital wide dynamic range.
- Metal housing with IP67 weather resistance and IK10 impact protection.
Specifications
| Australian supplied colour |
White |
| Fixed lenses |
3.6mm / 12mm / 25mm |
| Network |
RJ45 10/100 Base-T; ONVIF Profiles S, G, T and M |
| Power |
12V DC, PoE+ (802.3at), ePoE |
| Maximum power |
22.1W at 12V DC; 23.6W over PoE |
| Storage |
MicroSD up to 1TB; NAS, FTP and SFTP |
| Operating temperature |
−40°C to +60°C |
| Dimensions |
278.6 × 124.0 × 140.4mm |
| Net weight |
2kg |
| Australian supplier warranty |
60 months |
Installation and optional accessories
The Australian datasheet lists PFA124 waterproof junction box, PFA156 pole bracket, PFM320D 12V 2A power adapter, PFM900-E tester and TF-P100 microSD card as optional accessories. Select the mounting and power accessories required for your installation. Optional accessories are sold separately; contact us to confirm any additional items included in the Australian carton.
Downloads
Australian supplier datasheet (PDF)
Frequently asked questions
Does this provide one 6MP image?
No. It has three independent 2MP (1920 × 1080) channels, each supporting up to 25 fps in the Australian supplier datasheet.
Which lenses are fitted to the White Australian model?
The Seadan-supplied White model has fixed 3.6mm, 12mm and 25mm lenses. These are three different focal lengths, not a motorised zoom lens.
What is the night-vision range?
Infrared illumination is rated up to 100m. Actual coverage and intelligent detection performance depend on installation and scene conditions.
How is it powered?
It supports 12V DC, IEEE 802.3at PoE+ and ePoE. Maximum consumption is 23.6W over PoE; use a suitable PoE+ power source.
Does it support audio and local recording?
It has built-in dual microphones and a speaker, one audio input/output, two alarm inputs/outputs and microSD support up to 1TB. A memory card is optional.
What Australian warranty is listed?
Seadan lists a 60-month warranty for this exact product.
