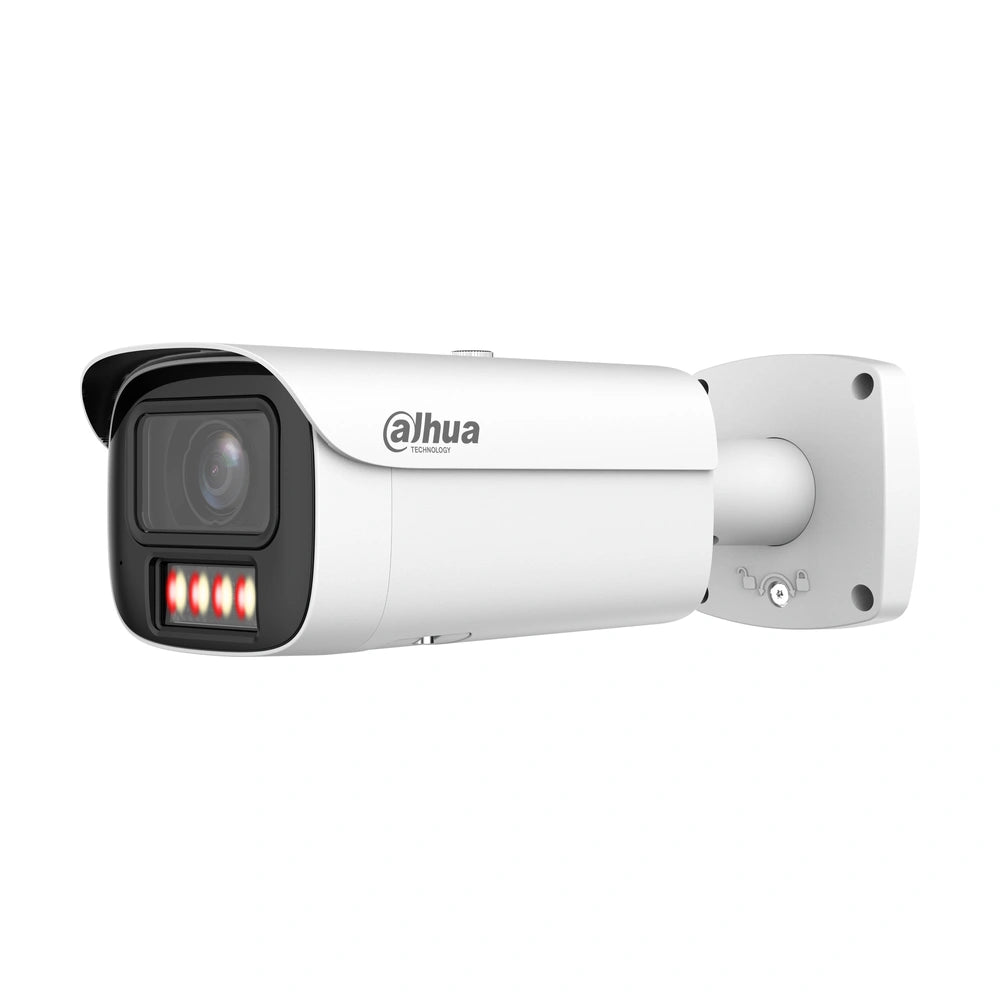

WIZMIND · 5MP · MOTORISED VARIFOCALDahua DH-IPC-HFW5559E1-ZE-IL 5MP WizMind Varifocal PoE+ Bullet Camera
Frame an entrance, driveway or boundary without committing to one fixed viewing angle. The DH-IPC-HFW5559E1-ZE-IL combines a 2.7–13.5mm motorised lens with 5MP recording, Smart Dual Light and Xinghan-powered analytics. Its metal IP67/IK10 housing suits outdoor installations where weather resistance and impact protection matter.
Key Features
Adjust the view remotely
The motorised varifocal lens lets your installer adjust zoom and focus through compatible camera software, from a wide overview to a tighter scene.
Colour when light is available
IR supports black-and-white night viewing; warm illumination supports colour capture. Both illuminators are rated up to 60m, subject to the scene.
Focus on useful events
Perimeter rules, SMD 4.0 and AcuPick support human/vehicle event handling and compatible recorder search. Configure the required analytics for the installation.
Flexible recording
Record through a compatible NVR or use an optional microSD card up to 1TB. A built-in microphone captures audio where its use is appropriate.
Technical Specifications
| Model |
DH-IPC-HFW5559E1-ZE-IL |
| Imaging |
1/2.7-inch CMOS; 2960 × 1668; up to 25/30fps at 5MP |
| Lens |
2.7–13.5mm motorised varifocal; F1.6 |
| Field of view |
Horizontal 110°–32°; vertical 57°–18° |
| Illumination |
Up to 60m IR and 60m warm light; Smart Dual Light |
| Image processing |
120dB WDR; H.265/H.264; four streams |
| Intelligent functions |
Xinghan Vision; perimeter protection; SMD 4.0; AcuPick; face detection; people counting; queue management; heat map; video metadata; smart object detection |
| Audio and alarm connections |
Built-in microphone; 1 audio input/1 output; 2 alarm inputs/1 output |
| Storage |
microSD up to 1TB; NAS; FTP/SFTP; card sold separately |
| Network |
10/100Mbps Ethernet; ePoE; ONVIF S/G/T/M |
| Power |
12V DC or IEEE 802.3at PoE+ |
| Maximum consumption |
22.1W PoE; 20.5W DC |
| Protection |
IP67 weather resistance; IK10 impact rating; metal housing |
| Operating temperature |
−40°C to +60°C |
| Dimensions / weight |
279.8 × 96.7 × 94.9mm; 1.09kg |
Setup and Compatibility
Use a PoE+ port with enough per-port power and total switch budget; ordinary 802.3af PoE is not the specified supply. ePoE requires compatible equipment and cable planning. Select the lens position for the actual subject distance: illumination distance is not a guaranteed identification distance. Face detection does not identify a person by name, and ONVIF video support does not guarantee every Dahua AI feature on another brand of recorder.
Choosing Accessories
Choose the PFA121 junction box, PFA152-E pole bracket or PFA151 corner bracket to suit the mounting surface. Add a surveillance microSD card and a suitable Cat6 lead if required.
Compare Dahua Xinghan AI cameras and NVRs to choose a camera for your scene and a recorder with the required channels, storage and search features. Feature names alone do not guarantee end-to-end compatibility.
Downloads
Installation and operation manuals are shared Dahua guides. Available menus and functions depend on the exact model and firmware.
Frequently Asked Questions
Will standard PoE power this camera?
Use IEEE 802.3at PoE+ or a suitable 12V DC supply. Allow for the specified 22.1W maximum PoE consumption.
Is the lens fixed?
No. It is a 2.7–13.5mm motorised varifocal lens for adjusting the scene during setup.
Does it recognise named people?
Face detection and metadata are not the same as identity recognition. Recorder search functions require compatible hardware, firmware and configuration.
