Premium 10″ Android Monitor
A large 10-inch capacitive touchscreen on Android 8.1 gives a smooth, smartphone-like experience for answering and managing the door.
160° Fisheye Coverage
The 2MP colour camera captures a wide 160° view, so you see visitors head-to-toe and parcels left at the door.
True PoE Install
The IP-COM F1106P-4-63W carries power and data over a single cable to the monitor and door station — cleaner wiring, fewer plugs.
Unlock Up To Two Doors
Built-in access control drives two locks — handy for a gate plus a front door, or door plus garage.
DMSS App + Wi-Fi
The monitor connects over Ethernet or Wi-Fi, so you can answer visitors and unlock from your phone anywhere.
Weatherproof & Protected
The IP65 / IK07 door station ships with a surface rain cover for reliable performance at exposed entries.
1 × 2-Wire IP Door Station — VTO2202F-P-S2
Anodised aluminium panel, 2MP colour 160° fisheye low-illumination camera, two-way video, access control for two locks, 2-wire & RJ45, H.265, IK07 / IP65, surface or flush mount.
1 × 10″ Android Indoor Monitor — VTH5341G-W
Android 8.1, 10-inch TFT capacitive touchscreen (1024×600), Ethernet & Wi-Fi, PoE, DMSS app, optional microSD up to 256GB.
1 × IP-COM 4-Port PoE Switch
F1106P-4-63W. 6 ports total (4× PoE + 2× uplink), 802.3af/at, up to 30W per port, extend mode to 250m, plug-and-play, desk or wall mount.
1 × Surface Rain Cover — VTM05R
Surface-mount rain cover for the door station, shielding it from weather at the entry.
What's included in this kit?

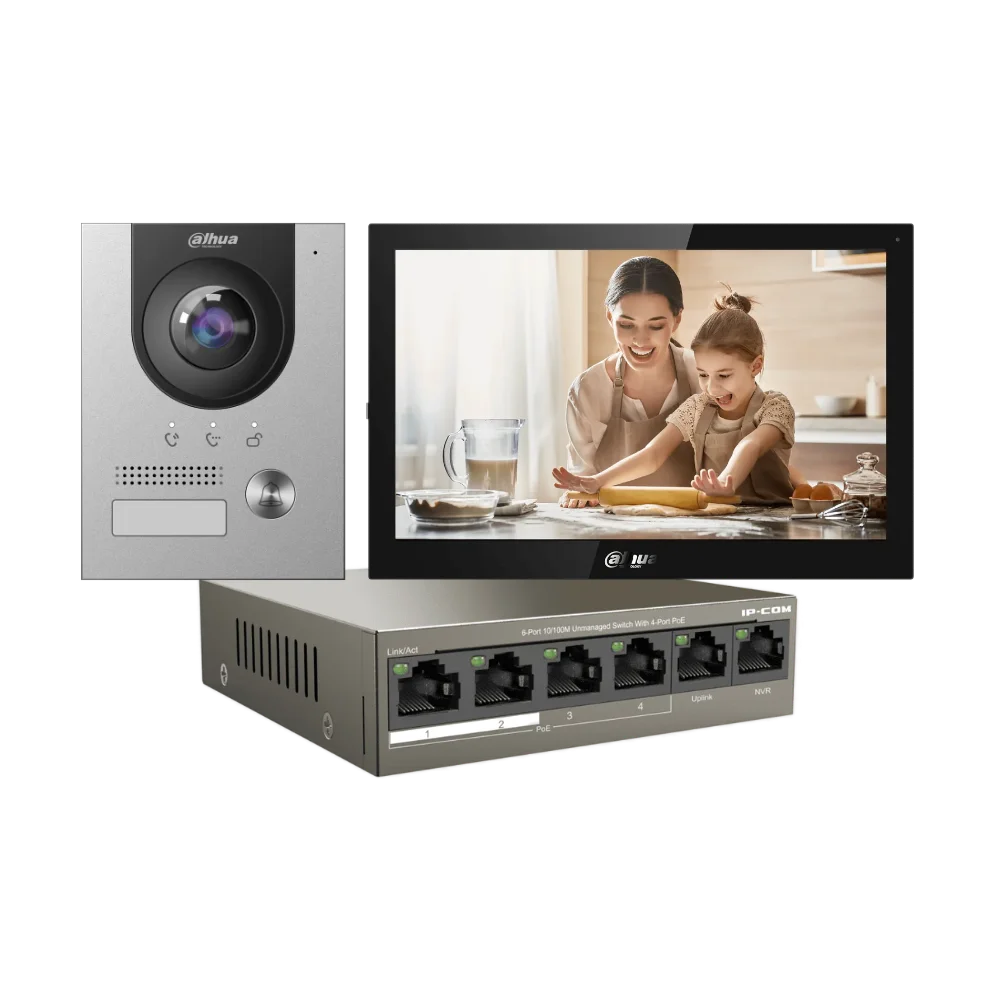

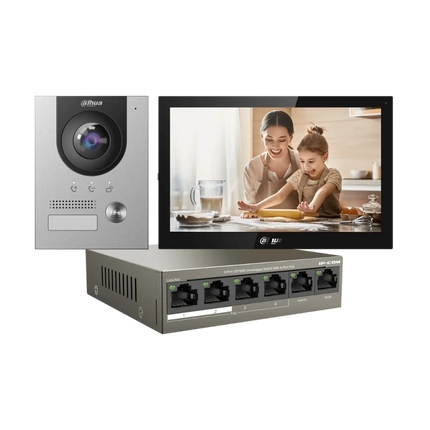

The VTO2202F-P-S2 door station, a 10-inch Android VTH5341G-W monitor, an IP-COM F1106P-4-63W 4-port PoE switch and a VTM05R rain cover.
What makes the monitor special?
It's a large 10-inch Android 8.1 touchscreen with a smooth, app-like interface and both Ethernet and Wi-Fi.
Can I answer the door from my phone?
Yes. The Dahua DMSS app lets you talk to visitors and unlock the door remotely.
Can it unlock more than one door?
Yes. The door station's access control supports two locks — for example a gate and a front door.
How wide is the camera view?
The 2MP colour fisheye camera captures a wide 160° view to see visitors and parcels close to the door.
How many devices does the PoE switch power?
The F1106P-4-63W has 4 PoE ports — ample for the monitor, door station and an extra camera, up to 30W each.
Is the door station weatherproof?
Yes. The VTO2202F-P-S2 is IP65 weather-rated and IK07 impact-rated, and ships with a surface rain cover.
Is a door lock included?
No. Electric strikes, magnetic locks and exit buttons are chosen separately to suit your door type.
